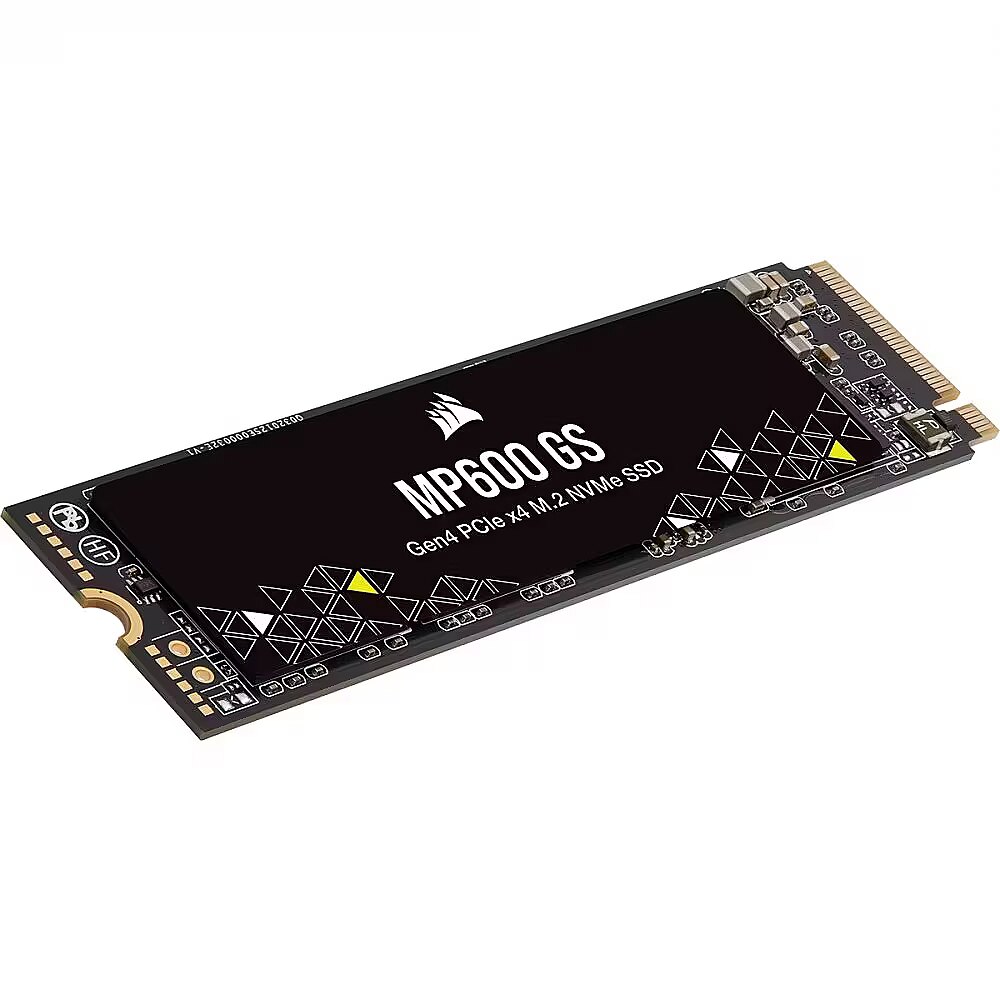

Corsair MP600 GS, 1TB, M.2 Gen4 x4

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 917166 Product code: CSSD-F1000GBMP600GS
In stock 10 units
Warranty: 3 years
99.86 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 29.11.2024
Main product parameters All parameters
  • Capacity: 1 TB
  • Type: NVMe
  • Read speed (sequential): 4800 MB/s
  • Write speed (sequential): 3900 MB/s
  • Form factor: M.2 80mm (2280)
  • Interface: PCIe 4.0 x4
Description

Available for purchase, the Corsair M.2 80mm (2280) format SSD disk with a large volume of 1 TB.

This SSD drive has a compact and modern M.2 connector.

This SSD drive uses the latest NVME standard with PCIe interface, which allows simultaneous data transmission across multiple data lines. Thanks to this technology, the drive is ideally suited for those who work with large files, play computer games or deal with video editing.

4800 MB/s – this is the data reading speed that this SSD disk is capable of reaching. However, we must remember one crucial nuance - "fast" disks may not show the performance promised by the manufacturer if adequate cooling is not provided.

The writing speed for this SSD disk reaches 3900 MB/s. Without a suitable cooling mechanism, "fast" disks may not be able to achieve the performance indicators promised by the manufacturer.

This SSD drive has an M.2 80mm (2280) format.

The SSD drive has a PCIe 4.0 x4 interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.

Basic information
Capacity 1 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type : NVMe
Read speed (sequential) 4800 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 3900 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality
Radiators : Nav
Lighting : Nav
Ports and equipment
Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 4.0 x4
Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija
Memory type : TLC (Triple-Level Cell)
Random Read IOPS : 580K
Random Write IOPS : 800K
Endurance (TBW) : 600 TB
More detailed specification
category - PC Components|Drives|Solid State Drives (SSDs)|M.2
Category - Root/Electronics/PC parts/Hard drives
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
code - CSSD-F1000GBMP600GS
Code - CSSD-F1000GBMP600GS
Color - Black
Depth - 80 mm
Description - MP600 GS 1TB PCIe 4.0 (Gen 4) x4 NVMe M.2 SSD The CORSAIR MP600 GS drive offers outstanding storage performance, ideal for PCIe Gen4 compatible laptops and notebooks, achieving exceptional sequential read and write speeds. EXTREME 4TH GENERATION STORAGE PERFORMANCE The fourth generation PCIe x4 controller provides phenomenal read, write and response times - much faster than standard M.2 SSDs. YOUR PC IN A FASTER VERSION Load games and Windows, open and transfer files faster than ever before. FAST INTERFACE GEN4 PCIe x4 NVME 1.4 M.2 Leveraging Gen 4 PCIe NVMe 1.4 technology for maximum bandwidth, the MP600 GS delivers incredible storage performance. 3D TLC HIGH DENSITY NAND It's the perfect combination of performance and durability, so this drive will perform - and do great - for years to come. COMPACT M.2 2280 FORMAT It can be installed directly on most motherboards, which is why it perfectly expands the capabilities of laptops and notebooks with processors that support PCIe Gen4.
Design > SSD form factor - M.2 2280
dimension depth - 12 mm
dimension height - 130 mm
dimension weight - 30 g
dimension width - 75 mm
Disk type - SSD
Drive type - Internal
EAN - 840006697190
ean - 0840006697190
ean - 840006697190
Eans - 840006697190
EAN_code - 0840006697190
Form factor (width) - M.2 2280
guarantee - 60
guarantee_type - normal
HDD capacity - 1 TB
HDD interface - PCI-Express
Height - 3 mm
Link - https://www.corsair.com/us/en/p/data-storage/cssd-f1000gbmp600gs/mp600-gs-1tb-pcie-4-0-gen-4-x4-nvme-m-2-ssd-cssd-f1000gbmp600gs?srsltid=AfmBOooVqmY4S-xjvCH6KBJDtXEbeo3RXKypKyYmePPUiE8porku_yDQ
Manufacturer - Corsair
Manufacturer_code - CSSD-F1000GBMP600GS
Model - MP600 GS
Name - Corsair Force Series MP600 GS M.2 Gen4 PCIe X4 NVMe 1TB
Name - Corsair MP600 GS 1 TB, SSD (black, PCIe 4.0 x4, NVMe 1.4, M.2 2280)
name - Corsair MP600 GS NVMe SSD, PCIe 4.0 M.2 Typ 2280 - 1 TB
Name - Corsair MP600 GS | 1000 GB | SSD form factor M.2 2280 | Solid-state drive interface PCIe Gen4x4 | Read speed 4800 MB/s | Write speed 3900 MB/s
name - SSD 1TB MP600 GS 4800/3900 MB/s M.2 Gen4 PCIe x4 NVMe 1.4
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 80.00 mm
Package features > Gross height (mm) - 3.00 mm
Package features > Gross width (mm) - 22.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 20000 pc(s)
Package features > Paper/Pasteboard - 15.00 g
Package features > Plastic (No PET) - 5.00 g
Package features > Tare weight (kg) - 0.02 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Performance > Read speed - 4800 MB/s
Performance > Solid-state drive capacity - 1000 GB
Performance > Solid-state drive interface - PCIe Gen4x4
Performance > Write speed - 3900 MB/s
producer - Corsair
Producer - Corsair
ProducerCode - CSSD-F1000GBMP600GS
Random read IOPS (max) - 580 K
Random write IOPS (max) - 800 K
Reading speed - 4800 MB/s
ShortDescription - SSD | 1TB | 4800/3900 MB/s | M.2 80mm | PCIe NVMe 4.0 x 4
TBW - 600 TB
Technical details > Gross weight - 0.05 kg
Technical details > Net weight - 0.03 kg
Technical details > Producer - Corsair
Technical details > Producer product name - MP600 GS
vendpn - CSSD-F1000GBMP600GS
Warranty - 36
Warranty - 36 month(s)
Weight - 0,03
Weight - 34 g
Width - 22 mm
Writing speed - 3900 MB/s
