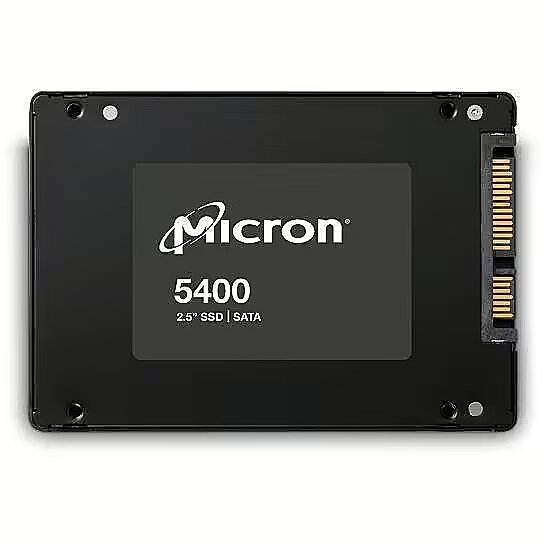

Micron SSD SATA2.5" 480GB 5400 PRO/MTFDDAK480TGA

Name: Micron SSD SATA2.5" 480GB 5400 PRO/MTFDDAK480TGA
Brand: Micron
SKU: 889981
Price: 153.9 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 889981 Product code: MTFDDAK480TGA-1BC1ZABYYR

In stock 29 units

Warranty: 3 years

Compare

Delivery options

Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
Courier delivery 11.99 €: on Wednesday, 27.11.2024

Main product parameters All parameters

Capacity: 480 GB
Type: SATA
Read speed (sequential): 540 MB/s
Write speed (sequential): 520 MB/s
Form factor: 2.5"
Interface: SATA III (6Gb/s)

Description

Available for purchase, the Micron 2.5" format SSD disk with a large volume of 480 GB.

The drive is equipped with the classic SATA port, which requires standard SATA data and power cables.

This disc uses SATA III technology - although it is an older protocol, the SATA type SSD disc is still very useful for everyday needs and in cases where you have to fit a certain budget.

This SSD disk read speed (Sequential read speed) is 540 MB/s. Keep in mind that "fast" disks without a proper cooling solution may not reach the speeds indicated by the manufacturer.

520 MB/s - this SSD drive is capable of achieving such data writing speed. The speed parameters promised by the manufacturer may not be reached if the "fast" disk is not provided with an appropriate cooling system.

This is an SSD disk in the 2.5" format.

This SSD drive interface is SATA III (6Gb/s). If you insert this drive into an older interface slot, the speed of the drive will decrease, as the drive will not have sufficient data transfer speed (Bandwidth).

Basic information

Capacity 480 GB

The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.

Type : SATA

Read speed (sequential) 540 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 520 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Ports and equipment

Form factor 2.5"

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : SATA III (6Gb/s)

Interface SATA

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija

Memory type : TLC (Triple-Level Cell)

Random Read IOPS : 95K

More detailed specification

Box Weight Brutto (kg) - 0.25 kg
Category Code - SFM
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD
Color - Not applicable
Depth - 100.45 mm
Depth (mm) - 7 mm
Description -
Description - The Industry’s Most Advanced Data Center SATA SSD The Micron 5400 SSD combines Micron’s proven data center SATA architecture with its advanced 176-layer NAND technology to give customers the best of both worlds. Get more from your SATA platforms with SSDs that have 50% better reliability (mean time to failure, MTTF rating)1 and up to 50% greater endurance than the other leading SATA SSD.2 With the industry’s broadest portfolio of data center SATA SSDs, the Micron 5400 gives you extensive options to get more out of every SATA socket in your servers. The Micron 5400 SSD is available in capacities ranging from 240GB to 7.68TB
Device Location - Internal
dimensionalWeight - 52
dimension depth - 15 mm
dimension height - 10 mm
dimension weight - 70 g
dimension width - 132 mm
Disk type - SSD
Drive thickness - 7mm
Drive type - Internal
Drive Writes Per Day (DWPD) - 1.5
DWPD - 1.5
ean - 649528933874
EAN Code - 649528933874
EAN_code - 0649528933874
External Color - Melna
External Data Bit Rate - 6 Gbps
Features - Component for - Server/workstation
Features - Data transfer rate - 6 Gbit/s
Features - DWPD - 1.5
Features - Hardware encryption - Yes
Features - Harmonized System (HS) code - 84717070
Features - Interface - Serial ATA
Features - Memory type - 3D TLC NAND
Features - NVMe - No
Features - Product series - 5400 PRO
Features - Random read (4KB) - 95000 IOPS
Features - Random write (4KB) - 37000 IOPS
Features - Security algorithms - 256-bit AES
Features - SSD capacity - 480 GB
Features - SSD form factor - 2.5"
Features - Target workload - Read Intensive (RI)
Features - Uncorrectable Bit Error Rate (UBER) - < 1 per 10^17 bits read
Flash Memory Cell Technology - Triple-Level Cell
Form Factor - 2,5"
Form Factor - 2.5"
Form factor (width) - 2,5'' (SFF)
Full Description Line - SSD series 5400 Pro|480GB|Technology 3D TLC|Write speed 520 MBytes/sec|Read speed 540 MBytes/sec|Form Factor 2,5"|DWPD 1.5|MTBF 3000000 hours|Drive thickness 7mm
guarantee - 60
guarantee_type - normal
HDD capacity - 480 GB
HDD interface - SATA III - 6 Gb/s
Height - 7 mm
Height (mm) - 69.85 mm
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/221202150019170741.jpg
Included Accessories - Documentation
Manufacturer - Micron
Manufacturer_code - MTFDDAK480TGA-1BC1ZABYYR
Maximum Operating Ambient Temperature - 70 °C
Maximum Power Consumption - 3.9 W
Maximum Random Read Rate - 95000 IOPS
Maximum Random Write Rate - 37000 IOPS
Maximum Sequential Read Rate - 540 MB/s
Maximum Sequential Write Rate - 520 MB/s
Mean Time Between Failures - 3000000 hr
Memory Technology - 3D NAND
Minimum Operating Ambient Temperature - 0 °C
Model - 5400 PRO
Model - MTFDDAK480TGA-1BC1ZABYY
MTBF - 3e+006 hours
Name - Micron 5400 PRO 480 GB, SSD (black, SATA 6 Gb/s, 2.5)
name - SSD drive 5400 PRO 480GB MTFDDAK480TGA-1BC1ZABYYR
NAND flash technology - 3D TLC
Nominal Weight - 70 g
Non-Recoverable Errors - 10 per 10^17
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Other features -
Package Type - Retail
Packs in Box - 5
Packs per Pallet - 1
Pack Weight Brutto (kg) - 0.05 kg
Pack Weight Netto (kg) - 0.05 kg
Pieces in pack - 1
producer - Micron
producerCode - MTFDDAK480TGA-1BC1ZABYYR
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=221003125253090999&THEME=asbis&LANG=lv
ProductCategory - SSD
ProductCode - MTFDDAK480TGA-1BC1ZABYYR
ProductDescription - Micron 5400 PRO 480GB SATA 2.5'' (7mm) Non-SED SSD [Single Pack], EAN: 649528933874
productName - SSD Micron 5400 PRO 480GB SATA 2.5" MTFDDAK480TGA-1BC1ZABYYR (DWPD 1.5)
productSize - Normal
ProductType - SSD Server
Random read IOPS (max) - 95 K
Random write IOPS (max) - 37 K
Reading speed - 540 MB/s
Read speed - 540 MBytes/sec
Retail Packaging Net Weight Carton - 0.05 kg
Retail Packaging Net Weight Plastic - 0.05 kg
Shipping Box Depth Shipping/Package Box Dimensions - 13 cm
Shipping Box Height Shipping/Package Box Dimensions - 1.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.07 kg
Shipping Box Width Shipping/Package Box Dimensions - 10 cm
sizeX - 130
sizeY - 100
sizeZ - 20
Solid State Drive Features - Power-loss Protection (data at rest)Non-SED
SSD Capacity - 480GB
SSD series - 5400 Pro
Storage Capacity - 480 GB
Supports Data Channel - SATA III-600
Unit Box Height - 0.015
Unit Box Length - 0.13
Unit Box Width - 0.1
Unit Brutto Volume - 0.000195 cubm
Unit Gross Weight - 0.07 kg
Unit Net Weight - 0.065 kg
Vendor - MICRON
Vendor Homepage - media-www.micron.com/-/media/client/global/documents/products/product-flyer/5400_product_brief.pdf?la=en&rev=c11ea20b11fd4391b5b1aae897b79e8b
vendpn - MTFDDAK480TGA-1BC1ZABYYR
Warranty - 60L months
warrantyLength - 60
Warranty Products Returnable - Yes
Warranty Term (month) - 60 mēneši
warrantyType - G
Warranty validation Criteria - Serial Number
Weight - 0,07
weight - 65
Weight - 70 g
Weight & dimensions - Depth - 100.5 mm
Weight & dimensions - Height - 7 mm
Weight & dimensions - Weight - 70 g
Weight & dimensions - Width - 69.8 mm
Width - 69.85 mm
Width (mm) - 100.45 mm
Write speed - 520 MBytes/sec
Writing speed - 520 MB/s
