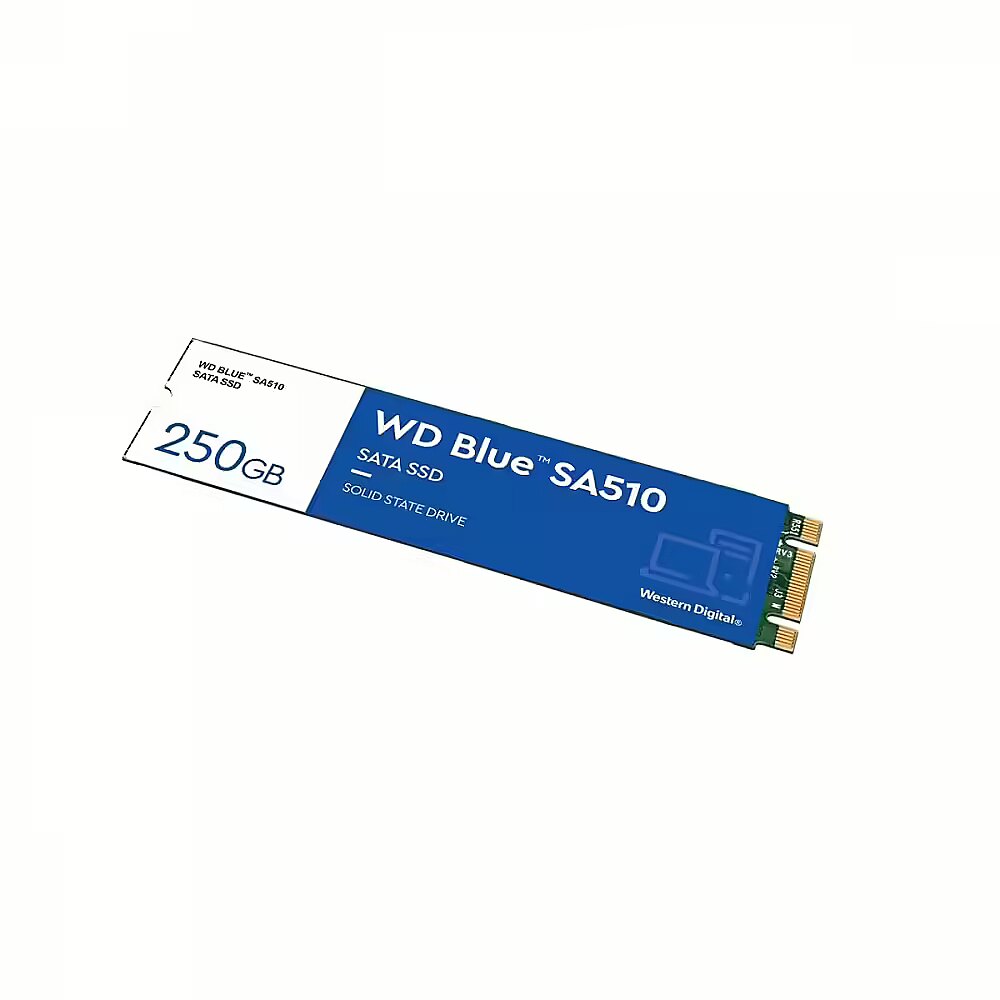

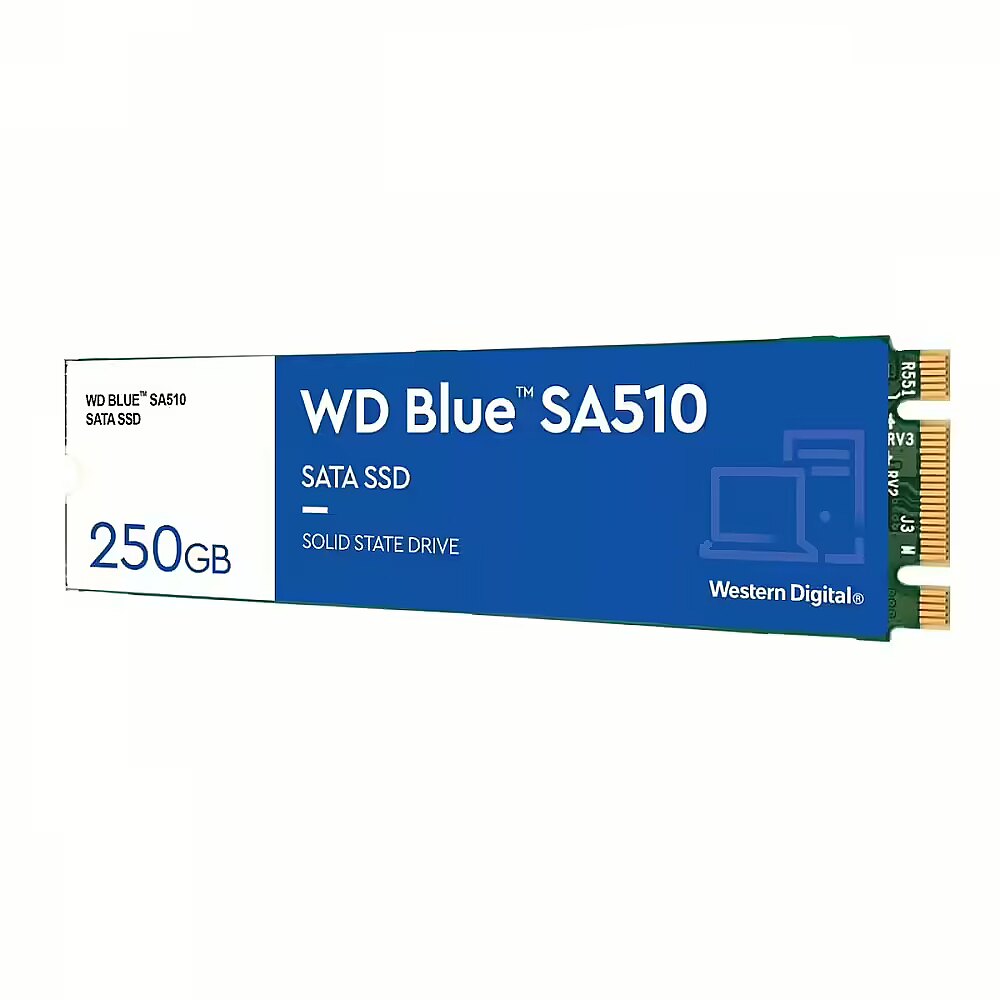

Western Digital Blue SA510, 250GB, M.2 SATA

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 865275 Product code: WDS250G3B0B
In stock 3 units
Warranty: 3 years
44.27 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 29.11.2024
Main product parameters All parameters
  • Capacity: 250 GB
  • Type: SATA
  • Read speed (sequential): 555 MB/s
  • Write speed (sequential): 440 MB/s
  • Form factor: M.2 80mm (2280)
  • Interface: SATA III (6Gb/s)
Description

Available for purchase, the Western Digital M.2 80mm (2280) format SSD disk with a large volume of 250 GB.

The disk is equipped with the currently most advanced and compact M.2 connection port.

This disc uses SATA III technology - although it is an older protocol, the SATA type SSD disc is still very useful for everyday needs and in cases where you have to fit a certain budget.

555 MB/s – this is the data reading speed that this SSD disk is capable of reaching. However, we must remember one crucial nuance - "fast" disks may not show the performance promised by the manufacturer if adequate cooling is not provided.

440 MB/s - this SSD drive is capable of achieving such data writing speed. The speed parameters promised by the manufacturer may not be reached if the "fast" disk is not provided with an appropriate cooling system.

The format of this SSD drive (physical size of the drive) is M.2 80mm (2280).

This SSD disk has a SATA III (6Gb/s) interface. Keep in mind that if you insert a disk with a newer interface (for example, with PCIe 4.0 or 5.0) into an older interface slot (for example, PCIe 3.0), the disk speed will decrease because the disk will not have sufficient data transfer speed (Bandwidth).

Basic information
Capacity 250 GB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type : SATA
Read speed (sequential) 555 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 440 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality
Radiators : Nav
Lighting : Nav
Ports and equipment
Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : SATA III (6Gb/s)
Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija
Memory type : TLC (Triple-Level Cell)
Random Read IOPS : 80K
Random Write IOPS : 78K
Endurance (TBW) : 100 TB
More detailed specification
Additional information in manufacturers website Western Digital Blue SA510, 250GB, M.2 SATA
ARTIKEL1 - 250GB BLUE SSD M.2 SA510 2280
ARTIKEL2 - SATA III 6 GB/S
Box Weight Brutto (kg) - 0.012 kg
Breite - 0.1
Category - Root/Electronics/PC parts/Hard drives
Category 1 - SSDs
Category 2 - Interne SSDs
Category Code - SSU
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
Color - Not applicable
Depth - 80 mm
Depth (mm) - 80 mm
Description - SSD drive Blue 250GB SA510 M.2 2280 WDS250G3B0B
Description - WD Blue SA510 SATA SSD M.2 2280 Breathe new life into your PC so you can push the boundaries of your work. Designed specifically for professionals, creatives, freelancers, social influencers, and other passionate content creators and editors, the WD Blue™ SA510 SATA SSD helps boost your PC’s performance so you can be more productive
Device Location - Plug-in Module
dimension depth - 20 mm
dimension height - 130 mm
Dimensions - 80mm x 22mm x 2.38mm
dimension weight - 40 g
dimension width - 120 mm
Disk type - SSD
Drive thickness - 2.38mm
Drive type - Internal
EAN - 0718037884691
ean - 803788469102
EANCode - 0718037884691
Eans - 718037884691
EAN_code - 0718037884691
External Color - Blue
External Data Bit Rate - 6 Gbps
Form Factor - M.2
Form Factor - M.2 (2280)
Form factor (width) - M.2 2280
Full Description Line - SSD series Blue SA510|250GB|Form Factor M.2|SATA 3.0|Write speed 440 MBytes/sec|Read speed 555 MBytes/sec|Drive thickness 2.38mm|TBW 100 TB|MTBF 1750000 hours
Gewicht - 0.04
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
guarantee - 60
guarantee_type - normal
HDD capacity - 250 GB
HDD interface - SATA III - 6 Gb/s
Height - 2.38 mm
Height (mm) - 2.38 mm
HERSTELLER - WESTERN DIGITAL
Hoehe - 0.02
HSTNUMMER - WDS250G3B0B
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/220610140016799896.jpg
Laenge - 0.13
Manufacturer - Western Digital
Manufacturer_code - WDS250G3B0B
Maximum Non-Operating Ambient Temperature - 85 °C
Maximum Operating Ambient Temperature - 70 °C
Maximum Power Consumption - 2 W
Maximum Random Read Rate - 80000 IOPS
Maximum Random Write Rate - 78000 IOPS
Maximum Sequential Read Rate - 555000 MB/s
Maximum Sequential Write Rate - 440000 MB/s
Mean Time Between Failures - 1750000 hr
Memory Technology - NAND Flash
Minimum Non-Operating Ambient Temperature - -40 °C
Minimum Operating Ambient Temperature - 0 °C
Minimum Power Consumption - 12 mW
Model - Blue SA510
MPN - WDS250G3B0B
MTBF - 1.75e+006 hours
Name - M.2 250GB WD Blue SA510
name - SSD drive Blue 250GB SA510 M.2 2280 WDS250G3B0B
Name - WD Blue SA510 250 GB - SSD - SATA - M.2 - blue/white
Name - WD Blue SA510 M.2 250GB
Nominal Weight - 0.0048 kg
Other features -
Package Type - Box
Packs in Box - 1
Pack Weight Brutto (kg) - 0.012 kg
Pack Weight Netto (kg) - 0.0048 kg
Pieces in pack - 1
Producer - WD
producer - Western Digital
ProducerCode - WDS250G3B0B
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=220518113510719092&THEME=asbis&LANG=lv
ProductCategory - SSD
ProductCode - WDS250G3B0B
ProductDescription - SSD WD Blue (M.2, 250GB, SATA 6Gb/s)
ProductType - SSD Client
Random read IOPS (max) - 80 K
Random write IOPS (max) - 78 K
Reading speed - 555 MB/s
Read speed - 555 MBytes/sec
Retail Packaging Net Weight Carton - 0 kg
Retail Packaging Net Weight Plastic - 0 kg
SATA 3.0 Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 13 cm
Shipping Box Height Shipping/Package Box Dimensions - 10.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.039 kg
Shipping Box Width Shipping/Package Box Dimensions - 2 cm
Shock Tolerance Operating - 1500G @ 0.5ms
ShortDescription - SSD | 250GB | 555/440 MB/s | M.2 | 2280 |
Solid State Drive Features - DEVSLP Mode
SSD Capacity - 250GB
SSD series - Blue SA510
Stck_Kart - 0
Stck_Pal - 0
Storage Capacity - 250 GB
Storno - Y
Supports Data Channel - SATA III-600
TBW - 100 TB
TBW - 100 TB
Technical_details - Type: SSD Colour: blue/white EAN: 0718037884691 Manufacturer No.: WDS250G3B0B Series: WD Blue SA510 Design: plug-in card Capacity: 250GB Interface: 1x M.2 (M.2 module key: B + M) Internal interface: SATA Data transfer rate: 555 MB/s : 440MB/s Power Consumption: 2W : 50mW : 12mW IOPS: 80,000 : 78,000 MTBF: 1,750,000 hours TBW: 100TB Dimensions: Width: 22mm x Height: 2.38mm x Depth/Length: 80mm Weight: 5 grams
Total Bytes Written (TBW) - 100 TB
Unit Box Height - 0.105
Unit Box Length - 0.13
Unit Box Width - 0.02
Unit Brutto Volume - 0.000273 cubm
Unit Gross Weight - 0.039 kg
Unit Net Weight - 0.0048 kg
Vendor - WESTERN DIGITAL
Vendor Homepage - www.westerndigital.com/products/internal-drives/wd-blue-sa510-sata-m-2-ssd#WDS250G3B0B
vendpn - WDS250G3B0B
Vibration Tolerance Operating - 5G @ 10-2000Hz
Warranty - 60L months
Warranty Products Returnable - Yes
Warranty Term (month) - 60 mēneši
Warranty validation Criteria - Serial Number
Weight - 0,04
Weight - 0.04
Weight - 4.8 g
Width - 22 mm
Width (mm) - 22 mm
Write speed - 440 MBytes/sec
Writing speed - 440 MB/s
