Intel D3-S4520, 7.68TB, Bulk

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 807004 Product code: SSDSC2KB076TZ01
In stock 5 units
Warranty: 3 years
1,243.04 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: on Thuesday, 26.11.2024
Main product parameters All parameters
  • Capacity: 7.68TB
  • Type: SATA
  • Read speed (sequential): 550 MB/s
  • Write speed (sequential): 510 MB/s
  • Form factor: 2.5"
  • Interface: SATA III (6Gb/s)
Description

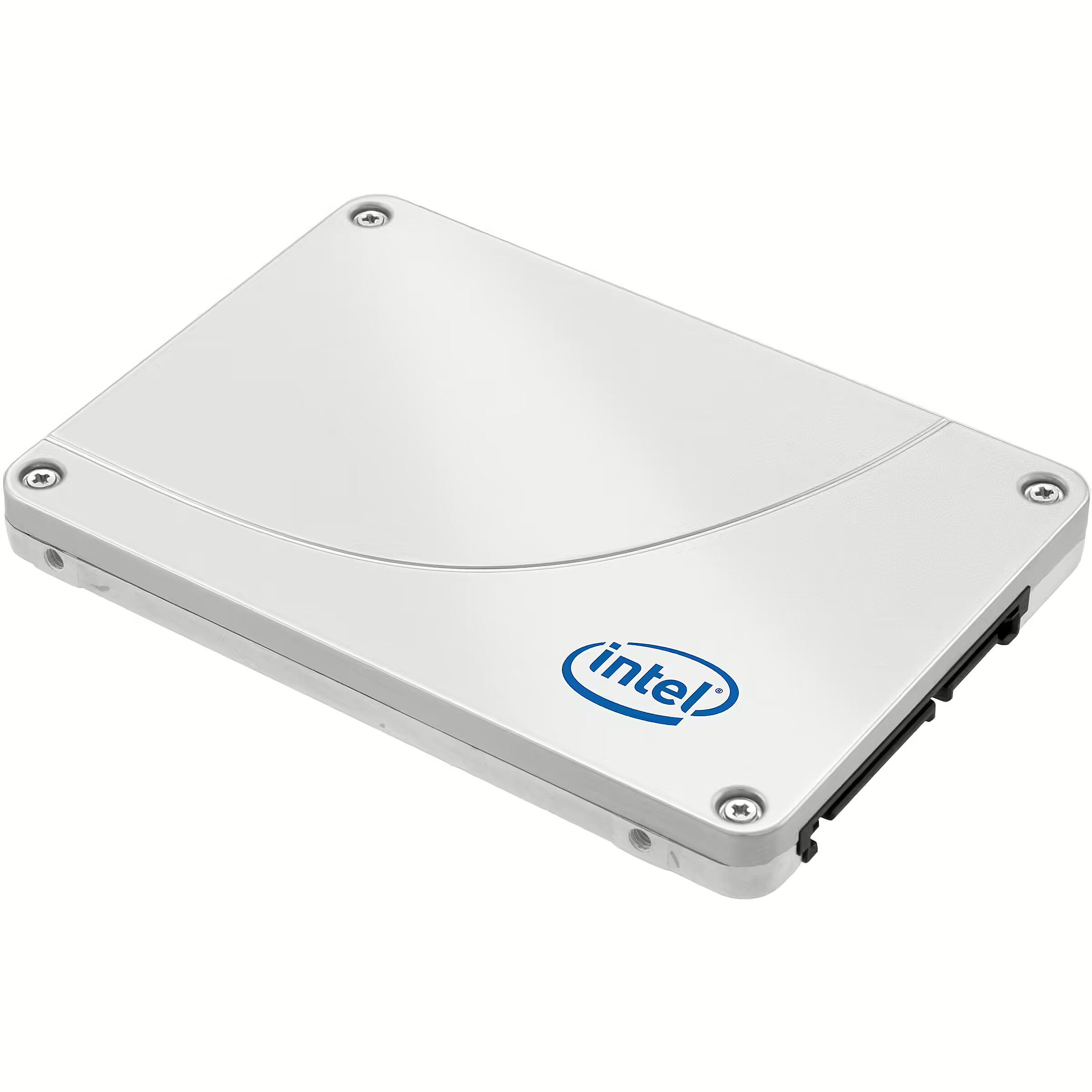

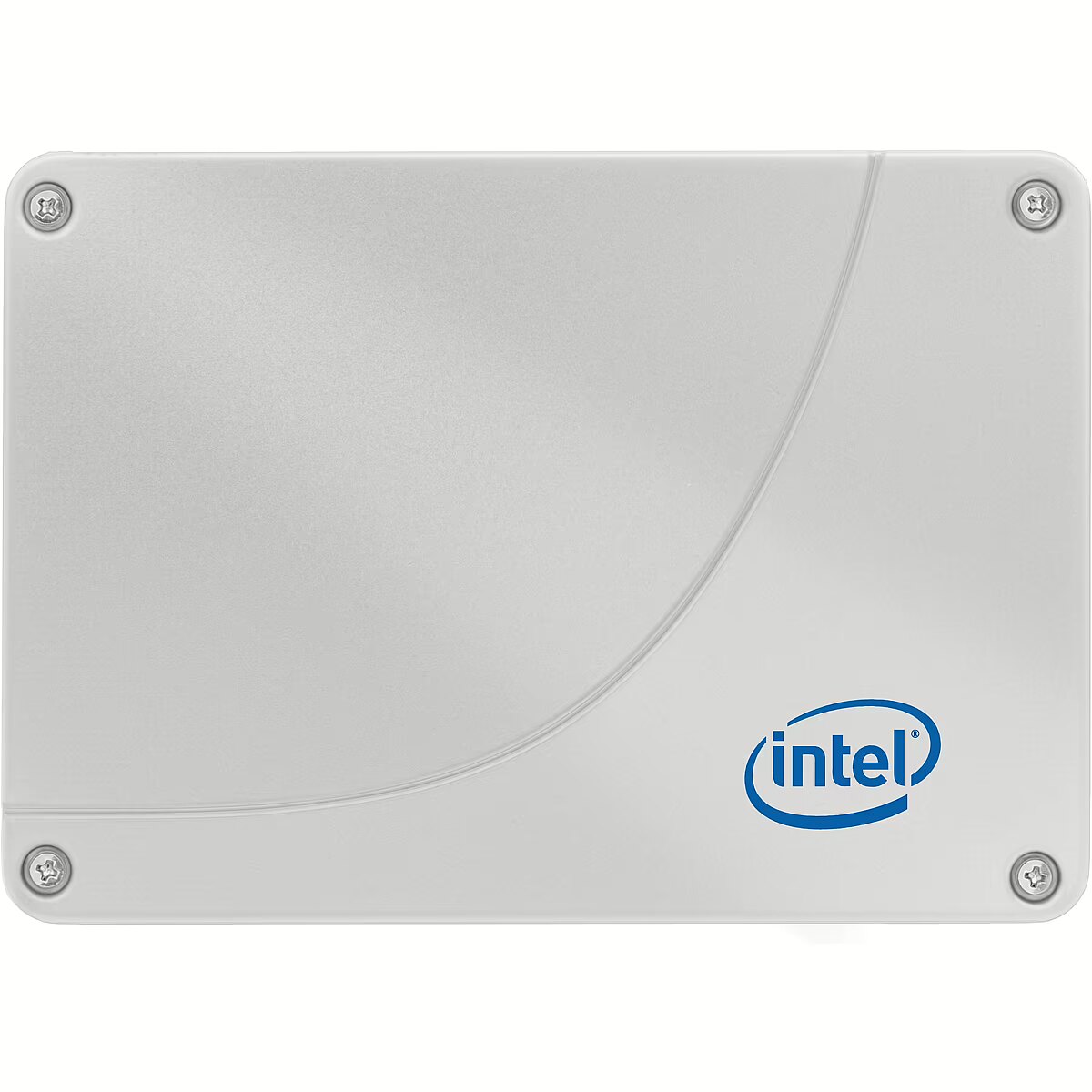

This Intel brand SSD has a 7.68TB capacity and a 2.5" format.

The disk is equipped with the traditional SATA port. It uses SATA data and power cables.

This disc uses SATA III technology - although it is an older protocol, the SATA type SSD disc is still very useful for everyday needs and in cases where you have to fit a certain budget.

This SSD disk read speed (Sequential read speed) is 550 MB/s. Keep in mind that "fast" disks without a proper cooling solution may not reach the speeds indicated by the manufacturer.

The writing speed for this SSD disk reaches 510 MB/s. Without a suitable cooling mechanism, "fast" disks may not be able to achieve the performance indicators promised by the manufacturer.

The format of this SSD drive (physical size of the drive) is 2.5".

This SSD drive interface is SATA III (6Gb/s). If you insert this drive into an older interface slot, the speed of the drive will decrease, as the drive will not have sufficient data transfer speed (Bandwidth).

Basic information
Capacity 7.68TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type : SATA
Read speed (sequential) 550 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 510 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality
Radiators : Nav
Lighting : Nav
Ports and equipment
Form factor 2.5"

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : SATA III (6Gb/s)
Interface SATA

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija
Memory type : TLC (Triple-Level Cell)
Random Read IOPS : 86K
Random Write IOPS : 30K
Endurance (TBW) : Not indicated
More detailed specification
Additional information in manufacturers website Intel D3-S4520, 7.68TB, Bulk
Box Weight Brutto (kg) - 5.57 kg
Code - SSDSC2KB076TZ01
Design > SSD form factor - 2.5"
Device Location - Plug-in Module
EAN - 735858482707
EAN Code - 735858482707
External Data Bit Rate - 6 Gbps
Flash Memory Cell Technology - Triple-Level Cell
Form Factor - 2.5" 7mm
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/210929160039664717.jpg
Maximum Operating Ambient Temperature - 70 °C
Maximum Power Consumption - 4.3 W
Maximum Sequential Read Rate - 550 MB/s
Maximum Sequential Write Rate - 510 MB/s
Mean Time Between Failures - 2000000 hr
Memory Technology - 3D NAND
Minimum Operating Ambient Temperature - 0 °C
Minimum Power Consumption - 1.4 W
Name - Intel | SSD | NT-99A0D7 S4520 | 7680 GB | SSD form factor 2.5" | Solid-state drive interface SATA 3.0 6Gb/s | Read speed 550 MB/s | Write speed 510 MB/s
Non-Recoverable Errors - 1 per 10^17
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 100.00 mm
Package features > Gross height (mm) - 5.00 mm
Package features > Gross width (mm) - 70.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 16667 pc(s)
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.02 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Package Type - Retail
Packs in Box - 50
Pack Weight Brutto (kg) - 0.06 kg
Pack Weight Netto (kg) - 0.1 kg
Parent Products - Server/Enterprise
Performance > Read speed - 550 MB/s
Performance > Solid-state drive capacity - 7680 GB
Performance > Solid-state drive interface - SATA 3.0 6Gb/s
Performance > Write speed - 510 MB/s
Pieces in pack - 1
Producer product family - SSD
Producer product name - NT-99A0D7 S4520
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=210719140831150977&THEME=asbis&LANG=lv
ProductCategory - SSD
ProductCode - SSDSC2KB076TZ01
ProductDescription - Intel SSD D3-S4520 Series (7.68TB, 2.5in SATA 6Gb/s, 3D4, TLC) Generic Single Pack, MM# 99A0D7, EAN: 735858482707
ProductType - SSD Server
Shock Tolerance Operating - 1000G @ 0.5ms
Shock Tolerance Storage - 1000G @ 0.5ms
Solid State Drive Features - AES 256-bit EncryptionEnd-to-End Data ProtectionEnhanced Power Loss Data ProtectionTemperature Monitoring and Logging
Storage Capacity - 7.68 TB
Supports Data Channel - SATA III-600
Technical details > Gross weight - 0.06 kg
Technical details > Net weight - 0.04 kg
Technical details > Producer - Intel
Total Bytes Written (TBW) - 36.5 PB
Vendor - INTEL
Vibration Tolerance Operating - 2.17G @ 5-700Hz
Vibration Tolerance Storage - 3.13G @ 5-800Hz
Warranty - 36
Warranty - 36 month(s)
Warranty Products Returnable - Yes
Warranty Term (month) - 60 mēneši
Warranty validation Criteria - Serial Number
