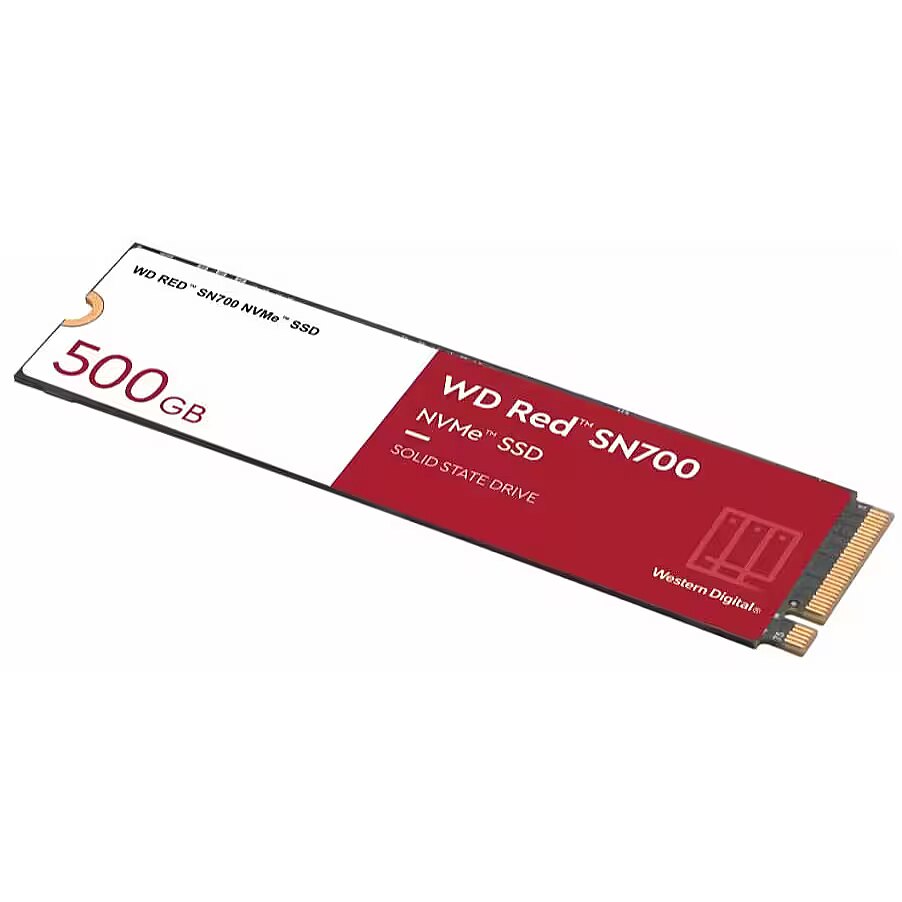

Western Digital Red SN700, 500GB, M.2 Gen3 x4

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 764527 Product code: WDS500G1R0C
In stock 5 units
Warranty: 3 years
68.27 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 29.11.2024
Main product parameters All parameters
  • Capacity: 500 GB
  • Type: NVMe
  • Read speed (sequential): 3430 MB/s
  • Write speed (sequential): 2600 MB/s
  • Form factor: M.2 80mm (2280)
  • Interface: PCIe 3.0 x4
Description

This Western Digital brand SSD has a 500 GB capacity and a M.2 80mm (2280) format.

This disc uses the latest generation compact M.2 port.

This is an NVME type SSD drive. It uses the PCI-e protocol, which allows data to be transmitted over multiple lines at the same time. This type of drive is ideal for processing large files, gaming, video editing, and other resource-intensive tasks.

This SSD disk read speed (Sequential read speed) is 3430 MB/s. Keep in mind that "fast" disks without a proper cooling solution may not reach the speeds indicated by the manufacturer.

2600 MB/s - this SSD drive is capable of achieving such data writing speed. The speed parameters promised by the manufacturer may not be reached if the "fast" disk is not provided with an appropriate cooling system.

This SSD drive has an M.2 80mm (2280) format.

This SSD drive interface is PCIe 3.0 x4. If you insert this drive into an older interface slot, the speed of the drive will decrease, as the drive will not have sufficient data transfer speed (Bandwidth).

Basic information
Capacity 500 GB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type : NVMe
Read speed (sequential) 3430 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 2600 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality
Radiators : Nav
Lighting : Nav
Ports and equipment
Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 3.0 x4
Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija
Memory type : Nav norādīts
Random Read IOPS : 420K
Random Write IOPS : 380K
Endurance (TBW) : 1000 TB
More detailed specification
Additional information in manufacturers website Western Digital Red SN700, 500GB, M.2 Gen3 x4
ARTIKEL1 - RED SN700 NVME SSD 500GB
ARTIKEL2 - M.2 PCIE GEN3 5Y WARRANTY
Category - Root/Electronics/PC parts/Hard drives
Category 1 - SSDs
Category 2 - Interne SSDs
Category Code - SSU
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
Color - Not applicable
Depth - 80 mm
Description - Przyspiesz swoje urządzenie NAS
Sprostaj ekstremalnym wymaganiom środowisk urządzeń NAS o ekstremalnym obciążeniu i wysokiej intensywności dzięki szybkiemu buforowaniu dysku SSD WD Red SN700 NVMe. Krótki czas reakcji systemu i niezwykła wydajność wykonywania operacji wejścia/wyjścia sprawiają, że ten dysk jest idealny do wielozadaniowej pracy przy wielu użytkownikach. Pozwala to na okiełznanie najtrudniejszych projektów dla małych i średnich firm: od wirtualizacji, poprzez wspólną edycję, aż po przechowywanie dużej ilości danych w magazynie danych i wysokiej wydajności buforowanie wszystko to przy jednoczesnym obniżeniu całkowitego kosztu posiadania. Przyspiesz swoje urządzenie NAS
Szybkie buforowanie dysku SSD WD Red SN700 NVMe zapewnia krótki czas reakcji systemu i niezwykłą wydajność wykonywania operacji wejścia/wyjścia w porównaniu z naszymi dyskami SSD SATA. Wejdź na wyższy poziom dzięki NVMe
Okiełznaj najtrudniejsze projekty dla małych i średnich firm od wirtualizacji, poprzez wspólną edycję, aż po przechowywanie dużej ilości danych w magazynie danych i wysokiej wydajności buforowanie dzięki magazynom danych pomagającym zyskać przewagę przy jednoczesnym obniżeniu całkowitego kosztu posiadania. Idealny dla małych i średnich firm
Nawet w mniejszych firmach wielu użytkowników pracujących jednocześnie może stanowić obciążenie dla urządzenia NAS. Buforowanie NVMe pozwala na łatwą, wielozadaniową pracę przy losowym obciążeniu i wielu użytkownikach, co zapewnia większe osiągnięcia małym i średnim firmom. Zoptymalizuj swoją pracę
Przetestowany i zbudowany z myślą o kompatybilności z wieloma najpopularniejszymi obecnie systemami NAS dla osiągnięcia maksymalnej elastyczności optymalizującej pracę.
Description - Tackle extreme workloads in high-intensity NAS environments with the fast-caching WD Red SN700 NVMe
dimensionalWeight - 50
dimension depth - 25 mm
dimension height - 120 mm
Dimensions - 3.15" x 0.87" x 0.09"
dimension weight - 40 g
dimension width - 100 mm
Disk type - SSD
Drive type - Internal
ean - 718037891439
EAN - 0718037891439
EANCode - 0718037891439
Eans - 0718037891439
EAN_code - 0718037891439
Features - Component for - NAS
Features - Data transfer rate - 8 Gbit/s
Features - Hardware encryption - No
Features - Interface - PCI Express 3.0
Features - Mean time between failures (MTBF) - 1750000 h
Features - NVMe - Yes
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 420000 IOPS
Features - Random write (4KB) - 380000 IOPS
Features - Read speed - 3430 MB/s
Features - SSD capacity - 500 GB
Features - SSD form factor - M.2
Features - TBW rating - 1000
Features - Write speed - 2600 MB/s
Form Factor - M.2
Form factor (width) - M.2 2280
Full Description Line - SSD series Red SN700|500GB|Form Factor M.2|PCIE|NVMe|Write speed 2600 MBytes/sec|Read speed 3430 MBytes/sec
Gewicht - 0.05
Gross Weight Kg - 0,07
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
guarantee - 60
guarantee_type - normal
HDD capacity - 500 GB
HDD interface - PCI-Express
Height - 2.38 mm
HERSTELLER - WESTERN DIGITAL
HSTNUMMER - WDS500G1R0C
Logistics data - Harmonized System (HS) code - 84717070
Manufacturer - Western Digital
Manufacturer Code - WDS500G1R0C
Manufacturer Name - Western Digital
Manufacturer_code - WDS500G1R0C
Model - Red SN700
MPN - WDS500G1R0C
name - Dysk SSD Red 500GB SN700 2280 NVMe M.2 PCIe
Name - M.2 500GB WD Red SN700 NVMe PCIe 3.0 x 4
Name - WD Red SN700 500GB, SSD - M.2 - PCIe 3.0 x4, NVMe
Name - WD Red SN700 SSD M.2 Pcie NVMe 500GB
NVMe - Yes
Operational conditions - Maximum operating temperature - 70 °C
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -55 - 85 °C
Other features -
PCIE Interface - Yes
Power - Current - 2.8 A
Power - Power consumption (sleep) - 0.0035 W
Producer - WD
producer - Western Digital
producerCode - WDS500G1R0C
ProducerCode - WDS500G1R0C
productName - Western Digital WD Red SN700 500 GB M.2 PCI Express 3.0 NVMe
productSize - Normal
Random read IOPS (max) - 420 K
Random write IOPS (max) - 380 K
Reading speed - 3430 MB/s
Read speed - 3430 MBytes/sec
Shipping Box Depth Shipping/Package Box Dimensions - 23 cm
Shipping Box Height Shipping/Package Box Dimensions - 14 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 0.6 kg
Shipping Box Width Shipping/Package Box Dimensions - 12 cm
ShortDescription - SSD | 500GB | 3420/3000 MB/s | m2| 2280 | PCIe NVMe 3.0x4
Short description - WD SSD M.2 (2280) 500GB Red / NAS 24x7 /NVMe (Di)
sizeX - 20
sizeY - 100
sizeZ - 125
SSD Capacity - 500GB
SSD series - Red SN700
Stck_Kart - 10
Stck_Pal - 0
Storno - Y
TBW - 1000 TB
Technical_details - Red SN700 500GB, SSD The fast WD Red SN700 NVMe SSD handles extreme workloads in labor-intensive NAS environments. This high-performance drive is designed for 24/7 operation in environments with always-on applications and offers the ultimate in reliability and durability. Its fast system response and outstanding I/O performance are perfect prerequisites for multitasking applications with multiple users. Efficient caching makes the SSD suitable for demanding business tasks - whether virtualization, collaborative editing or intensive database use - while reducing the total cost of ownership. Optimized and tested for NAS, this drive sets new standards for small to medium-sized businesses - thanks to NVMe technology, high speeds and large capacities. That's the power of WD Red. Type: SSD EAN: 0718037891439 Manufacturer No.: WDS500G1R0C Series: WD Red SN700 Design: plug-in card Capacity: 500GB Interface: 1x M.2 (M.2 module key: M) Internal interface: PCIe 3.0 Data transfer rate: Read | 3,430MB/s Data transfer rate: Write | 2,600MB/s Power Consumption: Quiet | 70mW Power Consumption: Sleep | 3.5mW IOPS: Read | 420,000 IOPS: Write | 380,000 MTBF: 1,750,000 hours TBW: 1,000TB Dimensions: Width: 22mm x Height: 2.38mm x Depth/Length: 80mm Weight: 8 grams
Unit Box Height - 0.14
Unit Box Length - 0.23
Unit Box Width - 0.12
Unit Brutto Volume - 0.0003864 cubm
Unit Gross Weight - 0.06 kg
Unit Net Weight - 0.02 kg
Vendor Homepage - www.westerndigital.com/products/internal-drives/wd-red-sn700-nvme-ssd#WDS500G1R0C
vendpn - WDS500G1R0C
Warranty - 60L months
warrantyLength - 60
warrantyType - G
Weight - 0,04
Weight - 0.04
Weight - 7.5 g
weight - 40
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 2.38 mm
Weight & dimensions - Weight - 7.5 g
Weight & dimensions - Width - 22 mm
Width - 22 mm
Write speed - 2600 MBytes/sec
Writing speed - 2600 MB/s
