ID: 738528
Product code: ZP2000GM3A023
Can be ordered 1 units Availability: 14 days after order approval
Warranty: 3 years

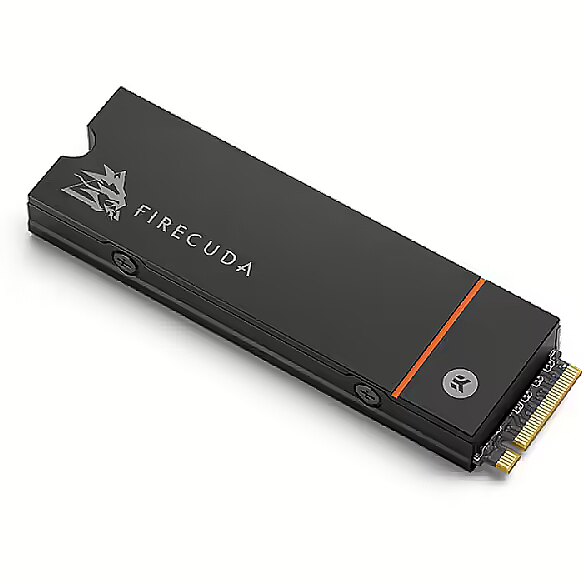

Seagate FireCuda 530, 2TB, M.2 Gen4 x4, With Heatsink
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 11.12.2024
Main product parameters All parameters
- Capacity: 2 TB
- Type: NVMe
- Read speed (sequential): 7300 MB/s
- Write speed (sequential): 6900 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 4.0 x4
Description
Available for purchase, the Seagate M.2 80mm (2280) format SSD disk with a large volume of 2 TB.
This SSD drive has a compact and modern M.2 connector.
This SSD drive uses the latest NVME standard with PCIe interface, which allows simultaneous data transmission across multiple data lines. Thanks to this technology, the drive is ideally suited for those who work with large files, play computer games or deal with video editing.
7300 MB/s – this is the data reading speed that this SSD disk is capable of reaching. However, we must remember one crucial nuance - "fast" disks may not show the performance promised by the manufacturer if adequate cooling is not provided.
6900 MB/s - this SSD drive is capable of achieving such data writing speed. The speed parameters promised by the manufacturer may not be reached if the "fast" disk is not provided with an appropriate cooling system.
This SSD drive is equipped with a heatsink or a cooler, which helps to keep the memory chips cool and ensure stable writing and reading speed during prolonged operation. Even if a "fast" drive without a heatsink is chosen, in 99% of cases the system board will be equipped with an M.2 slot cooler.
This SSD drive has an M.2 80mm (2280) format.
This SSD drive interface is PCIe 4.0 x4. If you insert this drive into an older interface slot, the speed of the drive will decrease, as the drive will not have sufficient data transfer speed (Bandwidth).
Basic information
Capacity
2 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVMe
Read speed (sequential)
7300 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
6900 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: Ir
Lighting
: Nav
Ports and equipment
Form factor
M.2 80mm (2280)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 4.0 x4
Interface
M.2
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specifikācija
Memory type
: TLC (Triple-Level Cell)
Random Read IOPS
: 1m
Random Write IOPS
: 1m
Endurance (TBW)
: 2550 TB
More detailed specification
ARTIKEL1 - FIRECUDA 530 NVME SSD 2TB M.2S
ARTIKEL2 - PCIE GEN4 3D TLC HEATSINK
Brand - Seagate
BrandPartCode - ZP2000GM3A023
Breite - 0.11
Category - Internal Solid State Drives
EANCode - 0763649167564
Features - Component for - PC
Features - Controller type - Phison E18
Features - Interface - PCI Express 4.0
Features - Linux operating systems supported - Yes
Features - M.2 SSD size - 2280 (22 x 80 mm)
Features - Mean time between failures (MTBF) - 1800000 h
Features - Memory type - 3D TLC
Features - NVMe - Yes
Features - NVMe version - 1.4
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 1000000 IOPS
Features - Random write (4KB) - 1000000 IOPS
Features - Read speed - 7300 MB/s
Features - S.M.A.R.T. support - Yes
Features - SSD capacity - 2 TB
Features - SSD form factor - M.2
Features - TBW rating - 2550
Features - TRIM support - Yes
Features - Windows operating systems supported - Windows 10
Features - Write speed - 6900 MB/s
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
GTIN - 0763649167564
GTIN - 763649167564
GTIN - 8719706426046
HERSTELLER - SEAGATE
Hoehe - 0.03
HSTNUMMER - ZP2000GM3A023
Laenge - 0.16
Logistics data - Harmonized System (HS) code - 84717070
Logistics data - Layers per pallet - 4 pc(s)
Logistics data - Master (outer) case gross weight - 920 g
Logistics data - Master (outer) case length - 169 mm
Logistics data - Master (outer) cases per pallet - 48 pc(s)
Logistics data - Master (outer) case width - 278 mm
Logistics data - Pallet gross height - 70.6 cm
Logistics data - Pallet gross length - 121.9 cm
Logistics data - Pallet gross weight - 47.5 kg
Logistics data - Pallet gross width - 50.8 cm
Logistics data - Products per master (outer) case - 10 pc(s)
Logistics data - Products per pallet - 480 pc(s)
LongDesc - FireCuda 530 with heatsink offers a minimalist design, anodized aluminium body, and finely textured micropore surface to improve heat transfer and lower SSD temps — making it super-efficient at maximum cooling to maintain peak performance for longer periods of time.FireCuda 530 with heatsink is also compatible with PS5™ systems. Our built-in SSD and heatsink combo meets PS5 specs on performance and dimensions.Speed Reigns — The Fastest FireCuda EverFireCuda 530 dominates the SSD lineup, delivering:- Blistering transfer speeds of up to 7,300 MB/s- Absolute power to make content creations apps run faster and smoother- Lightning-fast video rendering and exporting- Responsive performance built for accelerated gaming and sustained abuse — record, download, rewrite, repeatAbsolute PerformanceUp to 2x faster than PCIe Gen3 NVMe™ SSDs and up to 12x faster than SATA SSDs — the FireCuda 530 redefines speed.Cool Speed AheadNVMe PCIe Gen4 extreme speeds generate extra heat. That’s why Seagate partnered with EKWB — the leaders in heat management — to develop FireCuda 530’s custom heatsink. Built from a high-grade aluminium block with a finely textured anodized finish to help maximise cooling efficiency, this built-in heatsink helps minimise thermal throttling while maximising peak performance for longer periods of time.Form and FunctionLow-profile heatsink design allows for installation in tighter spaces, and premium dark gunmetal grey anodization creates additional micropores in the material surface to promote cooling properties.Endurance UnleashedDesigned to perform under heavy use and tough enough to go the distance with:- 0.7 Drive Writes per Day — fill and delete 70% of the drive capacity, every day, for five years- 1.8 Million Hours Mean Time Between Failures for trusted reliability- Up to 5,100 TB Total Terabytes Written — durability deliveredLatest TechPush your rig to its limit — the FireCuda 530 is built with a Seagate-validated E18 controller and the latest 3D TLC NAND for the most advanced speed and durability.Storage Expansion for PS5™The FireCuda 530 is compatible with PS5™ consoles, and meets PS5 specs on performance and dimensions. Plus, the FireCuda with heatsink combo makes for an easy drop-in expansion solution with no additional parts needed.Visit our article on How to Install a M.2 SSD into a PS5 for more information and step-by-step instructions.Rescue Data Recovery ServicesWe’ve Got Your BackWhen the unexpected happens — like water damage or natural disaster —Rescue Services help you defend against data loss and retrieval costs, so you can rest easier.DiscWizard and SeaTools — Making Drive Management EasierSeagate makes it easy to add new drives to your computer and monitor their health and performance with the free DiscWizard™ and SeaTools™ software. Easily clone your current drive to your new Seagate drive, create and format partitions, transfer data, and back up data with DiscWizard — and then seamlessly monitor drive health, performance, and firmware updates using SeaTools.
LongProductName - FireCuda 530 Heatsink 2TB, M.2, PCIe Gen4 ×4 NVMe 1.4, 3D TLC
LongSummaryDescription - Seagate FireCuda 530. SSD capacity: 2 TB, SSD form factor: M.2, Read speed: 7300 MB/s, Write speed: 6900 MB/s, Component for: PC
Operational conditions - Non-operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - 40 - 85 °C
Other features - Compliance certificates - RoHS
Packaging data - Package depth - 24 mm
Packaging data - Package height - 134.2 mm
Packaging data - Package weight - 62 g
Packaging data - Package width - 109 mm
Power - Power consumption (average) - 8 W
Power - Power consumption (idle) - 0.024 W
ProductName - 530
ShortSummaryDescription - Seagate FireCuda 530, 2 TB, M.2, 7300 MB/s
Stck_Kart - 0
Stck_Pal - 0
Storno - Y
Technical details - Doesn't contain - Halogen
Title - Seagate FireCuda 530 2 TB M.2 PCI Express 4.0 NVMe 3D TLC
URL - https://www.seagate.com/gb/en/products/gaming-drives/pc-gaming/firecuda-530-ssd/
WarrantyInfo - 5-year limited warranty
Weight & dimensions - Depth - 80.2 mm
Weight & dimensions - Height - 10.4 mm
Weight & dimensions - Weight - 47 g
Weight & dimensions - Width - 24.2 mm
