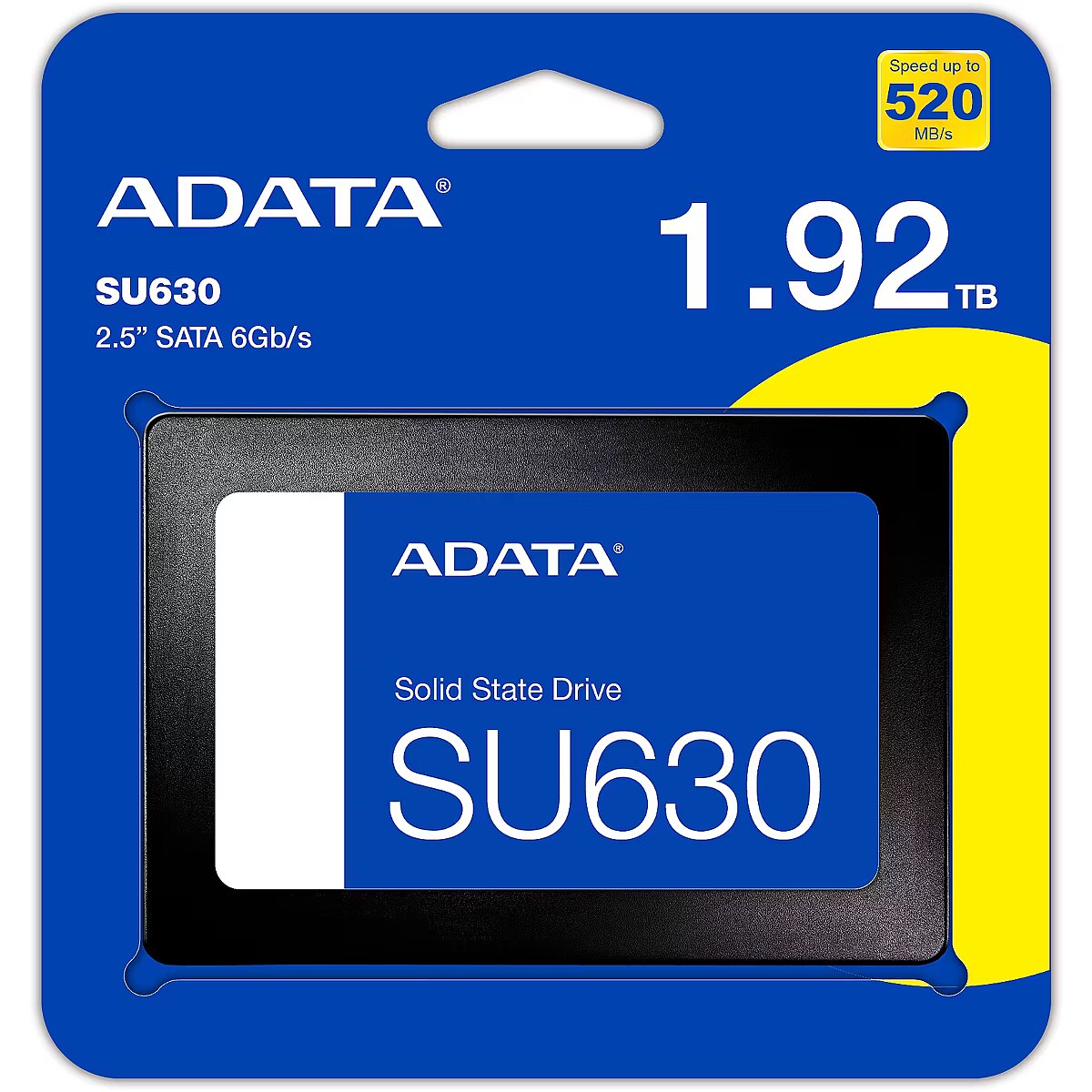

ADATA SU630, 1.92 TB

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 732308 Product code: ASU630SS-1T92Q-R
Can be ordered 40 units Availability: 14 days after order approval
Warranty: 3 years
107.33 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
  • Capacity: 1.92TB
  • Type: SATA
  • Read speed (sequential): 520 MB/s
  • Write speed (sequential): 450 MB/s
  • Form factor: 2.5"
  • Interface: SATA III (6Gb/s)
Description

We offer to purchase a Adata 2.5" format SSD drive with a 1.92TB capacity.

This disk uses the standard SATA interface, which operates with traditional SATA data and power cables.

This is a SATA type of disk. Even though this SSD disk operates with an older SATA III protocol, it is fully suitable for both everyday tasks and situations when it's important to reduce costs.

520 MB/s – this is the data reading speed that this SSD disk is capable of reaching. However, we must remember one crucial nuance - "fast" disks may not show the performance promised by the manufacturer if adequate cooling is not provided.

The writing speed for this SSD disk reaches 450 MB/s. Without a suitable cooling mechanism, "fast" disks may not be able to achieve the performance indicators promised by the manufacturer.

This is an SSD disk in the 2.5" format.

The SSD drive has a SATA III (6Gb/s) interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.

Basic information
Capacity 1.92TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type : SATA
Read speed (sequential) 520 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 450 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality
Radiators : Nav
Lighting : Nav
Ports and equipment
Form factor 2.5"

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : SATA III (6Gb/s)
Interface SATA

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija
Memory type : QLC (Quad-Level Cell)
Random Read IOPS : 40K
Random Write IOPS : 65K
Endurance (TBW) : 400 TB
More detailed specification
Category - Root/Electronics/PC parts/Hard drives
Category Code - SSM
Category_1 - Hard Drives and Pendrives
Category_2 - Internal Hard Drives - SATA - 2.5 inch
Depth - 100.45 mm
Description - If you’re looking to replace that HDD of yours with an SSD, look no further than the ADATA SU630. The SSD is built with next-generation QLC 3D NAND Flash to offer amazing value and great performance. It also comes with excellent features such as LDPC ECC technology.
Description - Jeśli chcesz wymienić swój dysk twardy na SSD, poszukaj nie dalej niż ADATA SU630. Dysk SSD jest zbudowany z nowej generacji QLC 3D NAND Flash nowej generacji, aby zaoferować doskonałą wydajność. Posiada on również doskonałe właściwości, takie jak technologia LDPC ECC.
dimensionalWeight - 36
dimension depth - 10 mm
dimension height - 140 mm
Dimensions - 100.45 x 69.85 x 7mm
dimension weight - 70 g
dimension width - 130 mm
Disk type - SSD
Drive thickness - 7mm
Drive type - Internal
ean - 4710273773551
Eans - 4710273773551
EAN_code - 4710273773551
Features - Certification - CE, FCC, BSMI, VCCI, KC
Features - Component for - PC
Features - Data transfer rate - 6 Gbit/s
Features - ECC - Yes
Features - Hardware encryption - No
Features - Interface - PCI Express 3.0
Features - Mean time between failures (MTBF) - 1500000 h
Features - Memory type - QLC 3D NAND
Features - Native Command Queuing (NCQ) - Yes
Features - NVMe - No
Features - Random read (4KB) - 40000 IOPS
Features - Random write (4KB) - 65000 IOPS
Features - Read speed - 520 MB/s
Features - S.M.A.R.T. support - Yes
Features - SSD capacity - 1.92 TB
Features - SSD form factor - 2.5"
Features - TBW rating - 400
Features - TRIM support - Yes
Features - Write speed - 450 MB/s
Form Factor - 2,5"
Form factor (width) - 2,5'' (SFF)
Full Description Line - SSD series SU630|1.92TB|SATA|3D QLC|Write speed 450 MBytes/sec|Read speed 520 MBytes/sec|Form Factor 2,5"|Drive thickness 7mm|TBW 400 TB|MTBF 2000000 hours
guarantee - 36
guarantee_type - normal
HDD capacity - 1.92 TB
HDD interface - SATA III - 6 Gb/s
Height - 7 mm
Manufacturer - ADATA
Manufacturer_code - ASU630SS-1T92Q-R
Model - ASU630SS-1T92Q-R
Model - SU630
MTBF - 2e+006 hours
Name - ADATA SU630 1.9 TB, SSD (black, SATA 6 GB / s, 2.5 ")
Name - ADATA Ultimate SU630 1,92TB
name - Disc SSD Ultimate SU630 1.92 TB 2.5 S3 520/450 MB/s
NAND flash technology - 3D QLC
Operational conditions - Operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features -
producer - Adata
Producer - Adata
producerCode - ASU630SS-1T92Q-R
ProducerCode - ASU630SS-1T92Q-R
productName - ADATA Ultimate SU630 2.5" 1.92 TB PCI Express 3.0 QLC 3D NAND
productSize - Normal
Random read IOPS (max) - 40 K
Random write IOPS (max) - 65 K
Reading speed - 520 MB/s
Read speed - 520 MBytes/sec
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 13.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 1 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.05 kg
Shipping Box Width Shipping/Package Box Dimensions - 13 cm
ShortDescription - 2.5'' | SSD | 1,92TB | 520/450| Serial ATA3 | 7mm |
sizeX - 140
sizeY - 130
sizeZ - 10
SSD Capacity - 1.92TB
SSD series - SU630
TBW - 400 TB
TBW - 400 TB
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - RoHS
Unit Box Height - 0.01
Unit Box Length - 0.135
Unit Box Width - 0.13
Unit Brutto Volume - 0.0001755 cubm
Unit Gross Weight - 0.05 kg
Unit Net Weight - 0.047 kg
Vendor Homepage - www.adata.com/us/feature/591
vendpn - ASU630SS-1T92Q-R
Warranty - 36L months
warrantyLength - 36
warrantyType - G
Weight - 0,06
Weight - 47.5 g
weight - 50
Weight & dimensions - Depth - 100.5 mm
Weight & dimensions - Height - 7 mm
Weight & dimensions - Weight - 47.5 g
Weight & dimensions - Width - 69.8 mm
Width - 69.85 mm
Write speed - 450 MBytes/sec
Writing speed - 450 MB/s
