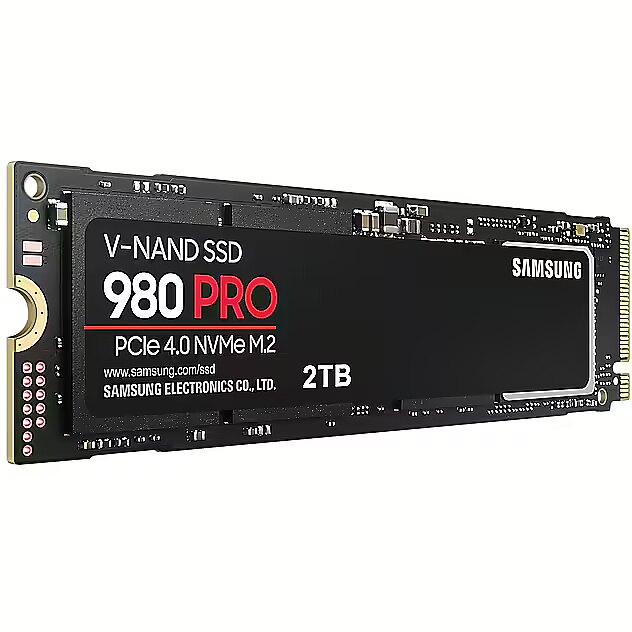

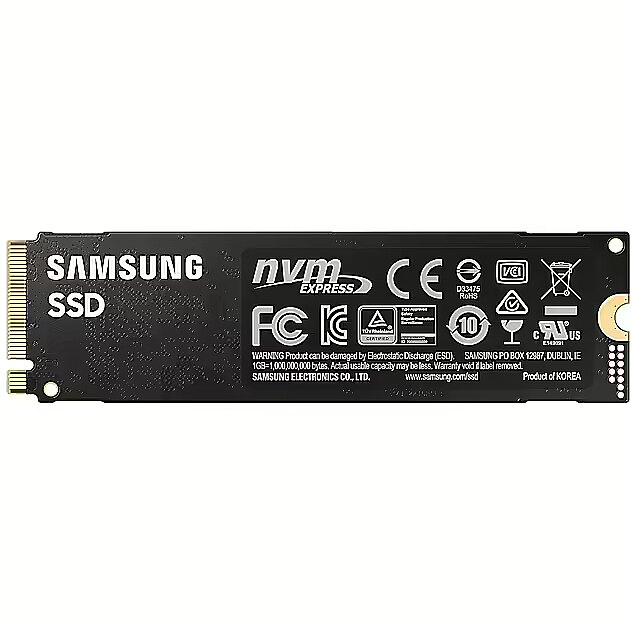

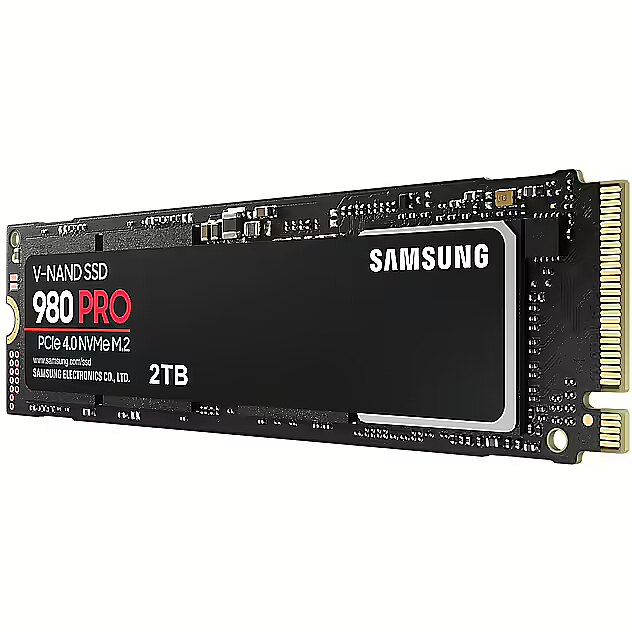

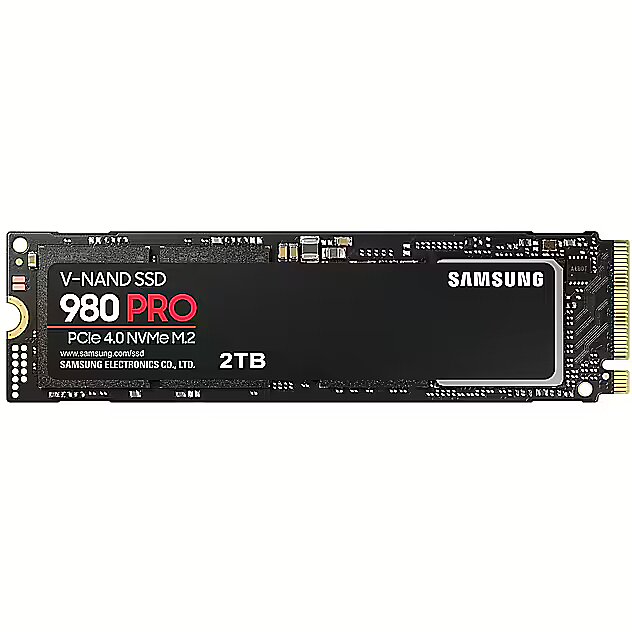

Samsung 980 PRO, 2TB, M.2 Gen4 x4

Name: Samsung 980 PRO, 2TB, M.2 Gen4 x4
Brand: Samsung
SKU: 673395
Price: 188.98 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 673395 Product code: MZ-V8P2T0BW

In stock 31 units

Warranty: 3 years

Compare

Delivery options

Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
Courier delivery 11.99 €: 02.12.2024

Main product parameters All parameters

Capacity: 2 TB
Type: NVMe
Read speed (sequential): 7000 MB/s
Write speed (sequential): 5100 MB/s
Form factor: M.2 80mm (2280)
Interface: PCIe 4.0 x4

Description

Available for purchase, the Samsung M.2 80mm (2280) format SSD disk with a large volume of 2 TB.

This disc uses the latest generation compact M.2 port.

This SSD drive uses the latest NVME standard with PCIe interface, which allows simultaneous data transmission across multiple data lines. Thanks to this technology, the drive is ideally suited for those who work with large files, play computer games or deal with video editing.

The read speed for this SSD drive reaches 7000 MB/s. However, it's crucial to note - if the "fast" drives are not provided with adequate cooling, they may not be able to operate at the speed indicated by the manufacturer.

The writing speed for this SSD disk reaches 5100 MB/s. Without a suitable cooling mechanism, "fast" disks may not be able to achieve the performance indicators promised by the manufacturer.

This SSD drive has an M.2 80mm (2280) format.

This SSD disk has a PCIe 4.0 x4 interface. Keep in mind that if you insert a disk with a newer interface (for example, with PCIe 4.0 or 5.0) into an older interface slot (for example, PCIe 3.0), the disk speed will decrease because the disk will not have sufficient data transfer speed (Bandwidth).

Basic information

Capacity 2 TB

The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.

Type : NVMe

Read speed (sequential) 7000 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 5100 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality

Radiators : Nav

Lighting : Nav

Ports and equipment

Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 4.0 x4

Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija

Memory type : TLC (Triple-Level Cell)

Random Read IOPS : 1m

Random Write IOPS : 1m

Endurance (TBW) : Not indicated

More detailed specification

Additional information in manufacturers website Samsung 980 PRO, 2TB, M.2 Gen4 x4

Box Weight Brutto (kg) - 0.71 kg
Brand - Origin Storage
BrandPartCode - MZ-V8P2T0BW
BufferSize - -
Category - Datortehnika :: Datoru komponentes :: SSD diski
Category - Internal Solid State Drives
category - PC Components|Drives|Solid State Drives (SSDs)|M.2
Category - Root/Electronics/PC parts/Hard drives
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
Code - MZ-V8P2T0BW
code - MZ-V8P2T0BW
Compliant Storage Standards - S.M.A.R.T.
Depth - 22.15 mm
Depth (mm) - 80.15 mm
Desc - Tips: SSD, Apjoms: 2 TB, Izmērs: M.2, Savietojamība: PCIe NVMe 4.0 x4, Rakstīšanas ātrums: 5100 MB/s, Lasīšanas ātrums: 7000 MB/s, Garantija: 2 gadi
Device Location - Internal
dimensionalWeight - 58
EAN -
ean - 8806090696534
EAN - 8806090696534
Eans - 8806090696534
EAN_code - 8806090696534
External Color - Melna
Features - Component for - PC/Laptop
Features - Hardware encryption - Yes
Features - Interface - PCI Express 4.0
Features - M.2 SSD size - 2280 (22 x 80 mm)
Features - Memory type - V-NAND MLC
Features - NVMe - Yes
Features - Read speed - 7000 MB/s
Features - SSD capacity - 2 TB
Features - SSD form factor - M.2
Features - Write speed - 5100 MB/s
Flash Memory Cell Technology - Multi-Level Cell
FormFactor - M.2
Form Factor - M.2 22x80mm
GrossWeight - 0.100 kg
Gross Weight Kg - 0,08
GTIN - 8806090696534
HardDrive - 2 TB
Height - 2.38 mm
Height (mm) - 2.38 mm
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/210312150026783411.jpg
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_69768_1.jpg
Installed Cache Memory Storage Capacity - 2 GB
LargeDescHTML -
LongDesc -
LongDesc - MZ-V8P2T0BW internal solid state drive
LongProductName - MZ-V8P2T0BW
LongSummaryDescription - Origin Storage 2TB Samsung 980 Pro M.2 NVME PCIe4. SSD capacity: 2 TB, SSD form factor: M.2, Read speed: 7000 MB/s, Write speed: 5100 MB/s, Component for: PC/Laptop
Manufacturer - Samsung
Manufacturer Code - MZ-V8P2T0BW
Manufacturer Name - Samsung
Manufacturer_code - MZ-V8P2T0BW
MANUFDATASHEET - https://www.samsung.com/my/memory-storage/nvme-ssd/980-pro-2tb-nvme-pcie-gen-4-mz-v8p2t0bw/
Maximum Non-Operating Ambient Temperature - 85 °C
Maximum Operating Ambient Temperature - 70 °C
Maximum Operating Humidity - 95 %
Maximum Power Consumption - 7.2 W
Maximum Random Read Rate - 1000000 IOPS
Maximum Random Write Rate - 1000000 IOPS
Maximum Sequential Read Rate - 7000 MB/s
Maximum Sequential Write Rate - 5100 MB/s
Maximum Supply Voltage - 5 V
Mean Time Between Failures - 1500000 hr
Memory Technology - NAND Flash
Minimum Non-Operating Ambient Temperature - -40 °C
Minimum Operating Ambient Temperature - 0 °C
Minimum Operating Humidity - 5 %
Minimum Power Consumption - 5 mW
Minimum Supply Voltage - 3.3 V
Name - Samsung 980 PRO 2 TB, SSD
Name - Samsung 980 Pro 2TB
name - Samsung 980 PRO Series NVMe SSD, PCIe 4.0 M.2 Typ 2280 - 2 TB
OperatingSystems - -
PackageContents - -
Package Type - Retail
Packs in Box - 10
Pack Weight Brutto (kg) - 0.0785 kg
Pack Weight Netto (kg) - 0.01 kg
Pieces in pack - 1
PortConnector - -
PowerSupply - -
ProdDesc - SSD M,2 (2280) 2TB Samsung 980 PRO (PCIe/NVMe)
Producer - Samsung
producerCode - MZ-V8P2T0BW
ProducerCode - MZ-V8P2T0BW
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=210204130337090561&THEME=asbis&LANG=lv
ProductCategory - SSD
ProductCode - MZ-V8P2T0BW
ProductDescription - SAMSUNG 980 PRO 2TB SSD, M.2 2280, NVMe, Read/Write: 7000 / 5100 MB/s, Random Read/Write IOPS 1KK/1KK
ProductName - 2TB Samsung 980 Pro M.2 NVME PCIe4
productName - Origin Storage 2TB Samsung 980 Pro M.2 NVME PCIe4
ProductPicture - http://www.tdbaltic.ee/images/ds4/MZ-V8P2T0BW-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
productSize - Normal
ProductType - SSD Client
QuantityofDevices - 1
RaidController - -
RaidLevels - -
ReadSeekTime - -
Retail Packaging Net Weight Carton - 0.01 kg
Retail Packaging Net Weight Plastic - 0.01 kg
SeekTime - -
Shock Tolerance Storage - 1500G @ 0.5ms
Short description - SSD M.2 (2280) 2TB Samsung 980 PRO (PCIe 4.0/NVMe)
ShortDescription - SSD | 2TB | 7000/5000 MB/s | M.2 | PCIe 4.0 x4 NVMe 1.3c | gwarancja ograniczona parametrem TBW
ShortSummaryDescription - Origin Storage 2TB Samsung 980 Pro M.2 NVME PCIe4, 2 TB, M.2, 7000 MB/s
sizeX - 100
sizeY - 145
sizeZ - 20
Software - -
Solid State Drive Features - TRIM SupportAES 256-bit EncryptionAuto Garbage CollectionDEVSLP Mode
SSD Controller - Samsung Elpis
Storage Capacity - 2 TB
StorageDeviceFeatures - NVMe
StorageDeviceInterface - PCIe
StorageDeviceSpeed - -
StorageDeviceType - SSD
Supports Data Channel - PCIe NVMe 4.0 x4
SystemRequirements - -
Title - Origin Storage 2TB Samsung 980 Pro M.2 NVME PCIe4
Total Bytes Written (TBW) - 1200 TB
TransmissionSpeed - 7000 MB/s
Type - Storage
URL -
USBSpeed - -
Vendor - SAMSUNG
Vibration Tolerance Storage - 20G @ 20-2000Hz
Warranty - -
WarrantyInfo -
warrantyLength - 60
Warranty Products Returnable - Yes
Warranty Term (month) - 60 mēneši
warrantyType - G
Warranty validation Criteria - Serial Number
Weight - 0,08
Weight - 0.009 kg
weight - 80
Width - 80.15 mm
Width (mm) - 22.15 mm
