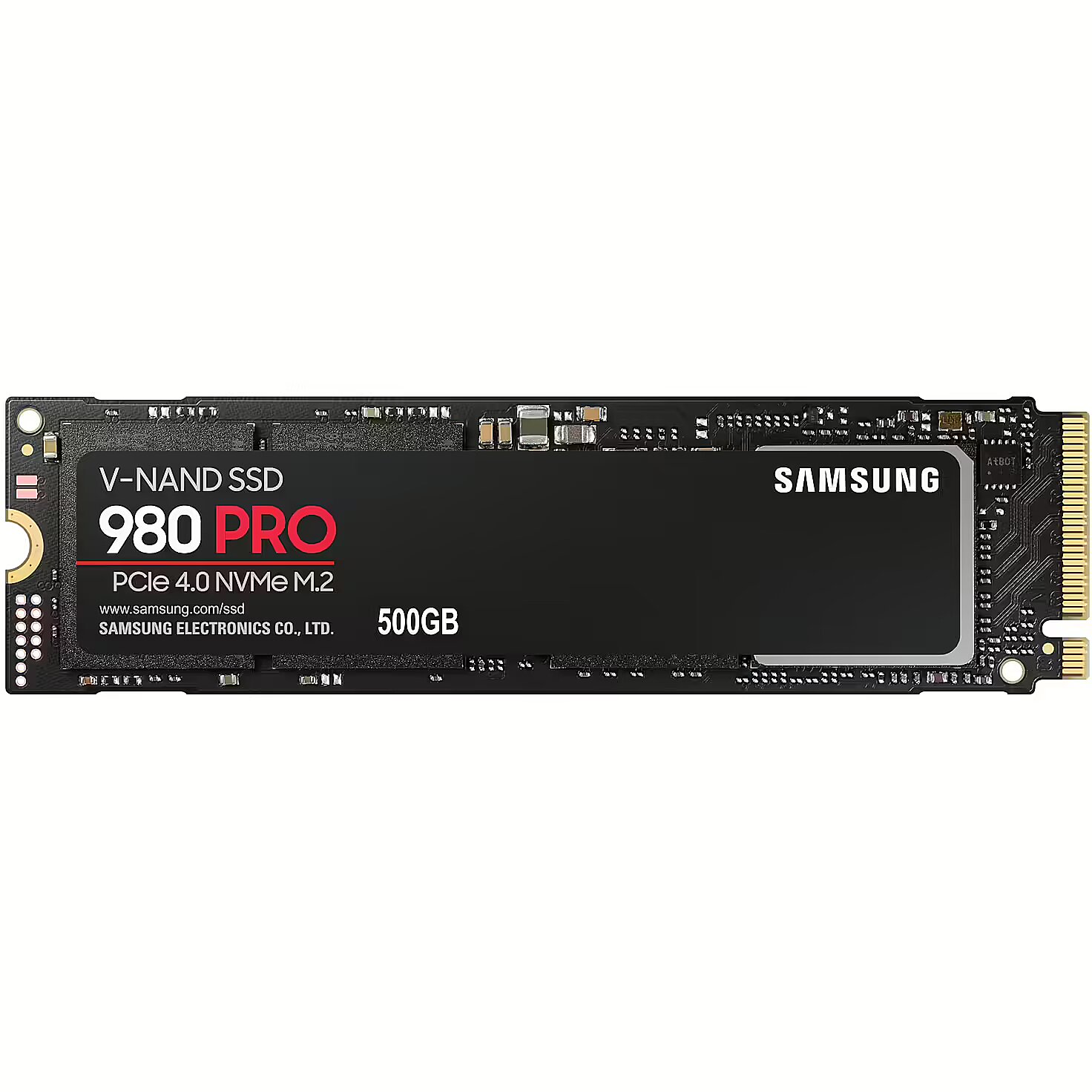

Samsung 980 PRO, 500GB, M.2 Gen4 x4

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 600260 Product code: MZ-V8P500BW
Can be ordered 157 units Availability: 14 days after order approval
Warranty: 2 years
103.95 €
Main product parameters All parameters
  • Capacity: 500 GB
  • Type: NVMe
  • Read speed (sequential): 6900 MB/s
  • Write speed (sequential): 5000 MB/s
  • Form factor: M.2 80mm (2280)
  • Interface: PCIe 4.0 x4
Description
We offer to buy the Samsung SSD disc with 500 GB data capacity and M.2 port.



The totally noiseless operation of the SSD disc should be mentioned as an additional advantage because contrary to the standard hard discs it does not contain any mechanical moving parts. The very low power consumption (~3W when loaded) is another feature that will be appreciated by the owners of portable computers because this parameter considerably increases the battery life time.
Basic information
Capacity 500 GB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type : NVMe
Read speed (sequential) 6900 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 5000 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality
Radiators : Nav
Lighting : Nav
Ports and equipment
Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 4.0 x4
Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija
Memory type : TLC (Triple-Level Cell)
Random Read IOPS : 800K
Random Write IOPS : 1m
Endurance (TBW) : 300 TB
More detailed specification
Box Weight Brutto (kg) - 0.71 kg
Brand - Origin Storage
BrandPartCode - MZ-V8P500BW
BufferSize - -
Category - Datortehnika :: Datoru komponentes :: SSD diski
Category - Internal Solid State Drives
Category - Root/Electronics/PC parts/Hard drives
Category Code - SSU
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
Code - MZ-V8P500BW
Color - Black
Compliant Storage Standards - S.M.A.R.T.
Depth - 22.15 mm
Depth - 80.15 mm
Depth (mm) - 80.15 mm
Desc - Tips: SSD, Apjoms: 500 GB, Izmērs: M.2, Savietojamība: PCIe NVMe 4.0 x4, Rakstīšanas ātrums: 5000 Mb/s, Lasīšanas ātrums: 6900 Mb/s, Garantija: 2 gadi
Description - KRÓL PRĘDKOŚCI! Poznaj nowy dysk NVMe SSD 980 PRO 500GB z transferem do 7000 MB/s
Więcej niż świetne osiągi Dysk NVMe SSD 980 PRO jest idealny do wymagających zastosowań, w tym przetwarzania treści 8K i 4K, gier w wysokiej rozdzielczości i analizy danych. Dzięki zwiększonej przepustowości interfejsu PCIe 4.0, 980 PRO oferuje prędkość odczytu do 7000 MB/s, jest tym samym 2x szybszy niż SSD PCIe 3.0 i nawet 12,7x szybszy niż SSD SATA. Wydajność i temperatura pod kontrolą Dysk 980 PRO wykorzystuje pokrycie z niklu, które pomaga kontrolować poziom nagrzania dysku jak również warstwę rozpraszającą ciepło, która z kolei umożliwia kontrolę termiczną chipu NAND. Praktyczny design  Dostępny w kompaktowym formacie M.2 2280, która zapewnia większą elastyczność projektowania płyty głównej. Maksymalizuje nie tylko oszczędność miejsca, ale i wydajność energetyczną. Świetnie sprawdzi się w konstrukcji wysokowydajnych systemów komputerowych.
Description - Unleash the power of the Samsung PCIe 4.0 NVMe SSD 980 PRO for your next-level computing. Leveraging the PCIe 4.0 interface, the 980 PRO delivers double the data transfer rate of PCIe 3.0 while being backward-compatible for PCIe 3.0 for added versatility.
Device Location - Internal
dimensionalWeight - 58
dimension depth - 20 mm
dimension height - 145 mm
Dimensions - 80.15 x 22.15 x 2.38 (mm)
dimension weight - 100 g
dimension width - 100 mm
Disk type - SSD
Drive thickness - 2.38mm
Drive type - Internal
EAN - 8806090295539
ean - 8806090295539
Eans - 8806090295539
EAN_code - 8806090295539
External Color - Melna
Features - Component for - PC
Features - Hardware encryption - Yes
Features - Interface - PCI Express 4.0
Features - Mean time between failures (MTBF) - 1500000 h
Features - Memory type - V-NAND MLC
Features - NVMe - Yes
Features - NVMe version - 1.3c
Features - Random read (4KB) - 800000 IOPS
Features - Random write (4KB) - 1000000 IOPS
Features - Read speed - 6900 MB/s
Features - S.M.A.R.T. support - Yes
Features - Security algorithms - 256-bit AES
Features - SSD capacity - 500 GB
Features - SSD form factor - M.2
Features - TRIM support - Yes
Features - Write speed - 5000 MB/s
Flash Memory Cell Technology - Multi-Level Cell
Form Factor - M.2
FormFactor - M.2
Form Factor - M.2 22x80mm
Form factor (width) - M.2 2280
Full Description Line - SSD series 980 Pro|500GB|Form Factor M.2|NVMe|Write speed 5000 MBytes/sec|Read speed 6900 MBytes/sec|Drive thickness 2.38mm|MTBF 1500000 hours
GrossWeight - 0.200 kg
GTIN - 8806090295539
guarantee - 60
guarantee_type - normal
HardDrive - 500 GB
HDD capacity - 500 GB
HDD interface - PCI-Express
Height - 2.38 mm
Height - 2.38 mm
Height (mm) - 2.38 mm
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/201125170016900891.jpg
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_68304_1.jpg
Installed Cache Memory Storage Capacity - 512 MB
LargeDescHTML -
LongDesc -
LongDesc - Samsung 980 PRO M.2 500 GB PCI Express 4.0 V-NAND MLC NVMe
LongProductName - MZ-V8P500BW
LongSummaryDescription - Origin Storage Samsung 980 PRO M.2 500 GB PCI Express 4.0 V-NAND MLC NVMe. SSD capacity: 500 GB, SSD form factor: M.2, Component for: PC
Manufacturer - Samsung
Manufacturer_code - MZ-V8P500BW
MANUFDATASHEET - https://www.samsung.com/lt/memory-storage/nvme-ssd/980-pro-pcle-4-0-nvme-m-2-ssd-500gb-mz-v8p500bw/#specs
Maximum Non-Operating Ambient Temperature - 85 °C
Maximum Operating Ambient Temperature - 70 °C
Maximum Operating Humidity - 95 %
Maximum Power Consumption - 5.9 W
Maximum Random Read Rate - 800000 IOPS
Maximum Random Write Rate - 1000000 IOPS
Maximum Sequential Read Rate - 6900 MB/s
Maximum Sequential Write Rate - 5000 MB/s
Mean Time Between Failures - 1500000 hr
Memory Technology - NAND Flash
Minimum Non-Operating Ambient Temperature - -40 °C
Minimum Operating Ambient Temperature - 0 °C
Minimum Operating Humidity - 5 %
Minimum Power Consumption - 5.4 W
Model - NVMe SSD 980 PRO
MTBF - 1.5e+006 hours
name - Disc SSD 980PRO Gen4.0x4 500GB NVMeMZ-V8P500BW
Name - Samsung 980 Pro 500GB
Name - Samsung 980 Pro 500GB MZ-V8P500BW
Name - Samsung 980 PRO M.2 500 GB PCI Express 4.0 V-NAND MLC NVMe, Solid State Drive
NVMe - Yes
OperatingSystems - -
Operational conditions - Operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Other features -
PackageContents - -
Package Type - Retail
Packs in Box - 10
Pack Weight Brutto (kg) - 0.0782 kg
Pack Weight Netto (kg) - 0.05 kg
Pieces in pack - 1
PortConnector - -
Power - Operating voltage - 3.3 V
Power - Power consumption (average) - 5.9 W
Power - Power consumption (max) - 7.4 W
PowerSupply - -
ProdDesc - SSD M.2 (2280) 500GB Samsung 980 PRO (PCIe/NVMe)
producer - Samsung
Producer - Samsung
producerCode - MZ-V8P500BW
ProducerCode - MZ-V8P500BW
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=201016082729682878&THEME=asbis&LANG=lv
ProductCategory - SSD
ProductCode - MZ-V8P500BW
ProductDescription - SAMSUNG 980 PRO 500GB SSD, M.2 2280, NVMe, Read/Write: 6900 / 5000 MB/s, Random Read/Write IOPS 800K/1KK
productName - Samsung 980 PRO M.2 500 GB PCI Express 4.0 V-NAND MLC NVMe
ProductName - Samsung 980 PRO M.2 500 GB PCI Express 4.0 V-NAND MLC NVMe
ProductPicture - http://www.tdbaltic.ee/images/ds4/MZ-V8P500BW-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
productSize - Normal
ProductType - SSD Client
QuantityofDevices - 1
RaidController - -
RaidLevels - -
Random read IOPS (max) - 800 K
Random write IOPS (max) - 1000 K
Reading speed - 6900 MB/s
ReadSeekTime - -
Read speed - 6900 MBytes/sec
Retail Packaging Net Weight Carton - 0.05 kg
Retail Packaging Net Weight Plastic - 0.05 kg
SeekTime - -
Shipping Box Depth Shipping/Package Box Dimensions - 14.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 2 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.08 kg
Shipping Box Width Shipping/Package Box Dimensions - 10 cm
Shock Tolerance Storage - 1500G @ 0.5ms
ShortDescription - SSD | 500GB | 6900/5000 MB/s | M.2 | PCIe 4.0 x4 NVMe 1.3c | gwarancja ograniczona parametrem TBW
ShortSummaryDescription - Origin Storage Samsung 980 PRO M.2 500 GB PCI Express 4.0 V-NAND MLC NVMe, 500 GB, M.2
sizeX - 20
sizeY - 100
sizeZ - 145
Software - -
Solid State Drive Features - TRIM SupportAES 256-bit Encryption
SSD Capacity - 500GB
SSD Controller - Samsung Elpis
SSD series - 980 Pro
Storage Capacity - 500 GB
StorageDeviceFeatures - NVMe
StorageDeviceInterface - PCIe
StorageDeviceSpeed - -
StorageDeviceType - SSD
Supports Data Channel - PCIe NVMe 4.0 x4
SystemRequirements - -
TBW - 300 TB
Title - Origin Storage Samsung 980 PRO M.2 500 GB PCI Express 4.0 V-NAND MLC NVMe
Total Bytes Written (TBW) - 300 TB
TransmissionSpeed - 6900 MB/s
Type - Storage
Unit Box Height - 0.02
Unit Box Length - 0.145
Unit Box Width - 0.1
Unit Brutto Volume - 0.00029 cubm
Unit Gross Weight - 0.08 kg
Unit Net Weight - 0.009 kg
URL -
USBSpeed - -
Vendor - SAMSUNG
Vendor Homepage - www.samsung.com/lv/memory-storage/980-pro-nvme-m2-ssd/MZ-V8P500BW/
vendpn - MZ-V8P500BW
Vibration Tolerance Storage - 20G @ 20-2000Hz
Warranty - 2 years
Warranty - 60L months
WarrantyInfo -
warrantyLength - 60
Warranty Products Returnable - Yes
Warranty Term (month) - 60 mēneši
warrantyType - G
Warranty validation Criteria - Serial Number
Weight - 0,08
Weight - 0.009 kg
weight - 81
Weight & dimensions - Depth - 2.38 mm
Weight & dimensions - Height - 22.1 mm
Weight & dimensions - Weight - 9 g
Weight & dimensions - Width - 80.2 mm
Width - 22.15 mm
Width - 80.15 mm
Width (mm) - 22.15 mm
Write speed - 5000 MBytes/sec
Writing speed - 5000 MB/s
