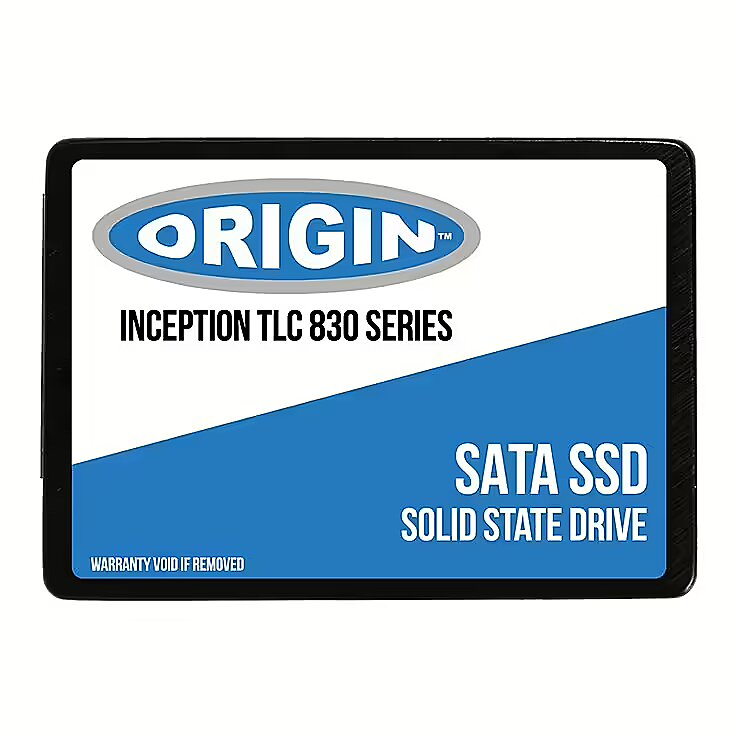

Origin Storage Inception TLC830, 1TB, SATA III

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 497991 Product code: NB-10003DSSD-TLC
Can be ordered 6 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
89.41 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 27.11.2024
Main product parameters All parameters
  • Capacity: 1 TB
  • Type: SATA
  • Read speed (sequential): 550 MB/s
  • Write speed (sequential): 500 MB/s
  • Form factor: 2.5"
  • Interface: SATA III (6Gb/s)
Description
We offer to buy Origin Storage 2.5" format SSD with 1 TB high capacity.



The additional benefits of SSD technology lie in the unique design of the drive. SSDs store data on memory chips, which are characterised by their completely silent operation, low temperature and low power consumption. All these features make a significant difference to the now obsolete hard disk drive technology.
Basic information
Capacity 1 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type : SATA
Read speed (sequential) 550 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 500 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality
Radiators : Nav
Lighting : Nav
Ports and equipment
Form factor 2.5"

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : SATA III (6Gb/s)
Interface SATA

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija
Memory type : TLC (Triple-Level Cell)
Random Read IOPS : 53K
Random Write IOPS : 56K
Endurance (TBW) : 100 TB
More detailed specification
ARTIKEL1 - ORIGIN STORAGE SSD 3D TLC
ARTIKEL2 - 1TB 2.5INCH CLASS 20 SATA
Brand - Origin Storage
BrandPartCode - NB-10003DSSD-TLC
Breite - 0.1
Category - Internal Solid State Drives
EANCode - 5056006158905
Features - Access time - 0.1 ms
Features - Component for - PC/Laptop
Features - Data transfer rate - 6 Gbit/s
Features - Hardware encryption - No
Features - Hot-swap - No
Features - Interface - Serial ATA III
Features - Linux operating systems supported - Yes
Features - Mean time between failures (MTBF) - 1000000 h
Features - Memory type - QLC
Features - NAND flash type - TLC (Triple Level Cell)
Features - NVMe - No
Features - Random read (4KB) - 53760 IOPS
Features - Random write (4KB) - 56320 IOPS
Features - Read speed - 550 MB/s
Features - S.M.A.R.T. support - Yes
Features - SSD capacity - 1 TB
Features - SSD form factor - 2.5"
Features - TBW rating - 100
Features - TRIM support - Yes
Features - Windows operating systems supported - Yes
Features - Write speed - 500 MB/s
Gewicht - 0.06
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
GTIN - 5056006158905
HERSTELLER - ORIGIN STORAGE
Hoehe - 0.02
HSTNUMMER - NB-10003DSSD-TLC
Laenge - 0.14
Logistics data - Harmonized System (HS) code - 84717070
LongDesc - The Inception TLC830 Pro range of SSD Solutions are manufactured by Origin using the highest quality Tier 1 NAND and the latest generation of controllers which enables us to provide both high performance and strong reliability. All of our Inception SSDs come with 3 years advanced replacement warranty alongside free, in -house pre and post sales technical support. We can supply the TLC830 Pro in form factors of 2.5", 3.5" & M.2 with either SATA or NVME interfaces, whilst being available in a range of capacities designed to increase the performance & extend the lifecycle of any laptop or desktop.
LongProductName - SSD 3D TLC 1TB 2.5 inch (6.4cm) Class 20 SATA
LongSummaryDescription - Origin Storage SSD 3D TLC 1TB 2.5 inch (6.4cm) Class 20 SATA. SSD capacity: 1 TB, SSD form factor: 2.5", Read speed: 550 MB/s, Write speed: 500 MB/s, Data transfer rate: 6 Gbit/s, Component for: PC/Laptop
Operational conditions - Maximum operating altitude - 36576 m
Operational conditions - Operating relative humidity (H-H) - 5 - 98%
Operational conditions - Operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Operating vibration - 16 G
Operational conditions - Storage relative humidity (H-H) - 5 - 98%
Operational conditions - Storage temperature (T-T) - -45 - 105 °C
Other features - Compatible products - Universal
Other features - Compliance certificates - RoHS
Other features - Product colour - Black
Packaging data - Package type - Blister
Packaging data - Screws included - No
Packaging data - Storage drive adapter included - No
Power - Operating voltage - 5 V
Power - Power consumption (average) - 3.53 W
Power - Power consumption (idle) - 0.54 W
Power - Power consumption (max) - 4.26 W
Power - Power consumption (read) - 2.8 W
Power - Power consumption (write) - 4.26 W
ProductName - SSD 3D TLC 1TB 2.5 inch (6.4cm) Class 20 SATA
ShortSummaryDescription - Origin Storage SSD 3D TLC 1TB 2.5 inch (6.4cm) Class 20 SATA, 1 TB, 2.5", 550 MB/s, 6 Gbit/s
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
Title - Origin Storage SSD 3D TLC 1TB 2.5 inch (6.4cm) Class 20 SATA
URL - https://www.originstorage.com/NB-10003DSSD-TLC
WarrantyInfo - 3 Year Advanced Replacement
