ID: 231658
Product code: AGAMMIXS11P-1TT-C
Can be ordered 31 units Availability: 14 days after order approval
Warranty: 3 years

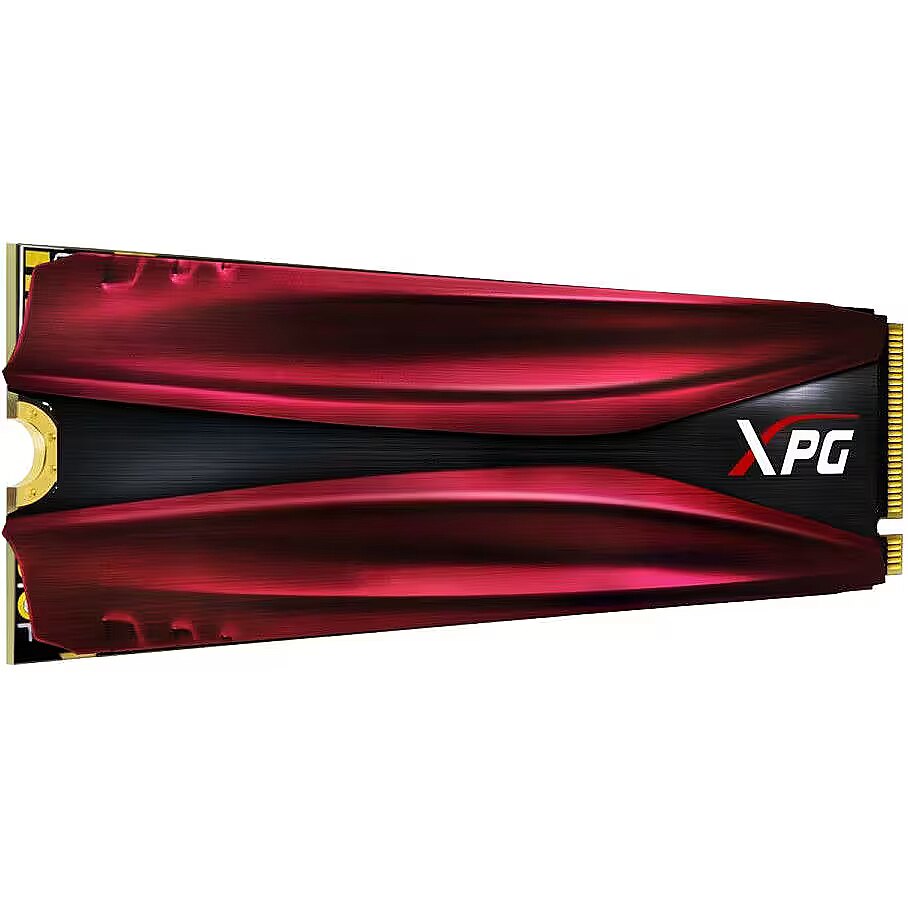

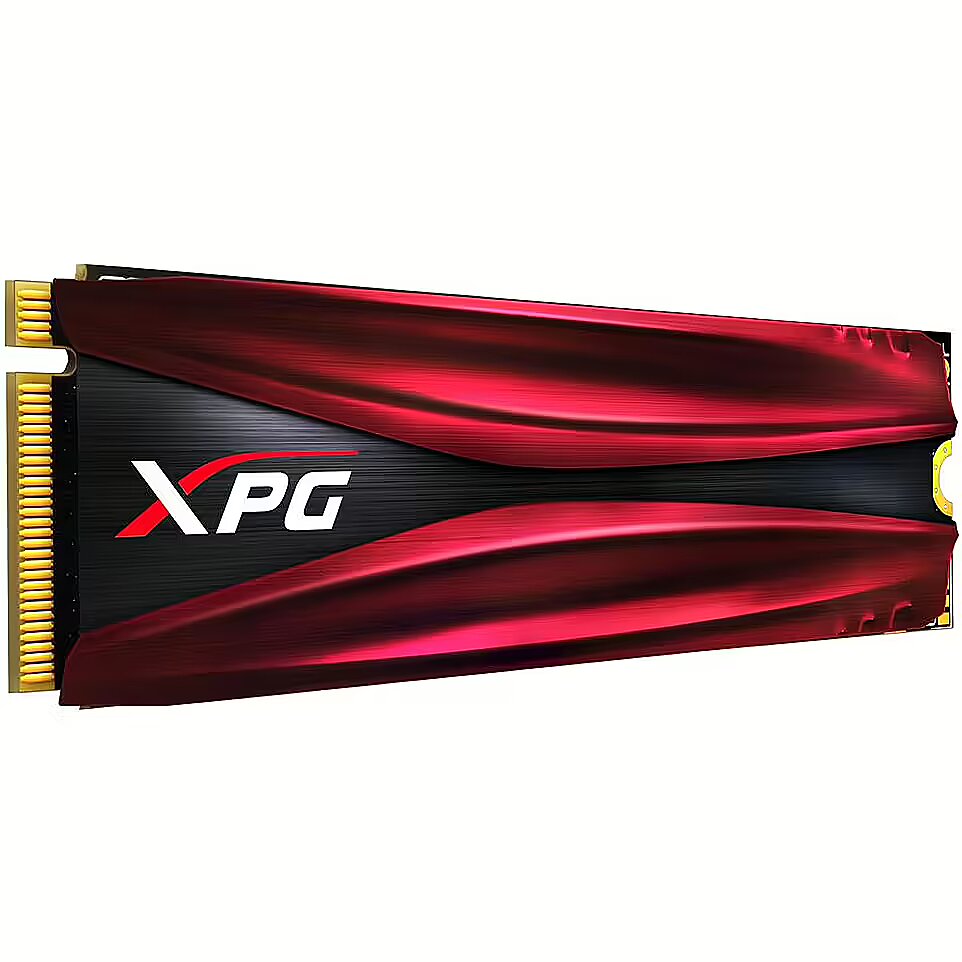

ADATA XPG GAMMIX S11, 1TB, M.2 Gen3 x4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
- Capacity: 1 TB
- Type: NVMe
- Read speed (sequential): 3350 MB/s
- Write speed (sequential): 2800 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 3.0 x4
Description
This Adata brand SSD has a 1 TB capacity and a M.2 80mm (2280) format.
This disc uses the latest generation compact M.2 port.
This is a fast-acting NVME SSD drive, based on PCIe technology. It allows data to be transmitted in parallel over multiple channels, ensuring excellent performance. This type of drive is perfectly suited for activities such as processing large files, gaming, and video editing, where maximum data transmission speed is required.
This SSD disk read speed (Sequential read speed) is 3350 MB/s. Keep in mind that "fast" disks without a proper cooling solution may not reach the speeds indicated by the manufacturer.
The writing speed for this SSD disk reaches 2800 MB/s. Without a suitable cooling mechanism, "fast" disks may not be able to achieve the performance indicators promised by the manufacturer.
To ensure memory chips maintain a low temperature and assure constant performance over long periods of use, the disk equipment is equipped with a cooler or a radiator. However, even if you purchase a "fast" SSD without a built-in radiator, it's not critical - almost all motherboards (99%) already have an integrated M.2 slot cooler.
This is an SSD disk in the M.2 80mm (2280) format.
The SSD drive has a PCIe 3.0 x4 interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.
Basic information
Capacity
1 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVMe
Read speed (sequential)
3350 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
2800 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: Ir
Lighting
: Nav
Ports and equipment
Form factor
M.2 80mm (2280)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 3.0 x4
Interface
M.2
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specifikācija
Memory type
: TLC (Triple-Level Cell)
Random Read IOPS
: 390K
Random Write IOPS
: 380K
Endurance (TBW)
: 640 TB
More detailed specification
Brand - XPG
Brand-specific features - Brand specific technologies - SLC Caching
BrandPartCode - AGAMMIXS11P-1TT-C
Category - Internal Solid State Drives
Category - Root/Electronics/PC parts/Hard drives
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
Code - AGAMMIXS11P-1TT-C
Color - Not applicable
Depth - 80 mm
Description - Thanks to the very fast PCIe Gen3x4 interface and the NVMe 1.3 procedure, the GAMMIX S11 Pro is superfluous at the same size / 3500/3000 MB per second. The S11 Pro drive is operated by a wireless flowmeter. 10 ° C. NAND 3D flash memory, SLC buffering, DRAM buffer, E2E data protection (End-to-End) and LDPC ECC SVC technology large dimensions and data integrity in cases of intense gaming, rendering, overclocking and other applications. PCIe Gen3x4 interface NVMe support 1.3 NAND 3D flash memory The new generation: more capacity, durability and energy efficiency Format M.2 2280 suitable for desktops based on Intel and AMD platforms Created for professionals: ideal for gamers, PC enthusiasts, overclockers and professional video renders Cooling in the face of relationships Radiator with a design inspired by sports cars makes the S11 Pro drive superbly and does not overheat. In comparison to M.2 SSDs, S11 Pro cooling pipes are lower by max. 10 ° C, which manual increases the stability of the system.
Faster way to victory
SLC buffering and DRAM buffer make the S11 disk recommended 3500/3000 MB / s and provides a random read / write performance of up to IOPS 390K / 380K. Both in the case of launching, playing games, as well as calculating large files, the S11 Pro was fast and efficient.
The 3D NAND flash memory increases the capacity for more games
Thanks to the advanced 3D NAND flash memory, the S11 Pro drive offers more capacity, backing up to 1 TB, the history of modern performance, durability and high TBW (Total Bytes Written).
Integrity, security and data stability
GAMMIX S11 Disk Attempting to change the LDPC (Low-Density Parity-Check) code for comparison and correction. EiE (End-to-End) and RAID Engine technology for safety, security, safety, more, more, more
5-year warranty
Each element of the GAMMIX S11 Pro drive has passed the procedures of quality control, testing and certification. The GAMMIX S11 drive is covered by a 5-year warranty.
dimensionalWeight - 43
dimension depth - 20 mm
dimension height - 135 mm
dimension weight - 25 g
dimension width - 108 mm
Disk type - SSD
Drive type - Internal
EAN - 4710273770772
ean - 4710273770772
Eans - 4710273770772
EAN_code - 4710273770772
Features - Certification - CE, FCC, BSMI, VCCI, KC
Features - Component for - PC
Features - ECC - Yes
Features - Interface - PCI Express 3.0
Features - Low-density parity-check (LDPC) - Yes
Features - Mean time between failures (MTBF) - 2000000 h
Features - Memory type - 3D TLC
Features - NAND flash type - TLC (Triple Level Cell)
Features - NVMe - Yes
Features - NVMe version - 1.3
Features - PCI Express interface data lanes - x4
Features - RAID support - Yes
Features - Random read (4KB) - 390000 IOPS
Features - Random write (4KB) - 380000 IOPS
Features - Read speed - 3350 MB/s
Features - Sequential read speed (AS SSD) - 3000 MB/s
Features - Sequential read speed (ATTO) - 3350 MB/s
Features - Sequential read speed (CDM) - 3500 MB/s
Features - Sequential write speed (AS SSD) - 2500 MB/s
Features - Sequential write speed (ATTO) - 2800 MB/s
Features - Sequential write speed (CDM) - 3000 MB/s
Features - SSD capacity - 1 TB
Features - SSD form factor - M.2
Features - TBW rating - 640
Features - Write speed - 2800 MB/s
Form factor (width) - M.2 2280
GTIN - 4710273770772
guarantee - 60
guarantee_type - normal
HDD capacity - 1 TB
HDD interface - PCI-Express
Height - 6.1 mm
Logistics data - Harmonized System (HS) code - 84717070
LongDesc - Employing the extra - fast PCIe Gen3x4 interface and supporting NVMe 1.3, the GAMMIX S11 Pro delivers blazing fast read/write speeds of up to 3500/3000MB per second. What ’ s more, the S11 Pro is encased in a heatsink that reduces the SSD's temperatures by up to 10°C. Equipped with 3D NAND Flash along with SLC Caching, a DRAM Cache Buffer, End - to - End Data Protection, and LDPC ECC technology, it maintains high speeds and data integrity even during intense gaming, rendering, overclocking, and other high - demand ap plications.
LongProductName - XPG GAMMIX S11 Pro 1TB PCIe Gen3x4 M.2 2280 SSD
LongSummaryDescription - XPG GAMMIX S11 Pro. SSD capacity: 1 TB, SSD form factor: M.2, Read speed: 3350 MB/s, Write speed: 2800 MB/s, Component for: PC
Manufacturer - ADATA
Manufacturer_code - AGAMMIXS11P-1TT-C
Mean time between failures (MTBF) - 2000000 h
Model - GAMMIX S11 Pro
Name - ADATA XPG Gammix S11 Pro 1 TB - PCIe 3.0 x4, M.2 2280 NVMe
Name - Adata XPG Gammix S11 Pro M.2 NVMe PCIe 1TB
Name - ADATA | GAMMIX S11 Pro | 1000 GB | SSD interface M.2 NVME | Read speed 3500 MB/s | Write speed 3000 MB/s
name - Drive SSD XPG GAMMIX S11 Pro 1TB PCIe 3x4 3.35/2.8 GB/s M.2
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features - CDM: 3500/3000 Mb/sec. SMI SM2262EN 3D TLC
Other features - Product colour - Black
Other features - Product colour - Black, Red
Other features - Product colour - Red
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 130 mm
Package features > Gross height (mm) - 103 mm
Package features > Gross weight - 0.034 kg
Package features > Gross width (mm) - 18 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 7170 pc(s)
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.02 kg
Package features > Volume (m3) - 0.00024102 m³
Package features > WEEE tax - No
PDF - http://www.blobs.lt/products/4/1/2/3/7/2/098d3b275e12604c3d9d8ef4738cdda9/original.pdf
Performance > Read speed - 3500 MB/s
Performance > Solid-state drive capacity - 1000 GB
Performance > Solid-state drive interface - M.2 NVME
Performance > Write speed - 3000 MB/s
Ports & interfaces > Interface - PCIe Gen3x4
producer - Adata
Producer - Adata
producerCode - AGAMMIXS11P-1TT-C
ProducerCode - AGAMMIXS11P-1TT-C
Producer product name - GAMMIX S11 Pro
ProductName - GAMMIX S11 Pro
productName - XPG GAMMIX S11 Pro M.2 1000 GB PCI Express 3.0 3D TLC NVMe
productSize - Normal
Random read IOPS (max) - 390 K
Random write IOPS (max) - 380 K
Reading speed - 3350 MB/s
ShortDescription - SSD | 1TB| 3350/2800 MB/s | M.2 | 2280 | PCI-E| NVMe | 3D NAND | gwarancja ograniczona parametrem TBW
ShortSummaryDescription - XPG GAMMIX S11 Pro, 1 TB, M.2, 3350 MB/s
sizeX - 130
sizeY - 16
sizeZ - 105
TBW - 640 TB
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - RoHS
Technical details > Net weight - 0.014 kg
Technical details > Producer - ADATA
Title - XPG GAMMIX S11 Pro M.2 1 TB PCI Express 3.0 NVMe 3D TLC
URL - https://shop.adata.com/us/AGAMMIXS11P-1TT-C
vendpn - AGAMMIXS11P-1TT-C
Warranty - 60
Warranty - 60 month(s)
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 0,03
Weight - 11 g
weight - 30
Weight & dimensions - Depth - 22 mm
Weight & dimensions - Height - 6.1 mm
Weight & dimensions - Weight - 11 g
Weight & dimensions - Width - 80 mm
Width - 22 mm
Writing speed - 2800 MB/s
