ID: 229554
Product code: MZ-V7S1T0BW
In stock 26 units
Warranty: 2 years

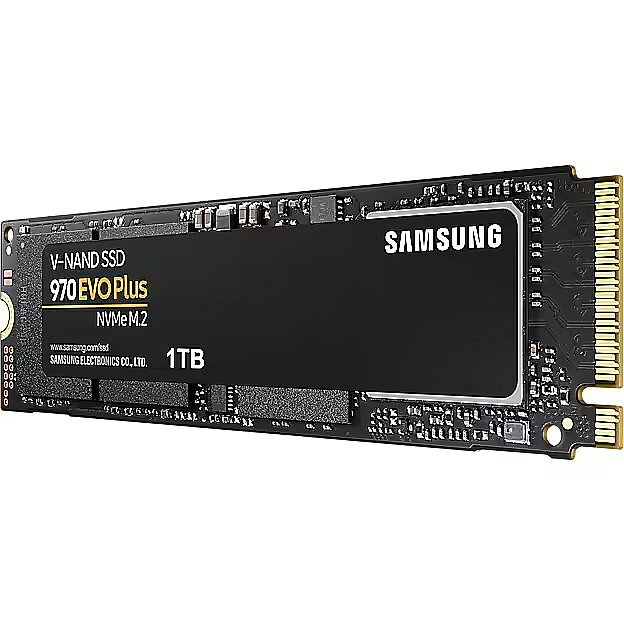

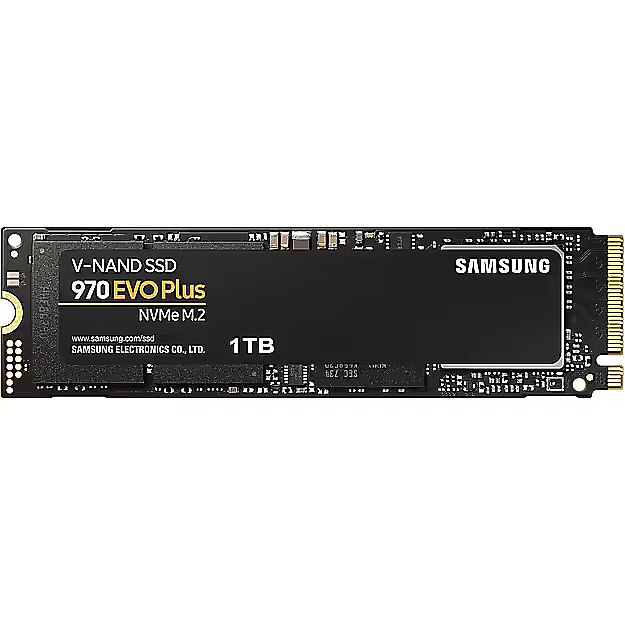

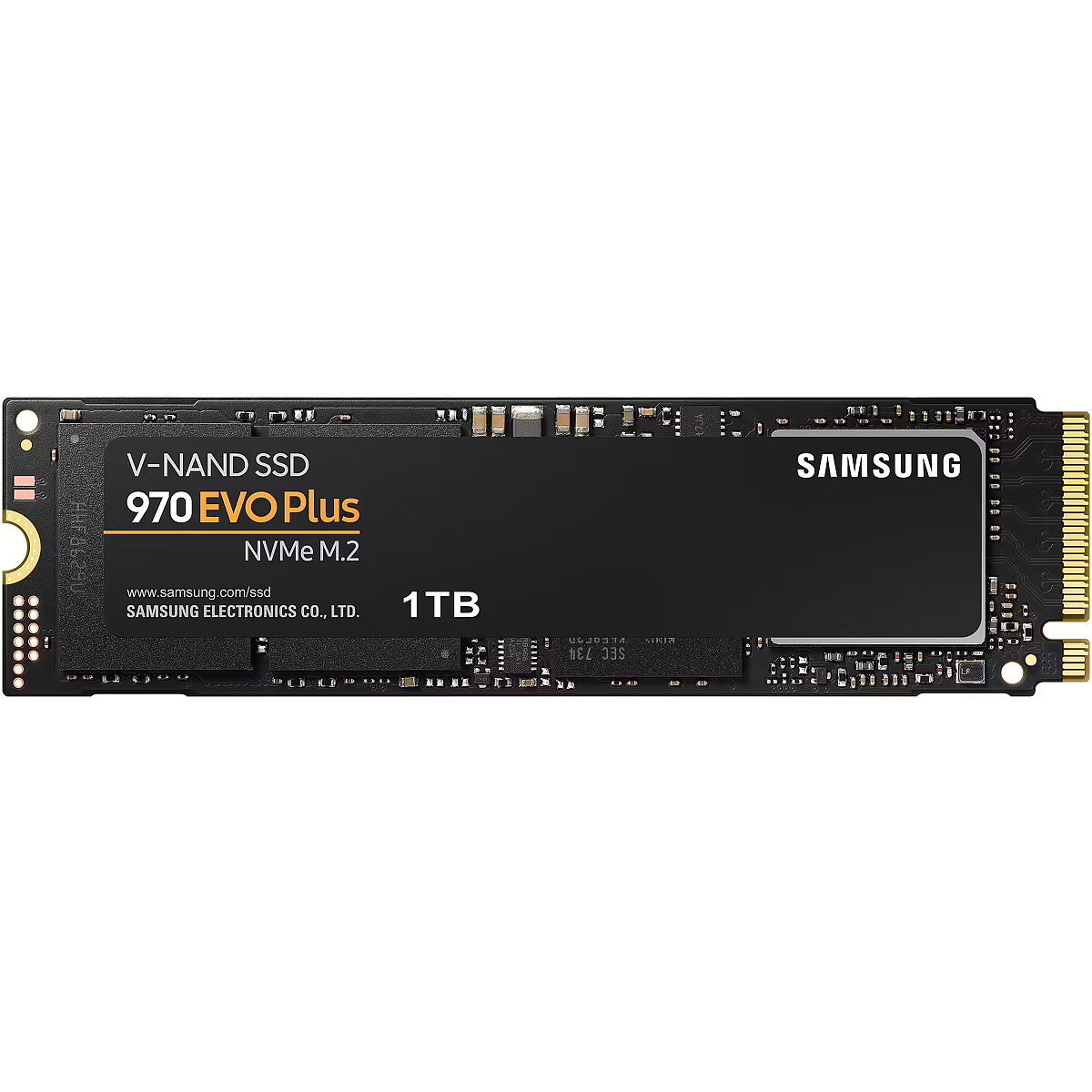

Samsung 970 EVO Plus, 1TB, M.2 Gen3 x4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 28.11.2024
Main product parameters All parameters
- Capacity: 1 TB
- Type: NVMe
- Read speed (sequential): 3500 MB/s
- Write speed (sequential): 3300 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 3.0 x4
Description
Available for purchase, the Samsung M.2 80mm (2280) format SSD disk with a large volume of 1 TB.
This SSD drive has a compact and modern M.2 connector.
This SSD drive uses the latest NVME standard with PCIe interface, which allows simultaneous data transmission across multiple data lines. Thanks to this technology, the drive is ideally suited for those who work with large files, play computer games or deal with video editing.
The read speed for this SSD drive reaches 3500 MB/s. However, it's crucial to note - if the "fast" drives are not provided with adequate cooling, they may not be able to operate at the speed indicated by the manufacturer.
3300 MB/s - this SSD drive is capable of achieving such data writing speed. The speed parameters promised by the manufacturer may not be reached if the "fast" disk is not provided with an appropriate cooling system.
This is an SSD disk in the M.2 80mm (2280) format.
This SSD drive interface is PCIe 3.0 x4. If you insert this drive into an older interface slot, the speed of the drive will decrease, as the drive will not have sufficient data transfer speed (Bandwidth).
Basic information
Capacity
1 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVMe
Read speed (sequential)
3500 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
3300 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: Nav
Lighting
: Nav
Ports and equipment
Form factor
M.2 80mm (2280)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 3.0 x4
Interface
M.2
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specifikācija
Memory type
: TLC (Triple-Level Cell)
Random Read IOPS
: 600K
Random Write IOPS
: 550K
Endurance (TBW)
: 600 TB
More detailed specification
-
ARTIKEL1 - 1TB SAMSUNG 970 EVO PLUS
ARTIKEL2 - M.2 NVME
Box Weight Brutto (kg) - 0.71 kg
Brand - Origin Storage
Brand - Samsung
BrandPartCode - MZ-V7S1T0BW
BufferSize - -
Category - Datortehnika :: Datoru komponentes :: SSD diski
Category - Internal Solid State Drives
category - PC Components|Drives|Solid State Drives (SSDs)|M.2
Category - Root/Electronics/PC parts/Hard drives
Category 1 - SSDs
Category 2 - Interne SSDs
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
category_en - Computers & Components > Computer components > Hard Drives > SSD
category_lv - Datortehnika > Datoru komponentes > Cietie diski > SSD
category_ru - Datortehnika > Datoru komponentes > Cietie diski > SSD
Code - MZ-V7S1T0BW
code - MZ-V7S1T0BW
Color - Not applicable
Depth - 22.15 mm
Depth - 80.15 mm
Depth (mm) - 80.5 mm
Desc - Tips: SSD, Apjoms: 1 TB, Izmērs: M.2, Apgriezienu skaits : Nav, Buferatmiņa: 1GB, Savietojamība: PCIe NVMe 3.0 x4, Rakstīšanas ātrums: 3200 Mb/s, Lasīšanas ātrums: 3500 Mb/s, Garantija: 5 gadi
Description - Dysk SSD 970 EVO PLUS MZ-V7S1T0BW 1 TB NIEPRZERWANA EWOLUCJA SSD
Najlepsza wydajność w jeszcze doskonalszej wersji. Szybszy od swojego poprzednika, 970 EVO, dysk 970 EVO Plus wykorzystuje najnowszą technologię V-NAND i zoptymalizowane oprogramowanie sprzętowe.
Lepsza wydajność komputera
Chciałbyś, by Twój PC dał z siebie wszystko? Dysk 970 EVO Plus osiąga sekwencyjną prędkość odczytu/zapisu
wynoszącą odpowiednio nawet do 3500/3300 MB/s*.Prędkość zapisu została zwiększona nawet o 53%** w stosunku do serii 970 EVO. Najnowsza technologia M.2 i interfejs PCIe Gen 3.0 x4 sprawiają, że seria 970 EVO Plus zapewnia niezrównaną wydajność przetwarzania dużych ilości danych (w tym grafiki 3D i 4K) i danych analitycznych.
Niezawodność i wytrzymałość
970 EVO Plus został skonstruowany z myślą o długiej żywotności i niezawodności, dlatego jest objęty gwarancją
do 5 lat lub do 1200 TBW* (aż o 50 procent więcej niż w poprzedniej generacji). Ponadto technologia Dynamic Thermal Guard zabezpiecza go przed przegrzaniem dzięki automatycznemu monitorowaniu i utrzymywaniu
optymalnej temperatury pracy.
Superpamięć
Nieulotna pamięć interfejsu NVMe pozwala na przechowywanie większej liczby plików nawet do 2 TB! Prędkość sekwencyjna jest aż 6 razy większa niż w dyskach SATA SSD, a to za sprawą pamięci V-NAND,
która do maksimum wykorzystuje potencjał sprzętu.
*Dotyczy pojemności 2 TB.
**Dotyczy pojemności 250 GB.
description_en - Manufacturer: Samsung
SSD: 1000GB
Read speed: 3500 MB/s
Write speed: 3300MB/s
Operating temperature range (T-T): 0 - 70 °C
Width: 80.2 mm
Depth: 2.38 mm
Height: 22.1 mm
description_lv - Ražotājs: Samsung
SSD: 1000 GB
Lasīšanas ātrums: 3500 MB/s
Rakstīšanas ātrums: 3300 MB/s
Darbības temperatūras amplitūda (T-T): 0 - 70 °C
Platums: 80.2 mm
Dziļums: 2.38 mm
Augstums: 22.1 mm
description_ru - Производитель: Самсунг
SSD: 1000 ГБ
Скорость чтения: 3500 МБ/с.
Скорость записи: 3300 МБ/с.
Диапазон рабочих температур (Т-Т): 0–70 °C
Ширина: 80,2 мм
Глубина: 2,38 мм
Высота: 22,1 мм
dimensionalWeight - 58
dimension depth - 20 mm
dimension height - 145 mm
dimension weight - 80 g
dimension width - 100 mm
Disk type - SSD
Drive type - Internal
EAN - 8801643628086
ean - 8801643628086
EANCode - 0887276302522
EAN Code - 8801643628086
Eans - 8801643628086
EAN_code - 8801643628086
External Color - Melna
Features - Component for - PC
Features - Component for - PC/Laptop
Features - Controller type - Samsung Phoenix
Features - DevSlp (device sleep) support - Yes
Features - Hardware encryption - Yes
Features - Interface - PCI Express 3.0
Features - Mean time between failures (MTBF) - 1500000 h
Features - Memory type - V-NAND MLC
Features - NVMe - Yes
Features - NVMe version - 1.3
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 600000 IOPS
Features - Random write (4KB) - 550000 IOPS
Features - Read speed - 3500 MB/s
Features - S.M.A.R.T. support - Yes
Features - Security algorithms - 256-bit AES
Features - SSD capacity - 1 TB
Features - SSD form factor - M.2
Features - TRIM support - Yes
Features - Write speed - 3300 MB/s
Flash Memory Cell Technology - Multi-Level Cell
FormFactor - M.2
Form Factor - M.2 22x80mm
Form factor (width) - M.2 2280
Gross weight - 0.078 kg
GrossWeight - 0.100 kg
Gross Weight Kg - 0,02
gross_weight - 0.14 kg
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
GTIN - 0887276302522
GTIN - 887276302522
GTIN - 8801643628086
guarantee - 60
guarantee_type - normal
HardDrive - 1 TB
HDD capacity - 1 TB
HDD interface - PCI-Express
Height - 2.38 mm
Height - 2.38 mm
Height (mm) - 2.38 mm
HERSTELLER - ORIGIN STORAGE
HSTNUMMER - MZ-V7S1T0BW
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/190222150008984261.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/190222150008995614.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/190222150009008319.jpg
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_48359_1.jpg
LargeDescHTML -
Link - https://www.samsung.com/uk/memory-storage/970-evoplus-nvme-m2-ssd/MZ-V7S1T0BW/
Logistics data - Harmonized System (HS) code - 84717070
LongDesc -
LongDesc - 1TB Samsung 970 EVO Plus M.2 NVME
LongDesc - Always Evolving SSDThe ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimisation. It maximises the potential of NVMe™ bandwidth for unbeatable computing in capacities up to 2TB, with reliability of up to 1,200 TBW.Level Up PerformanceThe 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 53%‡ faster than the 970 EVO. The latest V-NAND—which brings greater NAND performance and higher power efficiency—along with optimised firmware, a proven in-house controller and Intelligent TurboWrite boost.Design FlexibilityThe next advancement in NVMe SSD. The 970 EVO Plus fits up to 2TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsungs innovative technology empowers you with the capacity to do more and accomplish more.Exceptional EnduranceThe new standard in sustainable performance. Get up to 1,200 TBW with a 5-year limited warranty for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsungs quality.Unparalleled ReliabilityAchieve a new level of drive confidence. Samsungs advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimise performance drops.Samsung MagicianAdvanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health, check speed and even boost performance.
LongProductName - MZ-V7S1T0BW
LongSummaryDescription - Origin Storage 1TB Samsung 970 EVO Plus M.2 NVME. SSD capacity: 1 TB, SSD form factor: M.2, Component for: PC/Laptop
LongSummaryDescription - Samsung 970 EVO Plus. SSD capacity: 1 TB, SSD form factor: M.2, Read speed: 3500 MB/s, Write speed: 3300 MB/s, Component for: PC
M.2 Interface Quantity - 1
Manufacturer - Samsung
Manufacturer - SAMSUNG
Manufacturer Code - MZ-V7S1T0BW
Manufacturer Name - Samsung
Manufacturer_code - MZ-V7S1T0BW
MANUFDATASHEET - https://www.samsung.com/lt/memory-storage/nvme-ssd/970-evo-plus-nvme-m-2-ssd-1tb-mz-v7s1t0bw/
Maximum Operating Ambient Temperature - 70 °C
Maximum Power Consumption - 8.5 W
Maximum Random Read Rate - 19000 IOPS
Maximum Random Write Rate - 550000 IOPS
Maximum Sequential Read Rate - 3500 MB/s
Maximum Sequential Write Rate - 3300 MB/s
Mean Time Between Failures - 1500000 hr
Memory Technology - NAND Flash
Minimum Operating Ambient Temperature - 0 °C
Minimum Power Consumption - 30 mW
Model - 970 EVO PLUS
Model - MZ-V7S1T0BW
MPN - MZ-V7S1T0BW
Name - M.2 1TB Samsung 970 EVO plus NVMe PCIe 3.0 x 4 1.3 Phoenix Controller retail
Name - Samsung 970 EVO Plus 1 TB - PCIe Gen 3 x4, M.2 2280
Name - Samsung 970 Evo Plus M.2 1TB
Name - Samsung 970 EVO Plus M.2 PCIe 1TB
name - Samsung 970 Evo Plus NVMe SSD, PCIe 3.0 M.2 Typ 2280 - 1 TB
Name - Samsung | 970 Evo Plus | 1000 GB | Solid-state drive interface M.2 NVME | Read speed 3500 MB/s | Write speed 3300 MB/s
name - SSD disk 970 EVO PLUS MZ-V7S1T0BW 1 TB
OperatingSystems - -
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Other features -
Other features - Launch date - 1/22/2019
PackageContents - -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 97 mm
Package features > Gross height (mm) - 145 mm
Package features > Gross width (mm) - 20 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 6143 pc(s)
Package features > Paper/Pasteboard - 30 g
Package features > Plastic (No PET) - 10 g
Package features > Tare weight (kg) - 0.04 kg
Package features > Volume (m3) - 0.0002813 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Package Type - Retail
Packaging data - Bundled software - Magician Software for SSD management
Packaging data - Package type - Box
Packs in Box - 10
Pack Weight (kg) - 0.01 kg
Pack Weight Brutto (kg) - 0.0521 kg
Pack Weight Netto (kg) - 0.01 kg
Performance > Read speed - 3500 MB/s
Performance > Solid-state drive capacity - 1000 GB
Performance > Solid-state drive interface - M.2 NVME
Performance > Write speed - 3300 MB/s
Pieces in pack - 1
PortConnector - -
Power - Operating voltage - 3.3 V
Power - Power consumption (average) - 6 W
Power - Power consumption (idle) - 0.003 W
Power - Power consumption (max) - 9 W
PowerSupply - -
ProdDesc - 1TB Samsung 970 EVO plus NVMe PCIe 3.0 x 4 1.3 Phoenix retail
producer - Samsung
Producer - Samsung
producerCode - MZ-V7S1T0BW
ProducerCode - MZ-V7S1T0BW
Producer product name - 970 Evo Plus
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=190124120135359713&THEME=asbis&LANG=lv
ProductCategory - SSD
ProductCode - MZ-V7S1T0BW
ProductDescription - SAMSUNG 970 EVO PLUS 1TB SSD, M.2 2280, NVMe, Read/Write: 3500 / 3300 MB/s, Random Read/Write IOPS 600K/550K
ProductName - 1TB Samsung 970 EVO Plus M.2 NVME
ProductName - 970 EVO Plus
productName - Samsung 970 EVO Plus M.2 1000 GB PCI Express 3.0 V-NAND MLC NVMe
ProductPicture - http://www.tdbaltic.ee/images/ds4/MZ-V7S1T0BW-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
productSize - Normal
ProductType - SSD Client
QuantityofDevices - 1
RaidController - -
RaidLevels - -
Random read IOPS (max) - 600 K
Random write IOPS (max) - 550 K
Reading speed - 3500 MB/s
ReadSeekTime - -
Retail Packaging Net Weight Carton - 0.01 kg
Retail Packaging Net Weight Plastic - 0.01 kg
SeekTime - -
Shock Tolerance Operating - 1500G @ 0.5ms
Short description - SSD M.2 (2280) 1TB Samsung 970 EVO Plus (NVMe)
ShortDescription - SSD | 1TB | 3500/3300 MB/s | M.2 | PCIe 3.0 x4 NVMe 1.1 | gwarancja ograniczona parametrem TBW
ShortSummaryDescription - Origin Storage 1TB Samsung 970 EVO Plus M.2 NVME, 1 TB, M.2
ShortSummaryDescription - Samsung 970 EVO Plus, 1 TB, M.2, 3500 MB/s
sizeX - 145
sizeY - 100
sizeZ - 20
Software - -
Solid State Drive Features - S.M.A.R.T.TRIM SupportAES 256-bit EncryptionAuto Garbage Collection
SSD Controller - Samsung Phoenix
Stck_Kart - 9998
Stck_Pal - 0
Storage Capacity - 1 TB
StorageDeviceFeatures - NVMe
StorageDeviceInterface - PCIe
StorageDeviceSpeed - -
StorageDeviceType - SSD
Storno - N
Supports Data Channel - NVMe PCIe® Gen3
SystemRequirements - -
Technical details > Net weight - 0.038 kg
Technical details > Producer - Samsung
Title - Origin Storage 1TB Samsung 970 EVO Plus M.2 NVME
Title - Samsung 970 EVO Plus 1 TB M.2 PCI Express 3.0 NVMe V-NAND MLC
title_en - Samsung 970 Evo Plus 1TB SSD Disk
title_lv - Samsung 970 Evo Plus 1TB SSD Disks
title_ru - Samsung 970 Evo Plus 1TB SSD Диск
Total Bytes Written (TBW) - 600 TB
TransmissionSpeed - 3500 MB/s
Type - Storage
URL -
URL - https://www.samsung.com/uk/memory-storage/nvme-ssd/970-evo-plus-nvme-m-2-ssd-1tb-mz-v7s1t0bw/
USBSpeed - -
Vendor - SAMSUNG
vendpn - MZ-V7S1T0BW
Warranty - 2 years
Warranty - 60
Warranty - 60 month(s)
WarrantyInfo -
warrantyLength - 60
Warranty Products Returnable - Yes
Warranty Term (month) - 60 mēneši
warrantyType - G
Warranty validation Criteria - Serial Number
Weight - 0,08
Weight - 0.008 kg
Weight - 0.08
weight - 0.1 kg
Weight - 8 g
weight - 80
Weight & dimensions - Depth - 2.38 mm
Weight & dimensions - Height - 22.1 mm
Weight & dimensions - Weight - 8 g
Weight & dimensions - Width - 80.2 mm
Width - 22.15 mm
Width - 80.15 mm
Width (mm) - 22.15 mm
Writing speed - 3300 MB/s
ARTIKEL1 - 1TB SAMSUNG 970 EVO PLUS
ARTIKEL2 - M.2 NVME
Box Weight Brutto (kg) - 0.71 kg
Brand - Origin Storage
Brand - Samsung
BrandPartCode - MZ-V7S1T0BW
BufferSize - -
Category - Datortehnika :: Datoru komponentes :: SSD diski
Category - Internal Solid State Drives
category - PC Components|Drives|Solid State Drives (SSDs)|M.2
Category - Root/Electronics/PC parts/Hard drives
Category 1 - SSDs
Category 2 - Interne SSDs
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
category_en - Computers & Components > Computer components > Hard Drives > SSD
category_lv - Datortehnika > Datoru komponentes > Cietie diski > SSD
category_ru - Datortehnika > Datoru komponentes > Cietie diski > SSD
Code - MZ-V7S1T0BW
code - MZ-V7S1T0BW
Color - Not applicable
Depth - 22.15 mm
Depth - 80.15 mm
Depth (mm) - 80.5 mm
Desc - Tips: SSD, Apjoms: 1 TB, Izmērs: M.2, Apgriezienu skaits : Nav, Buferatmiņa: 1GB, Savietojamība: PCIe NVMe 3.0 x4, Rakstīšanas ātrums: 3200 Mb/s, Lasīšanas ātrums: 3500 Mb/s, Garantija: 5 gadi
Description - Dysk SSD 970 EVO PLUS MZ-V7S1T0BW 1 TB NIEPRZERWANA EWOLUCJA SSD
Najlepsza wydajność w jeszcze doskonalszej wersji. Szybszy od swojego poprzednika, 970 EVO, dysk 970 EVO Plus wykorzystuje najnowszą technologię V-NAND i zoptymalizowane oprogramowanie sprzętowe.
Lepsza wydajność komputera
Chciałbyś, by Twój PC dał z siebie wszystko? Dysk 970 EVO Plus osiąga sekwencyjną prędkość odczytu/zapisu
wynoszącą odpowiednio nawet do 3500/3300 MB/s*.Prędkość zapisu została zwiększona nawet o 53%** w stosunku do serii 970 EVO. Najnowsza technologia M.2 i interfejs PCIe Gen 3.0 x4 sprawiają, że seria 970 EVO Plus zapewnia niezrównaną wydajność przetwarzania dużych ilości danych (w tym grafiki 3D i 4K) i danych analitycznych.
Niezawodność i wytrzymałość
970 EVO Plus został skonstruowany z myślą o długiej żywotności i niezawodności, dlatego jest objęty gwarancją
do 5 lat lub do 1200 TBW* (aż o 50 procent więcej niż w poprzedniej generacji). Ponadto technologia Dynamic Thermal Guard zabezpiecza go przed przegrzaniem dzięki automatycznemu monitorowaniu i utrzymywaniu
optymalnej temperatury pracy.
Superpamięć
Nieulotna pamięć interfejsu NVMe pozwala na przechowywanie większej liczby plików nawet do 2 TB! Prędkość sekwencyjna jest aż 6 razy większa niż w dyskach SATA SSD, a to za sprawą pamięci V-NAND,
która do maksimum wykorzystuje potencjał sprzętu.
*Dotyczy pojemności 2 TB.
**Dotyczy pojemności 250 GB.
description_en - Manufacturer: Samsung
SSD: 1000GB
Read speed: 3500 MB/s
Write speed: 3300MB/s
Operating temperature range (T-T): 0 - 70 °C
Width: 80.2 mm
Depth: 2.38 mm
Height: 22.1 mm
description_lv - Ražotājs: Samsung
SSD: 1000 GB
Lasīšanas ātrums: 3500 MB/s
Rakstīšanas ātrums: 3300 MB/s
Darbības temperatūras amplitūda (T-T): 0 - 70 °C
Platums: 80.2 mm
Dziļums: 2.38 mm
Augstums: 22.1 mm
description_ru - Производитель: Самсунг
SSD: 1000 ГБ
Скорость чтения: 3500 МБ/с.
Скорость записи: 3300 МБ/с.
Диапазон рабочих температур (Т-Т): 0–70 °C
Ширина: 80,2 мм
Глубина: 2,38 мм
Высота: 22,1 мм
dimensionalWeight - 58
dimension depth - 20 mm
dimension height - 145 mm
dimension weight - 80 g
dimension width - 100 mm
Disk type - SSD
Drive type - Internal
EAN - 8801643628086
ean - 8801643628086
EANCode - 0887276302522
EAN Code - 8801643628086
Eans - 8801643628086
EAN_code - 8801643628086
External Color - Melna
Features - Component for - PC
Features - Component for - PC/Laptop
Features - Controller type - Samsung Phoenix
Features - DevSlp (device sleep) support - Yes
Features - Hardware encryption - Yes
Features - Interface - PCI Express 3.0
Features - Mean time between failures (MTBF) - 1500000 h
Features - Memory type - V-NAND MLC
Features - NVMe - Yes
Features - NVMe version - 1.3
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 600000 IOPS
Features - Random write (4KB) - 550000 IOPS
Features - Read speed - 3500 MB/s
Features - S.M.A.R.T. support - Yes
Features - Security algorithms - 256-bit AES
Features - SSD capacity - 1 TB
Features - SSD form factor - M.2
Features - TRIM support - Yes
Features - Write speed - 3300 MB/s
Flash Memory Cell Technology - Multi-Level Cell
FormFactor - M.2
Form Factor - M.2 22x80mm
Form factor (width) - M.2 2280
Gross weight - 0.078 kg
GrossWeight - 0.100 kg
Gross Weight Kg - 0,02
gross_weight - 0.14 kg
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
GTIN - 0887276302522
GTIN - 887276302522
GTIN - 8801643628086
guarantee - 60
guarantee_type - normal
HardDrive - 1 TB
HDD capacity - 1 TB
HDD interface - PCI-Express
Height - 2.38 mm
Height - 2.38 mm
Height (mm) - 2.38 mm
HERSTELLER - ORIGIN STORAGE
HSTNUMMER - MZ-V7S1T0BW
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/190222150008984261.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/190222150008995614.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/190222150009008319.jpg
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_48359_1.jpg
LargeDescHTML -
Link - https://www.samsung.com/uk/memory-storage/970-evoplus-nvme-m2-ssd/MZ-V7S1T0BW/
Logistics data - Harmonized System (HS) code - 84717070
LongDesc -
LongDesc - 1TB Samsung 970 EVO Plus M.2 NVME
LongDesc - Always Evolving SSDThe ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimisation. It maximises the potential of NVMe™ bandwidth for unbeatable computing in capacities up to 2TB, with reliability of up to 1,200 TBW.Level Up PerformanceThe 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 53%‡ faster than the 970 EVO. The latest V-NAND—which brings greater NAND performance and higher power efficiency—along with optimised firmware, a proven in-house controller and Intelligent TurboWrite boost.Design FlexibilityThe next advancement in NVMe SSD. The 970 EVO Plus fits up to 2TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsungs innovative technology empowers you with the capacity to do more and accomplish more.Exceptional EnduranceThe new standard in sustainable performance. Get up to 1,200 TBW with a 5-year limited warranty for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsungs quality.Unparalleled ReliabilityAchieve a new level of drive confidence. Samsungs advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimise performance drops.Samsung MagicianAdvanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health, check speed and even boost performance.
LongProductName - MZ-V7S1T0BW
LongSummaryDescription - Origin Storage 1TB Samsung 970 EVO Plus M.2 NVME. SSD capacity: 1 TB, SSD form factor: M.2, Component for: PC/Laptop
LongSummaryDescription - Samsung 970 EVO Plus. SSD capacity: 1 TB, SSD form factor: M.2, Read speed: 3500 MB/s, Write speed: 3300 MB/s, Component for: PC
M.2 Interface Quantity - 1
Manufacturer - Samsung
Manufacturer - SAMSUNG
Manufacturer Code - MZ-V7S1T0BW
Manufacturer Name - Samsung
Manufacturer_code - MZ-V7S1T0BW
MANUFDATASHEET - https://www.samsung.com/lt/memory-storage/nvme-ssd/970-evo-plus-nvme-m-2-ssd-1tb-mz-v7s1t0bw/
Maximum Operating Ambient Temperature - 70 °C
Maximum Power Consumption - 8.5 W
Maximum Random Read Rate - 19000 IOPS
Maximum Random Write Rate - 550000 IOPS
Maximum Sequential Read Rate - 3500 MB/s
Maximum Sequential Write Rate - 3300 MB/s
Mean Time Between Failures - 1500000 hr
Memory Technology - NAND Flash
Minimum Operating Ambient Temperature - 0 °C
Minimum Power Consumption - 30 mW
Model - 970 EVO PLUS
Model - MZ-V7S1T0BW
MPN - MZ-V7S1T0BW
Name - M.2 1TB Samsung 970 EVO plus NVMe PCIe 3.0 x 4 1.3 Phoenix Controller retail
Name - Samsung 970 EVO Plus 1 TB - PCIe Gen 3 x4, M.2 2280
Name - Samsung 970 Evo Plus M.2 1TB
Name - Samsung 970 EVO Plus M.2 PCIe 1TB
name - Samsung 970 Evo Plus NVMe SSD, PCIe 3.0 M.2 Typ 2280 - 1 TB
Name - Samsung | 970 Evo Plus | 1000 GB | Solid-state drive interface M.2 NVME | Read speed 3500 MB/s | Write speed 3300 MB/s
name - SSD disk 970 EVO PLUS MZ-V7S1T0BW 1 TB
OperatingSystems - -
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Other features -
Other features - Launch date - 1/22/2019
PackageContents - -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 97 mm
Package features > Gross height (mm) - 145 mm
Package features > Gross width (mm) - 20 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 6143 pc(s)
Package features > Paper/Pasteboard - 30 g
Package features > Plastic (No PET) - 10 g
Package features > Tare weight (kg) - 0.04 kg
Package features > Volume (m3) - 0.0002813 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Package Type - Retail
Packaging data - Bundled software - Magician Software for SSD management
Packaging data - Package type - Box
Packs in Box - 10
Pack Weight (kg) - 0.01 kg
Pack Weight Brutto (kg) - 0.0521 kg
Pack Weight Netto (kg) - 0.01 kg
Performance > Read speed - 3500 MB/s
Performance > Solid-state drive capacity - 1000 GB
Performance > Solid-state drive interface - M.2 NVME
Performance > Write speed - 3300 MB/s
Pieces in pack - 1
PortConnector - -
Power - Operating voltage - 3.3 V
Power - Power consumption (average) - 6 W
Power - Power consumption (idle) - 0.003 W
Power - Power consumption (max) - 9 W
PowerSupply - -
ProdDesc - 1TB Samsung 970 EVO plus NVMe PCIe 3.0 x 4 1.3 Phoenix retail
producer - Samsung
Producer - Samsung
producerCode - MZ-V7S1T0BW
ProducerCode - MZ-V7S1T0BW
Producer product name - 970 Evo Plus
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=190124120135359713&THEME=asbis&LANG=lv
ProductCategory - SSD
ProductCode - MZ-V7S1T0BW
ProductDescription - SAMSUNG 970 EVO PLUS 1TB SSD, M.2 2280, NVMe, Read/Write: 3500 / 3300 MB/s, Random Read/Write IOPS 600K/550K
ProductName - 1TB Samsung 970 EVO Plus M.2 NVME
ProductName - 970 EVO Plus
productName - Samsung 970 EVO Plus M.2 1000 GB PCI Express 3.0 V-NAND MLC NVMe
ProductPicture - http://www.tdbaltic.ee/images/ds4/MZ-V7S1T0BW-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
productSize - Normal
ProductType - SSD Client
QuantityofDevices - 1
RaidController - -
RaidLevels - -
Random read IOPS (max) - 600 K
Random write IOPS (max) - 550 K
Reading speed - 3500 MB/s
ReadSeekTime - -
Retail Packaging Net Weight Carton - 0.01 kg
Retail Packaging Net Weight Plastic - 0.01 kg
SeekTime - -
Shock Tolerance Operating - 1500G @ 0.5ms
Short description - SSD M.2 (2280) 1TB Samsung 970 EVO Plus (NVMe)
ShortDescription - SSD | 1TB | 3500/3300 MB/s | M.2 | PCIe 3.0 x4 NVMe 1.1 | gwarancja ograniczona parametrem TBW
ShortSummaryDescription - Origin Storage 1TB Samsung 970 EVO Plus M.2 NVME, 1 TB, M.2
ShortSummaryDescription - Samsung 970 EVO Plus, 1 TB, M.2, 3500 MB/s
sizeX - 145
sizeY - 100
sizeZ - 20
Software - -
Solid State Drive Features - S.M.A.R.T.TRIM SupportAES 256-bit EncryptionAuto Garbage Collection
SSD Controller - Samsung Phoenix
Stck_Kart - 9998
Stck_Pal - 0
Storage Capacity - 1 TB
StorageDeviceFeatures - NVMe
StorageDeviceInterface - PCIe
StorageDeviceSpeed - -
StorageDeviceType - SSD
Storno - N
Supports Data Channel - NVMe PCIe® Gen3
SystemRequirements - -
Technical details > Net weight - 0.038 kg
Technical details > Producer - Samsung
Title - Origin Storage 1TB Samsung 970 EVO Plus M.2 NVME
Title - Samsung 970 EVO Plus 1 TB M.2 PCI Express 3.0 NVMe V-NAND MLC
title_en - Samsung 970 Evo Plus 1TB SSD Disk
title_lv - Samsung 970 Evo Plus 1TB SSD Disks
title_ru - Samsung 970 Evo Plus 1TB SSD Диск
Total Bytes Written (TBW) - 600 TB
TransmissionSpeed - 3500 MB/s
Type - Storage
URL -
URL - https://www.samsung.com/uk/memory-storage/nvme-ssd/970-evo-plus-nvme-m-2-ssd-1tb-mz-v7s1t0bw/
USBSpeed - -
Vendor - SAMSUNG
vendpn - MZ-V7S1T0BW
Warranty - 2 years
Warranty - 60
Warranty - 60 month(s)
WarrantyInfo -
warrantyLength - 60
Warranty Products Returnable - Yes
Warranty Term (month) - 60 mēneši
warrantyType - G
Warranty validation Criteria - Serial Number
Weight - 0,08
Weight - 0.008 kg
Weight - 0.08
weight - 0.1 kg
Weight - 8 g
weight - 80
Weight & dimensions - Depth - 2.38 mm
Weight & dimensions - Height - 22.1 mm
Weight & dimensions - Weight - 8 g
Weight & dimensions - Width - 80.2 mm
Width - 22.15 mm
Width - 80.15 mm
Width (mm) - 22.15 mm
Writing speed - 3300 MB/s
