ID: 178162
Product code: MZ-V7S500BW
In stock 3 units
Warranty: 3 years

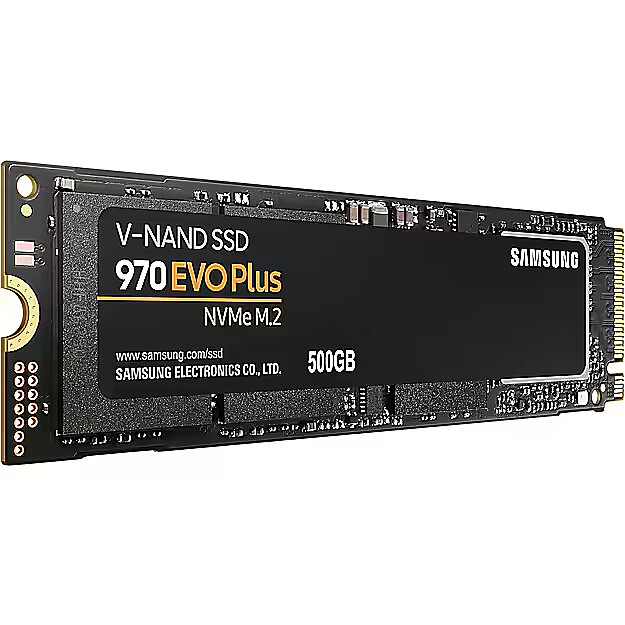

Samsung 970 EVO Plus, 500GB, M.2 Gen3 x4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 28.11.2024
Main product parameters All parameters
- Capacity: 500 GB
- Type: NVMe
- Read speed (sequential): 3500 MB/s
- Write speed (sequential): 3200 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 3.0 x4
Description
Available for purchase, the Samsung M.2 80mm (2280) format SSD disk with a large volume of 500 GB.
This SSD drive has a compact and modern M.2 connector.
This is a fast-acting NVME SSD drive, based on PCIe technology. It allows data to be transmitted in parallel over multiple channels, ensuring excellent performance. This type of drive is perfectly suited for activities such as processing large files, gaming, and video editing, where maximum data transmission speed is required.
The read speed for this SSD drive reaches 3500 MB/s. However, it's crucial to note - if the "fast" drives are not provided with adequate cooling, they may not be able to operate at the speed indicated by the manufacturer.
The write speed (Sequential write speed) of this SSD is 3200 MB/s. However, if adequate cooling is not provided, "fast" drives may not achieve the speeds guaranteed by the manufacturer.
The format of this SSD drive (physical size of the drive) is M.2 80mm (2280).
This SSD drive interface is PCIe 3.0 x4. If you insert this drive into an older interface slot, the speed of the drive will decrease, as the drive will not have sufficient data transfer speed (Bandwidth).
Basic information
Capacity
500 GB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVMe
Read speed (sequential)
3500 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
3200 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: Nav
Lighting
: Nav
Ports and equipment
Form factor
M.2 80mm (2280)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 3.0 x4
Interface
M.2
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specifikācija
Memory type
: TLC (Triple-Level Cell)
Random Read IOPS
: 480K
Random Write IOPS
: 550K
Endurance (TBW)
: 300 TB
More detailed specification
Box Weight Brutto (kg) - 0.72 kg
Brand - Samsung
BrandPartCode - MZ-V7S500BW
BufferSize - -
Category - Datortehnika :: Datoru komponentes :: SSD diski
Category - Internal Solid State Drives
category - PC Components|Drives|Solid State Drives (SSDs)|M.2
Category - Root/Electronics/PC parts/Hard drives
Category 1 - SSDs
Category 2 - Interne SSDs
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
category_en - Computers & Components > Computer components > Hard Drives > SSD
category_lv - Datortehnika > Datoru komponentes > Cietie diski > SSD
category_ru - Datortehnika > Datoru komponentes > Cietie diski > SSD
Code - MZ-V7S500BW
code - MZ-V7S500BW
Depth - 22.15 mm
Depth (mm) - 80.5 mm
Desc - Tips: SSD, Apjoms: 500 GB, Izmērs: M.2, Apgriezienu skaits : Nav, Buferatmiņa: 512 MB, Savietojamība: PCIe NVMe 3.0 x4, Rakstīšanas ātrums: 3200 Mb/s, Lasīšanas ātrums: 3500 Mb/s, Garantija: 5 gadi
description_en - Manufacturer: Samsung
SSD: 500 GB
Read Speed: 3500 MB/s
Write speed: 3300 MB/s
Operating temperature range (T-T): 0 - 70 °C
Platums: 80,2 mm
Depth: 2.38mm
Height: 22.1 mm
description_lv - Ražotājs: Samsung
SSD: 500 GB
Lasīšanas ātrums: 3500 MB/s
Rakstīšanas ātrums: 3300 MB/s
Darbības temperatūras amplitūda (T-T): 0 - 70 °C
Platums: 80,2 mm
Dziļums: 2,38 mm
Augstums: 22,1 mm
description_ru - Производитель: Samsung
SSD: 500 ГБ
Скорость чтения: 3500 МБ/с
Скорость записи: 3300 МБ/с
Диапазон рабочих температур (Т-Т): 0–70 °C
Платумы: 80,2 мм
Глубина: 2,38 мм
Высота: 22,1 мм
dimensionalWeight - 52
EAN - 8801643628116
ean - 8801643628116
EAN Code - 8801643628116
Eans - 8801643628116
EAN_code - 8801643628116
External Color - Melna
Features - Component for - PC
Features - Controller type - Samsung Phoenix
Features - DevSlp (device sleep) support - Yes
Features - Hardware encryption - Yes
Features - Interface - PCI Express 3.0
Features - Mean time between failures (MTBF) - 1500000 h
Features - Memory type - V-NAND MLC
Features - NVMe - Yes
Features - NVMe version - 1.3
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 480000 IOPS
Features - Random write (4KB) - 550000 IOPS
Features - Read speed - 3500 MB/s
Features - S.M.A.R.T. support - Yes
Features - Security algorithms - 256-bit AES
Features - SSD capacity - 500 GB
Features - SSD form factor - M.2
Features - TRIM support - Yes
Features - Write speed - 3300 MB/s
Flash Memory Cell Technology - Multi-Level Cell
FormFactor - M.2
Form Factor - M.2 22x80mm
GrossWeight - 0.090 kg
Gross Weight Kg - 0,02
gross_weight - 0.14 kg
GTIN - 0887276302546
GTIN - 887276302546
GTIN - 8801643628116
HardDrive - 500 GB
Height - 2.38 mm
Height (mm) - 2.38 mm
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/190222150010080745.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/190222150010091301.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/190222150010103334.jpg
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_46234_1.jpg
LargeDescHTML - Always Evolving SSDThe ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for unbeatable computing. Comes in capacities of up to 1TB, with reliability of up to 600 TBW.Level up PerformanceThe 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 53% faster than the 970 EVO. Powered by the latest V-NAND technology—which brings greater NAND performance and higher power efficiency—along with optimized firmware, a proven Phoenix controller, and Intelligent TurboWrite boost speed.Design FlexibilityThe next advancement in NVMe SSDs. The 970 EVO Plus fits up to 1TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung's innovative technology empowers you with the capacity to do more and accomplish more.Exceptional EnduranceThe new standard in sustainable performance. Get up to 600 TBW with a 5-year limited warranty for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsung's reputation for quality.Unparalleled ReliabilityAchieve a new level of drive confidence. Samsung's advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops.Samsung MagicianAdvanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.* TBW: Terabytes Written
* Warrantied TBW for 970 EVO Plus: 150 TBW for 250GB model, 300 TBW for 500GB model, 600 TBW for 1TB model.
* 5-years or TBW, whichever comes first. For more information on the warranty, please find the enclosed warranty statement in the package.
Logistics data - Harmonized System (HS) code - 84717070
LongDesc -
LongDesc - Always Evolving SSDThe ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimisation. It maximises the potential of NVMe™ bandwidth for unbeatable computing in capacities up to 2TB, with reliability of up to 1,200 TBW.Level Up PerformanceThe 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 53%‡ faster than the 970 EVO. The latest V-NAND—which brings greater NAND performance and higher power efficiency—along with optimised firmware, a proven in-house controller and Intelligent TurboWrite boost.Design FlexibilityThe next advancement in NVMe SSD. The 970 EVO Plus fits up to 2TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsungs innovative technology empowers you with the capacity to do more and accomplish more.Exceptional EnduranceThe new standard in sustainable performance. Get up to 1,200 TBW with a 5-year limited warranty for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsungs quality.Unparalleled ReliabilityAchieve a new level of drive confidence. Samsungs advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimise performance drops.Samsung MagicianAdvanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health, check speed and even boost performance.
LongProductName - MZ-V7S500BW
LongSummaryDescription - Samsung 970 EVO Plus. SSD capacity: 500 GB, SSD form factor: M.2, Read speed: 3500 MB/s, Write speed: 3300 MB/s, Component for: PC
M.2 Interface Quantity - 1
Manufacturer - Samsung
Manufacturer - SAMSUNG
Manufacturer Code - MZ-V7S500BW
Manufacturer Name - Samsung
Manufacturer_code - MZ-V7S500BW
MANUFDATASHEET - https://www.samsung.com/lt/memory-storage/nvme-ssd/970-evo-plus-nvme-m-2-ssd-500gb-mz-v7s500bw/
Maximum Operating Ambient Temperature - 70 °C
Maximum Power Consumption - 8.5 W
Maximum Random Read Rate - 19000 IOPS
Maximum Random Write Rate - 550000 IOPS
Maximum Sequential Read Rate - 3500 MB/s
Maximum Sequential Write Rate - 3300 MB/s
Mean Time Between Failures - 1500000 hr
Memory Technology - NAND Flash
Minimum Operating Ambient Temperature - 0 °C
Minimum Power Consumption - 30 mW
Model - MZ-V7S500BW
MPN - MZ-V7S500BW
Name - M.2 500GB Samsung 970 EVO plus NVMe PCIe 3.0 x 4 1.3 Phoenix Controller retail
Name - Samsung 970 EVO Plus 500 GB - PCIe Gen 3 x4, M.2 2280
Name - Samsung 970 Evo Plus M.2 500GB
Name - Samsung 970 EVO Plus M.2 PCIe 500GB
name - Samsung 970 Evo Plus NVMe SSD, PCIe 3.0 M.2 Typ 2280 - 500 GB
OperatingSystems - -
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Other features - Launch date - 1/22/2019
PackageContents - -
Package Type - Retail
Packaging data - Bundled software - Magician Software for SSD management
Packaging data - Package type - Box
Packs in Box - 10
Pack Weight (kg) - 0.01 kg
Pack Weight Brutto (kg) - 0.0522 kg
Pack Weight Netto (kg) - 0.01 kg
Pieces in pack - 1
PortConnector - -
Power - Operating voltage - 3.3 V
Power - Power consumption (average) - 5.8 W
Power - Power consumption (idle) - 0.003 W
Power - Power consumption (max) - 9 W
PowerSupply - -
ProdDesc - SSD M.2 (2280) 500GB Samsung 970 EVO Plus
Producer - Samsung
producerCode - MZ-V7S500BW
ProducerCode - MZ-V7S500BW
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=190124120122983247&THEME=asbis&LANG=lv
ProductCategory - SSD
ProductCode - MZ-V7S500BW
ProductDescription - SAMSUNG 970 EVO PLUS 500GB SSD, M.2 2280, NVMe, Read/Write: 3500 / 3200 MB/s, Random Read/Write IOPS 480K/550K
ProductName - 970 EVO Plus
productName - Samsung 970 EVO Plus M.2 500 GB PCI Express 3.0 V-NAND MLC NVMe
ProductPicture - http://www.tdbaltic.ee/images/ds4/MZ-V7S500BW-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
productSize - Normal
ProductType - SSD Client
QuantityofDevices - 1
RaidController - -
RaidLevels - -
ReadSeekTime - -
Retail Packaging Net Weight Carton - 0.01 kg
Retail Packaging Net Weight Plastic - 0.01 kg
SeekTime - -
Shock Tolerance Operating - 1500G @ 0.5ms
Short description - SSD M.2 (2280) 500GB Samsung 970 EVO Plus (NVMe) TCG Opal Encryption
ShortDescription - SSD | 500GB | 3500/3200 MB/s | M.2 | PCIe 3.0 x4 NVMe 1.1 | gwarancja ograniczona parametrem TBW
ShortSummaryDescription - Samsung 970 EVO Plus, 500 GB, M.2, 3500 MB/s
sizeX - 145
sizeY - 90
sizeZ - 20
Software - -
Solid State Drive Features - S.M.A.R.T.TRIM SupportAES 256-bit EncryptionAuto Garbage Collection
SSD Controller - Samsung Phoenix
Storage Capacity - 500 GB
StorageDeviceFeatures - NVMe
StorageDeviceInterface - PCIe
StorageDeviceSpeed - -
StorageDeviceType - SSD
Supports Data Channel - NVMe PCIe® Gen3
SystemRequirements - -
Title - Samsung 970 EVO Plus 500 GB M.2 PCI Express 3.0 NVMe V-NAND MLC
title_en - Samsung 970 Evo Plus 500 GB SSD interface M.2 SSD disk
title_lv - Samsung 970 Evo Plus 500 GB SSD interface M.2 SSD Disks
title_ru - Samsung 970 Evo Plus 500 GB SSD interface M.2 SSD Диск
Total Bytes Written (TBW) - 300
TransmissionSpeed - 3500 MB/s
Type - Storage
URL - https://www.samsung.com/uk/memory-storage/nvme-ssd/970-evo-plus-nvme-m-2-ssd-500gb-mz-v7s500bw/
USBSpeed - -
Vendor - SAMSUNG
Warranty - -
WarrantyInfo -
warrantyLength - 60
Warranty Products Returnable - Yes
Warranty Term (month) - 60 mēneši
warrantyType - G
Warranty validation Criteria - Serial Number
Weight - 0,08
Weight - 0.008 kg
Weight - 0.08
weight - 0.1 kg
weight - 80
Weight & dimensions - Depth - 2.38 mm
Weight & dimensions - Height - 22.1 mm
Weight & dimensions - Weight - 8 g
Weight & dimensions - Width - 80.2 mm
Width - 80.15 mm
Width (mm) - 22.15 mm
Brand - Samsung
BrandPartCode - MZ-V7S500BW
BufferSize - -
Category - Datortehnika :: Datoru komponentes :: SSD diski
Category - Internal Solid State Drives
category - PC Components|Drives|Solid State Drives (SSDs)|M.2
Category - Root/Electronics/PC parts/Hard drives
Category 1 - SSDs
Category 2 - Interne SSDs
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
category_en - Computers & Components > Computer components > Hard Drives > SSD
category_lv - Datortehnika > Datoru komponentes > Cietie diski > SSD
category_ru - Datortehnika > Datoru komponentes > Cietie diski > SSD
Code - MZ-V7S500BW
code - MZ-V7S500BW
Depth - 22.15 mm
Depth (mm) - 80.5 mm
Desc - Tips: SSD, Apjoms: 500 GB, Izmērs: M.2, Apgriezienu skaits : Nav, Buferatmiņa: 512 MB, Savietojamība: PCIe NVMe 3.0 x4, Rakstīšanas ātrums: 3200 Mb/s, Lasīšanas ātrums: 3500 Mb/s, Garantija: 5 gadi
description_en - Manufacturer: Samsung
SSD: 500 GB
Read Speed: 3500 MB/s
Write speed: 3300 MB/s
Operating temperature range (T-T): 0 - 70 °C
Platums: 80,2 mm
Depth: 2.38mm
Height: 22.1 mm
description_lv - Ražotājs: Samsung
SSD: 500 GB
Lasīšanas ātrums: 3500 MB/s
Rakstīšanas ātrums: 3300 MB/s
Darbības temperatūras amplitūda (T-T): 0 - 70 °C
Platums: 80,2 mm
Dziļums: 2,38 mm
Augstums: 22,1 mm
description_ru - Производитель: Samsung
SSD: 500 ГБ
Скорость чтения: 3500 МБ/с
Скорость записи: 3300 МБ/с
Диапазон рабочих температур (Т-Т): 0–70 °C
Платумы: 80,2 мм
Глубина: 2,38 мм
Высота: 22,1 мм
dimensionalWeight - 52
EAN - 8801643628116
ean - 8801643628116
EAN Code - 8801643628116
Eans - 8801643628116
EAN_code - 8801643628116
External Color - Melna
Features - Component for - PC
Features - Controller type - Samsung Phoenix
Features - DevSlp (device sleep) support - Yes
Features - Hardware encryption - Yes
Features - Interface - PCI Express 3.0
Features - Mean time between failures (MTBF) - 1500000 h
Features - Memory type - V-NAND MLC
Features - NVMe - Yes
Features - NVMe version - 1.3
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 480000 IOPS
Features - Random write (4KB) - 550000 IOPS
Features - Read speed - 3500 MB/s
Features - S.M.A.R.T. support - Yes
Features - Security algorithms - 256-bit AES
Features - SSD capacity - 500 GB
Features - SSD form factor - M.2
Features - TRIM support - Yes
Features - Write speed - 3300 MB/s
Flash Memory Cell Technology - Multi-Level Cell
FormFactor - M.2
Form Factor - M.2 22x80mm
GrossWeight - 0.090 kg
Gross Weight Kg - 0,02
gross_weight - 0.14 kg
GTIN - 0887276302546
GTIN - 887276302546
GTIN - 8801643628116
HardDrive - 500 GB
Height - 2.38 mm
Height (mm) - 2.38 mm
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/190222150010080745.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/190222150010091301.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/190222150010103334.jpg
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_46234_1.jpg
LargeDescHTML - Always Evolving SSDThe ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for unbeatable computing. Comes in capacities of up to 1TB, with reliability of up to 600 TBW.Level up PerformanceThe 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 53% faster than the 970 EVO. Powered by the latest V-NAND technology—which brings greater NAND performance and higher power efficiency—along with optimized firmware, a proven Phoenix controller, and Intelligent TurboWrite boost speed.Design FlexibilityThe next advancement in NVMe SSDs. The 970 EVO Plus fits up to 1TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung's innovative technology empowers you with the capacity to do more and accomplish more.Exceptional EnduranceThe new standard in sustainable performance. Get up to 600 TBW with a 5-year limited warranty for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsung's reputation for quality.Unparalleled ReliabilityAchieve a new level of drive confidence. Samsung's advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops.Samsung MagicianAdvanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.* TBW: Terabytes Written
* Warrantied TBW for 970 EVO Plus: 150 TBW for 250GB model, 300 TBW for 500GB model, 600 TBW for 1TB model.
* 5-years or TBW, whichever comes first. For more information on the warranty, please find the enclosed warranty statement in the package.
Logistics data - Harmonized System (HS) code - 84717070
LongDesc -
LongDesc - Always Evolving SSDThe ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimisation. It maximises the potential of NVMe™ bandwidth for unbeatable computing in capacities up to 2TB, with reliability of up to 1,200 TBW.Level Up PerformanceThe 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 53%‡ faster than the 970 EVO. The latest V-NAND—which brings greater NAND performance and higher power efficiency—along with optimised firmware, a proven in-house controller and Intelligent TurboWrite boost.Design FlexibilityThe next advancement in NVMe SSD. The 970 EVO Plus fits up to 2TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsungs innovative technology empowers you with the capacity to do more and accomplish more.Exceptional EnduranceThe new standard in sustainable performance. Get up to 1,200 TBW with a 5-year limited warranty for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsungs quality.Unparalleled ReliabilityAchieve a new level of drive confidence. Samsungs advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimise performance drops.Samsung MagicianAdvanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health, check speed and even boost performance.
LongProductName - MZ-V7S500BW
LongSummaryDescription - Samsung 970 EVO Plus. SSD capacity: 500 GB, SSD form factor: M.2, Read speed: 3500 MB/s, Write speed: 3300 MB/s, Component for: PC
M.2 Interface Quantity - 1
Manufacturer - Samsung
Manufacturer - SAMSUNG
Manufacturer Code - MZ-V7S500BW
Manufacturer Name - Samsung
Manufacturer_code - MZ-V7S500BW
MANUFDATASHEET - https://www.samsung.com/lt/memory-storage/nvme-ssd/970-evo-plus-nvme-m-2-ssd-500gb-mz-v7s500bw/
Maximum Operating Ambient Temperature - 70 °C
Maximum Power Consumption - 8.5 W
Maximum Random Read Rate - 19000 IOPS
Maximum Random Write Rate - 550000 IOPS
Maximum Sequential Read Rate - 3500 MB/s
Maximum Sequential Write Rate - 3300 MB/s
Mean Time Between Failures - 1500000 hr
Memory Technology - NAND Flash
Minimum Operating Ambient Temperature - 0 °C
Minimum Power Consumption - 30 mW
Model - MZ-V7S500BW
MPN - MZ-V7S500BW
Name - M.2 500GB Samsung 970 EVO plus NVMe PCIe 3.0 x 4 1.3 Phoenix Controller retail
Name - Samsung 970 EVO Plus 500 GB - PCIe Gen 3 x4, M.2 2280
Name - Samsung 970 Evo Plus M.2 500GB
Name - Samsung 970 EVO Plus M.2 PCIe 500GB
name - Samsung 970 Evo Plus NVMe SSD, PCIe 3.0 M.2 Typ 2280 - 500 GB
OperatingSystems - -
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Other features - Launch date - 1/22/2019
PackageContents - -
Package Type - Retail
Packaging data - Bundled software - Magician Software for SSD management
Packaging data - Package type - Box
Packs in Box - 10
Pack Weight (kg) - 0.01 kg
Pack Weight Brutto (kg) - 0.0522 kg
Pack Weight Netto (kg) - 0.01 kg
Pieces in pack - 1
PortConnector - -
Power - Operating voltage - 3.3 V
Power - Power consumption (average) - 5.8 W
Power - Power consumption (idle) - 0.003 W
Power - Power consumption (max) - 9 W
PowerSupply - -
ProdDesc - SSD M.2 (2280) 500GB Samsung 970 EVO Plus
Producer - Samsung
producerCode - MZ-V7S500BW
ProducerCode - MZ-V7S500BW
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=190124120122983247&THEME=asbis&LANG=lv
ProductCategory - SSD
ProductCode - MZ-V7S500BW
ProductDescription - SAMSUNG 970 EVO PLUS 500GB SSD, M.2 2280, NVMe, Read/Write: 3500 / 3200 MB/s, Random Read/Write IOPS 480K/550K
ProductName - 970 EVO Plus
productName - Samsung 970 EVO Plus M.2 500 GB PCI Express 3.0 V-NAND MLC NVMe
ProductPicture - http://www.tdbaltic.ee/images/ds4/MZ-V7S500BW-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
productSize - Normal
ProductType - SSD Client
QuantityofDevices - 1
RaidController - -
RaidLevels - -
ReadSeekTime - -
Retail Packaging Net Weight Carton - 0.01 kg
Retail Packaging Net Weight Plastic - 0.01 kg
SeekTime - -
Shock Tolerance Operating - 1500G @ 0.5ms
Short description - SSD M.2 (2280) 500GB Samsung 970 EVO Plus (NVMe) TCG Opal Encryption
ShortDescription - SSD | 500GB | 3500/3200 MB/s | M.2 | PCIe 3.0 x4 NVMe 1.1 | gwarancja ograniczona parametrem TBW
ShortSummaryDescription - Samsung 970 EVO Plus, 500 GB, M.2, 3500 MB/s
sizeX - 145
sizeY - 90
sizeZ - 20
Software - -
Solid State Drive Features - S.M.A.R.T.TRIM SupportAES 256-bit EncryptionAuto Garbage Collection
SSD Controller - Samsung Phoenix
Storage Capacity - 500 GB
StorageDeviceFeatures - NVMe
StorageDeviceInterface - PCIe
StorageDeviceSpeed - -
StorageDeviceType - SSD
Supports Data Channel - NVMe PCIe® Gen3
SystemRequirements - -
Title - Samsung 970 EVO Plus 500 GB M.2 PCI Express 3.0 NVMe V-NAND MLC
title_en - Samsung 970 Evo Plus 500 GB SSD interface M.2 SSD disk
title_lv - Samsung 970 Evo Plus 500 GB SSD interface M.2 SSD Disks
title_ru - Samsung 970 Evo Plus 500 GB SSD interface M.2 SSD Диск
Total Bytes Written (TBW) - 300
TransmissionSpeed - 3500 MB/s
Type - Storage
URL - https://www.samsung.com/uk/memory-storage/nvme-ssd/970-evo-plus-nvme-m-2-ssd-500gb-mz-v7s500bw/
USBSpeed - -
Vendor - SAMSUNG
Warranty - -
WarrantyInfo -
warrantyLength - 60
Warranty Products Returnable - Yes
Warranty Term (month) - 60 mēneši
warrantyType - G
Warranty validation Criteria - Serial Number
Weight - 0,08
Weight - 0.008 kg
Weight - 0.08
weight - 0.1 kg
weight - 80
Weight & dimensions - Depth - 2.38 mm
Weight & dimensions - Height - 22.1 mm
Weight & dimensions - Weight - 8 g
Weight & dimensions - Width - 80.2 mm
Width - 80.15 mm
Width (mm) - 22.15 mm
