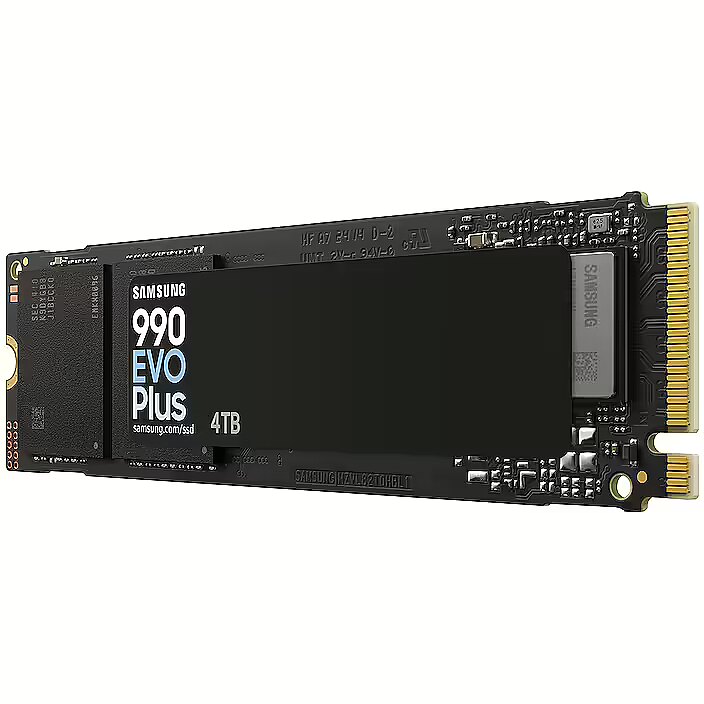

Samsung 990 EVO Plus, 4TB, M.2 Gen4 x4/Gen5 x2

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1153006 Product code: MZ-V9S4T0BW
In stock 4 units
Warranty: 3 years
293.00 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: on Thuesday, 26.11.2024
Main product parameters All parameters
  • Capacity: 4 TB
  • Type: NVMe
  • Read speed (sequential): 7250 MB/s
  • Write speed (sequential): 6300 MB/s
  • Form factor: M.2 80mm (2280)
  • Interface: PCIe 4.0 x4
Description

Available for purchase, the Samsung M.2 80mm (2280) format SSD disk with a large volume of 4 TB.

This disc uses the latest generation compact M.2 port.

This is a fast-acting NVME SSD drive, based on PCIe technology. It allows data to be transmitted in parallel over multiple channels, ensuring excellent performance. This type of drive is perfectly suited for activities such as processing large files, gaming, and video editing, where maximum data transmission speed is required.

7250 MB/s – this is the data reading speed that this SSD disk is capable of reaching. However, we must remember one crucial nuance - "fast" disks may not show the performance promised by the manufacturer if adequate cooling is not provided.

6300 MB/s - this SSD drive is capable of achieving such data writing speed. The speed parameters promised by the manufacturer may not be reached if the "fast" disk is not provided with an appropriate cooling system.

This is an SSD disk in the M.2 80mm (2280) format.

The SSD drive has a PCIe 4.0 x4 interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.

Basic information
Capacity 4 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type : NVMe
Read speed (sequential) 7250 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 6300 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality
Radiators : Nav
Lighting : Nav
Ports and equipment
Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 4.0 x4
Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija
Memory type : TLC (Triple-Level Cell)
Random Read IOPS : 1m
Random Write IOPS : 1.4M
Endurance (TBW) : 2400 TB
More detailed specification
category - PC Components|Drives|Solid State Drives (SSDs)|M.2
Category Code - SSU
code - MZ-V9S4T0BW
Code - MZ-V9S4T0BW
Color - Not applicable
Depth - 80.15 mm
Description - 990 EVO Plus, PCIe 4.0/5.0, NVMe M.2 SSD
Description - 990 EVO Plus PCIe 4.0 x4 / 5.0 x2 NVMe 2.0 4TB Samsung NVMe SSD z technologią V-NAND Do 7250 MB/s sekwencyjnego odczytu i 6300 MB/s zapisu 5 lat gwarancji Wydajność
Szybkość odczytu sekwencyjnego do 7250 MB/s - o 45% większa prędkość niż w poprzednim modelu. Efektywność energetyczna
Zwiększona efektywność energetyczna o 73%, przy jednoczesnym zachowaniu wydajności i kontroli termicznej. Wszechstronność
Rozszerzona pojemność i szybki IntelligentTurboWrite 2.0. Spektakularna prędkość każdego dnia
Szybsze wykonywanie zadań. 990 EVO Plus z najnowszą pamięcią NAND oferuje zwiększone prędkości sekwencyjnego odczytu/zapisu do 7,250/ 6,300 MB/s. Natychmiastowy transfer ogromnych plików. Inteligentne zarządzanie energią cieplną
Zoptymalizowana wydajność, zwiększone możliwości. Pokryty niklem kontroler zwiększa przepustowość MB/s na wat o 73%, osiągając ten sam poziom mocy i kontroli termicznej przy mniejszym zużyciu energii. Skoncentruj się na pracy lub zabawie bez obaw o przegrzanie lub żywotność baterii. Dodatkowa przestrzeń. Dodatkowa prędkość.
Wykorzystaj pełną moc swojego dysku dzięki ulepszonej technologii Intelligent TurboWrite 2.0. Szybsze przetwarzanie ogromnych ilości danych i płynne przechodzenie przez ciężkie grafiki dzięki TurboWrite 2.0. Oprogramowanie Samsung Magician
Odkryj magię w swoim dysku SSD. Narzędzia optymalizacyjne oprogramowania Samsung Magician zapewniają najlepszą wydajność dysku SSD. To bezpieczny i łatwy sposób na migrację wszystkich danych w celu uaktualnienia dysku SSD Samsung. Oprogramowanie chroni cenne dane, monitoruje stan dysku i pobiera najnowsze aktualizacje. Innowacyjność w praktyce
Przez dziesięciolecia pamięć flash NAND firmy Samsung napędzała przełomowe technologie, które zmieniały każdą część naszego codziennego życia. Technologia NAND flash została zastosowana w naszych dyskach SSD i stanowi silny impuls dla kolejnych innowacji.
Design > SSD form factor - M.2 2280
dimension depth - mm
dimension height - mm
Dimensions - 80.15 x 22.15 x 2.38 mm
dimension weight - g
dimension width - mm
Disk type - SSD
Drive thickness - 2.38mm
Drive type - Internal
EAN - 8806095575667
ean - 8806095575667
Form Factor - M.2
Form factor (width) - M.2 2280
Full Description Line - SSD series 990 EVO Plus|4TB|Form Factor M.2|PCIe Gen5|NVMe|Technology TLC|Write speed 6300 MBytes/sec|Read speed 7250 MBytes/sec|Drive thickness 2.38mm|TBW 2400 TB
Gross Weight Kg - 0,1
guarantee - 60
guarantee_type - normal
HDD capacity - 4 TB
HDD interface - PCI-Express
Height - 2.38 mm
Link - https://www.samsung.com/sg/memory-storage/nvme-ssd/990-evo-plus-4tb-mz-v9s4t0bw/
Manufacturer Code - MZ-V9S4T0BW
Manufacturer Name - Samsung
Model - 990 Evo Plus
Model - MZ-V9S4T0BW
name - Samsung 990 Evo Plus NVMe 2.0 SSD, PCIe 4.0 x4 / 5.0 x2, Typ 2280 - 4 TB
Name - Samsung 990 EVO Plus | 4000 GB | SSD form factor M.2 2280 | Solid-state drive interface PCIe 4.0 x4/5.0 x2 NVMe 2.0 | Read speed 7250 MB/s | Write speed 6300 MB/s
name - SSD 990Evo Plus NVMe MZ-V9S4T0BW
NAND flash technology - TLC
NVMe - Yes
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 90.00 mm
Package features > Gross height (mm) - 13.00 mm
Package features > Gross width (mm) - 32.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 7143 pc(s)
Package features > Paper/Pasteboard - 40.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.05 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PCIe Gen5 Interface - Yes
Performance > Read speed - 7250 MB/s
Performance > Solid-state drive capacity - 4000 GB
Performance > Solid-state drive interface - PCIe 4.0 x4/5.0 x2 NVMe 2.0
Performance > Write speed - 6300 MB/s
producer - Samsung
Random read IOPS (max) - 1050 K
Random write IOPS (max) - 1400 K
Reading speed - 7250 MB/s
Read speed - 7250 MBytes/sec
Shipping Box Depth Shipping/Package Box Dimensions - 24 cm
Shipping Box Height Shipping/Package Box Dimensions - 14 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 0.9 kg
Shipping Box Width Shipping/Package Box Dimensions - 19 cm
Short description - SSD M.2 (2280) 4TB Samsung 990 EVO Plus (PCIe 5.0 /NVMe
SSD Capacity - 4TB
SSD series - 990 EVO Plus
TBW - 2400 TB
TBW - 2400 TB
Technical details > Gross weight - 0.14 kg
Technical details > Net weight - 0.09 kg
Technical details > Producer - Samsung, Samsung
Technical details > Producer product name - 990 EVO Plus
Unit Box Height - 0.02
Unit Box Length - 0.145
Unit Box Width - 0.1
Unit Brutto Volume - 0.0006384 cubm
Unit Gross Weight - 0.09 kg
Unit Net Weight - 0.009 kg
Vendor Homepage - www.samsung.com
vendpn - MZ-V9S4T0BW
Warranty - 60
Warranty - 60 month(s)
Warranty - 60L months
Weight - 9 g
Width - 22.15 mm
Write speed - 6300 MBytes/sec
Writing speed - 6300 MB/s
