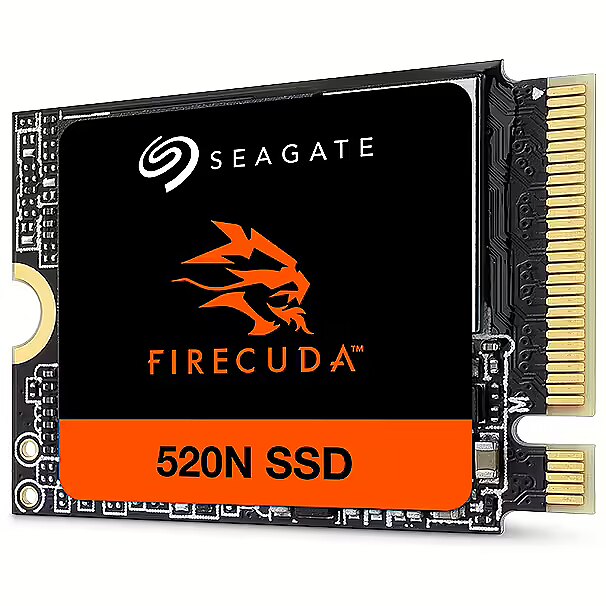

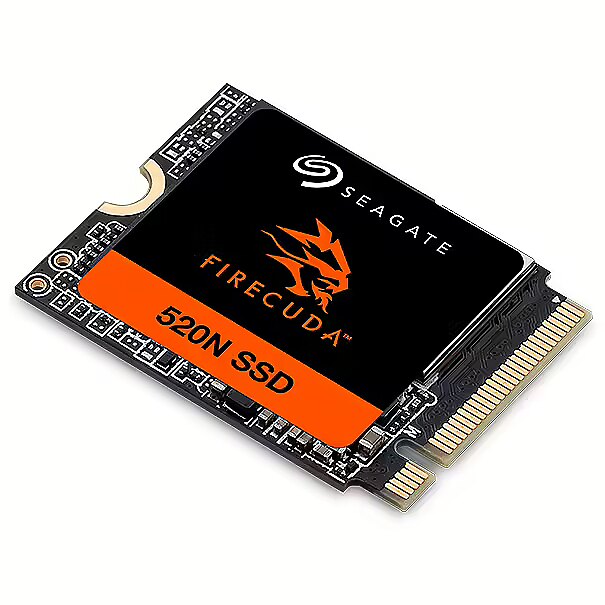

Seagate FireCuda 520N, 1TB, Gen4 x4

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1016020 Product code: ZP1024GV3A002
In stock 1 units
Warranty: 2 years (Warranty for business entities 1 year)
132.70 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 29.11.2024
Main product parameters All parameters
  • Capacity: 1 TB
  • Type: NVMe
  • Read speed (sequential): 4800 MB/s
  • Write speed (sequential): 4700 MB/s
  • Form factor: M.2 30mm (2230)
  • Interface: PCIe 4.0 x4
Description

Available for purchase, the Seagate M.2 30mm (2230) format SSD disk with a large volume of 1 TB.

This SSD drive has a compact and modern M.2 connector.

This is a fast-acting NVME SSD drive, based on PCIe technology. It allows data to be transmitted in parallel over multiple channels, ensuring excellent performance. This type of drive is perfectly suited for activities such as processing large files, gaming, and video editing, where maximum data transmission speed is required.

The read speed for this SSD drive reaches 4800 MB/s. However, it's crucial to note - if the "fast" drives are not provided with adequate cooling, they may not be able to operate at the speed indicated by the manufacturer.

The writing speed for this SSD disk reaches 4700 MB/s. Without a suitable cooling mechanism, "fast" disks may not be able to achieve the performance indicators promised by the manufacturer.

The format of this SSD drive (physical size of the drive) is M.2 30mm (2230).

This SSD drive interface is PCIe 4.0 x4. If you insert this drive into an older interface slot, the speed of the drive will decrease, as the drive will not have sufficient data transfer speed (Bandwidth).

Basic information
Capacity 1 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type : NVMe
Read speed (sequential) 4800 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 4700 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality
Radiators : Nav
Lighting : Nav
Ports and equipment
Form factor M.2 30mm (2230)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 4.0 x4
Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija
Memory type : TLC (Triple-Level Cell)
Random Read IOPS : Not indicated
Random Write IOPS : Not indicated
Endurance (TBW) : 600 TB
More detailed specification
Additional information in manufacturers website Seagate FireCuda 520N, 1TB, Gen4 x4
ARTIKEL1 - FIRECUDA 520N SSD 1TB NVME M.2S
ARTIKEL2 - PCIE GEN4 3D TLC NO ENCRYPTION
Brand - Seagate
BrandPartCode - ZP1024GV3A002
Breite - 0.11
Category - Internal Solid State Drives
category - PC Components|Drives|Solid State Drives (SSDs)|M.2
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
code - ZP1024GV3A002
ean - 8719706436700
EANCode - 8719706436700
EAN_code - 8719706436700
Features - Component for - PC
Features - Interface - PCI Express 4.0
Features - Linux operating systems supported - Yes
Features - NVMe - Yes
Features - S.M.A.R.T. support - Yes
Features - SSD capacity - 1 TB
Features - SSD form factor - M.2
Features - TRIM support - Yes
Features - Windows operating systems supported - Yes
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
GTIN - 8719706436700
HERSTELLER - SEAGATE
Hoehe - 0.03
HSTNUMMER - ZP1024GV3A002
Laenge - 0.16

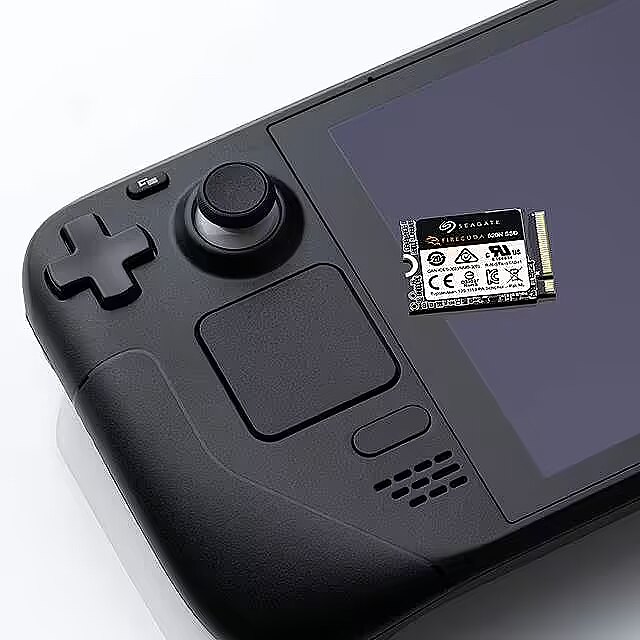

LongDesc - FireCuda 520N is an ultra-small, reliable, high-capacity NVMe SSD that elevates the performance of your Valve Steam Deck, ASUS ROG Ally, Lenovo Legion Go, Microsoft Surface, and other portable devices with M.2 2230 slots. Reach high speeds of up to 5000MB/s with 2TB capacity. Bring desktop gaming performance to handheld devices. Back up and store easily. Plus, protect everything with three-year Rescue Data Recovery Services and a five-year warranty. Gaming Upgrade Ultra-small, reliable NVMe SSD elevates the performance of your Steam Deck, Microsoft Surface, laptop, or other gaming device.High-Octane Speeds High-speed performance—up to 5000MB/s with 2TB and 4800MB/s with 1TB capacity.Enormous Capacity 1TB or 2TB SSD capacity stores everything on your M.2 2230 devicesPowerful PerformancePCIe Gen 4 NVMe performance in M.2 2230 form factor, bringing the desktopOngoing ProtectionSeagate’s three-year Rescue Data Recovery Services and five-year, industry-leading warranty included.
LongProductName - 1TB, PCIe Gen4 ×4 NVMe 1.4, M.2, Black
LongSummaryDescription - Seagate ZP1024GV3A002. SSD capacity: 1 TB, SSD form factor: M.2, Component for: PC
Manufacturer - Seagate
Manufacturer_code - ZP1024GV3A002
Name - Seagate FireCuda 520N 1TB, SSD (PCIe 4.0 x4, NVMe 1.4, M.2 2230-S2)
name - Seagate FireCuda 520N NVMe SSD, PCIe 4.0, M.2 Typ 2230 - 1 TB
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features - Compliance certificates - RoHS
Other features - Warranty period - 5 year(s)
ProductName - ZP1024GV3A002
ShortSummaryDescription - Seagate ZP1024GV3A002, 1 TB, M.2
Stck_Kart - 0
Stck_Pal - 0
Storno - Y
Title - Seagate ZP1024GV3A002 internal solid state drive 1 TB M.2 PCI Express 4.0 NVMe
URL - https://www.seagate.com/products/gaming-drives/pc-gaming/firecuda-520n-ssd/
WarrantyInfo -
Weight - 0,06
Weight & dimensions - Depth - 24 mm
Weight & dimensions - Height - 155 mm
Weight & dimensions - Weight - 70 g
Weight & dimensions - Width - 109 mm
