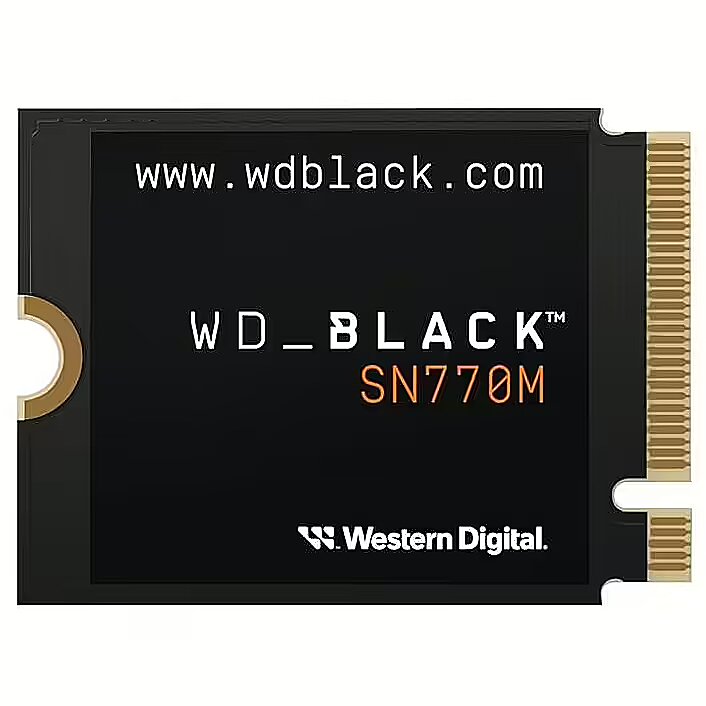

Western Digital Black SN770M, 1TB, M.2 Gen4 x4

Name: Western Digital Black SN770M, 1TB, M.2 Gen4 x4
Brand: Western Digital
SKU: 1013902
Price: 113.93 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1013902 Product code: WDS100T3X0G

In stock 14 units

Warranty: 3 years

Compare

Delivery options

Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
Courier delivery 11.99 €: on Wednesday, 27.11.2024

Main product parameters All parameters

Capacity: 1 TB
Type: NVMe
Read speed (sequential): 5150 MB/s
Write speed (sequential): 4900 MB/s
Form factor: M.2 30mm (2230)
Interface: PCIe 4.0 x4

Description

This Western Digital brand SSD has a 1 TB capacity and a M.2 30mm (2230) format.

This disc uses the latest generation compact M.2 port.

This is a fast-acting NVME SSD drive, based on PCIe technology. It allows data to be transmitted in parallel over multiple channels, ensuring excellent performance. This type of drive is perfectly suited for activities such as processing large files, gaming, and video editing, where maximum data transmission speed is required.

This SSD disk read speed (Sequential read speed) is 5150 MB/s. Keep in mind that "fast" disks without a proper cooling solution may not reach the speeds indicated by the manufacturer.

The write speed (Sequential write speed) of this SSD is 4900 MB/s. However, if adequate cooling is not provided, "fast" drives may not achieve the speeds guaranteed by the manufacturer.

This SSD drive has an M.2 30mm (2230) format.

The SSD drive has a PCIe 4.0 x4 interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.

Basic information

Capacity 1 TB

The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.

Type : NVMe

Read speed (sequential) 5150 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 4900 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality

Radiators : Nav

Lighting : Nav

Ports and equipment

Form factor M.2 30mm (2230)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 4.0 x4

Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija

Memory type : TLC (Triple-Level Cell)

Random Read IOPS : 740K

Random Write IOPS : 800K

Endurance (TBW) : 600 TB

More detailed specification

Additional information in manufacturers website Western Digital Black SN770M, 1TB, M.2 Gen4 x4

ARTIKEL1 - 1TB WD_BLACK SN770M M.2 2230
ARTIKEL2 - NVME SSD F/ HANDHELD GAMING DEV.
Breite - 0
category - PC Components|Drives|Solid State Drives (SSDs)|M.2
Category - Root/Electronics/PC parts/Hard drives
Category Code - SSU
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD
code - WDS100T3X0G
Color - Not applicable
Depth - 30 mm
Description - Expand your handheld gaming device or M.2 2230 compatible laptop’s storage with the WD_BLACK SN770M NVMe SSD. This M.2 2230 SSD is equipped with PCIe® Gen 4.03 delivering speeds up to 5,150 MB/s2 (1TB and 2TB models), Western Digital’s nCache™ 4.0 Technology and Microsoft’s DirectStorage Support. Enabling you to bring and play your large game library wherever you are while allowing you to immerse yourself with blazingly quick game installations and level loads. For extra peace of mind, use the Western Digital Dashboard (Windows® only) software to keep your drive tuned up.
Description - WD Black SN770M SSD Take your storage to the next level with the WD_BLACK M.2 2230 NVMe SSD Expand the storage of your portable console or M.2 2230 compatible laptop with the WD_BLACK SN770M NVMe SSD up to 2TB . This M.2 2230 SSD includes a PCIe Gen 4.0 interface for speeds up to 5150 MB/s (1TB and 2TB models) and supports Western Digital's nCache 4.0 technology and Microsoft's DirectStorage technology. So you can take your game library anywhere in the world to load games and load new levels stunningly fast. And for even more peace of mind, customise the drive with Western Digital Dashboard software (Windows only). PLAY WITHOUT FEAR Introducing the WD_BLACK SN770M SSD the first M.2 2230 NVMe SSD built on the trust gamers have placed in our brand. EXPAND THE CAPABILITIES OF YOUR PORTABLE CONSOLE Expand the capabilities of compatible portable consoles such as ASUS ROG Ally and Steam Deck by increasing transfer speeds to 5150 MB/s (1TB and 2TB models), and stunningly fast install games and load new levels. MORE GAMES ON THE GO Take your game library anywhere in the world with proven Western Digital TLC NAND storage up to 2TB. UNCOMPROMISING FEATURES Get ready for a truly immersive experience delivered by exclusive, gamer-created features such as PCIe Gen 4.0, Western Digital's nCache 4.0 technology and Microsoft's DirectStorage technology. ALSO COMPATIBLE WITH ULTRA-THIN PCS Breathe new life into your M.2 2230 SSD-compatible laptop, such as a Microsoft Surface or Dell brand, by expanding its memory. THE BRAND THAT GAMERS TRUST Customise your 5-year limited warranty drive with the Western Digital Dashboard software (Windows only).
dimensionalWeight - 53
dimension depth - 20 mm
dimension height - 120 mm
Dimensions - 30x22x2.38mm
dimension weight - 50 g
dimension width - 100 mm
Disk type - SSD
Drive thickness - 2.38mm
Drive type - Internal
ean - 0718037902951
ean - 718037902951
EAN - 0718037902951
EANCode - 0718037902951
Eans - 718037902951
EAN_code - 0718037902951
Features - Certification - FCC,UL, TUV, KSS, BSMI, VCCI, C-Tick
Features - Component for - PC/Laptop
Features - Data transfer rate - 16 Gbit/s
Features - Interface - PCI Express 4.0
Features - Mean time between failures (MTBF) - 1750000 h
Features - Memory type - TLC NAND
Features - NVMe - Yes
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 740000 IOPS
Features - Random write (4KB) - 800000 IOPS
Features - Read speed - 5150 MB/s
Features - SSD capacity - 1 TB
Features - SSD form factor - M.2
Features - TBW rating - 600
Features - Write speed - 4900 MB/s
Form Factor - M.2
Form factor (width) - M.2 2230
Full Description Line - SSD series Black SN770M|1TB|Form Factor M.2|PCIe Gen4|NVMe|Write speed 4900 MBytes/sec|Read speed 5150 MBytes/sec|Drive thickness 2.38mm|TBW 600 TB
Gewicht - 0
Gross Weight Kg - 0,09
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
guarantee - 60
guarantee_type - normal
HDD capacity - 1 TB
HDD interface - PCI-Express
Height - 2.38 mm
HERSTELLER - WESTERN DIGITAL
Hoehe - 0
HSTNUMMER - WDS100T3X0G
Laenge - 0
Manufacturer - Western Digital
Manufacturer Code - WDS100T3X0G
Manufacturer Name - Western Digital
Manufacturer_code - WDS100T3X0G-00CHY0
Model - WD Black SN770M
name - SSD WD Black SN770M drive 1TB NVMe 2230 M2
Name - WD Black SN770M 1TB, SSD (PCIe 4.0 x4, NVMe, M.2 2230)
Name - WD Black SN770M M.2 PCIe NVMe 1TB (2230)
name - Western Digital Black SN770M NVMe M.2 SSD, PCIe 4.0 M.2 Typ 2230 - 1 TB
NVMe - Yes
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -55 - 85 °C
Other features -
PCIe Gen4 Interface - Yes
Power - Power consumption (standby) - 0.1 W
Producer - WD
producer - Western Digital
producerCode - WDS100T3X0G
ProducerCode - WDS100T3X0G
productName - Western Digital SN770M 1TB M.2 2230 PCIe Gen4 NVMe
productSize - Normal
Random read IOPS (max) - 740 K
Random write IOPS (max) - 800 K
Reading speed - 5150 MB/s
Read speed - 5150 MBytes/sec
Shipping Box Depth Shipping/Package Box Dimensions - 23.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 14.5 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 0.59 kg
Shipping Box Width Shipping/Package Box Dimensions - 11 cm
ShortDescription - SSD | 1TB | 5150/4900 MB/s | M.2 | PCIe4x4 | NVMe | 2230 |gwarancja ograniczona parametrem TBW
Short description - WD SSD M.2 (2230) 1TB Black SN770M PCIe 4.0/NVMe (Di) Mobile Game Drive
sizeX - 130
sizeY - 20
sizeZ - 103
SSD Capacity - 1TB
SSD series - Black SN770M
Stck_Kart - 0
Stck_Pal - 0
Storno - Y
TBW - 600 TB
TBW - 600 TB
Unit Box Height - 0.145
Unit Box Length - 0.235
Unit Box Width - 0.11
Unit Brutto Volume - 0.0003748 cubm
Unit Gross Weight - 0.059 kg
Unit Net Weight - 0.0028 kg
Vendor Homepage - www.westerndigital.com/products/internal-drives/wd-black-sn770m-nvme-ssd?sku=WDBDNH5000ABK-WRSN
vendpn - WDS100T3X0G
Warranty - 60L months
warrantyLength - 60
warrantyType - G
Weight - 0,04
Weight - 2.8 g
weight - 47
Weight & dimensions - Depth - 22 mm
Weight & dimensions - Height - 2.38 mm
Weight & dimensions - Weight - 2.8 g
Weight & dimensions - Width - 30 mm
Width - 22 mm
Write speed - 4900 MBytes/sec
Writing speed - 4900 MB/s
