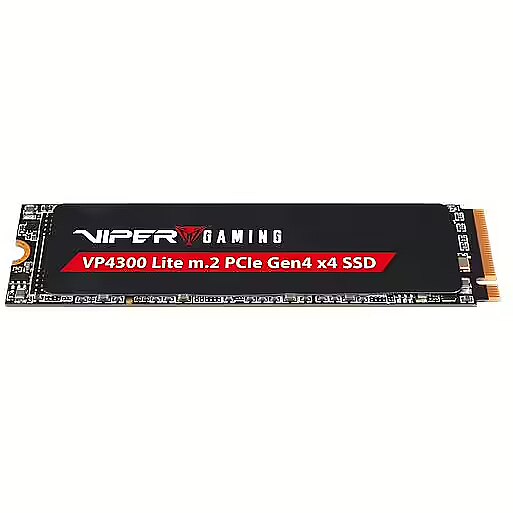

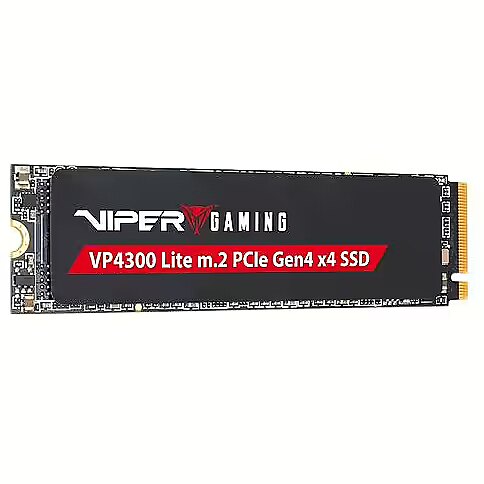

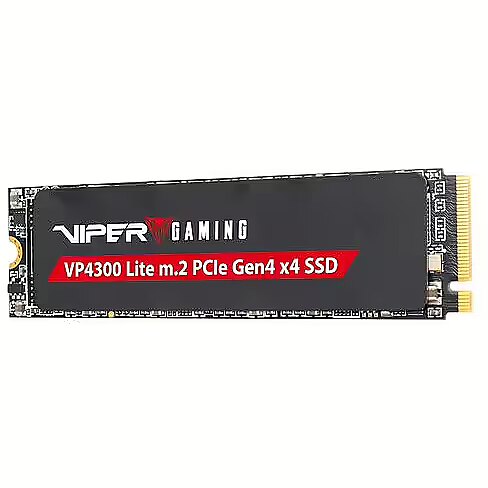

Patriot Viper VP4300 Lite, 4TB M.2 Gen4 x4

Name: Patriot Viper VP4300 Lite, 4TB M.2 Gen4 x4
Brand: Patriot
SKU: 1004781
Price: 270.8 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1004781 Product code: VP4300L4TBM28H

Can be ordered 70 units Availability: 14 days after order approval

Warranty: 3 years

Compare

Delivery options

Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
Courier delivery 11.99 €: 10.12.2024

Main product parameters All parameters

Capacity: 4 TB
Type: NVMe
Read speed (sequential): 7400 MB/s
Write speed (sequential): 6400 MB/s
Form factor: M.2 80mm (2280)
Interface: PCIe 4.0 x4

Description

Available for purchase, the Patriot M.2 80mm (2280) format SSD disk with a large volume of 4 TB.

This disc uses the latest generation compact M.2 port.

This is a fast-acting NVME SSD drive, based on PCIe technology. It allows data to be transmitted in parallel over multiple channels, ensuring excellent performance. This type of drive is perfectly suited for activities such as processing large files, gaming, and video editing, where maximum data transmission speed is required.

The read speed for this SSD drive reaches 7400 MB/s. However, it's crucial to note - if the "fast" drives are not provided with adequate cooling, they may not be able to operate at the speed indicated by the manufacturer.

The write speed (Sequential write speed) of this SSD is 6400 MB/s. However, if adequate cooling is not provided, "fast" drives may not achieve the speeds guaranteed by the manufacturer.

The format of this SSD drive (physical size of the drive) is M.2 80mm (2280).

This SSD drive interface is PCIe 4.0 x4. If you insert this drive into an older interface slot, the speed of the drive will decrease, as the drive will not have sufficient data transfer speed (Bandwidth).

Basic information

Capacity 4 TB

The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.

Type : NVMe

Read speed (sequential) 7400 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 6400 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality

Radiators : Nav

Lighting : Nav

Ports and equipment

Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 4.0 x4

Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija

Memory type : TLC (Triple-Level Cell)

Random Read IOPS : Not indicated

Random Write IOPS : Not indicated

Endurance (TBW) : 2000 TB

More detailed specification

Category - Root/Electronics/PC parts/Hard drives
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
Color - Not applicable
Depth - 80 mm
Description - Viper VP4300 Lite The VP4300 Lite with the latest PCIe Gen4 x4 controller is fully NVMe 2.0 compliant and fully compatible with both PC and Playstation 5. It has sequential read speeds of up to 7400 MB/s, sequential write speeds of up to 6000 MB/s and PS5 sequential read speeds of 6100 MB/s and 2000 TBW. The VP4300 Lite will blow away rivals every time. The VP4300 Lite is built with world-class materials and features a high-performance, slim graphene heat shield. It therefore offers the perfect combination of performance and security and reliability ideal for any gamer.
dimensionalWeight - 26
dimension depth - 2 mm
dimension height - 130 mm
dimension weight - 10 g
dimension width - 100 mm
Disk type - SSD
Drive type - Internal
ean - 4711378425383
Eans - 4711378425383
EAN_code - 4711378425383
Features - Certification - CE/FCC/UKCA/BSMI/RoHS
Features - Compatible products - PlayStation 5
Features - Component for - PC/Game console
Features - Hardware encryption - No
Features - Interface - PCI Express 4.0
Features - M.2 SSD size - 2280 (22 x 80 mm)
Features - NVMe - Yes
Features - NVMe version - 2.0
Features - PCI Express interface data lanes - x4
Features - Read speed - 7400 MB/s
Features - Sequential read speed (CDM) - 7400 MB/s
Features - Sequential write speed (CDM) - 6000 MB/s
Features - SSD capacity - 4 TB
Features - SSD form factor - M.2
Features - TBW rating - 2000
Features - Windows operating systems supported - Windows 7
Features - Windows operating systems supported - Windows 8
Features - Windows operating systems supported - Windows 8.1
Features - Windows operating systems supported - Windows 10
Features - Windows operating systems supported - Windows 11
Features - Write speed - 6000 MB/s
Form factor (width) - M.2 2280
guarantee - 60
guarantee_type - normal
HDD capacity - 4 TB
HDD interface - PCI-Express
Height - 3.8 mm
Manufacturer - Patriot
Manufacturer_code - VP4300L4TBM28H
Model - Viper VP4300 Lite
Name - Patriot SSD 4TB 7400/6400 VP4300 Lite M.2 PAT PCIe (black, PCIe 4.0 x4, NVMe 2.0, M.2 2280)
Name - Patriot Viper VP4300 Lite PCIe NVMe 4TB
name - SSD 4TB Viper VP4300 Lite 7400/6000 M.2 PCIe Gen4x4 NVMe 2.0 PS5
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Other features -
Packaging data - Package depth - 132 mm
Packaging data - Package height - 6.6 mm
Packaging data - Package weight - 20 g
Packaging data - Package width - 100 mm
producer - Patriot
Producer - Patriot
producerCode - VP4300L4TBM28H
ProducerCode - VP4300L4TBM28H
productName - Patriot Memory VP4300 Lite M.2 4 TB PCI Express 4.0 NVMe
productSize - Normal
Reading speed - 7400 MB/s
ShortDescription -
sizeX - 130
sizeY - 100
sizeZ - 10
TBW - 2000 GB
vendpn - VP4300L4TBM28H
warrantyLength - 36
warrantyType - G
Weight - 0,02
Weight - 9 g
weight - 20
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 3.8 mm
Weight & dimensions - Weight - 9 g
Weight & dimensions - Width - 22 mm
Width - 22 mm
Writing speed - 6000 MB/s
