ID: 1000280
Product code: AG512K2TB
In stock 2 units
Warranty: 3 years

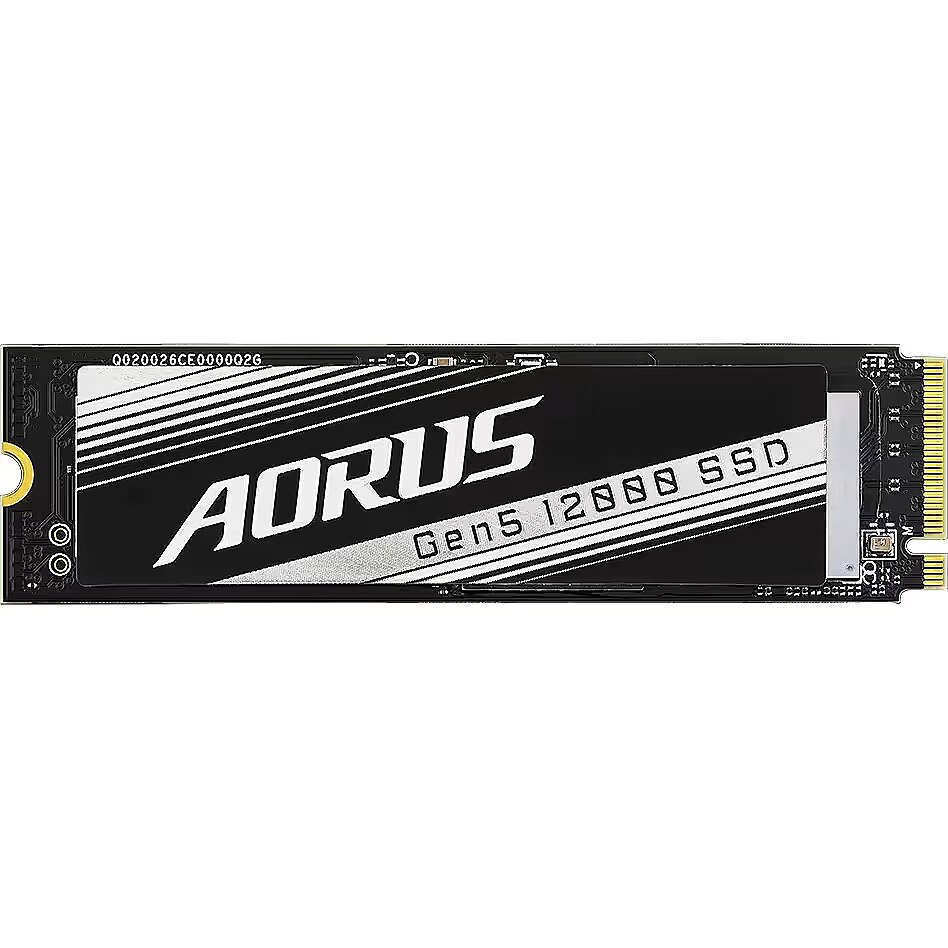

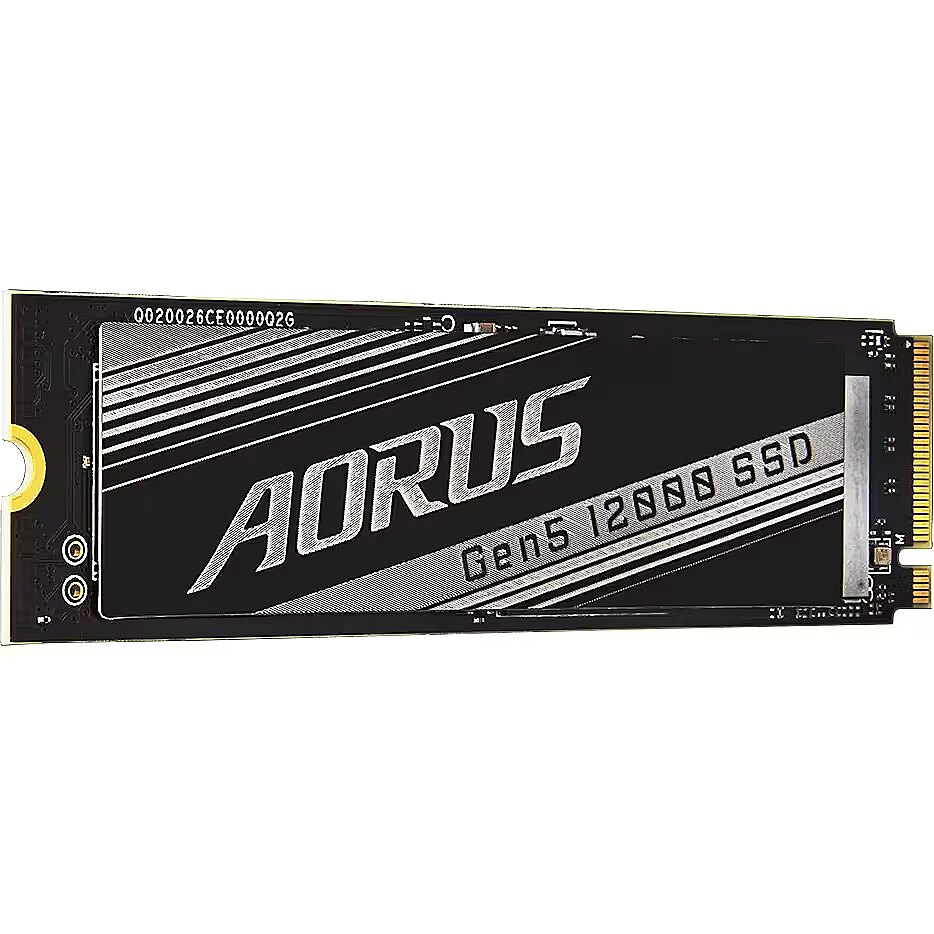

Gigabyte AORUS Gen5 12000, 2TB, M.2 Gen5 x4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 29.11.2024
Main product parameters All parameters
- Capacity: 2 TB
- Type: NVMe
- Read speed (sequential): 12400 MB/s
- Write speed (sequential): 11800 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 5.0 x4
Description
This Gigabyte brand SSD has a 2 TB capacity and a M.2 80mm (2280) format.
The disk is equipped with the currently most advanced and compact M.2 connection port.
This SSD drive uses the latest NVME standard with PCIe interface, which allows simultaneous data transmission across multiple data lines. Thanks to this technology, the drive is ideally suited for those who work with large files, play computer games or deal with video editing.
This SSD disk read speed (Sequential read speed) is 12400 MB/s. Keep in mind that "fast" disks without a proper cooling solution may not reach the speeds indicated by the manufacturer.
The write speed (Sequential write speed) of this SSD is 11800 MB/s. However, if adequate cooling is not provided, "fast" drives may not achieve the speeds guaranteed by the manufacturer.
To ensure memory chips maintain a low temperature and assure constant performance over long periods of use, the disk equipment is equipped with a cooler or a radiator. However, even if you purchase a "fast" SSD without a built-in radiator, it's not critical - almost all motherboards (99%) already have an integrated M.2 slot cooler.
This is an SSD disk in the M.2 80mm (2280) format.
This SSD drive interface is PCIe 5.0 x4. If you insert this drive into an older interface slot, the speed of the drive will decrease, as the drive will not have sufficient data transfer speed (Bandwidth).
Basic information
Capacity
2 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVMe
Read speed (sequential)
12400 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
11800 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: Ir
Lighting
: Nav
Ports and equipment
Form factor
M.2 80mm (2280)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 5.0 x4
Interface
M.2
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specifikācija
Memory type
: TLC (Triple-Level Cell)
Random Read IOPS
: Not indicated
Random Write IOPS
: Not indicated
Endurance (TBW)
: 1400 TB
More detailed specification
Brand - GIGABYTE
BrandPartCode - AG512K2TB
Category - Internal Solid State Drives
Features - Component for - PC
Features - External DDR cache - Yes
Features - External DDR cache quantity - 4096 MB
Features - Hardware encryption - No
Features - Interface - PCI Express 5.0
Features - Lithography - 12 nm
Features - M.2 SSD size - 2280 (22 x 80 mm)
Features - Mean time between failures (MTBF) - 1600000 h
Features - Memory type - 3D TLC NAND
Features - NVMe - Yes
Features - NVMe version - 2.0
Features - PCI Express interface data lanes - x4
Features - Read speed - 12400 MB/s
Features - SSD capacity - 2 TB
Features - SSD form factor - M.2
Features - TBW rating - 1400
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Write speed - 11800 MB/s
GTIN - 4719331855956

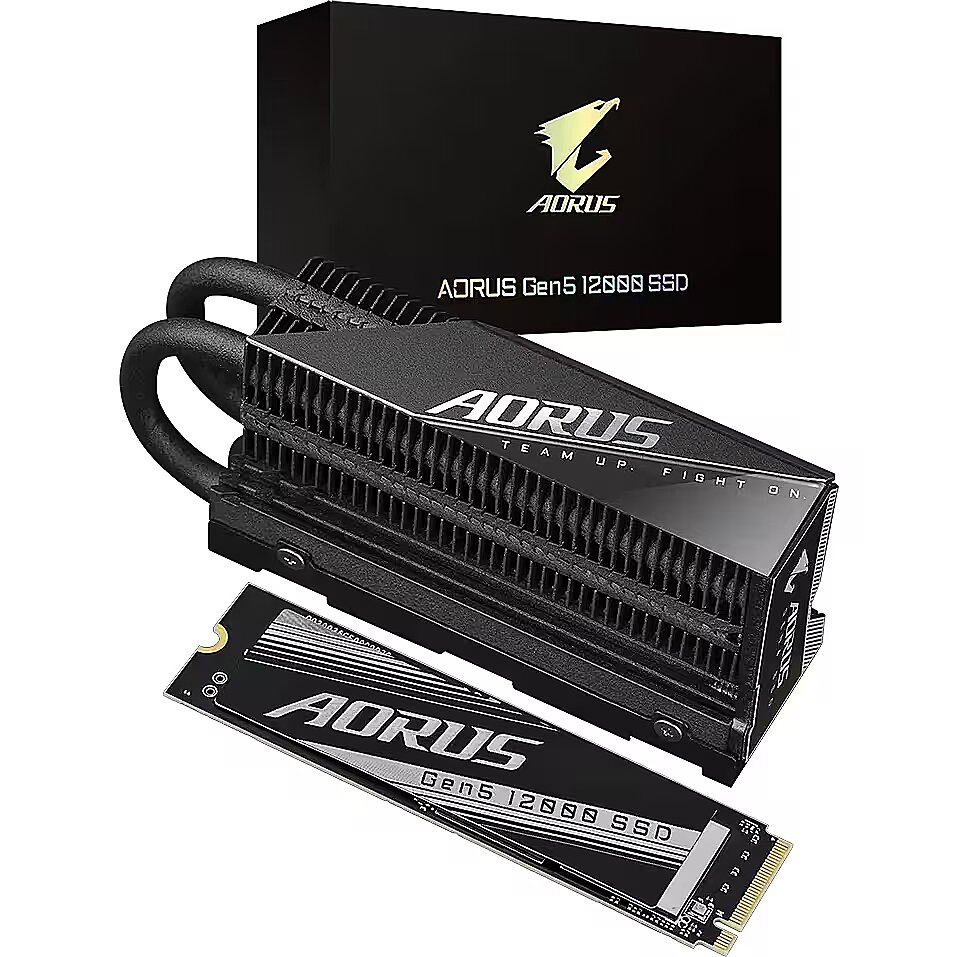

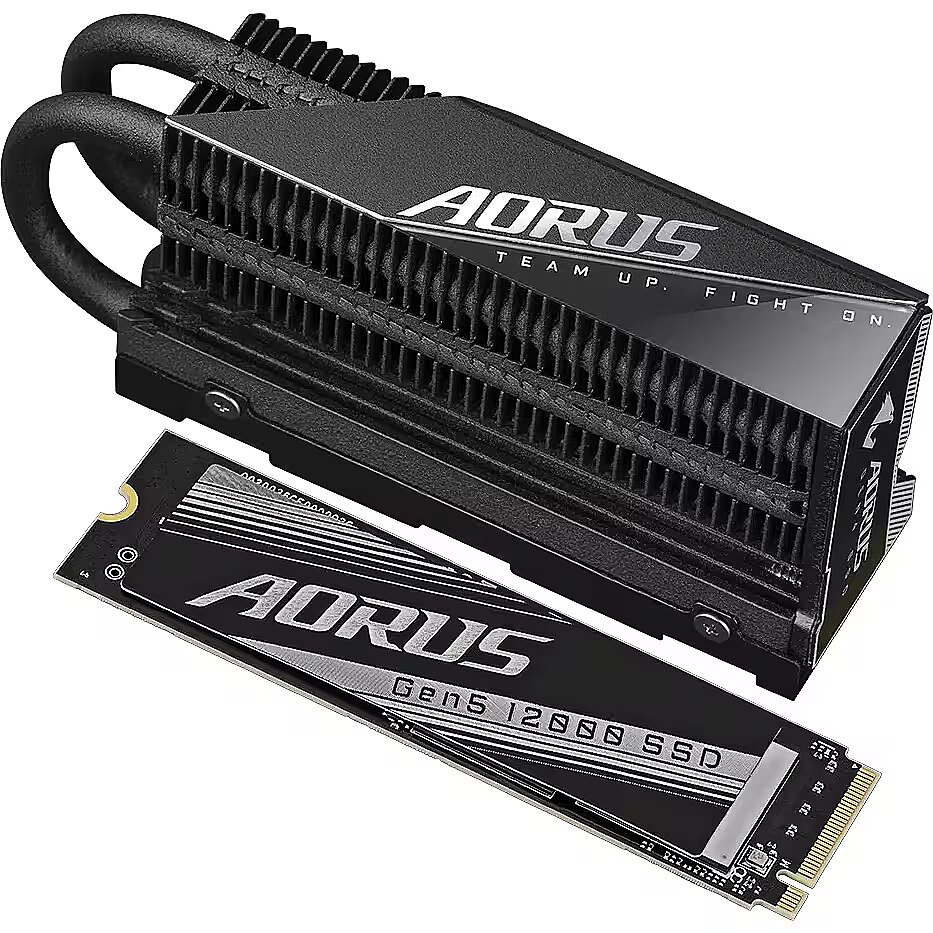

LongDesc - Top-tier performance power by PCIe 5.0 x4 controllerPower by the PCIe Gen5.0 x4 controller Phison PS5026-E26 and brand-new 232-layer 3D TLC NAND Flash, AORUS Gen5 12000 SSD delivers top-tier performance: sequential read/write speeds up to 12,400/11,800 MB/s. Aim at PC enthusiasts, gamers, and rendering professionals, AORUS Gen5 12000 gives users faster data transferring and a lower-latency gaming experience.Cutting edge speedThe PS5026-E26 controller is built with the advanced 12nm process, ensuring sufficient computing power. Also, it supports up to 8 NAND Flash channels with 32CEs, DDR4 caching and complies with the NVMe 2.0 standard. AORUS Gen5 12000 SSD offers approximately 70% faster in read throughput and up to 72% higher write throughput than PCIe Gen4.0 x4.NAND Flash Selected for High Quality and PerformanceLeveraging the superior throughput and high-quality combination that 3D TLC NAND provides, AORUS Gen5 12000 SSD brings a better experience in work.M.2 Thermal Guard XTREME with Nanocarbon CoatingAORUS Gen5 12000 SSD offer with an optional M.2 Thermal Guard XTREME which is made up of two heatpipes and stacked fins with advanced thermal technology Nanocarbon coating for maximum heat dissipation efficiency. Applied with dual side high conductivity thermal pad ensures the heat transfers to the stacked fins. The M.2 Thermal Guard XTREME is the best solution in passive airflow conditions when your personal computer adopts a CPU AIO water cooler.Why is keeping an SSDs at lower temperatures so important?Higher working temperature may cause data loss. The degradation factor of data loss could be a hundred times higher. Compared with regular plated heat spreader, the M.2 Thermal Guard XTREME improves thermal dissipation to keep the highest Seq. read performance. With M.2 Thermal Guard XTREME, the SSD can operate at lower working temperatures to improve data storage reliability. Enjoy smoother & upgraded storage performance any time by utilizing M.2 Thermal Guard XTREME.GIGABYTE CONTROL CENTER (GCC)GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.- Unified software platform for all Gigabyte supported products- Intuitive user interface for an eased experience- Modularized control components only for installed hardware- Auto update function to keep system up to date and support future products
LongProductName - 2 TB, M.2, PCI-Express 5.0 x4, NVMe 2.0, 3D TLC NAND Flash
LongSummaryDescription - GIGABYTE AORUS Gen5 12000. SSD capacity: 2 TB, SSD form factor: M.2, Read speed: 12400 MB/s, Write speed: 11800 MB/s, Component for: PC
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features - Cooling type - Heatsink
Packaging data - Package type - Box
Packaging data - Quick start guide - Yes
Power - Power consumption (max) - 11.5 W
ProductName - AORUS Gen5 12000
ShortSummaryDescription - GIGABYTE AORUS Gen5 12000, 2 TB, M.2, 12400 MB/s
Title - GIGABYTE AORUS Gen5 12000 2 TB M.2 PCI Express 5.0 NVMe 3D TLC NAND
URL - https://www.gigabyte.com/SSD/AORUS-Gen5-12000-SSD-2TB
WarrantyInfo - 5 years limited
Weight & dimensions - Depth - 92 mm
Weight & dimensions - Height - 44.7 mm
Weight & dimensions - Width - 23.5 mm
