ID: 898930
Product code: SRTG8KXLI
Can be ordered 3 units Availability: 14 days after order approval
Warranty: 3 years

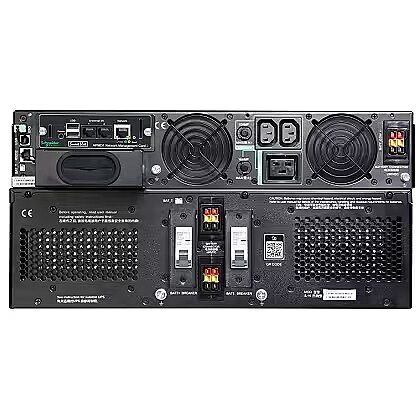

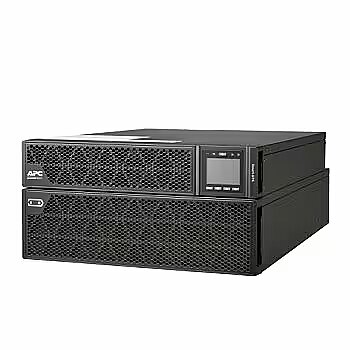

APC Smart-UPS SRTG8KXLI, 8000VA, 8000W, IEC, 5U
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
- Battery capacity (VA): 8000 VA
- Output power (W): 8000 W
Display characteristics
Display
: Ir
Basic information
Battery capacity (VA)
8000 VA
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: 4h
Output power (W)
: 8000 W
Ports and equipment
Number of nests (total)
: 2
Number of sockets (Battery Backup)
: 2
RJ-45
: 3
Socket type
: IEC320
USB
: 2
More detailed specification
ARTIKEL1 - APC SMART-UPS RT 8KVA 230V
ARTIKEL2 -
Battery - Automatic battery test - Yes
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 4 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Battery voltage - 96 V
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery - Number of batteries supported - 2
Battery life (max), years - 3 - 5
Battery recharge time, h - 4
Battery voltage, V - 96
Brand - APC
BrandPartCode - SRTG8KXLI
Breite - 0
Category - Uninterruptible Power Supplies (UPSs)
Connections - RJ-45 Serial
Connections - USB
Depth, mm - 620
Description - APC SMART-UPS ON-LINE 8KVA/8KW 230V RACK/TOWER, NETWORK CARD, W/O RAIL KIT
Design - Certification - CE, EN/IEC 62040-1
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - International Protection (IP) code - IP20
Design - LED indicators - Yes
EANCode - 0731304411840
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Low battery alarm, Overload alarm
Features - Auto-restart - Yes
Features - ECO mode - Yes
Features - Input frequency - 40/70 Hz
Features - Input operation voltage (max) - 285 V
Features - Input operation voltage (min) - 100 V
Features - Noise level - 55 dB
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 8000 W
Features - Output power capacity - 8 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 2%
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Form factor - Rack / Tower
Frequency range, Hz - 40 - 70
Gewicht - 131
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 0731304411840
GTIN - 731304411840
Height - 540.000000
Height, mm - 217
HERSTELLER - APC
Hoehe - 0
HSTNUMMER - SRTG8KXLI
IP classification - IP20
Laenge - 0
Length - 600.000000
LongDesc - APC Smart-UPS RT 8kVA 230V- High density, double-conversion on-line power protection with scalable runtime- Includes: Smart UPS signalling RS-232 cable, User manual
LongProductName - 8 kVA, 8 kW, 100-285V, 40/70Hz, LCD, IP20
LongSummaryDescription - APC SRTG8KXLI. UPS topology: Double-conversion (Online), Output power capacity: 8 kVA, Output power: 8000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Hardwire, AC outlets quantity: 3 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 96 V, Battery life (max): 5 year(s). Form factor: Rackmount/Tower, Display type: LCD, International Protection (IP) code: IP20. Width: 440 mm, Depth: 620 mm, Height: 217 mm
Manufacturer - APC
ManufacturerPartNumber - SRTG8KXLI
Nominal input voltage, V - 160 - 285
Nominal output voltage, V - 220 - 240
Operational conditions - Non-operating altitude - 0 - 15240 m
Operational conditions - Operating altitude - 0 - 2011.68 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Output power, W - 8000
Output power capacity (VA) - 8000
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 3 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Emergency Power Off (EPO) connector - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Power plug - Hardwire
Ports & interfaces - Serial interface - Yes
Ports & interfaces - USB port - Yes
ProductName - SRTG8KXLI
ShortSummaryDescription - APC SRTG8KXLI, Double-conversion (Online), 8 kVA, 8000 W, Sine, 100 V, 285 V
Stck_Kart - 1
Stck_Pal - 1
Storno - Y
Title - APC SRTG8KXLI uninterruptible power supply (UPS) Double-conversion (Online) 8 kVA 8000 W 3 AC outlet(s)
UPS devices and accessories - Yes
URL - https://www.apc.com/shop/iq/en/products/APC-Smart-UPS-RT-8kVA-230V/P-SRTG8KXLI
WarrantyInfo -
Weight - 126.820000
Weight & dimensions - Depth - 620 mm
Weight & dimensions - Height - 217 mm
Weight & dimensions - Package depth - 790 mm
Weight & dimensions - Package height - 414 mm
Weight & dimensions - Package weight - 83.1 kg
Weight & dimensions - Package width - 590 mm
Weight & dimensions - Weight - 81.1 kg
Weight & dimensions - Width - 440 mm
Weight, kg - 81.12
Width - 790.000000
Width, mm - 440
