Accessories included - Software CD, USB cable, User's guide
Active power - 1600 W
Apparent power - 2000 VA
ARTIKEL1 - EASY UPS SRV 2000VA 230V
ARTIKEL2 - IN
Battery - Battery recharge time - 4 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery capacity - 9 Ah
Brand - APC
BrandPartCode - SRV2KI
Breite - 0.37
Category - Uninterruptible Power Supplies (UPSs)
Charging time - 4 h
Chassis type - Tower
Color - Black
Description - SRV2KI SmartUPS RV 2000VA
- Automatic internal bypass The mains supply for the connected load in the event of an overload or a fault in the UPS.
- Automatic activation of the UPS after the power returns. Automatically starts the connected equipment when the power supply from the municipal network resumes.
- ECO mode. Mode of operation in which in the case of good quality external power supply some components of the power supply are bypassed, which ensures high efficiency without compromising the effectiveness of protection.
- Correction of load power factor Reduces installation costs due to the possibility of using smaller generators and cabling.
- Intelligent battery management Maximize battery performance, life and reliability with intelligent precision charging.
- LCD display Alphanumeric monitor displaying system parameters and alarm notifications.
- Serial port You can use any home automation network to monitor and control S20 via the RS-232 port. Information on how to communicate with S20 can be found in APC application note No. 102. The Crestron and AMX installers should read the S20 integration information with their networks. This information is available on the respective companies' websites.
- USB connector Allows you to manage the UPS via the USB port.
Design - Certification - CE, IEC 62040-1-1, IEC 62040-1-2, REACH
Design - Display type - LCD
Design - Form factor - Tower
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 360 mm
dimension height - 520 mm
Dimensions - 238mm x 145mm x 400mm
dimension weight - 19000 g
dimension width - 240 mm
ean - 731304339243
EANCode - 0731304339243
Environment requirements - - Operating temperature 0 - 40°C
- Relative humidity during operation 0 - 95% non-condensing%
- Height during operation 0-3000 meters
- Temperature (storage) -20 - 50°C
- Relative humidity (storage) 0 - 95% non-condensing%
- Height (storage) 0-14763.6 meters
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Low battery alarm, Overload alarm
Features - Crest factor - 3:1
Features - ECO mode - Yes
Features - Input frequency - 40 - 70 Hz
Features - Input operation voltage (max) - 280 V
Features - Input operation voltage (min) - 160 V
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 1600 W
Features - Output power capacity - 2 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 3%
Features - Surge energy rating - 600 J
Features - Surge protection - Yes
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Gewicht - 18.88
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304339243
GTIN - 0731304339243
guarantee - 24
guarantee_type - external
HERSTELLER - APC
Hoehe - 0.24
HSTNUMMER - SRV2KI

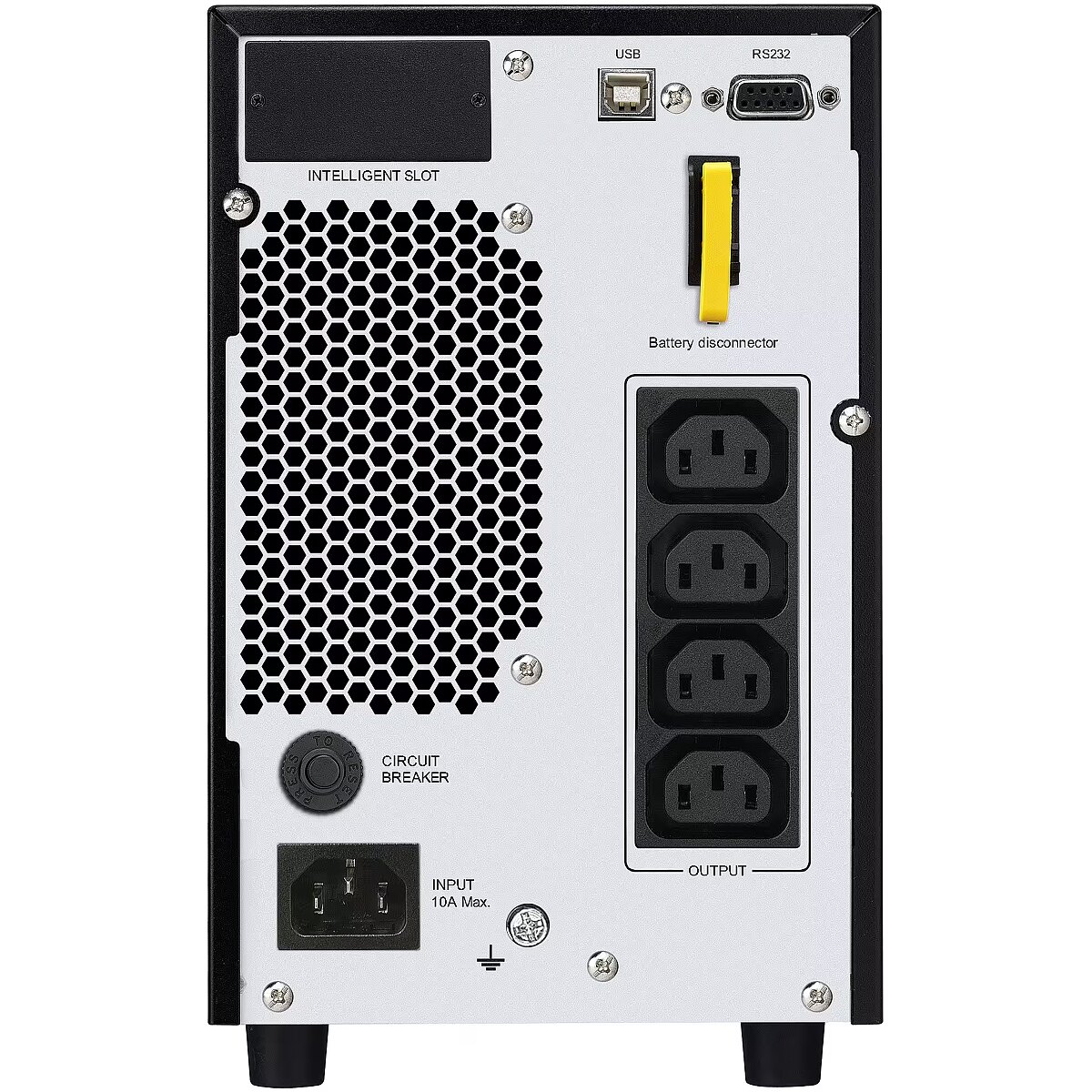

I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB 2.0
Input power ports - IEC-C14
Laenge - 0.52
Logistics data - Harmonized System (HS) code - 85078000
LongDesc - High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditionsAutomatic internal bypassSupplies utility power to the connected loads in the event of a UPS power overload or fault.Automatic restart of loads after UPS shutdownAutomatically starts up the connected equipment upon the return of utility power.ECO ModeOperating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protectionInput power factor correctionMinimizes installation costs by enabling the use of smaller generators and cabling.Intelligent battery managementMaximizes battery performance, life, and reliability through intelligent, precision charging.LCD displayAlpha-Numeric Display which displays system parameters and alarms.Serial connectivityUse any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.USB connectivityProvides management of the UPS via a USB port (not available on all models).
LongProductName - SRV2KI, 1.6kW, 230V, 50/60Hz, 4x IEC 320 C13, IEC-320 C14, USB, 145x400x238 mm
LongSummaryDescription - APC SRV2KI. UPS topology: Double-conversion (Online), Output power capacity: 2 kVA, Output power: 1600 W. AC outlet types: C13 coupler, AC outlets quantity: 4 AC outlet(s), USB port type: USB Type-B. Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 4 h. Form factor: Tower, Product colour: Black, Display type: LCD. Width: 145 mm, Depth: 400 mm, Height: 238 mm
name - SRV2KI SmartUPS RV 2000VA/1600W/4xC13/RS232/mNMC
No. of batteries - 4
Number of phases input - 1 (230V)
Operational conditions - Non-operating altitude - 0 - 14763.6 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 50 °C
Other features -
Output power ports - 4 x IEC-C13
Packaging data - Cables included - USB cable
Packaging data - Manual - Yes
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces - USB port type - USB Type-B
producer - APC
ProductName - SRV2KI
ShortSummaryDescription - APC SRV2KI, Double-conversion (Online), 2 kVA, 1600 W, Sine, 160 V, 280 V
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 1
Storno - Y
Technical details - Compliance certificates - RoHS
Title - APC SRV2KI uninterruptible power supply (UPS) Double-conversion (Online) 2 kVA 1600 W 4 AC outlet(s)
UPS Architecture - on-line double conversion
URL - https://www.apc.com/shop/uk/en/products/APC-Easy-UPS-SRV-2000VA-230V/P-SRV2KI
vendpn - SRV2KI
Voltage - 12 V
WarrantyInfo - 2 years repair or replace
Weight - 16.8 kg
Weight & dimensions - Depth - 400 mm
Weight & dimensions - Height - 238 mm
Weight & dimensions - Package depth - 525 mm
Weight & dimensions - Package height - 355 mm
Weight & dimensions - Package weight - 18.1 kg
Weight & dimensions - Package width - 235 mm
Weight & dimensions - Weight - 16.8 kg
Weight & dimensions - Width - 145 mm
