ID: 579522
Product code: 3S850F
Can be ordered 16 units Availability: 14 days after order approval
Warranty: 2 years

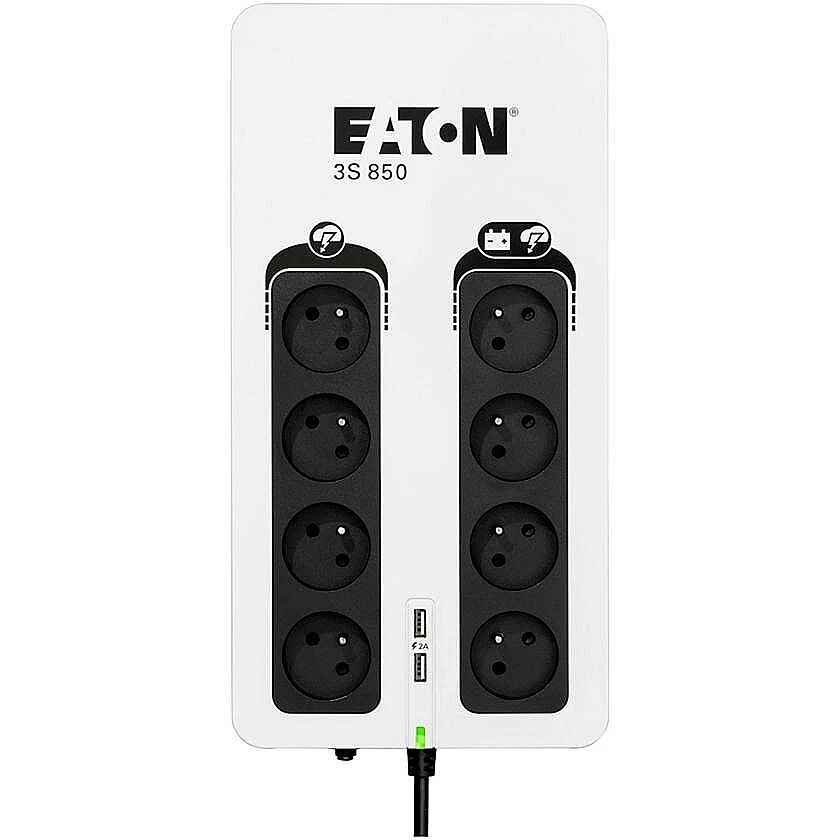

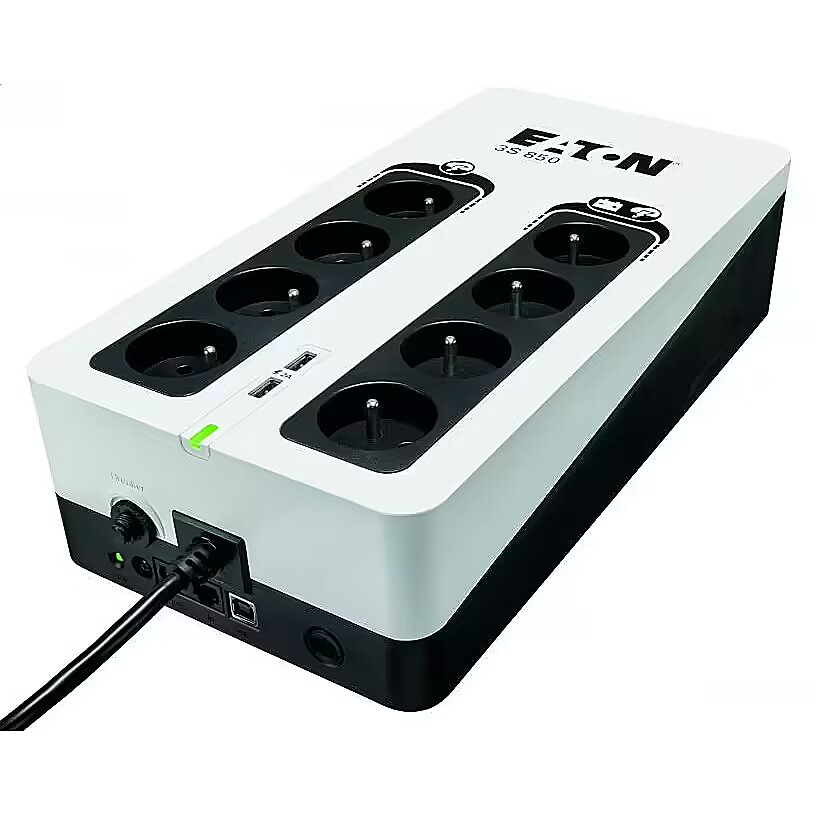

Eaton 3S850F, 850VA 510W
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 6.99 €: 12.03.2025
- Courier delivery 11.99 €: 12.03.2025
Main product parameters All parameters
- Battery capacity (VA): 850 VA
- Output power (W): 510 W
Display characteristics
Display
: Nav
Basic information
Battery capacity (VA)
850 VA
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: Nav norādīts
Output power (W)
: 510 W
Ports and equipment
Number of nests (total)
: 8
Number of sockets (Battery Backup)
: 4
RJ-45
: 2
Socket type
: Schuko
USB
: 2
More detailed specification
Accessories included -
Active power - 510 W
Apparent power - 850 VA
Backup time (100% load) - 4 min
Battery - Automatic battery test - Yes
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - No
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Chassis type - Tower
Color - Black
Color - White
Description -
Design - Cable length - 1.5 m
Design - Certification - CE/EAC/Ukr/Cm/CB report
Design - LED indicators - Yes
Design - Product colour - Black
Design - Safety - IEC 62040-1; IEC 62040-2 C2; IEC 62040-3; IEC 62040-4; IEC 61643-11
Designation - CE+WEEE
dimensionalWeight - 3234
dimension depth - 160 mm
dimension height - 390 mm
Dimensions - 86 x 170 x 335 mm
dimension weight - 5300 g
dimension width - 245 mm
ean - 743172101808
Eans - 743172101808
Environment requirements -
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 284 V
Features - Input operation voltage (min) - 161 V
Features - Maximum current - 10 A
Features - Output frequency - 50 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 510 W
Features - Output power capacity - 0.85 kVA
Features - Power protection features - Overdischarge
Features - Surge protection - Yes
Features - UPS topology - Standby (Offline)
Filters / protection - Surge
guarantee - 24
guarantee_type - external
I/O connectors - 2 x USB (Type B)
Input power ports - Wtyczka sieciowa
Logistics data - Harmonized System (HS) code - 85078000
name - 3S 850 FR 3S850F 850VA 510W
Name - Eaton 3S 850 FR
No. of batteries - 1
Number of phases input - 1 (230V)
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features -
Other features - Nominal input voltage - 230 V
Output power ports - 8 x C/F type (Schuko)
Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB port - Yes
producer - Eaton
Producer - Eaton
producerCode - 3S850F
ProducerCode - 3S850F
productName - Eaton 3S850F uninterruptible power supply (UPS) Standby (Offline) 0.85 kVA 510 W 8 AC outlet(s)
productSize - Normal
ShortDescription - 850 VA / 510 W
sizeX - 165
sizeY - 400
sizeZ - 245
Software -
Special functions -
UPS Architecture - off-line (standby)
vendpn - 3S850F
Video -
warrantyLength - 24
warrantyType - G
Weight - 4.3 kg
weight - 5000
Weight & dimensions - Depth - 170 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 4.3 kg
Weight & dimensions - Width - 335 mm
