ID: 368436
Product code: UPS1RM2U3000-1E
Can be ordered 55 units Availability: 14 days after order approval
Warranty: 3 years

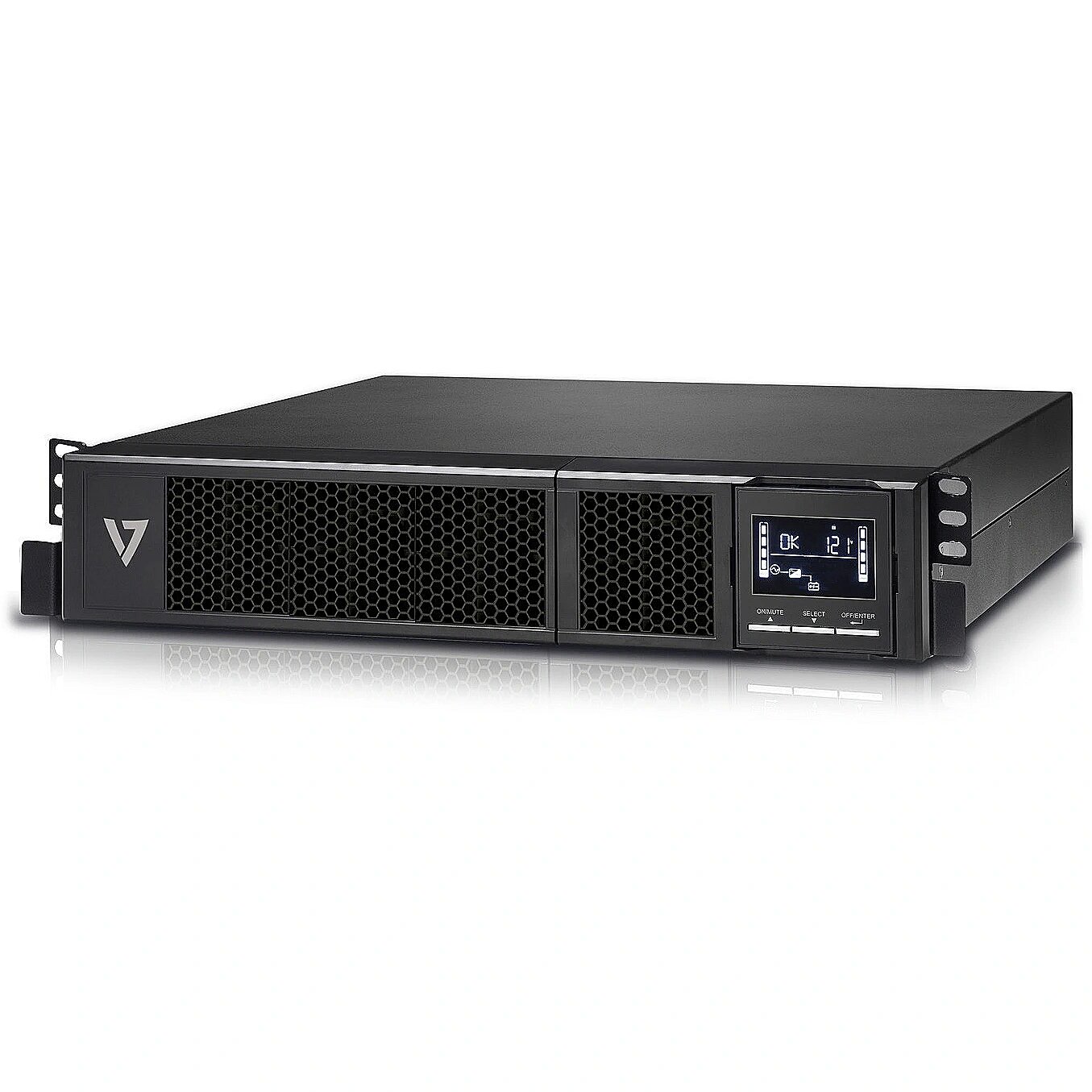

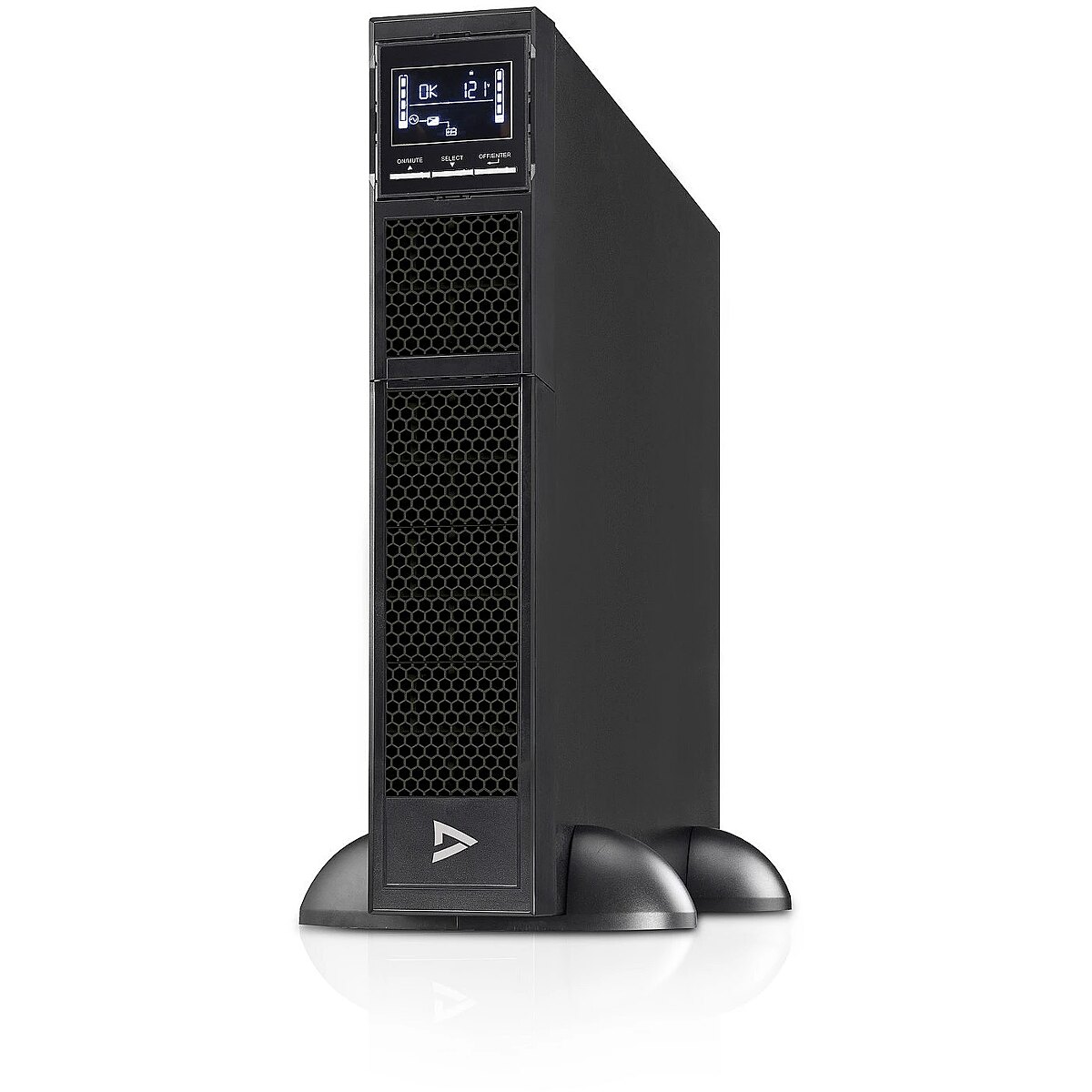

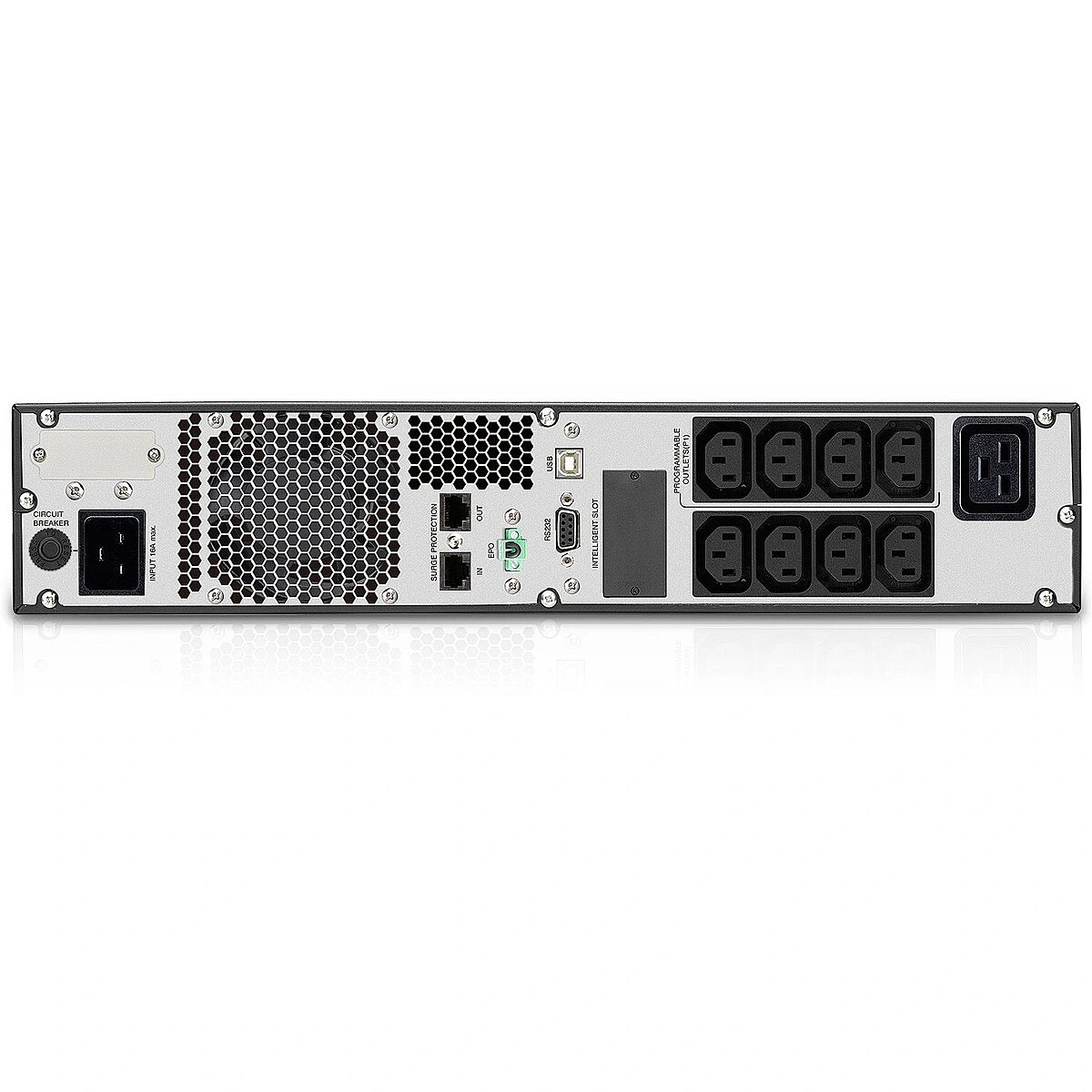

V7 UPS1RM2U3000-1E, 3000VA 2700W, IEC 2U
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Courier delivery 11.99 €: 31.03.2025
Main product parameters All parameters
- Battery capacity (VA): 3000 VA
- Output power (W): 2700 W
Display characteristics
Display
: Ir
Basic information
Battery capacity (VA)
3000 VA
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: 4h
Output power (W)
: 2700 W
Ports and equipment
Number of nests (total)
: 9
Number of sockets (Battery Backup)
: 9
RJ-45
: 2
Socket type
: IEC320
USB
: 0
More detailed specification
ARTIKEL1 - 3000VA UPS RACK MOUNT 2U LCD
ARTIKEL2 - 8XIEC C1 - 1XIEC C19 - 230V ECO
Battery - Battery capacity - 9 Ah
Battery - Battery capacity - 648 VAh
Battery - Battery recharge time - 4 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Battery voltage - 12 V
Battery - Typical backup time at full load - 3.7 min
Battery - Typical backup time at half load - 11.8 min
Brand - V7
BrandPartCode - UPS1RM2U3000-1E
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Certification - CE, REACH
Certificates - Compliance certificates - RoHS
Design - Cable length - 3.05 m
Design - Cooling type - Active
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 2U
EANCode - 0662919095234
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Fault, Low battery alarm, Overload alarm
Features - Emergency Power Off (EPO) - Yes
Features - Hold time (max) - 8 ms
Features - Hold time (min) - 4 ms
Features - Noise level - 45 dB
Features - Output power - 2700 W
Features - Output power capacity - 3 kVA
Features - Surge energy rating - 720 J
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 0662919095234
GTIN - 662919095234
HERSTELLER - V7
HSTNUMMER - UPS1RM2U3000-1E
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 85078000
LongDesc - Go big with the 3000VA Rack Mount UPS from V7, our most powerful UPS. This Rack Mount UPS provides a backup power source for mission critical equipment in server rooms, data centers, and other vital equipment. It ensures a consistent flow of electricity to help prevent equipment failure and data loss during power failures, brownouts, or other power issues that can occur with power in your building. The USB port allows built in UPS configuration and control, and auto-shutdown features for your computers or servers.- 3000VA Rack Mount UPS with Pure Sine Wave Output with 8 IEC Outlets- Boost and Buck AVR automatically adjusts for under-voltage and over-voltage ensuring stable power and longer life batteries.- ECO (Efficiency Corrective Optimizer) for energy saving and EPO function (Emergency Power Off)- Programmable power management outlets maximize backup time to critical devices by setting shorter backup time for non-critical devices- Audio & Visual alarms for immediate warning of battery, load, and other issues
LongProductName - 3000VA, 2700W, 720J, 8x IEC, RJ-11, RJ-45, USB, 2U, EU
LongSummaryDescription - V7 UPS 3000VA Rack Mount 2U EU. UPS topology: Line-Interactive, Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: IEC Jumpers, Serial interface type: RS-232. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery capacity: 648 VAh. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: RoHS, Certification: CE, REACH
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 700 mm
Packaging data - Package height - 240 mm
Packaging data - Package weight - 32.6 kg
Packaging data - Package width - 565 mm
Packaging data - Warranty card - Yes
Ports & interfaces - AC outlet types - IEC Jumpers
Ports & interfaces - Emergency Power Off (EPO) connector - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Modem (RJ-11) ports - 1
Ports & interfaces - Number of output IEC jumpers - 8
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
ProductName - UPS 3000VA Rack Mount 2U EU
ShortSummaryDescription - V7 UPS 3000VA Rack Mount 2U EU, Line-Interactive, 3 kVA, 2700 W, Sine, 720 J, 4 ms
Stck_Kart - 1
Stck_Pal - 6
Storno - Y
Title - V7 UPS 3000VA Rack Mount 2U EU
URL - https://www.v7-world.com/uk/ups-3000va-rack-mount-2u-eu.html
WarrantyInfo - 3 years
Weight & dimensions - Depth - 630 mm
Weight & dimensions - Height - 88 mm
Weight & dimensions - Weight - 29.3 kg
Weight & dimensions - Width - 438 mm
