ID: 341965
Product code: BR1600MI
In stock 1 units
Warranty: 2 years

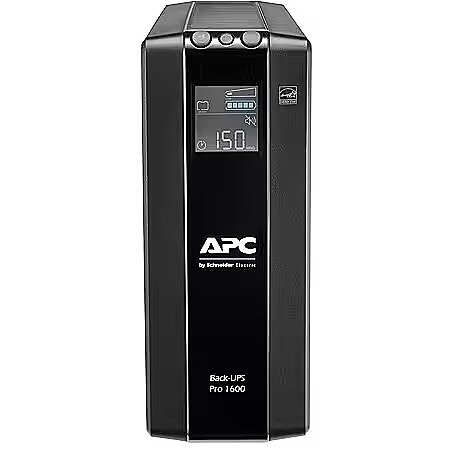

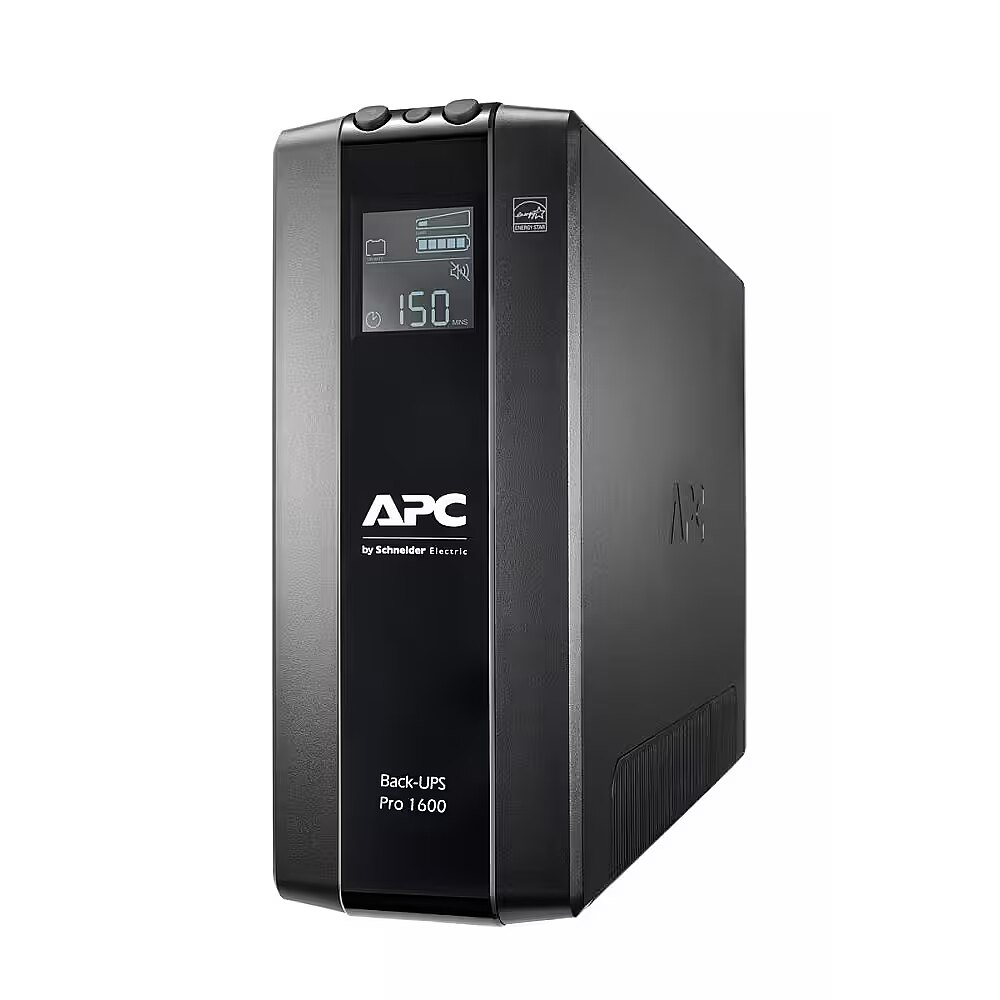

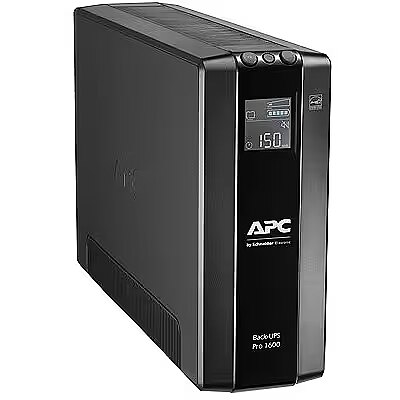

APC Back UPS Pro BR1600MI 1600VA, 960W, IEC
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 29.11.2024
Main product parameters All parameters
- Battery capacity (VA): 1600 VA
- Output power (W): 960
Display characteristics
Display
: Ir
Basic information
Battery capacity (VA)
1600 VA
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: 16h
Output power (W)
: 960
Ports and equipment
Number of nests (total)
: 8
Number of sockets (Battery Backup)
: 6
RJ-45
: 2
Socket type
: IEC320
USB
: 0
More detailed specification
Accessories included -
Active power - 960 W
Alarm - -
Apparent power - 1600 VA
ARTIKEL1 - BACK UPS PRO BR 1600VA 8
ARTIKEL2 - OUTLETS AVR LCD INTERFACE BACK U
Battery - Automatic battery test - Yes
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 16 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
BatteryType - Lead-acid
Brand - APC
BrandPartCode - BR1600MI
Breite - 0.38
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Category_1 - Power
Category_2 - UPS
Charging time - 16 h
Chassis type - Tower
Color - Black
ControlPanel - Multi-function LCD status and control console
Depth - 382 mm
Description - Power supply BR1600MI UPS Back ProBR 1600VA 8xC13, AVR, LCD
Design - Cable length - 1.83 m
Design - Certification - A-tick, C-tick, CE, EAC, GS Mark, RCM, TISI
Design - Cooling type - Passive
Design - Display type - LCD
Design - Form factor - Tower
Design - LED indicators - Yes
Design - Product colour - Black
dimension depth - 360 mm
dimension height - 500 mm
Dimensions - 100 x 250 x 382 mm
dimension weight - 13500 g
dimension width - 250 mm
ean - 731304346913
EAN - 0731304346913
EANCode - 0731304346913
Eans - 0731304346913
EAN_code - 0731304346913
Environment requirements - Working temperature: 0 - 40 ° C Relative humidity during work: 095% Working height: 0-3000 meters Storage temperature: -15 - 45 ° C Relative humidity during storage: 0-95% Storage height: 0-15000 meters Noise heard at a distance of 1 meter from the surface of the device: 45.0dBA
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Low battery alarm, Overload alarm
Features - Automatic Voltage Regulation (AVR) - Yes
Features - ECO mode - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 294 V
Features - Input operation voltage (min) - 176 V
Features - Maximum current - 10 A
Features - Noise level - 45 dB
Features - Output frequency - 50/60 Hz
Features - Output power - 960 W
Features - Output power capacity - 1.6 kVA
Features - Surge energy rating - 509 J
Features - Surge protection - Yes
Features - Surge protection features - Network
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Filters / protection - Overload
FormFactor - Tower
Gewicht - 13.17
GrossWeight - 11.650 kg
Gross Weight Kg - 11,65
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304346913
GTIN - 0731304346913
guarantee - 24
guarantee_type - external
Height - 250 mm
HERSTELLER - APC
Hoehe - 0.25
HSTNUMMER - BR1600MI
I/O connectors - 1 x USB (Type B)
I/O connectors - 2 x RJ-11
I/O connectors - 2 x RJ-45 LAN
InputConnections - -
InputFrequency - 50/60 Hz +/- 3 Hz (auto sensing)
Input power ports - IEC-C14
InputVoltage - 176-294 V
InterfacePorts - USB
Laenge - 0.51
Logistics data - Harmonized System (HS) code - 85078000
LongDesc -
LongProductName - Back UPS Pro BR 1600VA, 8 Outlets, AVR, LCD Interface
LongSummaryDescription - APC BR1600MI. UPS topology: Line-Interactive, Output power capacity: 1.6 kVA, Output power: 960 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 5 year(s), Battery recharge time: 16 h. Form factor: Tower, Product colour: Black, Cable length: 1.83 m. Width: 250 mm, Depth: 382 mm, Height: 100 mm
Manufacturer - APC
Manufacturer Code - BR1600MI
Manufacturer Name - APC by Schneider Electric
Manufacturer_code - BR1600MI
MANUFDATASHEET - https://www.apc.com/shop/be/en/products/APC-Back-UPS-Pro-1600VA-960W-Tower-230V-8x-IEC-C13-outlets-AVR-LCD-User-Replaceable-Battery/P-BR1600MI
MPN - BR1600MI
Name - APC Back-UPS Pro 1600VA BR1600MI
Name - APC Back Pro BR1600MI
Name - APC Back UPS Pro BR1600 Tower 1600VA 960W
name - Power supply BR1600MI UPS Back ProBR 1600VA 8xC13, AVR, LCD
No. of batteries - 2
Number of phases input - 1 (230V)
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features -
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V
OutputConnections -(6) IEC 60320 C13 (Battery Backup) (2) IEC 60320 C13 (Surge Protection)
OutputFrequency - 50/60 Hz +/- 1 Hz Sync to mains
Output power ports - 8 x IEC-C13
OutputVoltage - -
PackageContents - -
Packaging data - Cables included - USB cable
Packaging data - Manual - Yes
Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Cabling technology - 10/100/1000Base-T(X)
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
PowerVAW - 1600 VA
PowerW - 960 W
ProdDesc - Back UPS Pro BR 1600VA, 8 Outlets, AVR, LCD Interface
producer - APC
Producer - APC
ProducerCode - BR1600MI
ProductName - BR1600MI
ProductPicture - http://www.tdbaltic.ee/images/ds4/BR1600MI-01.jpg
ProductPicture2 - http://www.tdbaltic.ee/images/ds4/BR1600MI-02.jpg
ProductPicture3 -
ProductPicture4 -
RechargeTime - 16 h
RJ45 - -
Runtime - 10.5/2.6
ShortDescription -
Short description - APC Back-UPS Pro BR 1600 VA BR1600MI
ShortSummaryDescription - APC BR1600MI, Line-Interactive, 1.6 kVA, 960 W, Sine, 176 V, 294 V
SmartSlot - -
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 24
Storno - Y
Title - APC BR1600MI uninterruptible power supply (UPS) Line-Interactive 1.6 kVA 960 W 8 AC outlet(s)
Topology - Line interactive
Transfer time (max) - 10 ms
UPS Architecture - line-interactive
URL - https://www.apc.com/shop/ye/en/products/Back-UPS-Pro-BR-1600VA-8-Outlets-AVR-LCD-Interface/P-BR1600MI
USB - Yes
vendpn - BR1600MI
Voltage - 12 V
Warranty - 2 years
WarrantyInfo - 2 years repair or replace, 3 years repair or replace for European Union countries
WaveformType - -
Weight - 10.9 kg
Weight - 10.900 kg
Weight - 12,45
Weight - 12.3
Weight & dimensions - Depth - 382 mm
Weight & dimensions - Height - 100 mm
Weight & dimensions - Package depth - 225 mm
Weight & dimensions - Package height - 330 mm
Weight & dimensions - Package weight - 11.7 kg
Weight & dimensions - Package width - 485 mm
Weight & dimensions - Weight - 10.9 kg
Weight & dimensions - Width - 250 mm
Width - 100 mm
Active power - 960 W
Alarm - -
Apparent power - 1600 VA
ARTIKEL1 - BACK UPS PRO BR 1600VA 8
ARTIKEL2 - OUTLETS AVR LCD INTERFACE BACK U
Battery - Automatic battery test - Yes
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 16 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
BatteryType - Lead-acid
Brand - APC
BrandPartCode - BR1600MI
Breite - 0.38
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Category_1 - Power
Category_2 - UPS
Charging time - 16 h
Chassis type - Tower
Color - Black
ControlPanel - Multi-function LCD status and control console
Depth - 382 mm
Description - Power supply BR1600MI UPS Back ProBR 1600VA 8xC13, AVR, LCD
Design - Cable length - 1.83 m
Design - Certification - A-tick, C-tick, CE, EAC, GS Mark, RCM, TISI
Design - Cooling type - Passive
Design - Display type - LCD
Design - Form factor - Tower
Design - LED indicators - Yes
Design - Product colour - Black
dimension depth - 360 mm
dimension height - 500 mm
Dimensions - 100 x 250 x 382 mm
dimension weight - 13500 g
dimension width - 250 mm
ean - 731304346913
EAN - 0731304346913
EANCode - 0731304346913
Eans - 0731304346913
EAN_code - 0731304346913
Environment requirements - Working temperature: 0 - 40 ° C Relative humidity during work: 095% Working height: 0-3000 meters Storage temperature: -15 - 45 ° C Relative humidity during storage: 0-95% Storage height: 0-15000 meters Noise heard at a distance of 1 meter from the surface of the device: 45.0dBA
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Low battery alarm, Overload alarm
Features - Automatic Voltage Regulation (AVR) - Yes
Features - ECO mode - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 294 V
Features - Input operation voltage (min) - 176 V
Features - Maximum current - 10 A
Features - Noise level - 45 dB
Features - Output frequency - 50/60 Hz
Features - Output power - 960 W
Features - Output power capacity - 1.6 kVA
Features - Surge energy rating - 509 J
Features - Surge protection - Yes
Features - Surge protection features - Network
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Filters / protection - Overload
FormFactor - Tower
Gewicht - 13.17
GrossWeight - 11.650 kg
Gross Weight Kg - 11,65
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304346913
GTIN - 0731304346913
guarantee - 24
guarantee_type - external
Height - 250 mm
HERSTELLER - APC
Hoehe - 0.25
HSTNUMMER - BR1600MI
I/O connectors - 1 x USB (Type B)
I/O connectors - 2 x RJ-11
I/O connectors - 2 x RJ-45 LAN
InputConnections - -
InputFrequency - 50/60 Hz +/- 3 Hz (auto sensing)
Input power ports - IEC-C14
InputVoltage - 176-294 V
InterfacePorts - USB
Laenge - 0.51
Logistics data - Harmonized System (HS) code - 85078000
LongDesc -
LongProductName - Back UPS Pro BR 1600VA, 8 Outlets, AVR, LCD Interface
LongSummaryDescription - APC BR1600MI. UPS topology: Line-Interactive, Output power capacity: 1.6 kVA, Output power: 960 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 5 year(s), Battery recharge time: 16 h. Form factor: Tower, Product colour: Black, Cable length: 1.83 m. Width: 250 mm, Depth: 382 mm, Height: 100 mm
Manufacturer - APC
Manufacturer Code - BR1600MI
Manufacturer Name - APC by Schneider Electric
Manufacturer_code - BR1600MI
MANUFDATASHEET - https://www.apc.com/shop/be/en/products/APC-Back-UPS-Pro-1600VA-960W-Tower-230V-8x-IEC-C13-outlets-AVR-LCD-User-Replaceable-Battery/P-BR1600MI
MPN - BR1600MI
Name - APC Back-UPS Pro 1600VA BR1600MI
Name - APC Back Pro BR1600MI
Name - APC Back UPS Pro BR1600 Tower 1600VA 960W
name - Power supply BR1600MI UPS Back ProBR 1600VA 8xC13, AVR, LCD
No. of batteries - 2
Number of phases input - 1 (230V)
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features -
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V
OutputConnections -
OutputFrequency - 50/60 Hz +/- 1 Hz Sync to mains
Output power ports - 8 x IEC-C13
OutputVoltage - -
PackageContents - -
Packaging data - Cables included - USB cable
Packaging data - Manual - Yes
Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Cabling technology - 10/100/1000Base-T(X)
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
PowerVAW - 1600 VA
PowerW - 960 W
ProdDesc - Back UPS Pro BR 1600VA, 8 Outlets, AVR, LCD Interface
producer - APC
Producer - APC
ProducerCode - BR1600MI
ProductName - BR1600MI
ProductPicture - http://www.tdbaltic.ee/images/ds4/BR1600MI-01.jpg
ProductPicture2 - http://www.tdbaltic.ee/images/ds4/BR1600MI-02.jpg
ProductPicture3 -
ProductPicture4 -
RechargeTime - 16 h
RJ45 - -
Runtime - 10.5/2.6
ShortDescription -
Short description - APC Back-UPS Pro BR 1600 VA BR1600MI
ShortSummaryDescription - APC BR1600MI, Line-Interactive, 1.6 kVA, 960 W, Sine, 176 V, 294 V
SmartSlot - -
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 24
Storno - Y
Title - APC BR1600MI uninterruptible power supply (UPS) Line-Interactive 1.6 kVA 960 W 8 AC outlet(s)
Topology - Line interactive
Transfer time (max) - 10 ms
UPS Architecture - line-interactive
URL - https://www.apc.com/shop/ye/en/products/Back-UPS-Pro-BR-1600VA-8-Outlets-AVR-LCD-Interface/P-BR1600MI
USB - Yes
vendpn - BR1600MI
Voltage - 12 V
Warranty - 2 years
WarrantyInfo - 2 years repair or replace, 3 years repair or replace for European Union countries
WaveformType - -
Weight - 10.9 kg
Weight - 10.900 kg
Weight - 12,45
Weight - 12.3
Weight & dimensions - Depth - 382 mm
Weight & dimensions - Height - 100 mm
Weight & dimensions - Package depth - 225 mm
Weight & dimensions - Package height - 330 mm
Weight & dimensions - Package weight - 11.7 kg
Weight & dimensions - Package width - 485 mm
Weight & dimensions - Weight - 10.9 kg
Weight & dimensions - Width - 250 mm
Width - 100 mm
