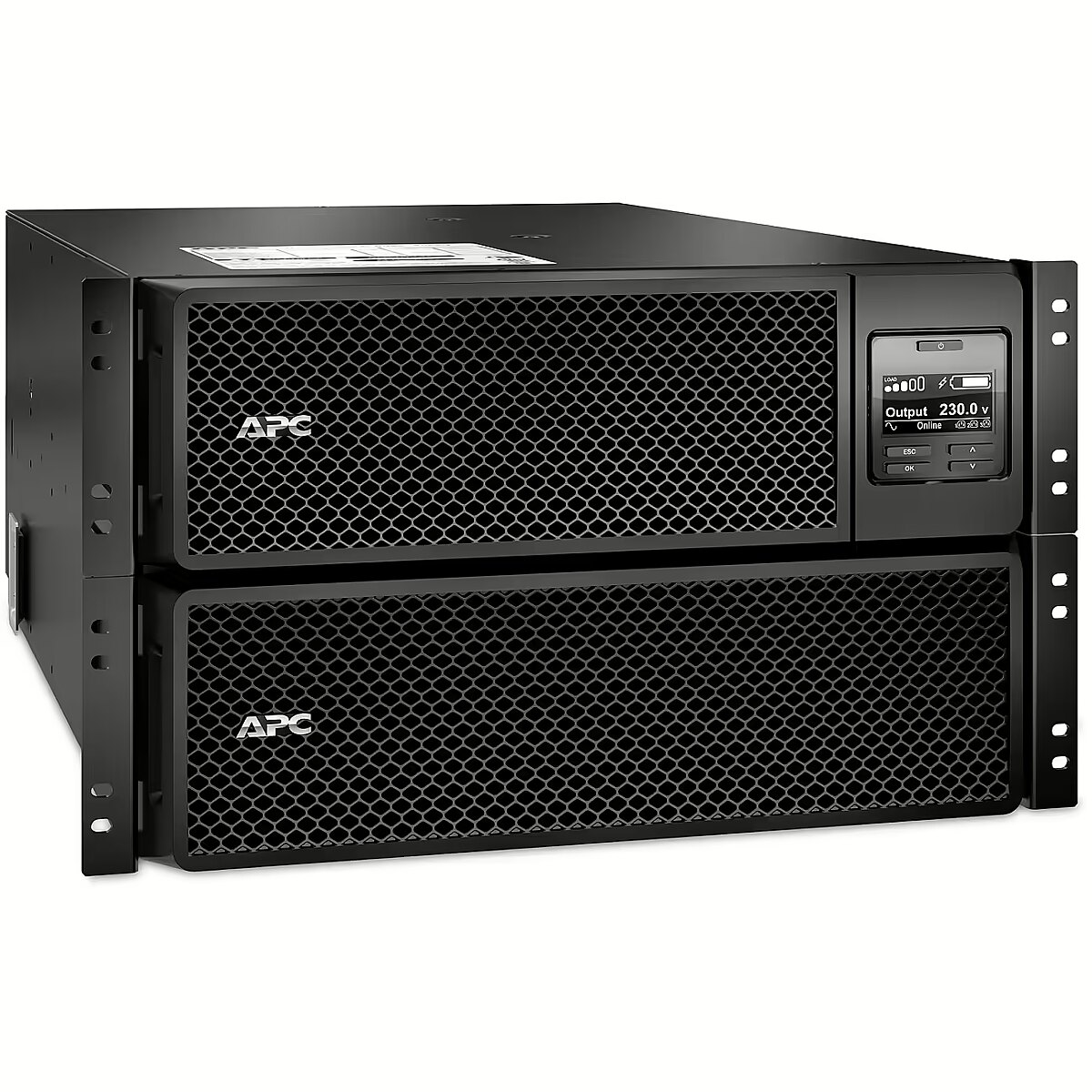

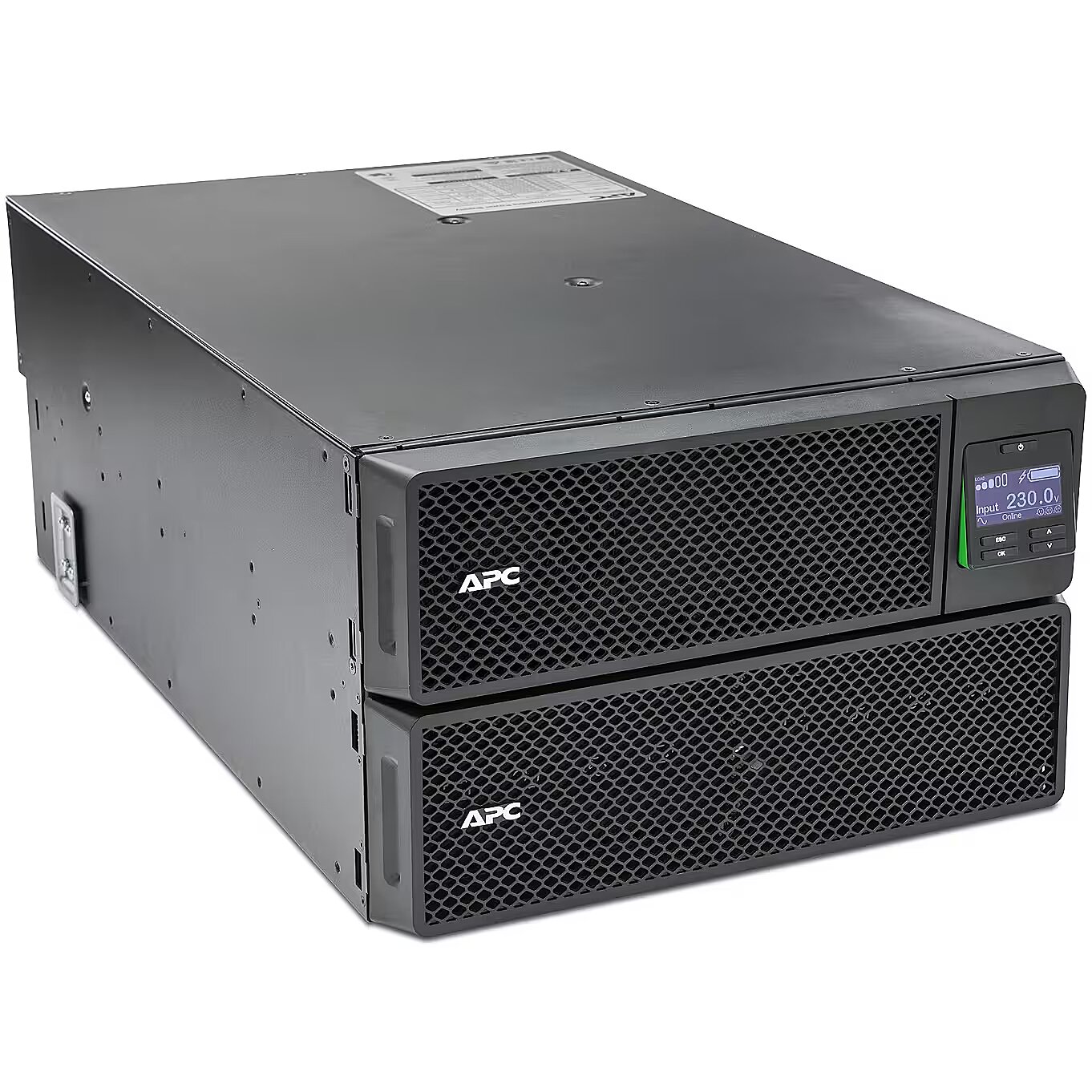

APC Smart-UPS SRT10KRMXLI 10000VA, 10000W, IEC, 6U

Accessories included - CD z oprogramowaniem Dokumentacja na CD Instrukcja użytkownika Klamry do montażu w szafach przemysłowch Sprzęt do montażu urządzeń w szafie Wsporniki montażowe do szaf przemysłowych Czujnik temperatury Kabel USB Karta gwarancyjna
Active power - 10000 W
Apparent power - 10 kVA
ARTIKEL1 - SRT 10000VA RM 230V
ARTIKEL2 - IN
Battery - Automatic battery test - Yes
Battery - Battery capacity - 1805 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery - Typical backup time at full load - 3.8 min
Battery - Typical backup time at half load - 11.5 min
Brand - APC
BrandPartCode - SRT10KRMXLI
Breite - 0.61
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Certification - CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH
Certificates - Compliance certificates - RoHS
Charging time - 1.5 h
Chassis type - Rack
Color - Black
Connectors - 1 x USB (Typ B)
Connectors - RJ-45
Connectors - SmartSlot
Description - Zasilacz awaryjny SRT10KRMXLI SmartUPS SRT 10000VA Rack 230V Zasilacz awaryjny o mocy wyjściowej 10000VA/10000W wyposażony w 6 gniazd IEC 320 C13 IEC 320 C13, 4 gniazda IEC 320 C19 IEC 320 C19 , 3 IEC Jumpers oraz połączenie stałe 3 przewody (H N+G). Posiada bezobsługowy szczelny akumulator kwasowo-ołowiowy z elektrolitem w postaci żelu oraz ochronę przeciwprzepięciową.
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 6U
Designation - CE+WEEE
dimension depth - 600 mm
dimension height - 350 mm
Dimensions - 43,2 x 26,3 x 71,5 cm
dimension weight - 120000 g
dimension width - 1000 mm
ean - 731304304265
EANCode - 0731304304265
Environment requirements - Środowisko operacyjne: 0 - 40 °C Wilgotność względna podczas pracy: 0 - 95% no% Wysokość n.p.m. podczas pracy: 0-900 metry Temperatura (przechowywanie): -15 - 45 °C Wilgotność względna (przechowywanie): 0 - 95% no% Wysokość n.p.m. (przechowywanie): 0-4500 metry Poziom hałasu w odległości 1 m od powierzchni urządzenia: 55.00 dBA Odprowadzanie ciepła: 2002.00 BTU/godz. Klasa ochrony: IP 20
Features - Audible alarm(s) - Yes
Features - Auto-restart - Yes
Features - Crest factor - 3:1
Features - Efficiency - 94.6%
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 40 - 70 Hz
Features - Input operation voltage (max) - 476 V
Features - Input operation voltage (min) - 100 V
Features - Noise level - 55 dB
Features - Number of output phases - 1
Features - Output frequency regulation - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 10000 W
Features - Output power capacity - 10 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 3%
Features - Surge energy rating - 480 J
Features - Surge protection - Yes
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Filters / protection - Surge
Gewicht - 133
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304304265
GTIN - 0731304304265
guarantee - 36
guarantee_type - external
HERSTELLER - APC
Hoehe - 0.47
HSTNUMMER - SRT10KRMXLI
Laenge - 1.01
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Total carbon footprint (kg of CO2e) - 22873.91
LongDesc - Stay always online and prevent data lossAn APC Smart-UPS On-Line always supplies perfectly clean power to all connected equipment thanks to its double conversion technology. Even power failures have no effect on this. The APC Smart-UPS On-Line then automatically supplies emergency power without having to switch. This prevents unwanted failure of, for example, a PC, server, storage or switch. With the included Powershute Network Shutdown software, you can even have critical IT hardware shut down automatically and in a controlled manner. This prevents data loss, downtime and physical damage to hardware.Extend the runtimeYou can easily increase the number of minutes that the APC SRT10KRMXLI can independently supply emergency power by connecting external battery packs (SRT192RMBP2). A runtime of several hours is even possible.AvailabilityThe Smart-UPS On-Line has an internal bypass and uses double conversion, which increases the availability and lifespan of connected hardware.SafetyIn addition, a Smart-UPS On-Line protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for business use.RackmountThe APC Smart-UPS SRT is easy to operate in the rack thanks to a tiltable graphic LCD screen. Thanks to the included 4-post rail kit, you can easily mount the UPS in a rack (6U).Manage your Smart-UPSThanks to the integrated network card, you can easily connect the APC UPS to the network. This allows you to monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software.PowerChute Network ShutdownPowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and Host ESXi, as well as hyperconverged and virtual infrastructure*. In the event of a power failure, PowerChute can shut down your virtual machines in the correct manner and the preconfigured boot sequence ensures that they are turned on again.*For HCI and virtual machine support an additional license is required:1 year: SWPCNS1Y-DIGI3 years: SWPCNS3Y-DIGI5 years: SWPCNS5Y-DIGIRemote management and monitoring of your networkThe network card can be managed remotely via the user-friendly web browser interface, remote management software EcoStruxure™ IT (SFTWES1-DIGI) or another SNMP-compatible system. Tip EcoStruxure™ IT also includes the functionalities of the support contract below.Support contractThe optional network card support contract license* ensures that you are always up-to-date and secure and includes additional benefits such as frequent updates with:• New and improved functions• Security updates• Advanced support(The functionality of the support contract is included free of charge in the first year of the UPS)*The above license and available in the variants:1 year: SWNMC3SU-1Y-DIGIUp to (Replace the bold number in the article number with the desired variant)6 years: SWNMC3SU-6Y-DIGIExtend the lifespanThe SRT10KRMXLI contains two (APCRBC140) internal battery cartridges and these can be easily, safely and independently replaced by the user. This without having to switch off the APC UPS or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment will always remain online.Warranty extensionThe factory warranty of the SRT10KRMXLI is 3 years, with the exception of the battery cartridge, which has a factory warranty of 2 years. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-06).Switched Outlet Groups: Remote reboot and phased start-upThanks to the Switched Outlet Groups it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which can limit oversizing of the UPS.It is also possible to reset a group of multiple UPS outlets and the equipment connected to them. If a network card (ap9640) is used in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this can even be done remotely.You can also switch off non-critical loads; this extends the runtime for critical equipment.This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line 6U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13 and 4x IEC 60320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
LongProductName - APC Smart-UPS On-Line SRT10KRMXLI - 10kW/VA, 6x C13 + 4x C19 + hardwire 1 phase output, rack mountable, Embedded NMC
LongSummaryDescription - APC Smart-UPS On-Line SRT10KRMXLI - 10kW/VA, 6x C13 + 4x C19 + hardwire 1 phase output, rack mountable, Embedded NMC. UPS topology: Double-conversion (Online), Output power capacity: 10 kVA, Output power: 10000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Hardwire, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 1805 VAh, Typical backup time at full load: 3.8 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 6U. Compliance certificates: RoHS, Certification: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH
name - SRT10KRMXLI SmartUPS SRT 10000VA Rack 230V
No. of batteries - 2
Number of phases input - 1 (230V)
Number of phases input - 3 (400V)
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - Input Voltage: 230V 220 V 240 V 380 V 415 V
Other features - Interface - RJ-45 10/100 Base-T
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V
Other features - Packaging content - Web/SNMP Management Card

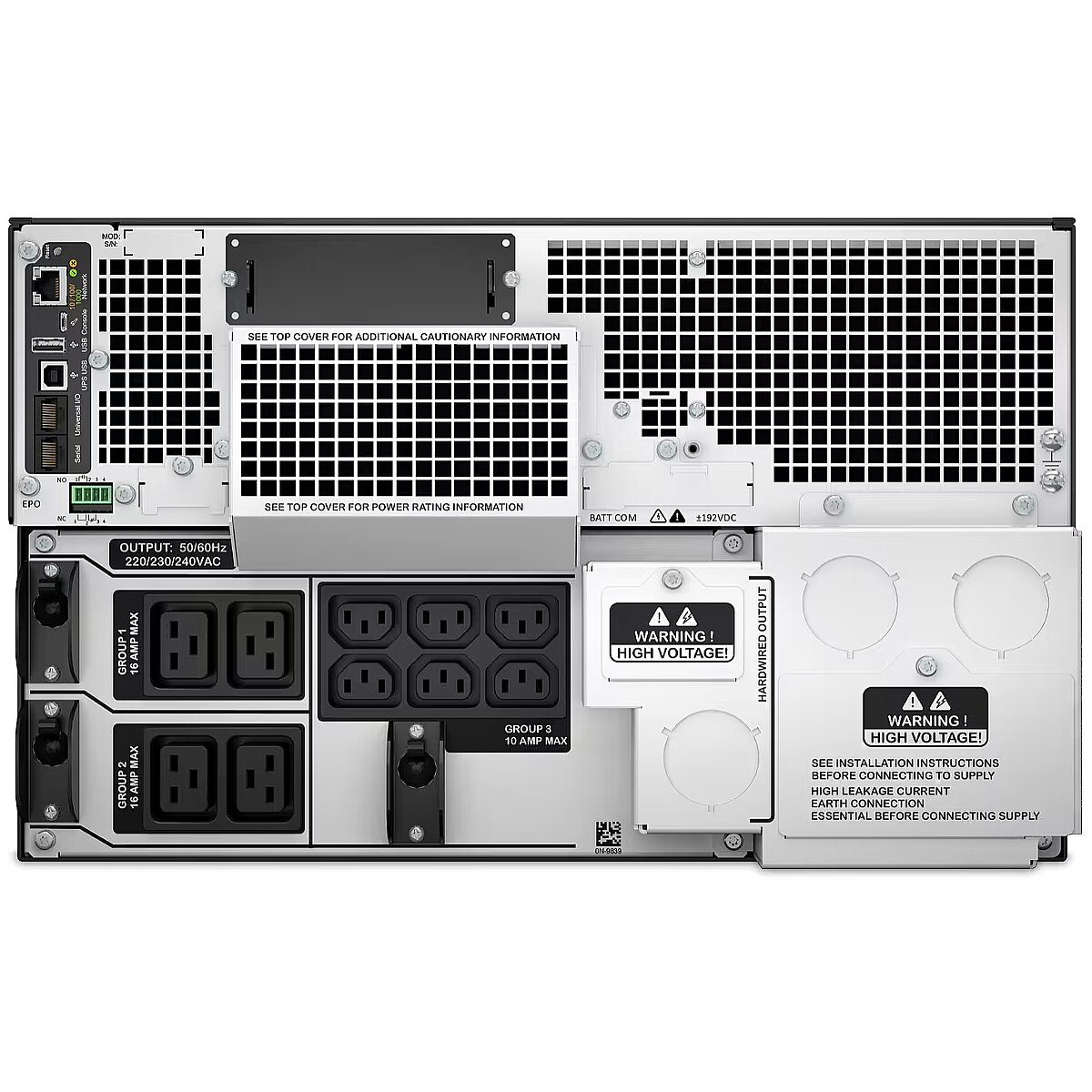

Output power ports - 1 x Hard Wire 3-wire (1PH + N + G)
Output power ports - 4 x IEC-C19
Output power ports - 6 x IEC-C13
Packaging content - Cables included - USB cable
Packaging content - Quick installation guide - Yes
Packaging content - Rack mount kit - Yes
Packaging data - Bracket - Yes
Packaging data - Package depth - 1000 mm
Packaging data - Package height - 461 mm
Packaging data - Package weight - 130 kg
Packaging data - Package width - 600 mm
Packaging data - Software CD - Yes
Packaging data - Temperature sensor - Yes
Packaging data - Warranty card - Yes
Ports & interfaces - AC outlets quantity - 10 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Number of output IEC jumpers - 3
Ports & interfaces - Power plug - Hardwire
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RJ-45
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
producer - APC
ProductName - APC Smart-UPS On-Line SRT10KRMXLI - 10kW/VA, 6x C13 + 4x C19 + hardwire 1 phase output, rack mountable, Embedded NMC
ShortSummaryDescription - APC Smart-UPS On-Line SRT10KRMXLI - 10kW/VA, 6x C13 + 4x C19 + hardwire 1 phase output, rack mountable, Embedded NMC, Double-conversion (Online), 10 kVA, 10000 W, Sine, 100 V, 476 V
Software - PowerChute Network Shutdown v3.0.1
Special functions - Zimny start
Stck_Kart - 1
Stck_Pal - 1
Storno - Y
Sustainability - Sustainability certificates - ENERGY STAR
Title - APC Smart-UPS On-Line SRT10KRMXLI - 10kW/VA, 6x C13 + 4x C19 + hardwire 1 phase output, rack mountable, Embedded NMC
UPS Architecture - on-line
URL - https://www.apc.com/
vendpn - SRT10KRMXLI
Voltage - 230 V
WarrantyInfo - 3 years
Weight - 111 kg
Weight & dimensions - Depth - 715 mm
Weight & dimensions - Height - 263 mm
Weight & dimensions - Weight - 111.8 kg
Weight & dimensions - Width - 432 mm
