ID: 232070
Product code: SMX3000RMHV2U
Can be ordered 43 units Availability: 14 days after order approval
Warranty: 3 years

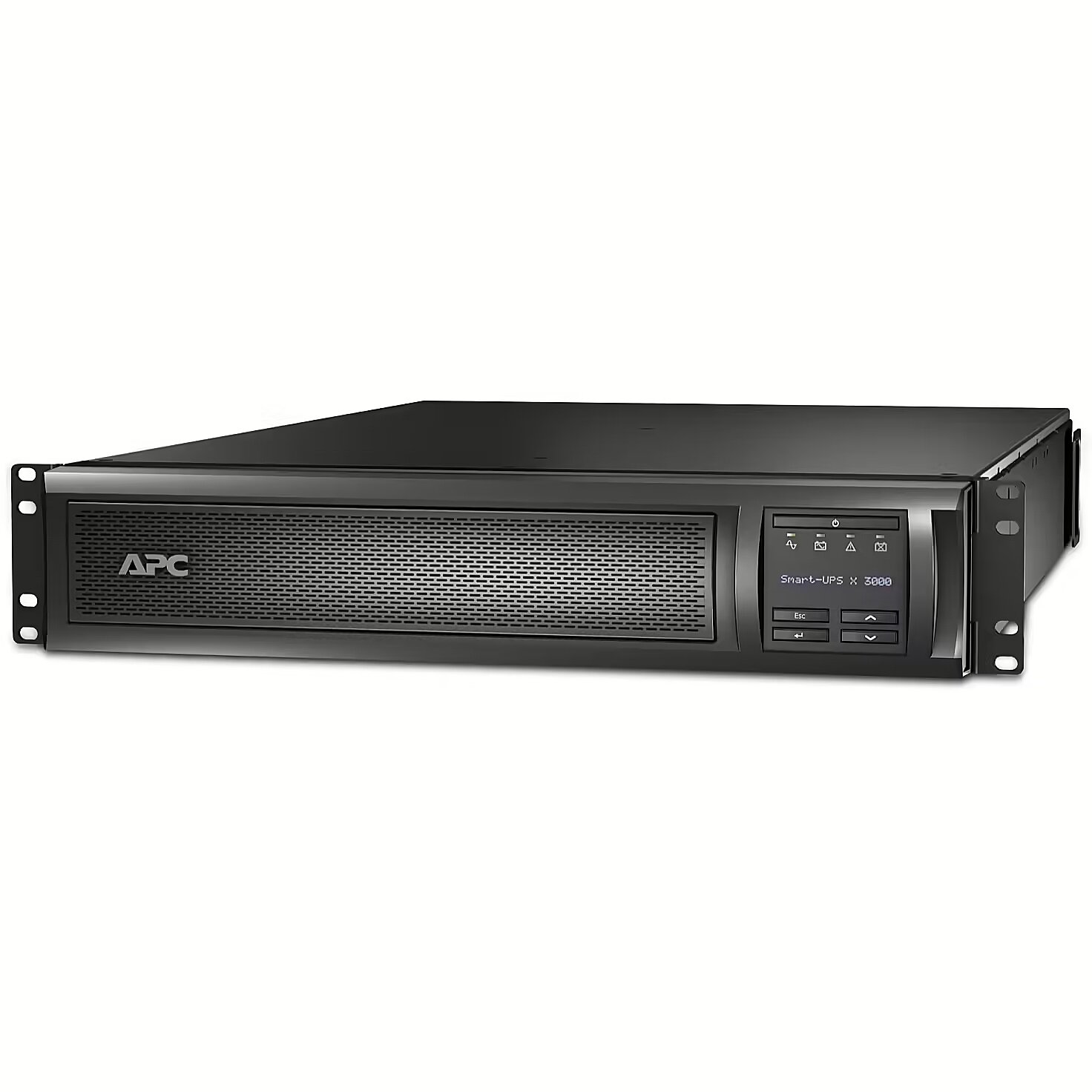

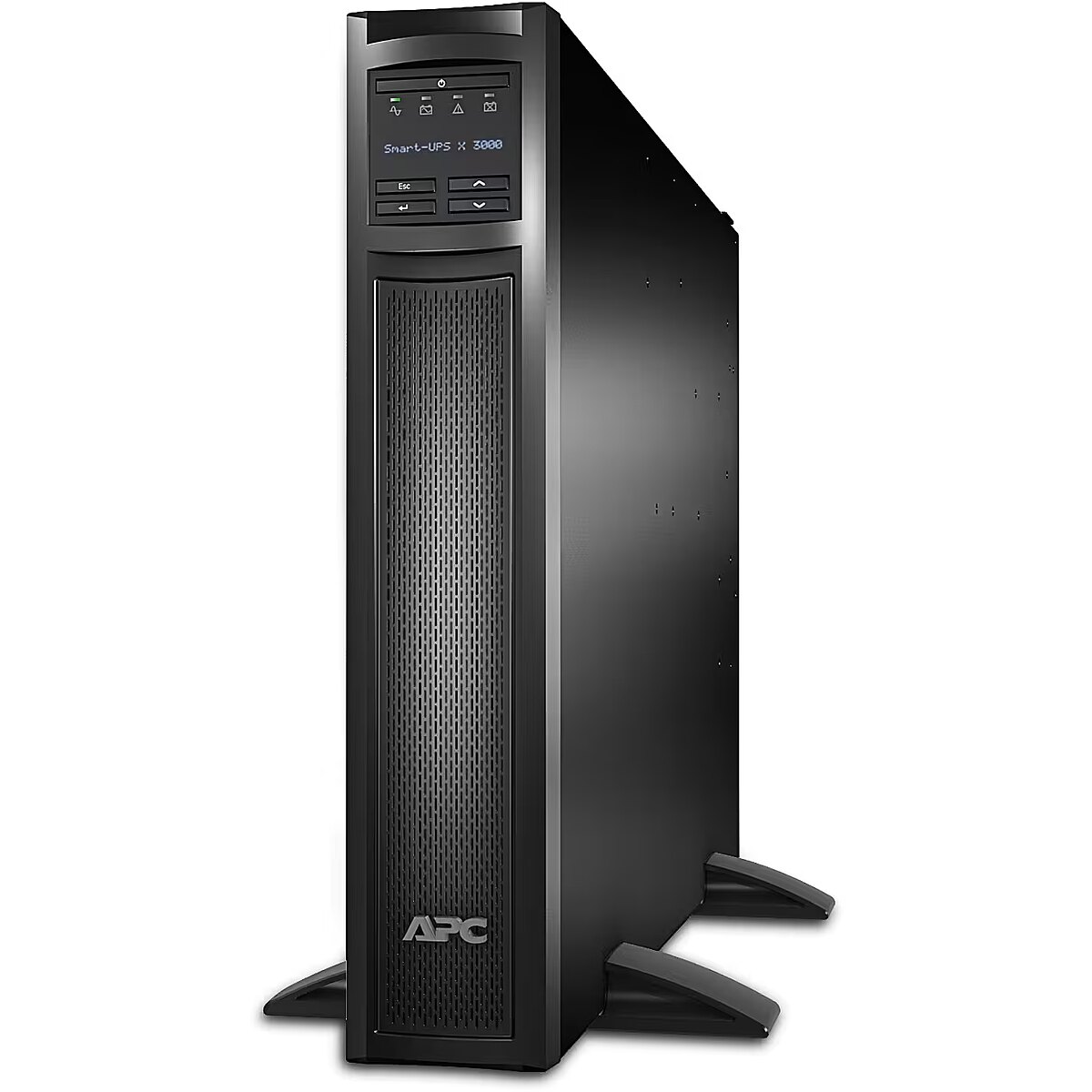

APC Smart-UPS X SMX3000RMHV2U 3000VA, 2700W, IEC, 2U
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
- Battery capacity (VA): 3000 VA
- Output power (W): 2700 W
Display characteristics
Display
: Ir
Basic information
Battery capacity (VA)
3000 VA
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: 3h
Output power (W)
: 2700 W
Ports and equipment
Number of nests (total)
: 9
Number of sockets (Battery Backup)
: 9
RJ-45
: 1
Socket type
: IEC320
USB
: 0
More detailed specification
Additional information in manufacturers website APC Smart-UPS X SMX3000RMHV2U 3000VA, 2700W, IEC, 2U
Accessories included - - CD with software
- Documentation CD
- Rack Mounting brackets
- Smart UPS signalling RS-232 cable
- USB cable
- User Manual
Active power - 2700 W
Apparent power - 3000 VA
ARTIKEL1 - APC SMART-UPS X 3000VA
ARTIKEL2 - RACK/TOWER LCD 200-240V IN
Backup time (100% load) - 6.3 min
Battery - Automatic battery test - Yes
Battery - Battery capacity - 738 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Hot-swap battery - Yes
Battery - Typical backup time at full load - 6.25 min
Battery - Typical backup time at half load - 18 min
Battery capacity - 600 VAh
Battery recharge time, h - 3
Brand - APC
BrandPartCode - SMX3000RMHV2U
Cable length, m - 1.83
Category - Uninterruptible Power Supplies (UPSs)
Certification - C-tick, CE, CSA, EN 50091-1, EN 50091-2, FCC Part 15 Class A, GOST, IEC 60950, IRAM, UL 1778, VDE
Charging time - 3 h
Chassis type - Rack
Chassis type - Tower
Color - Black
Connections - SmartSlot
Connections - USB
Connectors - SmartSlot
Depth, mm - 667
Description - APC SMART-UPS X 3000VA RACK/TOWER LCD 200-240V
Description - APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V
APC Smart-UPS,2700 Watts /3000 VA, Input 208V, 230V/Output 230V, Interface Port SmartSlot, Extended runtime model, Rack Height 2 U
Design - Cable length - 1.83 m
Design - Certification - CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, UL 1778, VDE, REACH, PEP, EOLI
Design - Form factor - Rackmount/Tower
Design - LED indicators - Battery replacement
Design - Product colour - Black
Design - Rack capacity - 2U
dimension depth - 600 mm
dimension height - 240 mm
Dimensions - - Height: 85 mm
- Width: 432 mm
- Depth: 667 mm
- Rack Height 2U
dimension weight - 46400 g
dimension width - 870 mm
ean - 731304268529
EANCode - 0731304268529
Environment requirements - - Operating Environment: 0 - 45 °C
- Relative Humidity: 0 - 95%
- The height above sea level Operating: 0-3000 m
- Temperature (storage): -15 - 45 °C
- Relative humidity (storage) 0 - 95%
- The height above sea level (storage): 0-15000 m
- The noise level at 1 meter from surface of unit 55.00 dBA
- Dissipation: 184.00 BTU/hr.
Features - Audible alarm(s) - Yes
Features - Auto-restart - Yes
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Crest factor - 3:1
Features - Efficiency - 98.5%
Features - Emergency Power Off (EPO) - Yes
Features - Hold time (max) - 10 ms
Features - Hold time (min) - 2 ms
Features - Input frequency - 50/60 Hz
Features - Noise level - 55 dB
Features - Output frequency regulation - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 208 V
Features - Output power - 2700 W
Features - Output power capacity - 3 kVA
Features - Surge energy rating - 645 J
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Form factor - Rack / Tower
Frequency range, Hz - 50/60 +/- 3
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304268529
GTIN - 0731304268529
guarantee - 36
guarantee_type - external
Height - 590.000000
Height, mm - 85
HERSTELLER - APC
Hold-up time (maks) - 4 ms
HSTNUMMER - SMX3000RMHV2U
Input connection - IEC-320 C20, CEE 7 / EU1-16P
Input frequency, Hz - 50/60 +/- 3
Input power ports - IEC-C20
Input power ports - Type F Schuko
Input power ports - Type G British
Input voltage, V - 140 - 280
Length - 240.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 8 pc(s)
LongDesc - Boost and Trim Automatic Voltage Regulation (AVR)Gives higher application availability by correcting low and high voltage conditions without using the battery.Intelligent battery managementMaximizes battery performance, life, and reliability through intelligent, precision charging.Power conditioningProtects connected loads from surges, spikes, lightning, and other power disturbances.Temperature-compensated battery chargingProlongs battery life by regulating the charge voltage according to battery temperature.Automatic restart of loads after UPS shutdownAutomatically starts up the connected equipment upon the return of utility power.Automatic self-testPeriodic battery self-test ensures early detection of a battery that needs to be replaced.Disconnected battery notificationWarns when a battery is not available to provide backup power.Network manageableProvides remote management of the UPS over the network.Audible alarmsActively let you know if the unit is on battery, if the battery is low or if there is an overload condition.LED status indicatorsQuickly understand unit and power status with visual indicators.Serial ConnectivityProvides management of the UPS via a serial port.USB connectivityProvides management of the UPS via a USB port (not available on all models).Disconnected battery notificationWarns when a battery is not available to provide backup power.
LongProductName - Smart-UPS X 3000VA Rack/Tower LCD 200-240V
LongSummaryDescription - APC Smart-UPS. UPS topology: Line-Interactive, Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 738 VAh, Typical backup time at full load: 6.25 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Width: 432 mm, Depth: 667 mm, Height: 85 mm
Manufacturer - APC
ManufacturerPartNumber - SMX3000RMHV2U
Maximum power, W - 2700
name - SMX3000RMHV2U X 3000VA USB/RS/LCD/RT 2U
No. of batteries - 1
Noise level, dB - 55
Nominal input voltage, V - 208, 230 (220, 240)
Nominal output voltage, V - 230 (208, 220, 240)
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - - Output Power: 2700W
- Output voltage: 208/220/230 / 240V
- Waveform Type: Sine wave
- Crest Factor: 3: 1
- 2 x IEC Jumpers
- Input voltage: 208 / 230V, 140-280V
- Cord Length: 1.83 m
- Emergency power supply
- Surge energy rating: 645 joules
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V

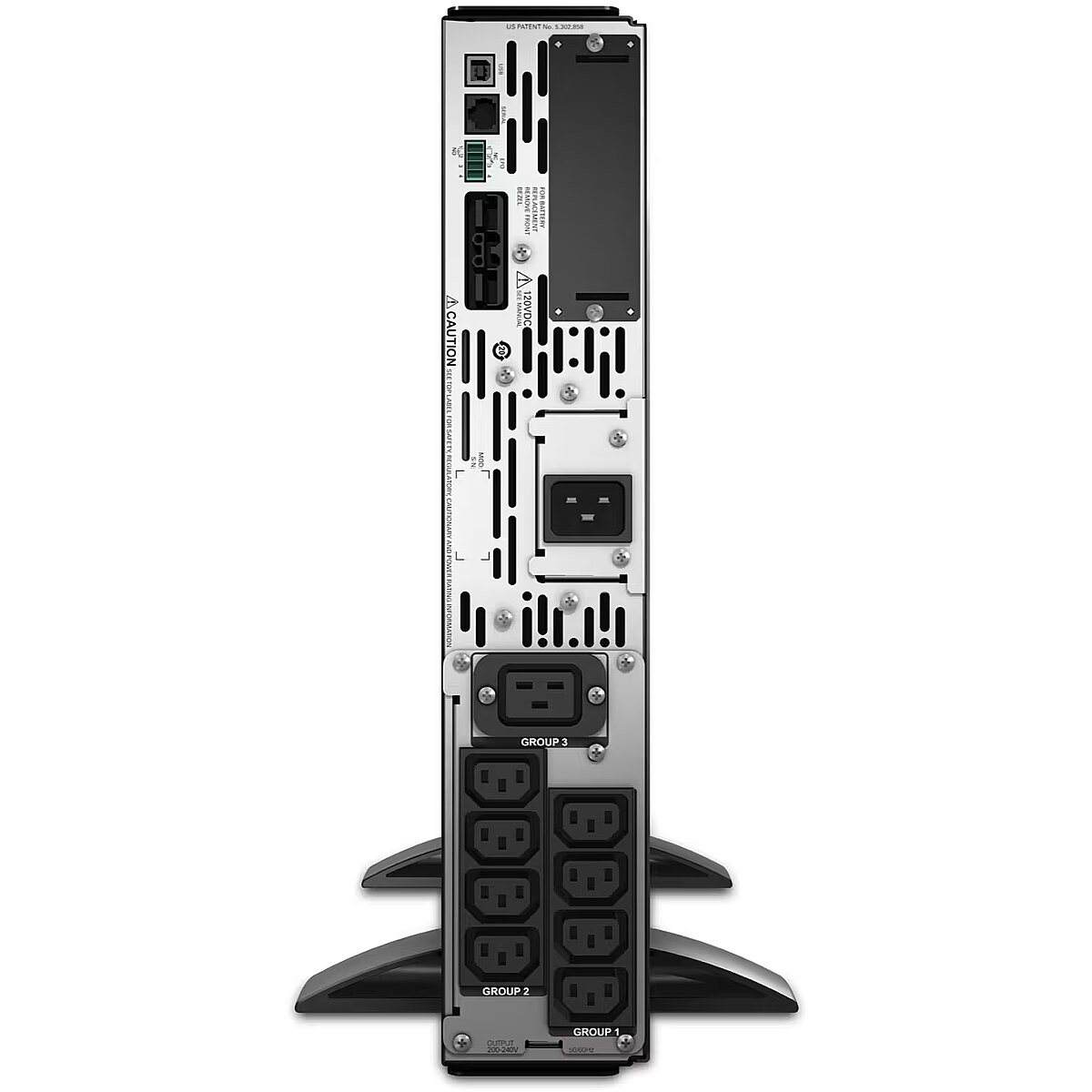

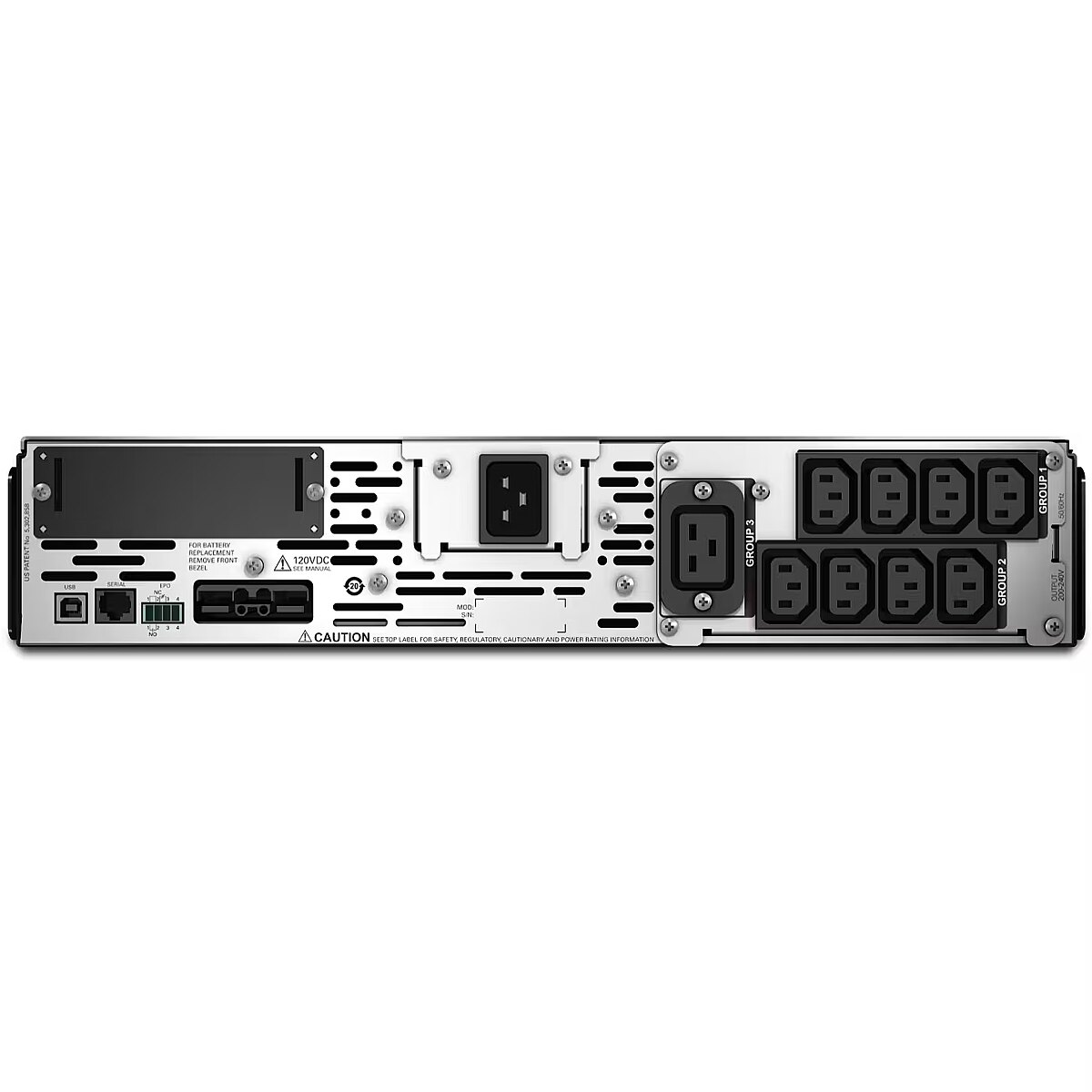

Output interface - 8 x IEC 320 C13, 1 x IEC 320 C19, 2 x IEC Jumpers
Output power, W - 2700
Output power capacity (VA) - 3000
Output power ports - 1 x IEC-C19
Output power ports - 8 x IEC-C13
Packaging data - Cables included - RS-232, USB cable
Packaging data - Manual - Yes
Packaging data - Quick installation guide - Yes
Packaging data - Rack mount kit - Yes
Packaging data - Software CD - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 9 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Number of output IEC jumpers - 2
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - SmartSlot - Yes
producer - APC
ProductName - Smart-UPS
Rack height (units) - 2
Runtime - 10 min (full load) / 18 min (half load)
ShortSummaryDescription - APC Smart-UPS, Line-Interactive, 3 kVA, 2700 W, Sine, 50/60 Hz, 208 V
Software -
Special functions - - Boost and Trim Automatic Voltage Regulation (AVR)
- Intelligent battery management
- Power conditioning
- Temperature-compensated battery charging
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Disconnected battery notification
- Network manageable
- Audible alarms
- LED status indicators
- Serial connectivity
- USB connectivity
- Disconnected battery notification
- User-replaceable batteries
- Hot-swappable batteries
- Predictive failure notification
- Resettable circuit breakers
- Battery failure notification
- Adjustable voltage-transfer points
- Adjustable voltage sensitivity
- Safety-agency approved
Stck_Kart - 1
Stck_Pal - 8
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 645
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - Green Premium
Title - APC Smart-UPS uninterruptible power supply (UPS) Line-Interactive 3 kVA 2700 W 9 AC outlet(s)
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/products/resource/include/techspec_index.cfm?base_sku=SMX3000RMHV2U&ISOCountryCode=uk
vendpn - SMX3000RMHV2U
Voltage - 120 V
WarrantyInfo - 3 years
Weight - 37.32 kg
Weight - 46.000000
Weight & dimensions - Depth - 667 mm
Weight & dimensions - Height - 85 mm
Weight & dimensions - Package depth - 869 mm
Weight & dimensions - Package height - 243 mm
Weight & dimensions - Package weight - 45.4 kg
Weight & dimensions - Package width - 596 mm
Weight & dimensions - Weight - 37.3 kg
Weight & dimensions - Width - 432 mm
Weight, kg - 37.32
Width - 860.000000
Width, mm - 432
