ID: 215655
Product code: VI 500 R1U
In stock 22 units
Warranty: 2 years

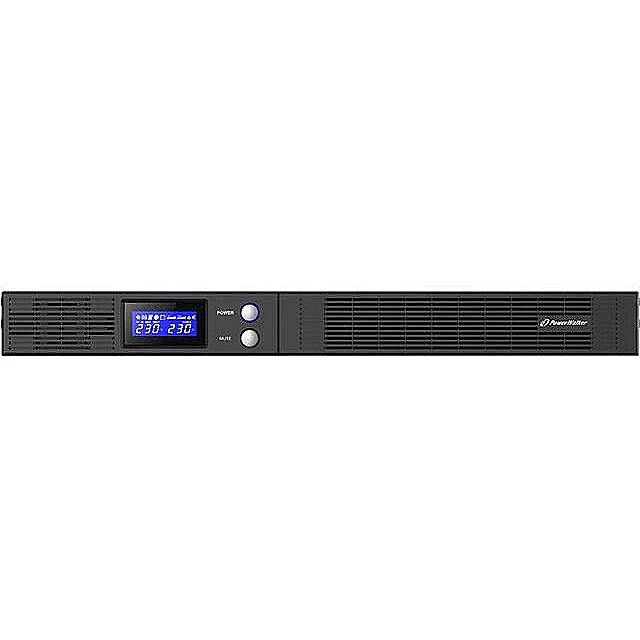

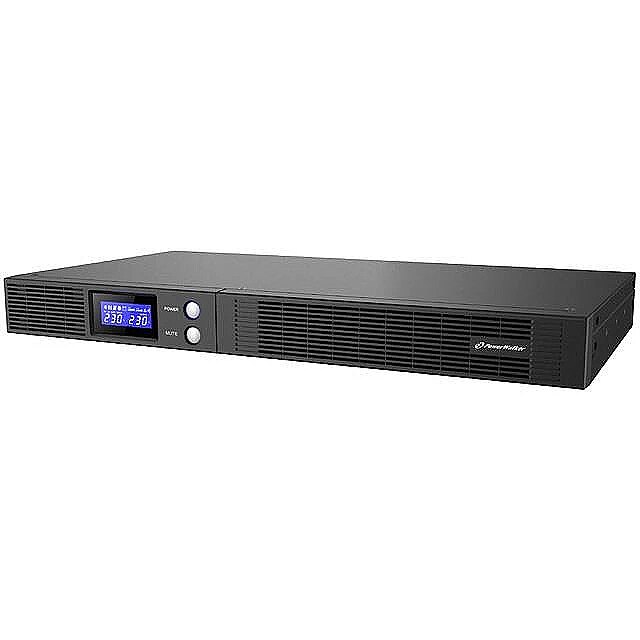

Power Walker VI 500 R1U, 500VA 300W, IEC 1U
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 6.99 €: 21.03.2025
- Courier delivery 11.99 €: 21.03.2025
Main product parameters All parameters
- Battery capacity (VA): 500 VA
- Output power (W): 300 W
Display characteristics
Display
: Ir
Basic information
Battery capacity (VA)
500 VA
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Nav norādīts
Charging time (hours)
: 8h
Output power (W)
: 300 W
Ports and equipment
Number of nests (total)
: 4
Number of sockets (Battery Backup)
: 4
RJ-45
: 0
Socket type
: IEC320
USB
: 0
More detailed specification
Accessories included -
Active power - 300 W
Apparent power - 500 VA
Backup time (100% load) - 0.8 min
Battery - Battery capacity - 7 Ah
Battery - Battery recharge time - 8 h
Battery - Battery voltage - 6 V
Battery - Number of batteries supported - 2
Battery - Typical backup time at full load - 0.8 min
Battery - Typical backup time at half load - 10.3 min
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category_1 - Power
Category_2 - UPS
Charging time - 8 h
Chassis type - Mini Tower
Chassis type - Rack
Color - Black
Description - UPS PowerWalker Line-interactive 500VA 1RU 4X IEC OUT, USB-HID/RS-232, Rack 19"
The PowerWalker VI R1U Series is a slim design (only 226mm deep), unique on the market. It only takes 1U rack 19, it can also be mounted in places that have never been available for UPS, such as a TV. The fan is completely turned off during normal operation, an additional advantage is the LCD screen, which dims automatically. Battery operation ensures the highest quality parameters thanks to the full sine wave. The USB port has been equipped with HID drivers, which will enable communication with the NAS without compatibility problems and additional software.
Design - Display type - LCD
Design - Form factor - Rackmount
Design - Product colour - Black
Design - Rack capacity - 1U
Designation - CE+WEEE
dimensionalWeight - 4896
dimension depth - 140 mm
dimension height - 530 mm
Dimensions - 44 x 216 x 433 mm
dimension weight - 9400 g
dimension width - 320 mm
ean - 4260074980387
Eans - 4260074980387
EAN_code - 4260074980387
Environment requirements - - Recommended ambient temperature: 0 - 40°C
- Recommended ambient humidity: 0 - 90%
Features - Input frequency - 45/55 Hz
Features - Input operation voltage (max) - 290 V
Features - Input operation voltage (min) - 165 V
Features - Output frequency regulation - 0.5 Hz
Features - Output operation voltage (max) - 230 V
Features - Output operation voltage (min) - 230 V
Features - Output power - 300 W
Features - Output power capacity - 0.5 kVA
Features - Output power factor - 0.6
Features - Output voltage regulation - 10%
Features - Power protection features - Overload
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Filters / protection - Surge
guarantee - 24
guarantee_type - normal
Hold-up time (maks) - 4 ms
I/O connectors - 1 x USB 2.0
Logistics data - Harmonized System (HS) code - 85078000
Manufacturer - Bluewalker
Manufacturer_code - 10121047
Name - BlueWalker PowerWalker VI 500 R1U 500VA / 300W - UPS - black - 1 height unit
Name - Power Walker VI 500 R1U
name - UPS Line-In 500VA 1RU 4x IEC Out, USB HID/RS-232, Rack 19
No. of batteries - 2
Number of phases input - 1 (230V)
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - - Input frequency range: 45 - 55 Hz
- Power: 300 W
- Output frequency: 50 Hz
- Output voltage regulation +/- 10%
- Input frequency adjustment +/- 0.5 Hz
- Waveform: Sinusoid
- Expansion slot
- Supported operating systems: Win. XP, Win. Vista, Win. 7, Linux, MAC, FreeBSD, Solaris, Win. 8, Win. Vista 64bit, Win. 7 64bit, Win. 8 64bit

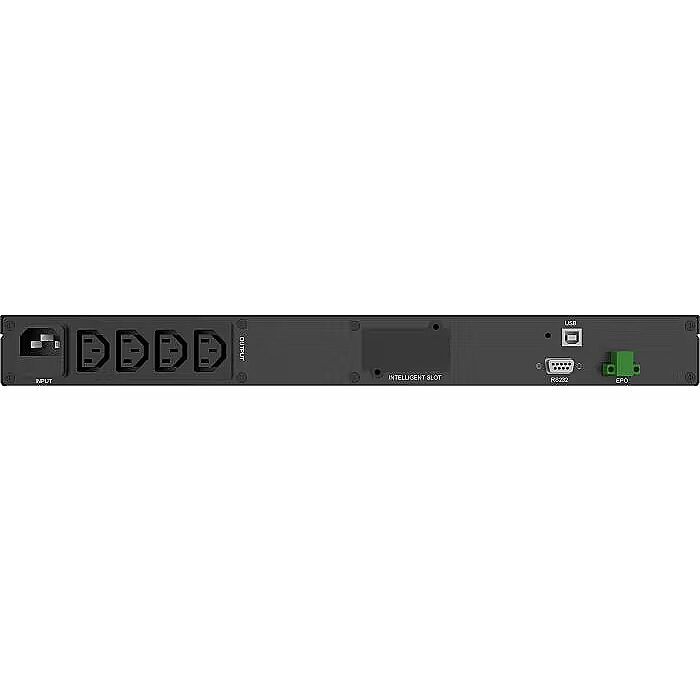

Output power ports - 4 x IEC-C13
Packaging data - Cables included - USB cable
Packaging data - Manual - Yes
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Emergency Power Off (EPO) connector - Yes
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - USB port - Yes
producer - PowerWalker
Producer - Power Walker
producerCode - VI 500 R1U
ProducerCode - VI 500 R1U
productName - PowerWalker VI 500 R1U Line-Interactive 0.5 kVA 300 W 4 AC outlet(s)
productSize - Normal
ShortDescription - Line-Interactive 500VA | 4X IEC C13 (10A) | USB-HID/RS-232 | Rack 19"
sizeX - 530
sizeY - 143
sizeZ - 323
Software -
Special functions - Emergency shutdown (EPO)
Transfer time (max) - 4 ms
UPS Architecture - line-interactive
vendpn - VI 500 R1U
Voltage - 6 V
warrantyLength - 24
warrantyType - G
Weight - 9,25
weight - 9400
Weight & dimensions - Depth - 216 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Package height - 150 mm
Weight & dimensions - Package width - 537 mm
Weight & dimensions - Weight - 7.6 kg
Weight & dimensions - Width - 433 mm
