ID: 206947
Product code: SRT5KXLI
In stock 1 units
Warranty: 3 years

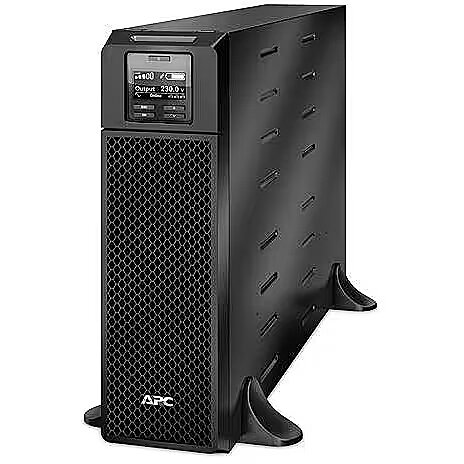

APC Smart-UPS SRT5KXLI 5000VA, 4500W
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: on Thursday, 28.11.2024
Main product parameters All parameters
- Battery capacity (VA): 5000
- Output power (W): 4500
Display characteristics
Display
: Ir
Basic information
Battery capacity (VA)
5000
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: 1.5
Output power (W)
: 4500
Ports and equipment
Number of nests (total)
: 10
Number of sockets (Battery Backup)
: 10
RJ-45
: 1
Socket type
: IEC320
USB
: 1
More detailed specification
Accessories included - - Documentation CD
- Installation guide
- Removable support feet
- Warranty card
Active power - 4500 W
Apparent power - 5 kVA
ARTIKEL1 - APC SMART-UPS SRT 5000VA 230V
ARTIKEL2 - IN
Backup time (100% load) - 4 min
Battery - Automatic battery test - Yes
Battery - Battery capacity - 845 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 1.5 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery - Typical backup time at full load - 4 min
Battery - Typical backup time at half load - 11.8 min
Battery recharge time, h - 3
Brand - APC
BrandPartCode - SRT5KXLI
Breite - 0.65
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Certification - CE, CE Mark
Charging time - 3 h
Chassis type - Tower
Color - Black
Connections - Contact Closure
Connections - RJ-45 10/100 Base-T
Connections - RJ-45 Serial
Connections - SmartSlot
Connections - USB
Connectors - 1 x USB (Typ B)
Connectors - RJ-45
Connectors - SmartSlot
Depth, mm - 719
Description - APC SMART-UPS SRT 5000VA 230V
Description - APC Smart-UPS SRT 5000VA 230VAPC Smart-UPS On-Line, 4500 Watts/5000 VA, Input 230V/Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model
Design - Certification - REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
Design - Display type - LCD
Design - International Protection (IP) code - IP20
Design - LED indicators - Status
Design - Product colour - Black
dimension depth - 800 mm
dimension height - 450 mm
Dimensions - - Height: 432 mm
- Width: 130 mm
- Depth: 719 mm
dimension weight - 63600 g
dimension width - 200 mm
ean - 731304301615
EAN - 0731304301615
EANCode - 0731304301615
Eans - 731304301615
Environment requirements - - Operating Environment: 0 - 40 °C
- Operating Relative Humidity: 0 - 95% no %
- Operating Elevation: 0-3000 meters
- Storage Temperature: -15 - 45 °C
- Storage Relative Humidity: 0 - 95% no %
- Storage Elevation: 0-15000 meters
- Audible noise at 1 meter from surface of unit: 55.0 dBA
- Online thermal dissipation: 931.0 BTU/hr
- Protection Class: IP 20
Features - Audible alarm(s) - Yes
Features - Auto-restart - Yes
Features - Crest factor - 3:1
Features - Efficiency - 94.1%
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 40 - 70 Hz
Features - Input operation voltage (max) - 275 V
Features - Input operation voltage (min) - 100 V
Features - Noise level - 55 dB
Features - Output frequency regulation - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 4500 W
Features - Output power capacity - 5 kVA
Features - Surge energy rating - 480 J
Features - Surge protection - Yes
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Form factor - Tower
Frequency range, Hz - 50/60 +/- 3
Gewicht - 55
Gross Weight Kg - 63,6
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304301615
GTIN - 0731304301615
guarantee - 36
guarantee_type - external
Height - 620.000000
Height, mm - 432
HERSTELLER - APC
Hoehe - 0.35
HSTNUMMER - SRT5KXLI
Input connection - Hard Wire 3 wire (1PH+N+G)
Input frequency, Hz - 45 - 65
Input power ports - Hard Wire 3-wire (1PH + N + G)
Laenge - 1
Length - 330.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 6 pc(s)
LongDesc - APC Smart-UPS On-Line,4500 Watts /5000 VA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model
LongProductName - Smart-UPS SRT 5000VA 230V
LongSummaryDescription - APC Smart-UPS On-Line. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 4500 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Terminal, AC outlets quantity: 12 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 845 VAh, Typical backup time at full load: 4 min. Product colour: Black, Display type: LCD, LED indicators: Status. Width: 130 mm, Depth: 719 mm, Height: 432 mm
Manufacturer - APC
Manufacturer Code - SRT5KXLI
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SRT5KXLI
Maximum power, W - 4500
Name - APC Smart SRT5KXLI
name - SRT5KXLI Smart-UPS SRT 5000VA Tower 230V
Noise level, dB - 55
Nominal input voltage, V - 230 (220, 240)
Nominal output voltage, V - 230 (220, 240)
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - - Nominal Input Voltage: 230V
- Input frequency: 40-70 Hz (auto sensing)
- Input Connections: Hard Wire 3 wire (1PH+N+G)
- Input voltage range for main operations: 160-275 V
- Input voltage adjustable range for mains operation: 100-275 (half load) V
- Other Input Voltages: 220, 240
- Interface Port(s): RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB
- Surge energy rating: 480 Joules
- Nominal Output Voltage: 230V
- Output Voltage Distortion: Less than 2%
- Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
- Other Output Voltages: 220, 240
- Load Crest Factor: 3 : 1
- Topology: Double Conversion Online
- Waveform type: Sine wave
- Bypass: Internal Bypass (Automatic and Manual)
Other features - Packaging content - Comms cable
Removable support feet
Web/SNMP Management Card

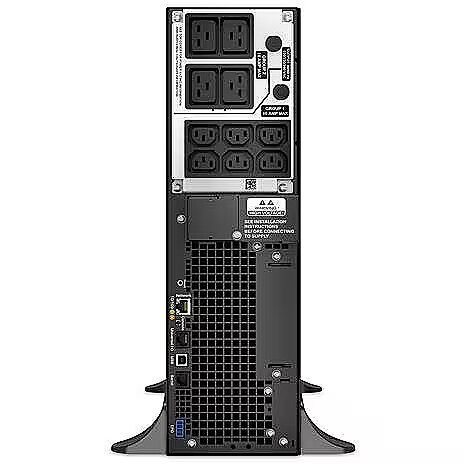

Output interface - 6 x IEC 320 C13, 4 x IEC 320 C19, 2 x IEC Jumpers
Output power, W - 4500
Output power capacity (VA) - 5000
Output power ports - 4 x IEC-C19
Output power ports - 6 x IEC-C13
Packaging data - Cables included - USB cable
Packaging data - Quick installation guide - Yes
Packaging data - Software CD - Yes
Packaging data - Temperature sensor - Yes
Packaging data - Warranty card - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 12 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Number of output IEC jumpers - 2
Ports & interfaces - Power plug - Terminal
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RJ-45
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
producer - APC
Producer - APC
ProducerCode - SRT5KXLI
ProductName - Smart-UPS On-Line
Runtime - 4 min (full load) / 12 min (half load)
ShortDescription -
Short description - APC Smart-UPS SRT 5000 VA SRT5KXLI
ShortSummaryDescription - APC Smart-UPS On-Line, Double-conversion (Online), 5 kVA, 4500 W, Sine, 100 V, 275 V
Software -
Special functions - - LCD graphics display
- Flash upgradeable firmware
- Rack/Tower convertible
- Plug-and-Play external batteries
- Save time with easy and convenient remote accessibility.
- Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network
- Low operating and maintenance costs with proven reliability and intelligent battery management.
- Avoids costly power problems by keeping your IT equipment and data protected and available.
- Peace of mind that comes with full equipment compatibility and reliability of a leader
- Cold-start capable
- Generator compatible
- Safety-agency approved
- Frequency and voltage regulation
- Resettable circuit breaker
- Input power factor correction
- Power conditioning
- Scalable runtime
- Temperature-compensated battery charging
- Automatic internal bypass
- Automatic restart of loads after UPS shutdown
- Hot-swappable batteries
- Intelligent battery management
- Automatic self-test
- User-replaceable batteries
- Disconnected battery notification
- Predicitive failure notification
- Audible alarms
- Serial connectivity
- LED status indicators
- SmartSlot
- InfraStruXure Manager Compatible
- Network manageable
Stck_Kart - 1
Stck_Pal - 6
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 480
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - ENERGY STAR
Title - APC Smart-UPS On-Line uninterruptible power supply (UPS) Double-conversion (Online) 5 kVA 4500 W 12 AC outlet(s)
UPS Architecture - on-line double conversion
UPS devices and accessories - Yes
URL - https://www.apc.com/products/resource/include/techspec_index.cfm?base_sku=SRT5KXLI&tab=models
vendpn - SRT5KXLI
WarrantyInfo - 3 years
Weight - 30.500000
Weight - 54.55 kg
Weight & dimensions - Depth - 719 mm
Weight & dimensions - Height - 432 mm
Weight & dimensions - Package depth - 960 mm
Weight & dimensions - Package height - 330 mm
Weight & dimensions - Package weight - 63.6 kg
Weight & dimensions - Package width - 610 mm
Weight & dimensions - Weight - 54.4 kg
Weight & dimensions - Width - 130 mm
Weight, kg - 54.55
Width - 960.000000
Width, mm - 130
- Installation guide
- Removable support feet
- Warranty card
Active power - 4500 W
Apparent power - 5 kVA
ARTIKEL1 - APC SMART-UPS SRT 5000VA 230V
ARTIKEL2 - IN
Backup time (100% load) - 4 min
Battery - Automatic battery test - Yes
Battery - Battery capacity - 845 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 1.5 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery - Typical backup time at full load - 4 min
Battery - Typical backup time at half load - 11.8 min
Battery recharge time, h - 3
Brand - APC
BrandPartCode - SRT5KXLI
Breite - 0.65
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Certification - CE, CE Mark
Charging time - 3 h
Chassis type - Tower
Color - Black
Connections - Contact Closure
Connections - RJ-45 10/100 Base-T
Connections - RJ-45 Serial
Connections - SmartSlot
Connections - USB
Connectors - 1 x USB (Typ B)
Connectors - RJ-45
Connectors - SmartSlot
Depth, mm - 719
Description - APC SMART-UPS SRT 5000VA 230V
Description - APC Smart-UPS SRT 5000VA 230VAPC Smart-UPS On-Line, 4500 Watts/5000 VA, Input 230V/Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model
Design - Certification - REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
Design - Display type - LCD
Design - International Protection (IP) code - IP20
Design - LED indicators - Status
Design - Product colour - Black
dimension depth - 800 mm
dimension height - 450 mm
Dimensions - - Height: 432 mm
- Width: 130 mm
- Depth: 719 mm
dimension weight - 63600 g
dimension width - 200 mm
ean - 731304301615
EAN - 0731304301615
EANCode - 0731304301615
Eans - 731304301615
Environment requirements - - Operating Environment: 0 - 40 °C
- Operating Relative Humidity: 0 - 95% no %
- Operating Elevation: 0-3000 meters
- Storage Temperature: -15 - 45 °C
- Storage Relative Humidity: 0 - 95% no %
- Storage Elevation: 0-15000 meters
- Audible noise at 1 meter from surface of unit: 55.0 dBA
- Online thermal dissipation: 931.0 BTU/hr
- Protection Class: IP 20
Features - Audible alarm(s) - Yes
Features - Auto-restart - Yes
Features - Crest factor - 3:1
Features - Efficiency - 94.1%
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 40 - 70 Hz
Features - Input operation voltage (max) - 275 V
Features - Input operation voltage (min) - 100 V
Features - Noise level - 55 dB
Features - Output frequency regulation - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 4500 W
Features - Output power capacity - 5 kVA
Features - Surge energy rating - 480 J
Features - Surge protection - Yes
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Form factor - Tower
Frequency range, Hz - 50/60 +/- 3
Gewicht - 55
Gross Weight Kg - 63,6
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304301615
GTIN - 0731304301615
guarantee - 36
guarantee_type - external
Height - 620.000000
Height, mm - 432
HERSTELLER - APC
Hoehe - 0.35
HSTNUMMER - SRT5KXLI
Input connection - Hard Wire 3 wire (1PH+N+G)
Input frequency, Hz - 45 - 65
Input power ports - Hard Wire 3-wire (1PH + N + G)
Laenge - 1
Length - 330.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 6 pc(s)
LongDesc - APC Smart-UPS On-Line,4500 Watts /5000 VA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model
LongProductName - Smart-UPS SRT 5000VA 230V
LongSummaryDescription - APC Smart-UPS On-Line. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 4500 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Terminal, AC outlets quantity: 12 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 845 VAh, Typical backup time at full load: 4 min. Product colour: Black, Display type: LCD, LED indicators: Status. Width: 130 mm, Depth: 719 mm, Height: 432 mm
Manufacturer - APC
Manufacturer Code - SRT5KXLI
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SRT5KXLI
Maximum power, W - 4500
Name - APC Smart SRT5KXLI
name - SRT5KXLI Smart-UPS SRT 5000VA Tower 230V
Noise level, dB - 55
Nominal input voltage, V - 230 (220, 240)
Nominal output voltage, V - 230 (220, 240)
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - - Nominal Input Voltage: 230V
- Input frequency: 40-70 Hz (auto sensing)
- Input Connections: Hard Wire 3 wire (1PH+N+G)
- Input voltage range for main operations: 160-275 V
- Input voltage adjustable range for mains operation: 100-275 (half load) V
- Other Input Voltages: 220, 240
- Interface Port(s): RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB
- Surge energy rating: 480 Joules
- Nominal Output Voltage: 230V
- Output Voltage Distortion: Less than 2%
- Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
- Other Output Voltages: 220, 240
- Load Crest Factor: 3 : 1
- Topology: Double Conversion Online
- Waveform type: Sine wave
- Bypass: Internal Bypass (Automatic and Manual)
Other features - Packaging content - Comms cable
Removable support feet
Web/SNMP Management Card
Output interface - 6 x IEC 320 C13, 4 x IEC 320 C19, 2 x IEC Jumpers
Output power, W - 4500
Output power capacity (VA) - 5000
Output power ports - 4 x IEC-C19
Output power ports - 6 x IEC-C13
Packaging data - Cables included - USB cable
Packaging data - Quick installation guide - Yes
Packaging data - Software CD - Yes
Packaging data - Temperature sensor - Yes
Packaging data - Warranty card - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 12 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Number of output IEC jumpers - 2
Ports & interfaces - Power plug - Terminal
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RJ-45
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
producer - APC
Producer - APC
ProducerCode - SRT5KXLI
ProductName - Smart-UPS On-Line
Runtime - 4 min (full load) / 12 min (half load)
ShortDescription -
Short description - APC Smart-UPS SRT 5000 VA SRT5KXLI
ShortSummaryDescription - APC Smart-UPS On-Line, Double-conversion (Online), 5 kVA, 4500 W, Sine, 100 V, 275 V
Software -
Special functions - - LCD graphics display
- Flash upgradeable firmware
- Rack/Tower convertible
- Plug-and-Play external batteries
- Save time with easy and convenient remote accessibility.
- Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network
- Low operating and maintenance costs with proven reliability and intelligent battery management.
- Avoids costly power problems by keeping your IT equipment and data protected and available.
- Peace of mind that comes with full equipment compatibility and reliability of a leader
- Cold-start capable
- Generator compatible
- Safety-agency approved
- Frequency and voltage regulation
- Resettable circuit breaker
- Input power factor correction
- Power conditioning
- Scalable runtime
- Temperature-compensated battery charging
- Automatic internal bypass
- Automatic restart of loads after UPS shutdown
- Hot-swappable batteries
- Intelligent battery management
- Automatic self-test
- User-replaceable batteries
- Disconnected battery notification
- Predicitive failure notification
- Audible alarms
- Serial connectivity
- LED status indicators
- SmartSlot
- InfraStruXure Manager Compatible
- Network manageable
Stck_Kart - 1
Stck_Pal - 6
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 480
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - ENERGY STAR
Title - APC Smart-UPS On-Line uninterruptible power supply (UPS) Double-conversion (Online) 5 kVA 4500 W 12 AC outlet(s)
UPS Architecture - on-line double conversion
UPS devices and accessories - Yes
URL - https://www.apc.com/products/resource/include/techspec_index.cfm?base_sku=SRT5KXLI&tab=models
vendpn - SRT5KXLI
WarrantyInfo - 3 years
Weight - 30.500000
Weight - 54.55 kg
Weight & dimensions - Depth - 719 mm
Weight & dimensions - Height - 432 mm
Weight & dimensions - Package depth - 960 mm
Weight & dimensions - Package height - 330 mm
Weight & dimensions - Package weight - 63.6 kg
Weight & dimensions - Package width - 610 mm
Weight & dimensions - Weight - 54.4 kg
Weight & dimensions - Width - 130 mm
Weight, kg - 54.55
Width - 960.000000
Width, mm - 130
