APC Smart-UPS SMT2200RMI2UC 2200VA, 1980W, IEC, 2U

Accessories included - CD z oprogramowaniem,  Dokumentacja na CD,  Sprzęt do montażu urządzeń w szafie,  Wsporniki montażowe do szaf przemysłowych,  Kabel USB.
Active power - 1980 W
Alarm - Alarm when on battery : distinctive low battery alarm : configurable delays
ARTIKEL1 - SMART-UPS 2200VA LCD RM 2U 230V
ARTIKEL2 - WITH SMARTCONNECT IN
Backup time (100% load) - 92 min
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Number of batteries supported - 1
Battery - Replacement battery cartridge - RBC43
BatteryType -

Maintenance-free sealed Lead-Acid battery with suspended electrolyte

leakproof

Brand - APC
BrandPartCode - SMT2200RMI2UC
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Category_1 - Power
Category_2 - UPS
Charging time - 3 h
Chassis type - Rack
Color - Black
ControlPanel - Multi-function LCD status and control console
Depth - 683 mm
Depth, mm - 683
Description - APC Smart-UPS 2200 VA LCD do montażu w szafie (RM), 2U, 230 V, z usługą SmartConnect. Inteligentna i wydajna ochrona zasilania w sieciach, od poziomu podstawowego po możliwość skalowania czasu podtrzymania. Idealne rozwiązanie dla serwerów, terminali POS, routerów, przełączników, koncentratorów i innych urządzeń sieciowych.
Description - APC SMART-UPS 2200VA LCD RM 2U 230V WITH SMARTCONNECT
Design - Cable length - 2 m
Design - Certification - CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Design - Display type - LCD
Design - Form factor - Rackmount
Design - Product colour - Black, Metallic
Design - Rack capacity - 2U
dimension depth - 250 mm
dimension height - 980 mm
Dimensions - 480 x 683 x 86 mm
dimension weight - 50000 g
dimension width - 600 mm
ean - 731304337324
EAN - 0731304337324
EANCode - 0731304337324
EAN_code - 0731304337324
Environment requirements - Temperatura eksploatacji: 0 - 40 °C Wilgotność względna podczas pracy: 0 - 95 % Wysokość n.p.m. podczas pracy: 0-3000metry Temperatura (przechowywanie): -15 - 45 °C Wilgotność względna (przechowywanie): 0 - 95 % Wysokość n.p.m. (przechowywanie): 0-15000metry Hałas słyszalny w odległości 1 m od powierzchni urządzenia: 55.0dBA Rozpraszanie ciepła w trybie online: 215.0BTU/godz.
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Low battery alarm
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 302 V
Features - Input operation voltage (min) - 151 V
Features - Noise level - 55 dB
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 1980 W
Features - Output power capacity - 2.2 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 5%
Features - Power protection features - Over voltage
Features - Response time - 6 ms
Features - Surge energy rating - 375 J
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Filters / protection - Overload
Filters / protection - Surge
FormFactor - Rack
Form factor - Rack
GrossWeight - 55.000 kg
Gross Weight Kg - 49,73
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304337324
GTIN - 0731304337324
guarantee - 24
guarantee_type - external
Height - 86 mm
Height - 240.000000
Height, mm - 86
HERSTELLER - APC
Hold-up time (maks) - 10 ms
HSTNUMMER - SMT2200RMI2UC
I/O connectors - 1 x RJ-45 LAN
I/O connectors - 1 x USB 2.0
Input connection - British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
InputConnections -

IEC-320 C20

Schuko CEE 7 / EU1-16P

British BS1363A

InputFrequency - 50/60 Hz +/- 3 Hz (auto sensing)
Input frequency, Hz - 50/60
Input power ports - IEC-C20
Input power ports - Type F Schuko
Input power ports - Type G British
InputVoltage - 230 V
InterfacePorts -

RJ-45 Serial

Smart-Slot

USB

Length - 980.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 8 pc(s)
LongDesc -
LongDesc - Always stay online and prevent data lossAs soon as the power goes out, an APC Smart-UPS immediately provides emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the free APC PowerChute software you can even have critical IT hardware shut down automatically and in a controlled manner when the battery of the UPS is almost empty. This way you prevent data loss, downtime and physical damage to hardware.SafetyIn addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.Battery lifeYou can easily read the expected battery life in the runtime graph, which you can find between the product images. You can easily see how long the UPS supplies emergency power at a certain load.SmartConnectOut-of-box remote UPS monitoring, free for a 6-month trial period. Using the SmartConnect ethernet port, you can easily connect the Smart-UPS to your network and easily monitor it remotely via the secure APC SmartConnect cloud-based web portal*. In addition, the UPS can always be monitored via this port via EcoStruxure IT Expert (SFTWES1-DIGI).* Extend access to SmartConnect through the following licenses:1 year Standard Plan: ERWPMON1-1Y-DIGI3 year Standard Plan: ERWPMON1-3Y-DIGI1 year Advanced Plan: ERWPLUS1-1Y-DIGI3 year Advanced Plan: ERWPLUS1-3Y-DIGIPowerChuteBy connecting the UPS to a maximum of one server via a USB cable, it can automatically provide it with a shutdown signal during a prolonged power outage and thus prevent a hard shutdown. This exact moment can be set via the free APC PowerChute Serial Edition software.Network Management CardIf you connect the UPS directly to your network via the optional APC Network Management Card (AP9640/AP9641), it can easily be managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SFTWES1-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of the APC PowerChute Network Shutdown Software associated with the network card can even be differentiated in the shutdown moment and the order in which this happens.Ease of useBy means of physical buttons and an LCD screen make it possible to set and read the basic functionalities. Thanks to the included 4-post rail kit, you can easily mount the UPS in a rack.Extend the lifespanThe internal battery cartridge (RBC43) can be replaced easily, safely and independently by the user. This without having to switch off the APC SMT2200RMI2UC or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online.Warranty extensionThe manufacturer's warranty of the SMT2200RMI2UC is 3 years, with the exception of the battery cartridge, which has a 2-year manufacturer's warranty. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-04).Switched Outlet Groups: Remote reboot and phased start-upThanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which limits oversizing of the UPS.It is also possible to reset a group of multiple UPS outputs and the equipment connected to them. If SmartConnect Advanced (ERWPLUS1-1Y-DIGI) is used, a UPS with SmartConnect port + Ecostruxure IT Expert (SFTWES1-DIGI) or a network card (ap9640) in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this is even possible at a distance.Green PremiumThis label represents Schneider Electric's commitment to deliver products with best-in-class environmental performance. Green Premium promises to comply with the latest regulations, transparency on environmental effects and circular and low CO2 emission products.Green Premium:- Stands for an energy-efficient product that helps our customers achieve their CO2 reduction goals and save energy costs at the same time. The energy efficiency of this product is at least 10% higher than the market average.- Provides insight into the environmental effects of the product, this data is available 24/7 via the digital product environmental profile, see https://checkaproduct.se.com/- Commits to minimal use of hazardous substances within and beyond regulatory compliance (RoHS-/REACh)Maximize availabilityOr instead of extending the warranty, opt for the even more complete 5-year EcoCare Service to maximize the availability of your APC UPS. In addition to a 5-year warranty, it also includes 24/7 remote monitoring through the Schneider Electric Connected Services Hub and SE's on-site repair service (replacement parts, labor, installation and call-out charges).
LongProductName - APC Smart-UPS SMT2200RMI2UC - 8x C13, 1x C19, USB, Rack Mountable, SmartConnect, 2200VA
LongSummaryDescription - APC Smart-UPS SMT2200RMI2UC - 8x C13, 1x C19, USB, Rack Mountable, SmartConnect, 2200VA. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlets quantity: 9 AC outlet(s), USB port type: USB Type-A, Serial interface type: RJ-45. Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 5 year(s), Battery recharge time: 3 h. Form factor: Rackmount, Product colour: Black, Metallic, Rack capacity: 2U. Width: 432 mm, Depth: 683 mm, Height: 86 mm
Manufacturer - APC
Manufacturer Code - SMT2200RMI2UC
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SMT2200RMI2UC
Manufacturer_code - SMT2200RMI2UC
MANUFDATASHEET - https://www.apc.com/shop/al/en/products/APC-Smart-UPS-2200VA-LCD-RM-2U-230V-with-SmartConnect/P-SMT2200RMI2UC
MPN - SMT2200RMI2UC
Name - APC Smart-UPS 2200VA SMT2200RMI2UC LCD - with SmartConnect
Name - APC Smart-UPS Rack 2HE SMT2200RMI2UC 2200VA 1980W Line Interactive
name - SMT2200RMI2UC Smart UPS 2.2kVA/1.98kW 2U SmartC
No. of batteries - 1
Noise level, dB - 55
Nominal input voltage, V - 230
Nominal output voltage, V - 230
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0-95
Operating temperature range (T-T), °C - 0-40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - Moc wyjściowa: 1.98 KW / 2.2 kVA Dodatkowe złącza wyjściowe: 3 x IEC Jumpers (Zasilanie zapasowe) Ilość kabli zasilających: 1

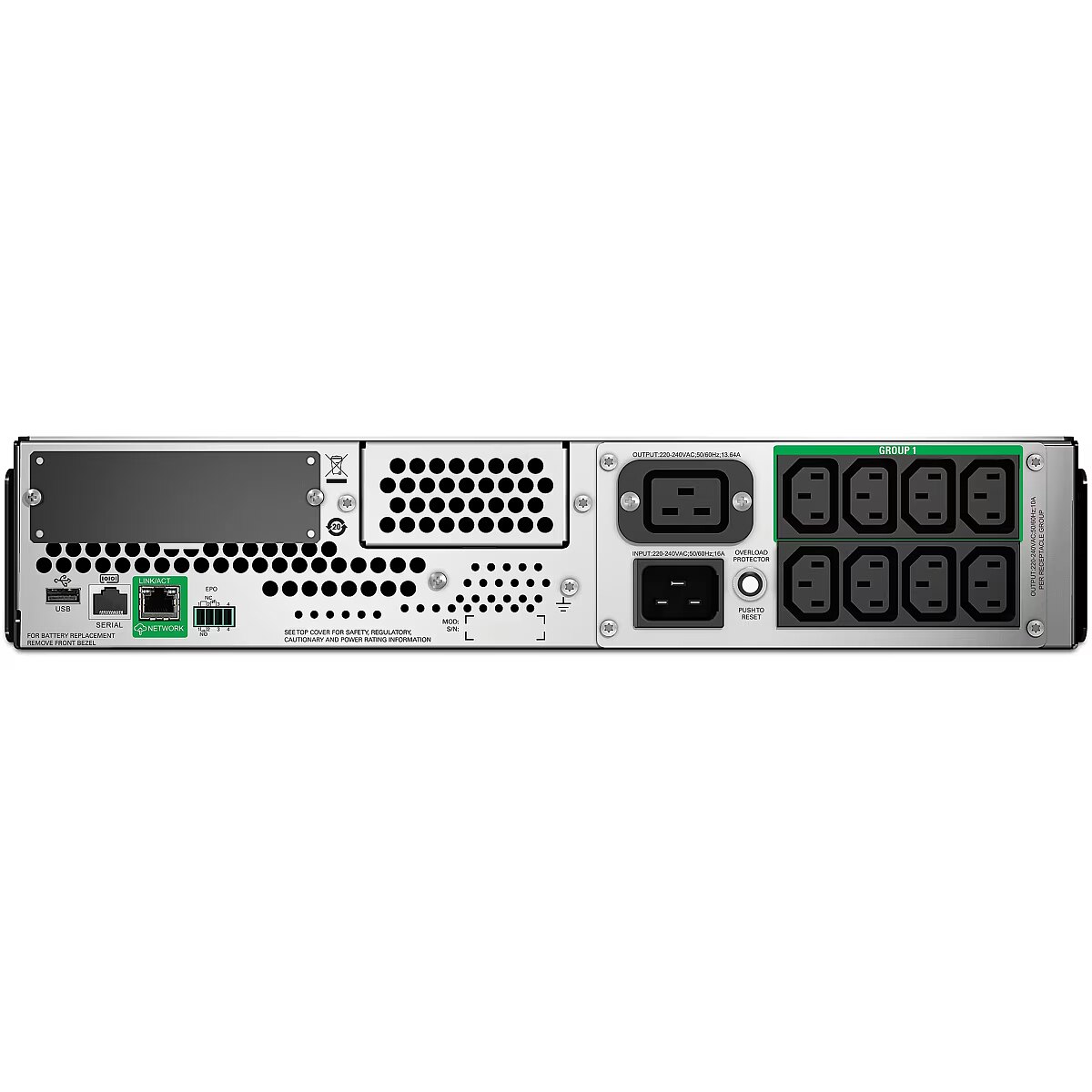

OutputConnections -

(1) IEC 320 C19 (Battery Backup)

(3) IEC Jumpers (Battery Backup)

(8) IEC 320 C13 (Battery Backup)

OutputFrequency - 50/60Hz +/- 3 Hz
Output power, W - 1980
Output power capacity (VA) - 2200
Output power ports - 1 x IEC-C19
Output power ports - 8 x IEC-C13
OutputVoltage - 230 V
PackageContents -

CD with software

Documentation CD

Rack mounting hardware

Rack Mounting support rails

USB cable

Packaging data - Cables included - RS-232, USB cable
Packaging data - Rack mount kit - Yes
Packaging data - Software CD - Yes
PeriodofWarranty - 2 Y
Ports & interfaces - AC outlets quantity - 9 AC outlet(s)
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RJ-45
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces - USB port type - USB Type-A
PowerVAW - 2200 VA
PowerW - 1980 W
ProdDesc - APC Smart-UPS 2200VA LCD RM 2U 230V with SmartConnect
producer - APC
ProductName - APC Smart-UPS SMT2200RMI2UC - 8x C13, 1x C19, USB, Rack Mountable, SmartConnect, 2200VA
ProductPicture - http://www.tdbaltic.ee/images/ds4/SMT2200RMI2UC-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
RechargeTime - 3 h
RJ45 - -
Runtime - -
Short description - APC Smart-UPS 2200 VA LCD RM mit SmartConnect
ShortSummaryDescription - APC Smart-UPS SMT2200RMI2UC - 8x C13, 1x C19, USB, Rack Mountable, SmartConnect, 2200VA, Line-Interactive, 2.2 kVA, 1980 W, Sine, 151 V, 302 V
SmartSlot - Yes
Software - PowerNet MIB v4.2.8
Special functions -
Stck_Kart - 1
Stck_Pal - 8
Storage temperature range (T-T), °C - -15-45
Storno - Y
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - Green Premium
Title - APC Smart-UPS SMT2200RMI2UC - 8x C13, 1x C19, USB, Rack Mountable, SmartConnect, 2200VA
Topology - Line interactive
UPS Architecture - on-line
UPS devices and accessories - Yes
URL - https://www.apc.com/shop/sk/en/products/APC-Smart-UPS-Line-Interactive-2200VA-Rackmount-2U-230V-8x-IEC-C13-2x-IEC-C19-outlets-SmartConnect-Port-SmartSlot-AVR-LCD/P-SMT2200RMI2UC
USB - Yes
vendpn - SMT2200RMI2UC
Voltage - 230 V
Warranty - 2 years
WarrantyInfo - 3 years
WaveformType - Sine wave
Weight - 42.31 kg
Weight - 42.310 Kg
Weight - 51.34
Weight - 52.000000
Weight - 57,00
Weight & dimensions - Depth - 683 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Package depth - 980 mm
Weight & dimensions - Package height - 254 mm
Weight & dimensions - Package weight - 49.7 kg
Weight & dimensions - Package width - 600 mm
Weight & dimensions - Weight - 42.3 kg
Weight & dimensions - Width - 432 mm
Weight, kg - 42.31
Width - 480 mm
Width - 600.000000
Width, mm - 480
