ID: 167731
Product code: SRT8KXLI
Can be ordered 8 units Availability: 14 days after order approval
Warranty: 3 years

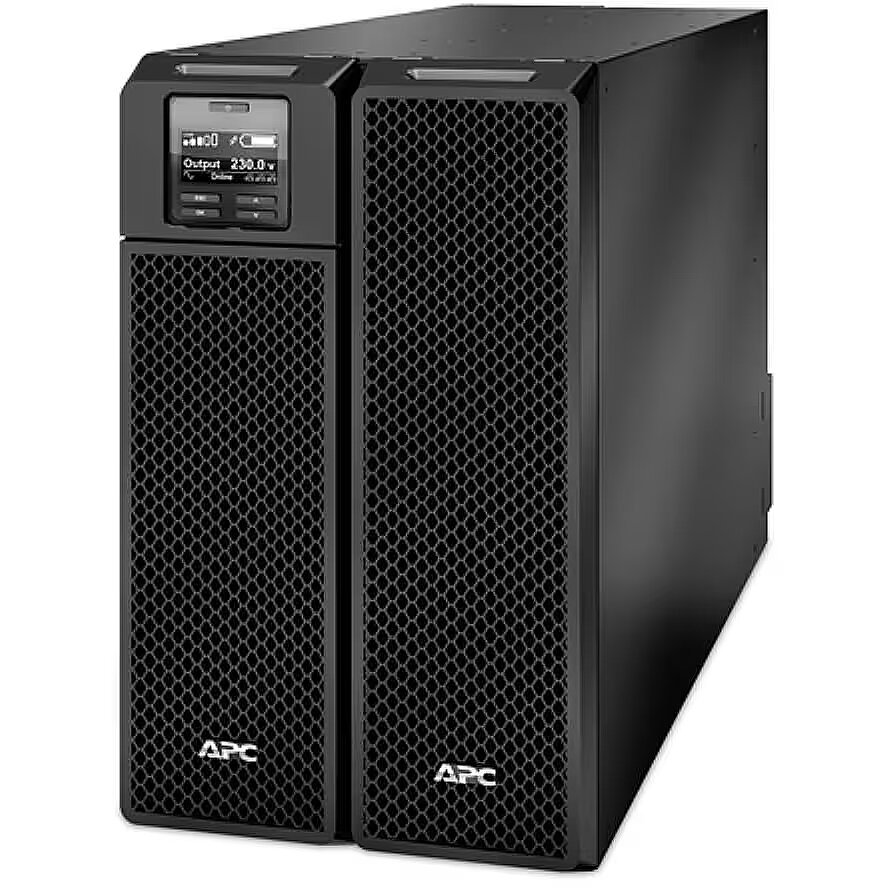

APC Smart-UPS SRT8KXLI 8000VA, 8000W, IEC
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 27.11.2024
Main product parameters All parameters
- Battery capacity (VA): 8000 VA
- Output power (W): 8000 W
Display characteristics
Display
: Ir
Basic information
Battery capacity (VA)
8000 VA
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: 1.5
Output power (W)
: 8000 W
Ports and equipment
Number of nests (total)
: 10
Number of sockets (Battery Backup)
: 10
RJ-45
: 1
Socket type
: IEC320
USB
: 1
More detailed specification
Accessories included - - CD with software
- Documentation CD
- Installation guide
- Removable support feet
- Temperature Probe
- USB cable
- Warranty card
- Web/SNMP Management Card
Active power - 8000 W
Apparent power - 8 kVA
ARTIKEL1 - APC SMART-UPS SRT 8000VA 230V
ARTIKEL2 - IN
Backup time (100% load) - 5 min
Battery - Automatic battery test - Yes
Battery - Battery capacity - 1728 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 1.5 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery recharge time, h - 1.5
Brand - APC
BrandPartCode - SRT8KXLI
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Certification - CE, CE Mark
Charging time - 1.5 h
Chassis type - Tower
Color - Black
Connections - Contact Closure
Connections - RJ-45 10/100 Base-T
Connections - RJ-45 Serial
Connections - SmartSlot
Connections - USB
Connectors - 1 x USB (Typ B)
Connectors - RJ-45
Connectors - SmartSlot
Depth, mm - 715
Description - APC SMART-UPS SRT 8000VA 230V
Description - APC Smart-UPS SRT 8000VA 230V
APC Smart-UPS On-Line, 8000 Watts/8000 VA, input 230V, 400V 3PH/output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model
Design - Certification - REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - International Protection (IP) code - IP20
Design - LED indicators - Status
Design - Product colour - Black
dimension depth - 600 mm
dimension height - 340 mm
Dimensions - - Height: 432 mm
- Width: 263 mm
- Depth: 715 mm
dimension weight - 132000 g
dimension width - 1000 mm
ean - 731304304319
EAN - 0731304304319
EANCode - 0731304304319
Environment requirements - - Operating Environment: 0 - 40 °C
- Operating Relative Humidity: 0 - 95% no %
- Operating Elevation: 0-3000 meters
- Storage Temperature: -15 - 45 °C
- Storage Relative Humidity: 0 - 95% no %
- Storage Elevation: 0-15000 meters
- Audible noise at 1 meter from surface of unit: 55.0 dBA
- Online thermal dissipation: 1300.0 BTU/hr
- Protection Class: IP 20
Features - Audible alarm(s) - Yes
Features - Auto-restart - Yes
Features - Crest factor - 3:1
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 40 - 70 Hz
Features - Input operation voltage (max) - 476 V
Features - Input operation voltage (min) - 100 V
Features - Noise level - 55 dB
Features - Number of output phases - 1
Features - Output frequency regulation - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 8000 W
Features - Output power capacity - 8 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 3%
Features - Surge energy rating - 480 J
Features - Surge protection - Yes
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Form factor - Tower
Frequency range, Hz - 50/60 +/- 3
Gewicht - 55
Gross Weight Kg - 126,82
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304304319
GTIN - 0731304304319
GTIN - 5712505310311
guarantee - 36
guarantee_type - external
Height - 500.000000
Height, mm - 432
HERSTELLER - APC
HSTNUMMER - SRT8KXLI
Input connection - Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
Input frequency, Hz - 45 - 65
Input power ports - Hard Wire 3-wire (1PH + N + G)
Input power ports - Hard Wire 5-wire (3PH + N + G)
Laenge - 1
Length - 600.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 1 pc(s)
LongDesc - APC Smart-UPS On-Line,8000 Watts /8000 VA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime modelIncludes: CD with software, Documentation CD, Installation guide, Temperature Probe, USB cable, Warranty card
LongProductName - Smart-UPS SRT 8000VA 230V
LongSummaryDescription - APC Smart-UPS On-Line. UPS topology: Double-conversion (Online), Output power capacity: 8 kVA, Output power: 8000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Terminal, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 1728 VAh, Battery life (max): 5 year(s). Form factor: Rackmount/Tower, Product colour: Black, Display type: LCD. Width: 263 mm, Depth: 715 mm, Height: 432 mm
Manufacturer - APC
Manufacturer Code - SRT8KXLI
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SRT8KXLI
Maximum power, W - 8000
MPN - SRT8KXLI
Name - APC Smart-UPS SRT8KXLI 8000 VA
name - SRT8KXLI Smart-UPS SRT 8000VA Tower 230V
Noise level, dB - 55
Nominal input voltage, V - 230 (220, 240)
Nominal output voltage, V - 230 (220, 240)
Number of phases input - 1 (230V)
Number of phases input - 3 (400V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - - Nominal Output Voltage: 230V
- Output Voltage Distortion: Less than 2%
- Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
- Other Output Voltages: 220, 240
- Load Crest Factor: 3 : 1
- Topology: Double Conversion Online
- Waveform type: Sine wave
- Bypass: Internal Bypass (Automatic and Manual)
- Nominal Input Voltage: 230V
- Input frequency: 40 - 70 Hz (auto sensing)
- Input Connections: Hard Wire 3 wire (1PH+N+G)
- Input voltage range for main operations: 160 - 275 V
- Input voltage adjustable range for mains operation: 100 - 275 (half load) V
- Other Input Voltages: 220, 240
Other features - Packaging content - Web/SNMP Management Card

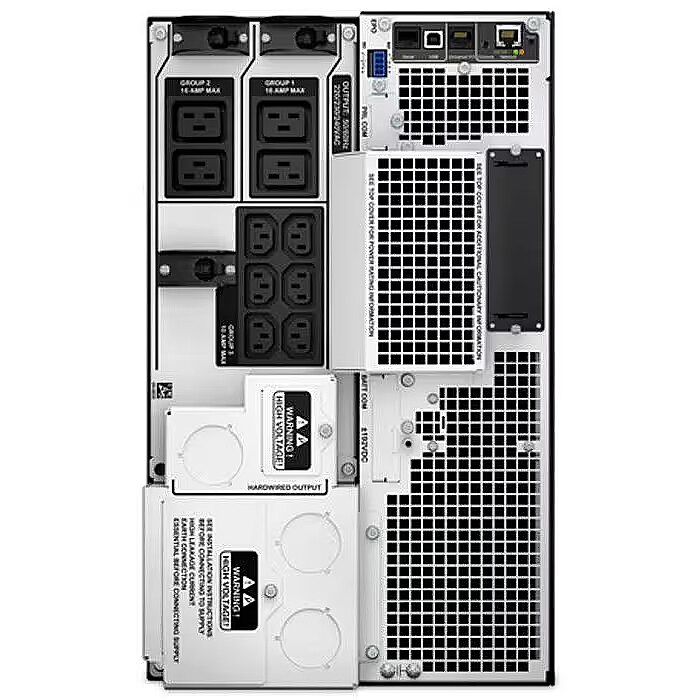

Output interface - 1 x Hard Wire 3-wire (H N + G), 6 x IEC 320 C13, 4 x IEC 320 C19, 3 x IEC Jumpers
Output power, W - 8000
Output power capacity (VA) - 8000
Output power ports - 1 x Hard Wire 3-wire (1PH + N + G)
Output power ports - 4 x IEC-C19
Output power ports - 6 x IEC-C13
Packaging data - Cables included - USB cable
Packaging data - Quick installation guide - Yes
Packaging data - Software CD - Yes
Packaging data - Temperature sensor - Yes
Packaging data - Warranty card - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 10 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Number of output IEC jumpers - 3
Ports & interfaces - Power plug - Terminal
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RJ-45
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
producer - APC
ProductName - Smart-UPS On-Line
Runtime - 5 min (full load) / 16 min (half load)
Short description - APC Smart-UPS SRT 8000 VA SRT8KXLI +++
ShortSummaryDescription - APC Smart-UPS On-Line, Double-conversion (Online), 8 kVA, 8000 W, Sine, 100 V, 476 V
Software -
Special functions - - 10/100 BaseT Connection
- Battery failure notification
- Green mode
- LCD graphics display
- Flash upgradeable firmware
- Rack/Tower convertible
- Plug-and-Play external batteries
- Save time with easy and convenient remote accessibility.
- Low operating and maintenance costs with proven reliability and intelligent battery management.
- Avoids costly power problems by keeping your IT equipment and data protected and available.
- Peace of mind that comes with full equipment compatibility and reliability of a leader
- Cold-start capable
- Generator compatible
- Safety-agency approved
- Frequency and voltage regulation
- Resettable circuit breaker
- Input power factor correction
- Power conditioning
- Scalable runtime
- Temperature-compensated battery charging
- Automatic internal bypass
- Automatic restart of loads after UPS shutdown
- Hot-swappable batteries
- Intelligent battery management
- Automatic self-test
- User-replaceable batteries
- Disconnected battery notification
- Predicitive failure notification
- Audible alarms
- Serial connectivity
- LED status indicators
- SmartSlot
- InfraStruXure Manager Compatible
- Network manageable
Stck_Kart - 1
Stck_Pal - 1
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 480
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - ENERGY STAR
Title - APC Smart-UPS On-Line uninterruptible power supply (UPS) Double-conversion (Online) 8 kVA 8000 W 10 AC outlet(s)
UPS Architecture - on-line double conversion
UPS devices and accessories - Yes
URL - https://www.apc.com/products/resource/include/techspec_index.cfm?base_sku=SRT8KXLI&ISOCountryCode=GB
vendpn - SRT8KXLI
WarrantyInfo - 3 years
Weight - 111.82 kg
Weight - 126.000000
Weight & dimensions - Depth - 715 mm
Weight & dimensions - Height - 432 mm
Weight & dimensions - Package depth - 1000 mm
Weight & dimensions - Package height - 461 mm
Weight & dimensions - Package weight - 126.8 kg
Weight & dimensions - Package width - 600 mm
Weight & dimensions - Weight - 111.8 kg
Weight & dimensions - Width - 263 mm
Weight, kg - 111.82
Width - 1000.000000
Width, mm - 263
- Documentation CD
- Installation guide
- Removable support feet
- Temperature Probe
- USB cable
- Warranty card
- Web/SNMP Management Card
Active power - 8000 W
Apparent power - 8 kVA
ARTIKEL1 - APC SMART-UPS SRT 8000VA 230V
ARTIKEL2 - IN
Backup time (100% load) - 5 min
Battery - Automatic battery test - Yes
Battery - Battery capacity - 1728 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 1.5 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery recharge time, h - 1.5
Brand - APC
BrandPartCode - SRT8KXLI
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Certification - CE, CE Mark
Charging time - 1.5 h
Chassis type - Tower
Color - Black
Connections - Contact Closure
Connections - RJ-45 10/100 Base-T
Connections - RJ-45 Serial
Connections - SmartSlot
Connections - USB
Connectors - 1 x USB (Typ B)
Connectors - RJ-45
Connectors - SmartSlot
Depth, mm - 715
Description - APC SMART-UPS SRT 8000VA 230V
Description - APC Smart-UPS SRT 8000VA 230V
APC Smart-UPS On-Line, 8000 Watts/8000 VA, input 230V, 400V 3PH/output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model
Design - Certification - REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - International Protection (IP) code - IP20
Design - LED indicators - Status
Design - Product colour - Black
dimension depth - 600 mm
dimension height - 340 mm
Dimensions - - Height: 432 mm
- Width: 263 mm
- Depth: 715 mm
dimension weight - 132000 g
dimension width - 1000 mm
ean - 731304304319
EAN - 0731304304319
EANCode - 0731304304319
Environment requirements - - Operating Environment: 0 - 40 °C
- Operating Relative Humidity: 0 - 95% no %
- Operating Elevation: 0-3000 meters
- Storage Temperature: -15 - 45 °C
- Storage Relative Humidity: 0 - 95% no %
- Storage Elevation: 0-15000 meters
- Audible noise at 1 meter from surface of unit: 55.0 dBA
- Online thermal dissipation: 1300.0 BTU/hr
- Protection Class: IP 20
Features - Audible alarm(s) - Yes
Features - Auto-restart - Yes
Features - Crest factor - 3:1
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 40 - 70 Hz
Features - Input operation voltage (max) - 476 V
Features - Input operation voltage (min) - 100 V
Features - Noise level - 55 dB
Features - Number of output phases - 1
Features - Output frequency regulation - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 8000 W
Features - Output power capacity - 8 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 3%
Features - Surge energy rating - 480 J
Features - Surge protection - Yes
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Form factor - Tower
Frequency range, Hz - 50/60 +/- 3
Gewicht - 55
Gross Weight Kg - 126,82
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304304319
GTIN - 0731304304319
GTIN - 5712505310311
guarantee - 36
guarantee_type - external
Height - 500.000000
Height, mm - 432
HERSTELLER - APC
HSTNUMMER - SRT8KXLI
Input connection - Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
Input frequency, Hz - 45 - 65
Input power ports - Hard Wire 3-wire (1PH + N + G)
Input power ports - Hard Wire 5-wire (3PH + N + G)
Laenge - 1
Length - 600.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 1 pc(s)
LongDesc - APC Smart-UPS On-Line,8000 Watts /8000 VA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime modelIncludes: CD with software, Documentation CD, Installation guide, Temperature Probe, USB cable, Warranty card
LongProductName - Smart-UPS SRT 8000VA 230V
LongSummaryDescription - APC Smart-UPS On-Line. UPS topology: Double-conversion (Online), Output power capacity: 8 kVA, Output power: 8000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Terminal, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 1728 VAh, Battery life (max): 5 year(s). Form factor: Rackmount/Tower, Product colour: Black, Display type: LCD. Width: 263 mm, Depth: 715 mm, Height: 432 mm
Manufacturer - APC
Manufacturer Code - SRT8KXLI
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SRT8KXLI
Maximum power, W - 8000
MPN - SRT8KXLI
Name - APC Smart-UPS SRT8KXLI 8000 VA
name - SRT8KXLI Smart-UPS SRT 8000VA Tower 230V
Noise level, dB - 55
Nominal input voltage, V - 230 (220, 240)
Nominal output voltage, V - 230 (220, 240)
Number of phases input - 1 (230V)
Number of phases input - 3 (400V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - - Nominal Output Voltage: 230V
- Output Voltage Distortion: Less than 2%
- Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
- Other Output Voltages: 220, 240
- Load Crest Factor: 3 : 1
- Topology: Double Conversion Online
- Waveform type: Sine wave
- Bypass: Internal Bypass (Automatic and Manual)
- Nominal Input Voltage: 230V
- Input frequency: 40 - 70 Hz (auto sensing)
- Input Connections: Hard Wire 3 wire (1PH+N+G)
- Input voltage range for main operations: 160 - 275 V
- Input voltage adjustable range for mains operation: 100 - 275 (half load) V
- Other Input Voltages: 220, 240
Other features - Packaging content - Web/SNMP Management Card
Output interface - 1 x Hard Wire 3-wire (H N + G), 6 x IEC 320 C13, 4 x IEC 320 C19, 3 x IEC Jumpers
Output power, W - 8000
Output power capacity (VA) - 8000
Output power ports - 1 x Hard Wire 3-wire (1PH + N + G)
Output power ports - 4 x IEC-C19
Output power ports - 6 x IEC-C13
Packaging data - Cables included - USB cable
Packaging data - Quick installation guide - Yes
Packaging data - Software CD - Yes
Packaging data - Temperature sensor - Yes
Packaging data - Warranty card - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 10 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Number of output IEC jumpers - 3
Ports & interfaces - Power plug - Terminal
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RJ-45
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
producer - APC
ProductName - Smart-UPS On-Line
Runtime - 5 min (full load) / 16 min (half load)
Short description - APC Smart-UPS SRT 8000 VA SRT8KXLI +++
ShortSummaryDescription - APC Smart-UPS On-Line, Double-conversion (Online), 8 kVA, 8000 W, Sine, 100 V, 476 V
Software -
Special functions - - 10/100 BaseT Connection
- Battery failure notification
- Green mode
- LCD graphics display
- Flash upgradeable firmware
- Rack/Tower convertible
- Plug-and-Play external batteries
- Save time with easy and convenient remote accessibility.
- Low operating and maintenance costs with proven reliability and intelligent battery management.
- Avoids costly power problems by keeping your IT equipment and data protected and available.
- Peace of mind that comes with full equipment compatibility and reliability of a leader
- Cold-start capable
- Generator compatible
- Safety-agency approved
- Frequency and voltage regulation
- Resettable circuit breaker
- Input power factor correction
- Power conditioning
- Scalable runtime
- Temperature-compensated battery charging
- Automatic internal bypass
- Automatic restart of loads after UPS shutdown
- Hot-swappable batteries
- Intelligent battery management
- Automatic self-test
- User-replaceable batteries
- Disconnected battery notification
- Predicitive failure notification
- Audible alarms
- Serial connectivity
- LED status indicators
- SmartSlot
- InfraStruXure Manager Compatible
- Network manageable
Stck_Kart - 1
Stck_Pal - 1
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 480
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - ENERGY STAR
Title - APC Smart-UPS On-Line uninterruptible power supply (UPS) Double-conversion (Online) 8 kVA 8000 W 10 AC outlet(s)
UPS Architecture - on-line double conversion
UPS devices and accessories - Yes
URL - https://www.apc.com/products/resource/include/techspec_index.cfm?base_sku=SRT8KXLI&ISOCountryCode=GB
vendpn - SRT8KXLI
WarrantyInfo - 3 years
Weight - 111.82 kg
Weight - 126.000000
Weight & dimensions - Depth - 715 mm
Weight & dimensions - Height - 432 mm
Weight & dimensions - Package depth - 1000 mm
Weight & dimensions - Package height - 461 mm
Weight & dimensions - Package weight - 126.8 kg
Weight & dimensions - Package width - 600 mm
Weight & dimensions - Weight - 111.8 kg
Weight & dimensions - Width - 263 mm
Weight, kg - 111.82
Width - 1000.000000
Width, mm - 263
