ID: 146713
Product code: CHAMP 1K TOWER
In stock 1 units
Warranty: 2 years

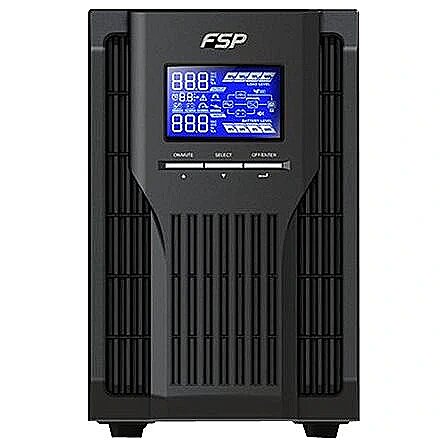

FSP Champ Tower 1K, 1000VA 900W, IEC
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 6.99 €: on Wednesday, 19.03.2025
- Courier delivery 11.99 €: on Wednesday, 19.03.2025
Main product parameters All parameters
- Battery capacity (VA): 1000 VA
- Output power (W): 900 W
Display characteristics
Display
: Ir
Basic information
Battery capacity (VA)
1000 VA
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Nav norādīts
Charging time (hours)
: 4h
Output power (W)
: 900 W
Ports and equipment
Number of nests (total)
: 3
Number of sockets (Battery Backup)
: 3
RJ-45
: 0
Socket type
: IEC320
USB
: 0
More detailed specification
Battery - Battery capacity - 9 Ah
Battery - Battery recharge time (90%) - 4 h
Battery - Battery voltage - 12 V
Battery - Number of battery cells - 2
Battery - Typical backup time at full load - 3.2 min
Battery - Typical backup time at half load - 8.9 min
Brand - FSP
BrandPartCode - PPF8001305
Category - Uninterruptible Power Supplies (UPSs)
Code - CHAMP 1K TOWER
Design - Control type - Buttons
Design - Display type - LCD
Design - Form factor - Tower
Design - LED indicators - Yes
Design - Product colour - Black
EAN - 4711140487595
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Fault, Low battery alarm, Overload alarm
Features - Crest factor - 3:1
Features - Input frequency - 40 - 70 Hz
Features - Input operation voltage (max) - 300 V
Features - Input operation voltage (min) - 120 V
Features - Noise level - 50 dB
Features - Output frequency - 47/63 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 200 V
Features - Output power - 900 W
Features - Output power capacity - 1 kVA
Features - Output voltage regulation - 1%
Features - Power factor - 0.99
Features - Response time - 0 ms
Features - Total Harmonic Distortion (THD) (linear load) - 3%
Features - Total Harmonic Distortion (THD) (non-linear load) - 6%
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Gross weight - 10 kg
GTIN - 4711140487595
Link - http://fsp-europe.com/champ-tower-series-1k2k3k/
Logistics data - Harmonized System (HS) code - 85078000
LongDesc - FSP Champ Tower Series is the high density version of double-conversion online UPS with a output power factor 0.9. It’s designed in a small cabinet with a microprocessor controller. It also has USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters, and related contact cards.
LongProductName - 1000 VA, 900 W, 200 - 240 V, 3:1, 145 x 282 x 220 mm, 9.8 kg
LongSummaryDescription - FSP Champ Tower 1K. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 900 W. USB port type: USB Type-B, Serial interface type: RS-232. Battery capacity: 9 Ah, Battery voltage: 12 V, Typical backup time at full load: 3.2 min. Form factor: Tower, Product colour: Black, Control type: Buttons. Cables included: Input power cable, USB cable
Name - Fortron | CHAMP 1K TOWER | 1000 VA | 300 V | ± 1% (Batt. Mode) V
Operational conditions - Operating relative humidity (H-H) - 20 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - Number of phases - 1
Other features - Packaging content - UPS, Power cable, USB cable, Software on CD, User manual
Other features > Dimensions (WxDxH) - 145 x 282 x 220 mm
Package features > Gross depth (mm) - 366 mm
Package features > Gross height (mm) - 330 mm
Package features > Gross width (mm) - 231 mm
Package features > Palette Qty - 62 pc(s)
Package features > Paper/Pasteboard - 1000 g
Package features > Volume (m3) - 0.02790018 m³
Package features > WEE classification - CL109:5:2017-04-01
Packaging content - Batteries included - Yes
Packaging content - Cables included - Input power cable, USB cable
Packaging content - Manual - Yes
Packaging data - Software CD - Yes
Performance > Capacity - 1000 VA
Performance > UPS topology - Online UPS
Ports & interfaces - Number of output IEC jumpers - 3
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces - USB port type - USB Type-B
Power > AC input frequency - 40 - 70 Hz
Power > Input operation voltage (max) - 300 V
Power > Output operation voltage (min) - ± 1% (Batt. Mode) V
Power > Output power - 900 W
Producer product name - CHAMP 1K TOWER
ProductName - Champ Tower 1K
ShortSummaryDescription - FSP Champ Tower 1K, Double-conversion (Online), 1 kVA, 900 W, Sine, 120 V, 300 V
Technical details > Net weight - 9 kg
Technical details > Producer - Fortron
Technical details > Warranty - 24 month(s)
Title - FSP Champ Tower 1K uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 900 W
URL - https://energy.fsp-europe.com/product/champ-tower-1k/
Warranty - 24
WarrantyInfo -
Weight & dimensions - Depth - 282 mm
Weight & dimensions - Height - 220 mm
Weight & dimensions - Weight - 9.8 kg
Weight & dimensions - Width - 145 mm
Weight & dimensions > Weight - 9800 g
