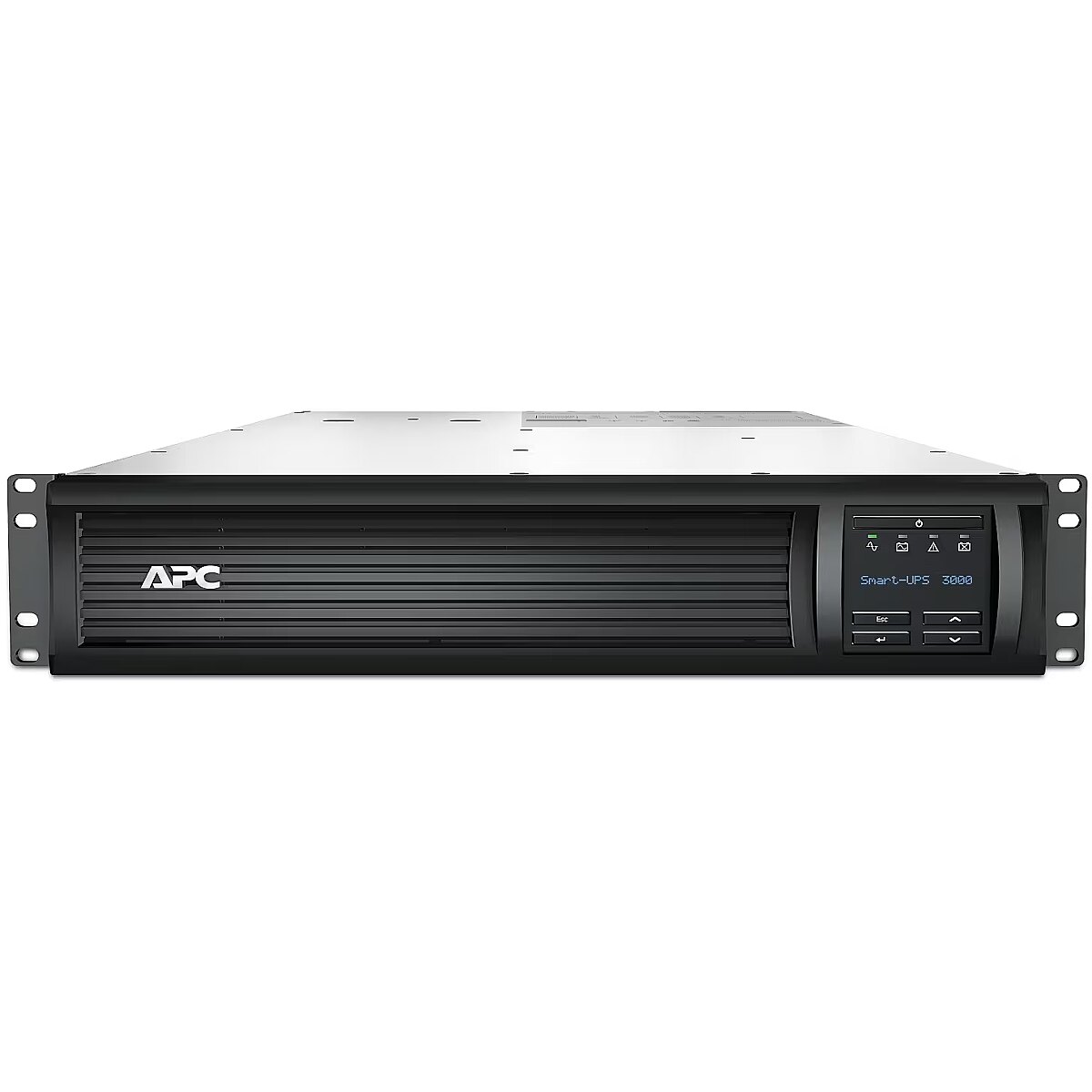

APC Smart-UPS SMT3000RMI2UNC 3000VA, 2700W, IEC, 2U

Accessories included -
Active power - 2700 W
Alarm - Alarm when on battery : distinctive low battery alarm : configurable delays
Apparent power - 3000 VA
ARTIKEL1 - APC SMART-UPS 3000VA LCD RM 2U
ARTIKEL2 - 230V WITH NETWORK CARD
Battery - Automatic battery test - Yes
Battery - Battery capacity - 547 Ah
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery capacity - 547 VAh
Battery recharge time, h - 3
BatteryType -

Maintenance-free sealed Lead-Acid battery with suspended electrolyte

leakproof

Brand - APC
BrandPartCode - SMT3000RMI2UNC
Breite - 0.61
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Certification - C-tick, CE, EN 60950, EN/IEC 62040-1-1, EN/IEC 62040-2, GOST, GS Mark, IRAM, VDE, WEEE
Charging time - 3 h
Chassis type - Rack
Color - Black
Connections - RJ-45 10/100 Base-T
Connections - SmartSlot
Connections - USB
ControlPanel - LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
Depth - 683 mm
Depth, mm - 683
Description - APC SMART-UPS 3000VA LCD RM 2U 230V WITH NETWORK CARD
Description - Możliwość zimnego startu
Tymczasowe zasilanie akumulatorowe w czasie zaniku zasilania sieciowego.
Licznik energii
Informuje o rzeczywistej liczbie pobranych kilowatogodzin.
Tryb ekologiczny
Tryb pracy (rozwiązanie objęte zgłoszeniem patentowym), w którym w wypadku dobrej jakości zasilania zewnętrznego niektóre podzespoły zasilacza są pomijane, co zapewnia wysoką sprawność przy zachowaniu pełnej ochrony.
Wysoka sprawność online
Niższe koszty i mniejsza emisja ciepła.
Intuicyjny interfejs z wyświetlaczem LCD
Dostarcza przejrzystych i precyzyjnych informacji w wielu językach, umożliwia też lokalne konfigurowanie zasilacza UPS za pomocą klawiszy nawigacyjnych.
Prognoza daty wymiany akumulatora
Dostarcza dynamicznie aktualizowanych informacji o zalecanym terminie wymiany akumulatorów (miesiąc i rok), wspomagając długoterminowe planowanie utrzymania infrastruktury.
Fabrycznie zainstalowana karta zarządzająca Network Management Card
Gotowe do użytku rozwiązanie do zdalnego zarządzania i sterowania zasilaczem UPS za pośrednictwem sieci.
Czysty wyjściowy przebieg sinusoidalny przy zasilaniu z akumulatora
Symuluje zasilanie sieciowe w celu zapewnienia jak największej zgodności z serwerami z aktywnie korygowanym współczynnikiem mocy obciążenia oraz wrażliwymi urządzeniami elektronicznymi.
Pojedyncza zarządzana grupa gniazd wyjściowych
Pojedynczą grupą gniazd można niezależnie sterować z zasilacza UPS, co pozwala na selektywne restartowanie zawieszonych urządzeń, programowanie sekwencji włączania/wyłączania oraz czasowe wyłączanie obciążeń nienewralgicznych.
Gniazdo typu SmartSlot
Dostosuj właściwości UPS-a za pomocą kart do zarządzania.
Ładowanie akumulatorów dostosowane do temperatury
Wydłużenie czasu eksploatacji akumulatorów przez regulację napięcia ładowania.
Design - Cable length - 2 m
Design - Certification - CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Design - Display type - LCD
Design - Form factor - Rackmount
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 2U
dimension depth - 990 mm
dimension height - 254 mm
Dimensions - 683 x 480 x 86mm
dimension weight - 50000 g
dimension width - 600 mm
ean - 731304327707
EAN - 0731304327707
EANCode - 0731304327707
Environment requirements -
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Battery replacement
Features - Auto-restart - Yes
Features - Emergency Power Off (EPO) - O
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 302 V
Features - Input operation voltage (min) - 151 V
Features - Noise level - 55 dB
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 2700 W
Features - Output power capacity - 3 kVA
Features - Response time - 4 ms
Features - Surge energy rating - 320 J
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Features - Web-based management - Yes
FormFactor - Rack
Form factor - Rack
Frequency range, Hz - 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Gewicht - 55
GrossWeight - 25.000 kg
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304327707
GTIN - 0731304327707
guarantee - 36
guarantee_type - external
Height - 86 mm
Height - 600.000000
Height, mm - 86
HERSTELLER - APC
Hoehe - 0.26
Hold-up time (maks) - 4 ms
HSTNUMMER - SMT3000RMI2UNC
I/O connectors - 1 x RJ-45 (iLO Remote Management Network)
I/O connectors - 1 x USB (Type B)
I/O connectors - 2 x USB 2.0
I/O connectors - 3 x RJ-45 LAN
Input connection - IEC-320 C20, Schuko CEE 7 / EU1-16P
InputConnections -

IEC-320 C20

Schuko CEE 7 / EU1-16P

British BS1363A

InputFrequency - 50/60 Hz +/- 3 Hz (auto sensing)
Input frequency, Hz - 50/60 +/- 3
Input power ports - IEC-C20
InputVoltage - 230V
Input voltage, V - 160 - 286 (151 - 302)
InterfacePorts -

RJ-45 10/100 Base-T

RJ-45 Serial

Smart-Slot

USB

Laenge - 1
Length - 260.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 8 pc(s)
LongDesc -
LongDesc - Always stay online and prevent data lossAs soon as the power goes out, an APC Smart-UPS immediately provides emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the APC PowerChute Network Shutdown software you can even have critical IT hardware shut down automatically and in a controlled manner when the battery of the UPS is almost empty. This way you prevent data loss, downtime and physical damage to hardware.SafetyIn addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.Battery lifeYou can easily read the expected battery life in the runtime graph, which you can find between the product images. You can easily see how long the UPS supplies emergency power at a certain load.Manage your Smart-UPSThanks to the pre-installed network card (ap9641), you can easily connect the APC UPS to the network. This way you can monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software.PowerChute Network ShutdownPowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and Host ESXi, as well as hyperconverged and virtual infrastructure*. In the event of a power outage, PowerChute can properly shut down your virtual machines and the preconfigured boot sequence ensures they are turned back on.*An additional license is required for HCI and virtual machine support:1 year: SWPCNS1Y-DIGI3 years: SWPCNS3Y-DIGI5 years: SWPCNS5Y-DIGIRemote management and monitoring of your networkThe network card can be managed remotely via the easy-to-use web browser interface, remote management software EcoStruxure™ IT (SFTWES1-DIGI) or other SNMP-compatible system. Tip EcoStruxure™ IT also includes the functionalities of the support contract below.Support contractThe optional network card support contract license* ensures you are always up to date and secure and includes additional benefits such as frequent updates with:• New and improved features• Security updates• Advanced support*The above license is available in the variants:1 year: SWNMC3SU-1Y-DIGI3 years: SWNMC3SU-3Y-DIGI5 years: SWNMC3SU-5Y-DIGIEase of useBy means of physical buttons and an LCD screen make it possible to set and read the basic functionalities. Thanks to the included 4-post rail kit, you can easily mount the UPS in a rack.Extend the lifespanThe internal battery cartridge (RBC43) can be replaced easily, safely and independently by the user. This without having to switch off the APC SMT3000RMI2UNC or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online.Warranty extensionThe manufacturer's warranty of the SMT3000RMI2UNC is 3 years, with the exception of the battery cartridge, which has a 2-year manufacturer's warranty. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-04).Switched Outlet Groups: Remote reboot and phased start-upThanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which limits oversizing of the UPS.It is also possible to reset a group of multiple UPS outputs and the equipment connected to them. If SmartConnect Advanced (ERWPLUS1-1Y-DIGI) is used, a UPS with SmartConnect port + Ecostruxure IT Expert (SFTWES1-DIGI) or a network card (ap9640) in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this is even possible at a distance.Green PremiumThis label represents Schneider Electric's commitment to delivering products with best-in-class environmental performance. Green Premium promises to comply with the latest regulations, transparency on environmental effects and circular and low CO2 emission products.Green Premium:- Stands for an energy-efficient product that helps our customers achieve their CO2 reduction goals and save energy costs at the same time. The energy efficiency of this product is at least 10% higher than the market average.- Provides insight into the environmental effects of the product, this data is available 24/7 via the digital product environmental profile, see https://checkaproduct.se.com/- Commits to minimal use of hazardous substances within and beyond regulatory compliance (RoHS/REACh)Maximize availabilityOr instead of extending the warranty, opt for the even more complete 5-year EcoCare service to maximize the availability of your APC UPS. In addition to a 5-year warranty, it also includes 24/7 remote monitoring through the Schneider Electric Connected Services Hub and SE's on-site repair service (replacement parts, labor, installation and call-out charges).
LongProductName - APC Smart-UPS SMT3000RMI2UNC - 8x C13, 1x C19, USB, rack mountable, NMC, 3000VA
LongSummaryDescription - APC Smart-UPS SMT3000RMI2UNC - 8x C13, 1x C19, USB, rack mountable, NMC, 3000VA. UPS topology: Line-Interactive, Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, C20 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 547 Ah, Battery recharge time: 3 h. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 480 mm, Depth: 683 mm, Height: 86 mm
Manufacturer - APC
ManufacturerPartNumber - SMT3000RMI2UNC
MANUFDATASHEET - https://www.apc.com/shop/ke/en/products/APC-Smart-UPS-3000VA-LCD-RM-2U-230V-with-Network-Card/P-SMT3000RMI2UNC
Maximum power, W - 2700
MPN - SMT3000RMI2UNC
Name - APC Smart-UPS Rack 2HE SMT3000RMI2UNC 3000VA 2700W Line Interactive inkl. Netzwerkkarte
name - SMT1500RMI2UNC SMART-UPS 3000VA/2700W Rack 2U with network card AP9631
No. of batteries - 1
Noise level, dB - 55
Nominal input voltage, V - 230 (220, 240)
Nominal output voltage, V - 230 (220, 240)
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features -
Other features - Output voltage - 230 V
OutputConnections -

(8) IEC 320 C13 (Battery Backup)

(3) IEC Jumpers (Battery Backup)

(1) IEC 320 C19 (Battery Backup)

OutputFrequency - 50/60Hz +/- 3 Hz

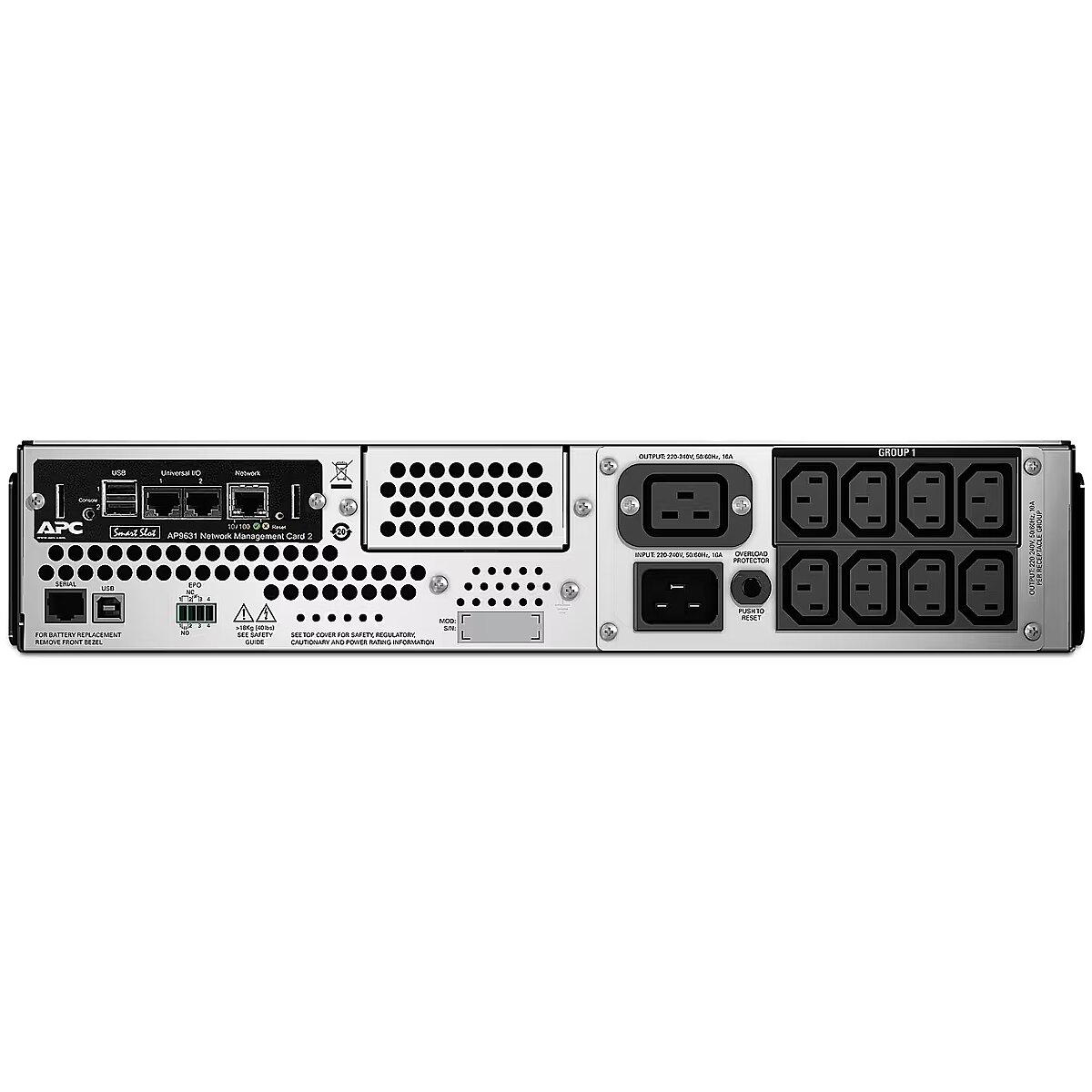

Output interface - 8 x IEC 320 C13, 1 x IEC 320 C19, 2 x IEC Jumpers
Output power, W - 2700
Output power capacity (VA) - 3000
Output power ports - 1 x IEC-C19
Output power ports - 8 x IEC-C13
OutputVoltage - 230 V
PackageContents -

CD with software

Country-specific detachable power cord

Documentation CD

Installation guide

Rack Mounting support rails

Smart UPS signalling RS-232 cable

Temperature Probe

USB cable

Web/SNMP Management Card

Packaging data - Cables included - Input power cable, USB cable
Packaging data - Quick installation guide - Yes
Packaging data - Rack mount kit - Yes
Packaging data - Resource CD - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 9 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler, C20 coupler
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - USB 2.0 ports quantity - 1
PowerVAW - 3000 VA
PowerW - 2700 W
ProdDesc - APC Smart-UPS 3000VA LCD RM 2U 230V with Network Card
producer - APC
ProductName - APC Smart-UPS SMT3000RMI2UNC - 8x C13, 1x C19, USB, rack mountable, NMC, 3000VA
ProductPicture - http://www.tdbaltic.ee/images/ds4/SMT3000RMI2UNC-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
Rack height (units) - 2
RechargeTime - 3 h
RJ45 - Yes
Runtime - -
Runtime - 3 min (full load) / 11 min (half load)
ShortSummaryDescription - APC Smart-UPS SMT3000RMI2UNC - 8x C13, 1x C19, USB, rack mountable, NMC, 3000VA, Line-Interactive, 3 kVA, 2700 W, Sine, 151 V, 302 V
SmartSlot - Yes
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 7
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 320
Technical details - Sustainability certificates - Green Premium, RoHS
Title - APC Smart-UPS SMT3000RMI2UNC - 8x C13, 1x C19, USB, rack mountable, NMC, 3000VA
Topology - Line interactive
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/shop/be/en/products/APC-Smart-UPS-3000VA-LCD-RM-2U-230V-with-Network-Card/P-SMT3000RMI2UNC
USB - Yes
vendpn - SMT3000RMI2UNC
Warranty - 2 years
WarrantyInfo - 3 years
WaveformType - Sine wave
Weight - 44.19 kg
Weight - 44.190 Kg
Weight - 52.06
Weight - 53.000000
Weight & dimensions - Depth - 683 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Package depth - 980 mm
Weight & dimensions - Package height - 254 mm
Weight & dimensions - Package weight - 51.6 kg
Weight & dimensions - Package width - 600 mm
Weight & dimensions - Weight - 44.2 kg
Weight & dimensions - Width - 480 mm
Weight, kg - 44.28
Width - 480 mm
Width - 980.000000
Width, mm - 480
