Accessories included -
Active power - 1980 W
Alarm - Alarm when on battery : distinctive low battery alarm : configurable delays
Apparent power - 2200 VA
ARTIKEL1 - SMT2200RMI2U + NC
ARTIKEL2 - .
Battery - Automatic battery test - Yes
Battery - Battery capacity - 509 Ah
Battery - Battery recharge time - 5 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery capacity - 509 VAh
Battery recharge time, h - 3
BatteryType -
Maintenance-free sealed Lead-Acid battery with suspended electrolyteleakproof
Brand - APC
BrandPartCode - SMT2200RMI2UNC
Breite - 0.6
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Certification - C-tick, CE, EN 60950, EN/IEC 62040-1-1, EN/IEC 62040-2, GOST, GS Mark, IRAM, VDE, WEEE
Charging time - 3 h
Chassis type - Rack
Color - Black
Connections - RJ-45 10/100 Base-T
Connections - SmartSlot
Connections - USB
ControlPanel - LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
Depth - 683 mm
Depth, mm - 683
Description - APC SMART-UPS 2200VA LCD RM 2U 230V WITH NETWORK CARD
Description - Możliwość zimnego startu
Tymczasowe zasilanie akumulatorowe w czasie zaniku zasilania sieciowego.
Licznik energii
Informuje o rzeczywistej liczbie pobranych kilowatogodzin.
Tryb ekologiczny
Tryb pracy (rozwiązanie objęte zgłoszeniem patentowym), w którym w wypadku dobrej jakości zasilania zewnętrznego niektóre podzespoły zasilacza są pomijane, co zapewnia wysoką sprawność przy zachowaniu pełnej ochrony.
Wysoka sprawność online
Niższe koszty i mniejsza emisja ciepła.
Intuicyjny interfejs z wyświetlaczem LCD
Dostarcza przejrzystych i precyzyjnych informacji w wielu językach, umożliwia też lokalne konfigurowanie zasilacza UPS za pomocą klawiszy nawigacyjnych.
Prognoza daty wymiany akumulatora
Dostarcza dynamicznie aktualizowanych informacji o zalecanym terminie wymiany akumulatorów (miesiąc i rok), wspomagając długoterminowe planowanie utrzymania infrastruktury.
Fabrycznie zainstalowana karta zarządzająca Network Management Card
Gotowe do użytku rozwiązanie do zdalnego zarządzania i sterowania zasilaczem UPS za pośrednictwem sieci.
Czysty wyjściowy przebieg sinusoidalny przy zasilaniu z akumulatora
Symuluje zasilanie sieciowe w celu zapewnienia jak największej zgodności z serwerami z aktywnie korygowanym współczynnikiem mocy obciążenia oraz wrażliwymi urządzeniami elektronicznymi.
Pojedyncza zarządzana grupa gniazd wyjściowych
Pojedynczą grupą gniazd można niezależnie sterować z zasilacza UPS, co pozwala na selektywne restartowanie zawieszonych urządzeń, programowanie sekwencji włączania/wyłączania oraz czasowe wyłączanie obciążeń nienewralgicznych.
Gniazdo typu SmartSlot
Dostosuj właściwości UPS-a za pomocą kart do zarządzania.
Ładowanie akumulatorów dostosowane do temperatury
Wydłużenie czasu eksploatacji akumulatorów przez regulację napięcia ładowania.
Design - Certification - CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Design - Display type - LCD
Design - Form factor - Rackmount
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 2U
dimension depth - 250 mm
dimension height - 980 mm
Dimensions - 683 x 480 x 86mm
dimension weight - 51400 g
dimension width - 605 mm
ean - 731304327691
EAN - 0731304327691
EANCode - 0731304327691
Eans - 731304327691
Environment requirements -
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Battery replacement
Features - Auto-restart - Yes
Features - Emergency Power Off (EPO) - O
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 302 V
Features - Input operation voltage (min) - 151 V
Features - Noise level - 55 dB
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 1980 W
Features - Output power capacity - 2.2 kVA
Features - Response time - 4 ms
Features - Surge energy rating - 375 J
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Features - Web-based management - Yes
FormFactor - Rack
Form factor - Rack
Frequency range, Hz - 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Gewicht - 51.28
GrossWeight - 25.000 kg
Gross Weight Kg - 49,63
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304327691
GTIN - 0731304327691
guarantee - 36
guarantee_type - external
Height - 86 mm
Height - 590.000000
Height, mm - 86
HERSTELLER - APC
Hoehe - 0.25
Hold-up time (maks) - 4 ms
HSTNUMMER - SMT2200RMI2UNC
I/O connectors - 1 x RJ-45 (iLO Remote Management Network)
I/O connectors - 1 x USB (Type B)
I/O connectors - 2 x USB 2.0
I/O connectors - 3 x RJ-45 LAN
Input connection - IEC-320 C20, Schuko CEE 7 / EU1-16P
InputConnections - IEC-320 C20Schuko CEE 7 / EU1-16PBritish BS1363A
InputFrequency - 50/60 Hz +/- 3 Hz (auto sensing)
Input frequency, Hz - 50/60 +/- 3
Input power ports - IEC-C20
InputVoltage - 230 V
Input voltage, V - 160 - 286 (151 - 302)
InterfacePorts - RJ-45 10/100 Base-TRJ-45 SerialSmart-SlotUSB
Laenge - 0.98
Length - 250.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 8 pc(s)
LongDesc -
LongDesc - Cold-start capableProvides temporary battery power when the utility power is out.Energy meterProvides actual kilowatt hours of usage for energy conscious users.Green modePatent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.High online efficiencyReduces utlility costs, generates less heat.Intuitive LCD interfaceProvides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.Predictive replace battery dateDynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.Preinstalled network management cardProvides for remote management and control of the UPS over a network out of the box.Single switched outlet groupSingle outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.SmartSlotCustomize UPS capabilities with management cards.Temperature-compensated battery chargingProlongs battery life by regulating the charge voltage according to battery temperature.AvailabilityDisconnected battery notificationWarns when a battery is not available to provide backup power.Automatic restart of loads after UPS shutdownAutomatically starts up the connected equipment upon the return of utility power.Automatic self-testPeriodic battery self-test ensures early detection of a battery that needs to be replaced.Intelligent battery managementMaximizes battery performance, life, and reliability through intelligent, precision charging.Temperature-compensated battery chargingProlongs battery life by regulating the charge voltage according to battery temperature.Boost and Trim Automatic Voltage Regulation (AVR)Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).Power conditioningProtects connected loads from surges, spikes, lightning, and other power disturbances.ManageabilityNetwork manageableProvides remote power management of the UPS over the network.Serial connectivityProvides management of the UPS via a serial port.Audible alarmsActively let you know if the unit is on battery, if the battery is low or if there is an overload condition.Disconnected battery notificationWarns when a battery is not available to provide backup power.LED status indicatorsQuickly understand unit and power status with visual indicators.USB connectivityProvides management of the UPS via a USB port (not available on all models).SafetySafety-agency approvedEnsures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.Marketing FeaturesLow operating and maintenance costs with high efficiency, proven reliability and intelligent battery managementPatented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging.Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.Save time with easy and convenient remote accessibilityNetwork manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.Smarter productivity with ability to tailor to your specific application needsIntuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.Peace of mind that comes with full equipment compatibility and reliability of a leaderProvides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.Avoids costly power problems by keeping your IT equipment and data safe and availableNetwork grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systemsServiceabilityResettable circuit breakersEnables a quick recovery from overload events.Hot-swappable batteriesEnsures clean, uninterrupted power to protected equipment while batteries are being replacedPredictive failure notificationProvides early-warning fault analysis ensuring proactive component replacement.User-replaceable batteriesIncreases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)Battery failure notificationProvides early-warning fault analysis on batteries enabling timely preventive maintenanceAdaptabilityAdjustable voltage-transfer pointsMaximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.Adjustable voltage sensitivityProvides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
LongProductName - 230 V, 1.98 KW / 2.2 kVA, 50/60 Hz, RJ-45, SmartSlot, USB, 480 x 683 x 86 mm, 42.22 kg
LongSummaryDescription - APC Smart-UPS 2200VA. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C20 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 509 Ah, Battery recharge time: 5 h. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 480 mm, Depth: 683 mm, Height: 86 mm
Manufacturer - APC
Manufacturer Code - SMT2200RMI2UNC
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SMT2200RMI2UNC
MANUFDATASHEET - https://www.apc.com/shop/bw/en/products/APC-Smart-UPS-2200VA-LCD-RM-2U-230V-with-Network-Card/P-SMT2200RMI2UNC
Maximum power, W - 1980
MPN - SMT2200RMI2UNC
Name - APC Smart-UPS Rack 2HE SMT2200RMI2UNC 2200VA 1980W inkl. Netzwerkmanagementkarte
Name - APC Smart SMT2200RMI2UNC
name - SMT2200RMI2UNC SMART-UPS 2200VA/1980W Rack 2U with network card AP9631
No. of batteries - 1
Noise level, dB - 55
Nominal input voltage, V - 230 (220, 240)
Nominal output voltage, V - 230 (220, 240)
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features -
Other features - Output voltage - 230 V

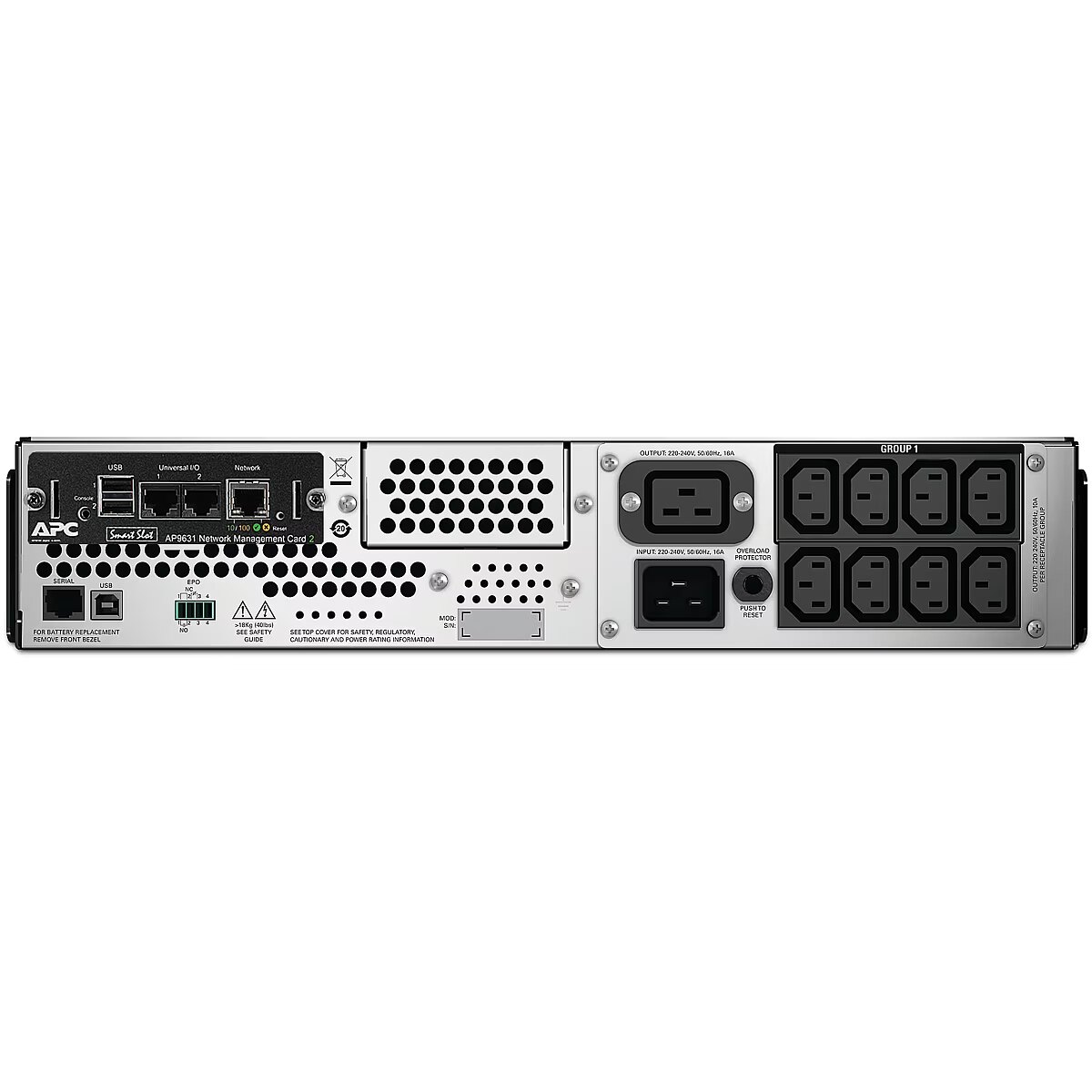

OutputConnections - (1) IEC 320 C19 (Battery Backup)(3) IEC Jumpers (Battery Backup)(8) IEC 320 C13 (Battery Backup)
OutputFrequency - 50/60Hz +/- 3 Hz
Output interface - 8 x IEC 320 C13, 1 x IEC 320 C19, 2 x IEC Jumpers
Output power, W - 1980
Output power capacity (VA) - 2200
Output power ports - 1 x IEC-C19
Output power ports - 8 x IEC-C13
OutputVoltage - 230 V
PackageContents - CD with softwareDocumentation CDInstallation guideRack mounting hardwareRack Mounting support railsSmart UPS signalling RS-232 cableTemperature ProbeUSB cable
Packaging data - Cables included - Input power cable, USB cable
Packaging data - Quick installation guide - Yes
Packaging data - Rack mount kit - Yes
Packaging data - Resource CD - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 9 AC outlet(s)
Ports & interfaces - AC outlet types - C20 coupler
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - USB 2.0 ports quantity - 1
PowerVAW - 2200 VA
PowerW - 1980 W
ProdDesc - APC Smart-UPS 2200VA LCD RM 2U 230V with Network Card
producer - APC
Producer - APC
ProducerCode - SMT2200RMI2UNC
ProductName - Smart-UPS 2200VA
ProductPicture - http://www.tdbaltic.ee/images/ds4/SMT3000RMI2UNC-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
Rack height (units) - 2
RechargeTime - 3 h
RJ45 - Yes
Runtime - -
Runtime - 5 min (full load) / 16 min (half load)
ShortDescription -
Short description - APC Smart-UPS 2200 VA LCD RM SMT2200RMI2UNC
ShortSummaryDescription - APC Smart-UPS 2200VA, Line-Interactive, 2.2 kVA, 1980 W, Sine, 151 V, 302 V
SmartSlot - Yes
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 8
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 375
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - Green Premium
Title - APC Smart-UPS 2200VA uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1980 W 9 AC outlet(s)
Topology - Line interactive
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/shop/bw/en/products/APC-Smart-UPS-2200VA-LCD-RM-2U-230V-with-Network-Card/P-SMT2200RMI2UNC
USB - Yes
vendpn - SMT2200RMI2UNC
Warranty - 2 years
WarrantyInfo - 3 years repair or replace (excluding battery) and 2 years for battery
WaveformType - Sine wave
Weight - 42.22 kg
Weight - 42.220 Kg
Weight - 53.000000
Weight - 55
Weight & dimensions - Depth - 683 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Package depth - 980 mm
Weight & dimensions - Package height - 254 mm
Weight & dimensions - Package weight - 49.6 kg
Weight & dimensions - Package width - 600 mm
Weight & dimensions - Weight - 42.2 kg
Weight & dimensions - Width - 480 mm
Weight, kg - 42.31
Width - 480 mm
Width - 980.000000
Width, mm - 480
