ID: 130968
Product code: SMX3000HVNC
Can be ordered 5 units Availability: 14 days after order approval
Warranty: 2 years

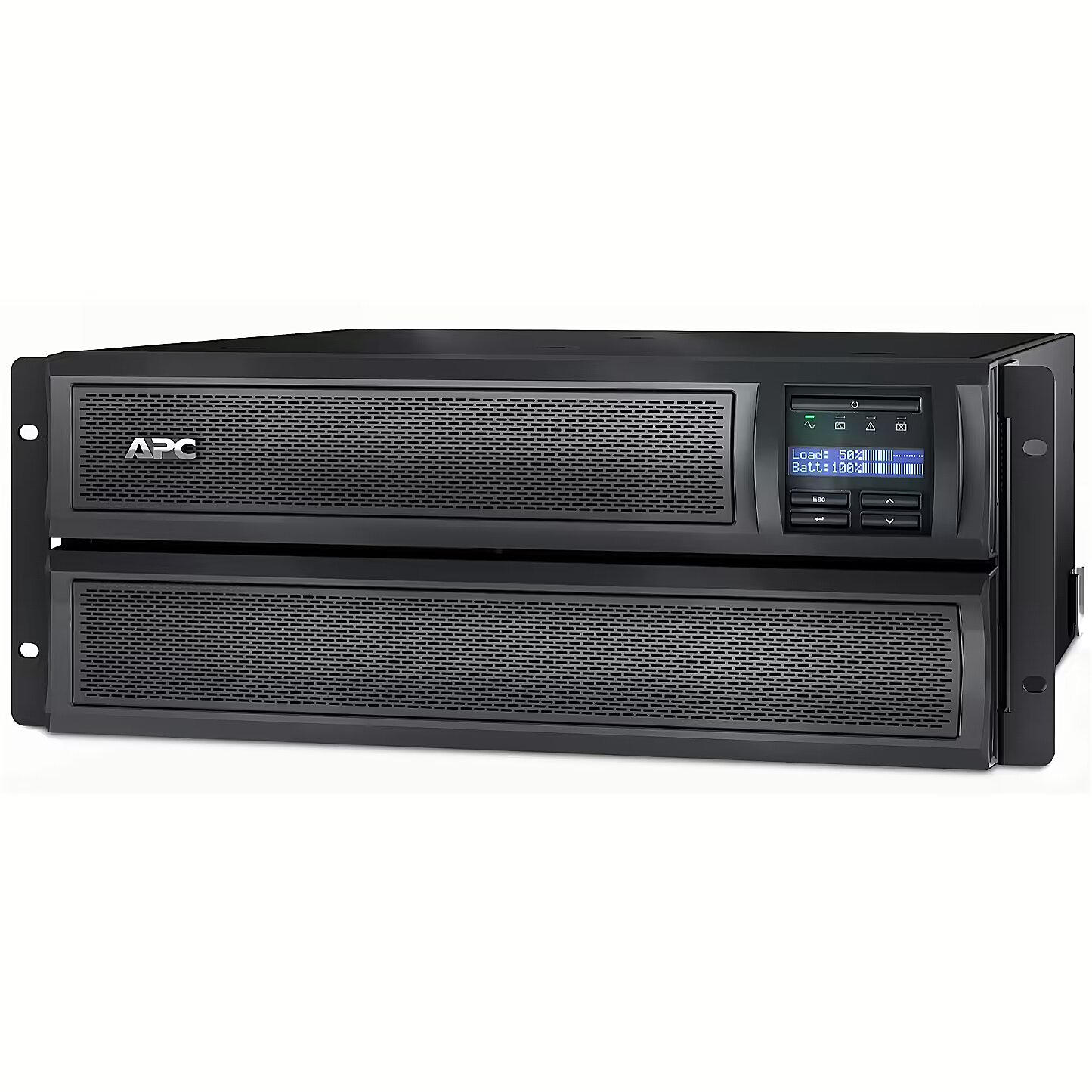

APC Smart-UPS X SMX3000HVNC 3000VA, 2700W, IEC 4U
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 27.11.2024
Main product parameters All parameters
- Battery capacity (VA): 3000 VA
- Output power (W): 2700 W
Display characteristics
Display
: Ir
Basic information
Battery capacity (VA)
3000 VA
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: 3h
Output power (W)
: 2700 W
Ports and equipment
Number of nests (total)
: 10
Number of sockets (Battery Backup)
: 10
RJ-45
: 4
Socket type
: IEC320
USB
: 2
More detailed specification
Accessories included - CD z oprogramowaniem Wsporniki montażowe do szaf przemysłowych Kabel do sygnalizacji RS-232 do Smart-UPS Czujnik temperatury Podręcznik użytkownika Karta do zdalnego zarządzania Web SNMP Management Card
Active power - 2700 W
Apparent power - 3000 VA
ARTIKEL1 - SMART-UPS X 3000VA LCD NC
ARTIKEL2 - RM/TOWER INCL NETWORK CARD IN
Backup time (100% load) - 6.25 min
Battery - Automatic battery test - Yes
Battery - Battery capacity - 738 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Hot-swap battery - Yes
Battery - Typical backup time at full load - 6.25 min
Battery - Typical backup time at half load - 18 min
Battery capacity - 600 VAh
Battery recharge time, h - 3
Brand - APC
BrandPartCode - SMX3000HVNC
Breite - 0.6
Cable length, m - 1.83
Category - Uninterruptible Power Supplies (UPSs)
Certification - C-tick, CE, CSA, EN 50091-1, EN 50091-2, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE
Charging time - 3 h
Chassis type - Rack
Chassis type - Tower
Color - Black
Connections - SmartSlot
Connections - USB
Connectors - 1 x USB (Typ B)
Connectors - RJ-45
Connectors - SmartSlot
Depth, mm - 483
Description - APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V z Network Card
APC Smart-UPS,2700 Watts /3000 VA, na wejściu 208V, 230V /na wyjściu 230V, Interface Port SmartSlot, Extended runtime model, Wysokość w szafie przemysłowej 4 U
Description - APC SMART-UPS X 3000VA SHORT DEPTH TOWER/RACK CONVERTIBLE LCD 200-240V WITH NETWORK CARD
Design - Cable length - 2.44 m
Design - Certification - C-tick, CE, CSA, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE, REACH
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - LED indicators - Status, Battery replacement
Design - Product colour - Black
Design - Rack capacity - 4U
dimension depth - 635 mm
dimension height - 330 mm
Dimensions - Wysokość: 432 mm Szerokość: 178 mm Głębokość: 483 mm Wysokość w szafie przemysłowej: 4U
dimension weight - 48200 g
dimension width - 590 mm
ean - 731304292623
EAN - 0731304292623
EANCode - 0731304292623
Environment requirements - Środowisko operacyjne: 0-40 stopni C Wilgotność względna podczas pracy: 0-95% Wysokość n.p.m. podczas pracy: 0-3000 m Temperatura (przechowywanie): od -15 do 45 stopni C Wilgotność względna (przechowywanie): 0-95% Wysokość n.p.m. (przechowywanie): 0-15000 m Poziom hałasu: 55 dBA Odprowadzanie ciepła: 184.00 BTU/godz.
Features - Audible alarm(s) - Yes
Features - Auto-restart - Yes
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Efficiency - 98.5%
Features - Emergency Power Off (EPO) - Yes
Features - Hold time (max) - 10 ms
Features - Hold time (min) - 2 ms
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 280 V
Features - Input operation voltage (min) - 140 V
Features - Noise level - 55 dB
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 208 V
Features - Output power - 2700 W
Features - Output power capacity - 3 kVA
Features - Surge energy rating - 645 J
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Form factor - Rack / Tower
Frequency range, Hz - 50/60 +/- 3
Gewicht - 48.5
Gross Weight Kg - 47,73
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304292623
GTIN - 0731304292623
guarantee - 36
guarantee_type - external
Height - 343.000000
Height, mm - 432
HERSTELLER - APC
Hoehe - 0.34
Hold-up time (maks) - 4 ms
HSTNUMMER - SMX3000HVNC
Input connection - IEC-320 C20, CEE 7 / EU1-16P
Input frequency, Hz - 50/60 +/- 3
Input power ports - IEC-C20
Input power ports - Type F Schuko
Input power ports - Type G British
Input voltage, V - 140 - 280
Laenge - 0.64
Length - 632.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 6 pc(s)
LongDesc - Smart-UPS,2700 Watts /3000 VA,Input 208V, 230V /Output 230V, Interface Port SmartSlot, Extended runtime model, Rack Height 4 UIncludes: CD with software, Rack Mounting support rails, Smart UPS signalling RS-232 cable, Temperature Probe, User Manual, Web/SNMP Management Card
LongProductName - Smart-UPS X 3000VA - LCD, 200-240V, 2700 W, 230V, 5% THD, SmartSlot, LED, 645 J, 4U, 38.64kg with Network Card
LongSummaryDescription - APC Smart-UPS. UPS topology: Line-Interactive, Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 738 VAh, Typical backup time at full load: 6.25 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 4U. Width: 178 mm, Depth: 483 mm, Height: 432 mm
Manufacturer - APC
Manufacturer Code - SMX3000HVNC
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SMX3000HVNC
Maximum power, W - 2700
name - SMX3000HVNC SMART X 3000VA R2T 4U LCD + AP9631 Net.Card
Noise level, dB - 55
Nominal input voltage, V - 208, 230 (208, 220, 240)
Nominal output voltage, V - 230 (208, 220, 240)
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - Napięcie wyjściowe: 208/220/230/240V 50/60Hz 2x IEC Jumpers Napięcie wejściowe: 208/220/230V 50/60Hz Długość przewodu zasilania: 2.44 m Zakres napięcia wejściowego w trybie podstawowym: 140-280V Wstępnie zainstalowane karty SmartSlot: AP9641 Awaryjny wyłącznik zasilania Znamionowa energia przepięcia: 645 Dżuli
Other features - Nominal output voltage - 230 V
Other features - Packaging content - Web/SNMP Management Card

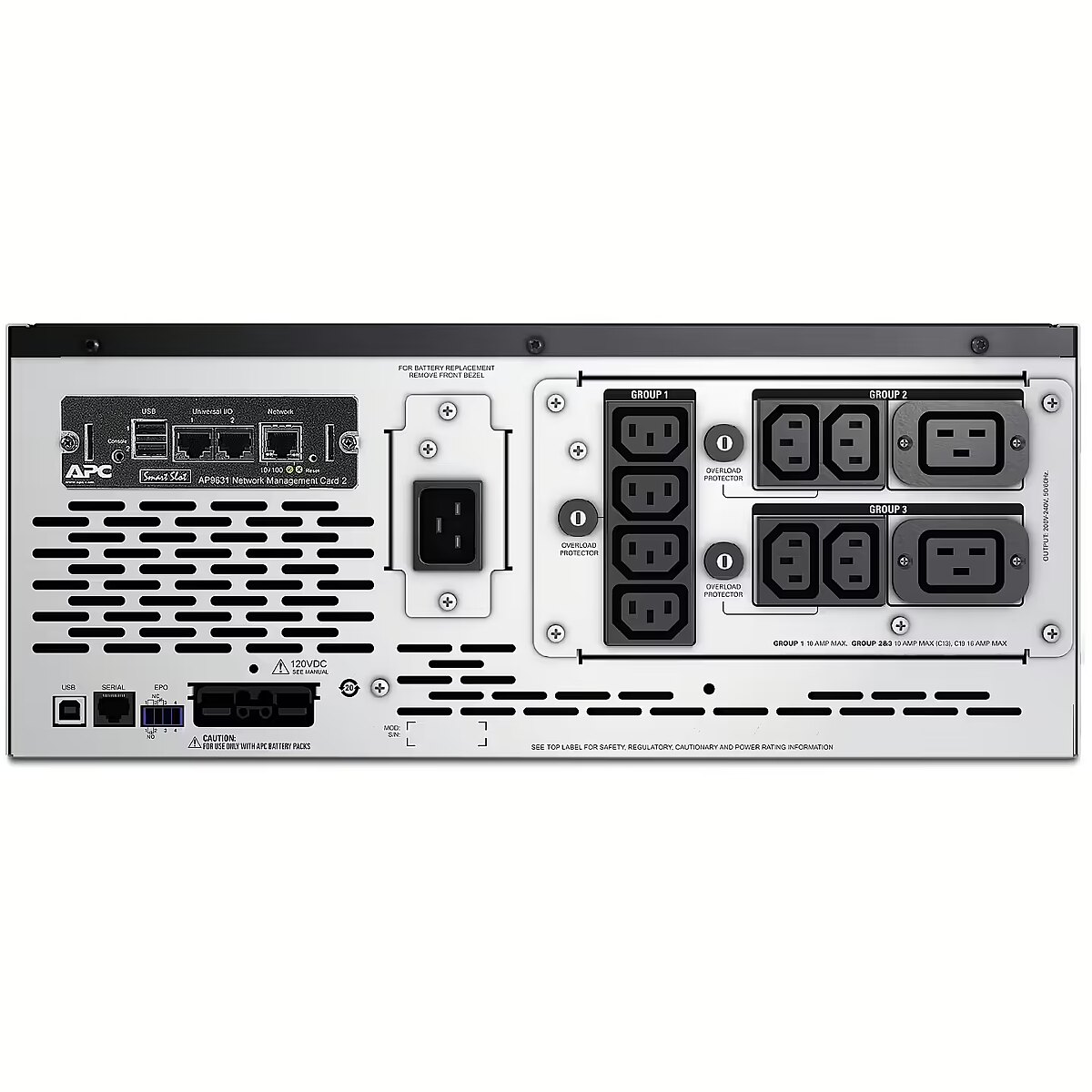

Output interface - 8 x IEC 320 C13, 2 x IEC 320 C19, 2 x IEC Jumpers
Output power, W - 2700
Output power capacity (VA) - 3000
Output power ports - 2 x IEC-C19
Output power ports - 8 x IEC-C13
Packaging data - Cables included - RS-232
Packaging data - Manual - Yes
Packaging data - Rack mount kit - Yes
Packaging data - Software CD - Yes
Packaging data - Temperature sensor - Yes
PeriodofWarranty - 2 Y
Ports & interfaces - AC outlets quantity - 10 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Number of output IEC jumpers - 2
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - SmartSlot - Yes
producer - APC
ProductName - Smart-UPS
Rack height (units) - 4
Runtime - 6 min (full load) / 18 min (half load)
Short description - APC Smart-UPS X 3000 VA LCD SMX3000HVNC +++
ShortSummaryDescription - APC Smart-UPS, Line-Interactive, 3 kVA, 2700 W, Sine, 140 V, 280 V
Software -
Special functions - Automatyczna regulacja napięcia (AVR) Funkcja korekcji niskich i wysokich napięć Inteligentne zarządzanie akumulatorami Filtrowanie napięcia Ładowanie akumulatorów dostosowane do temperatury Automatyczne włączenie UPS-a po powrocie zasilania Automatyczny test Powiadomienie o rozłączeniu akumulatora Zarządzalne sieciowo Alarmy dźwiękowe Wskaźnik statusu LED Port szeregowy Złącze USB Powiadomienie o rozłączeniu akumulatora Akumulatory wymienialne przez użytkownika Akumulatory wymienialne "na gorąco" Powiadamianie o przewidywanych awariach Bezpiecznik automatyczny Powiadomienie o awarii akumulatora Regulowane punkty przełączania napięcia Regulowana czułość na napięcie
Stck_Kart - 1
Stck_Pal - 6
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 645
Technical details - Compliance certificates - RoHS
Title - APC Smart-UPS uninterruptible power supply (UPS) Line-Interactive 3 kVA 2700 W 10 AC outlet(s)
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/products/resource/include/techspec_index.cfm?base_sku=SMX3000HVNC&total_watts=50
vendpn - SMX3000HVNC
Voltage - 120 V
WarrantyInfo - 3 years
Weight - 38.64 kg
Weight - 48.000000
Weight & dimensions - Depth - 483 mm
Weight & dimensions - Height - 432 mm
Weight & dimensions - Package depth - 633 mm
Weight & dimensions - Package height - 330 mm
Weight & dimensions - Package weight - 47.7 kg
Weight & dimensions - Package width - 586 mm
Weight & dimensions - Weight - 38.6 kg
Weight & dimensions - Width - 178 mm
Weight, kg - 38.64
Width - 588.000000
Width, mm - 178
