ID: 130966
Product code: SMX2200HV
Can be ordered 39 units Availability: 14 days after order approval
Warranty: 2 years

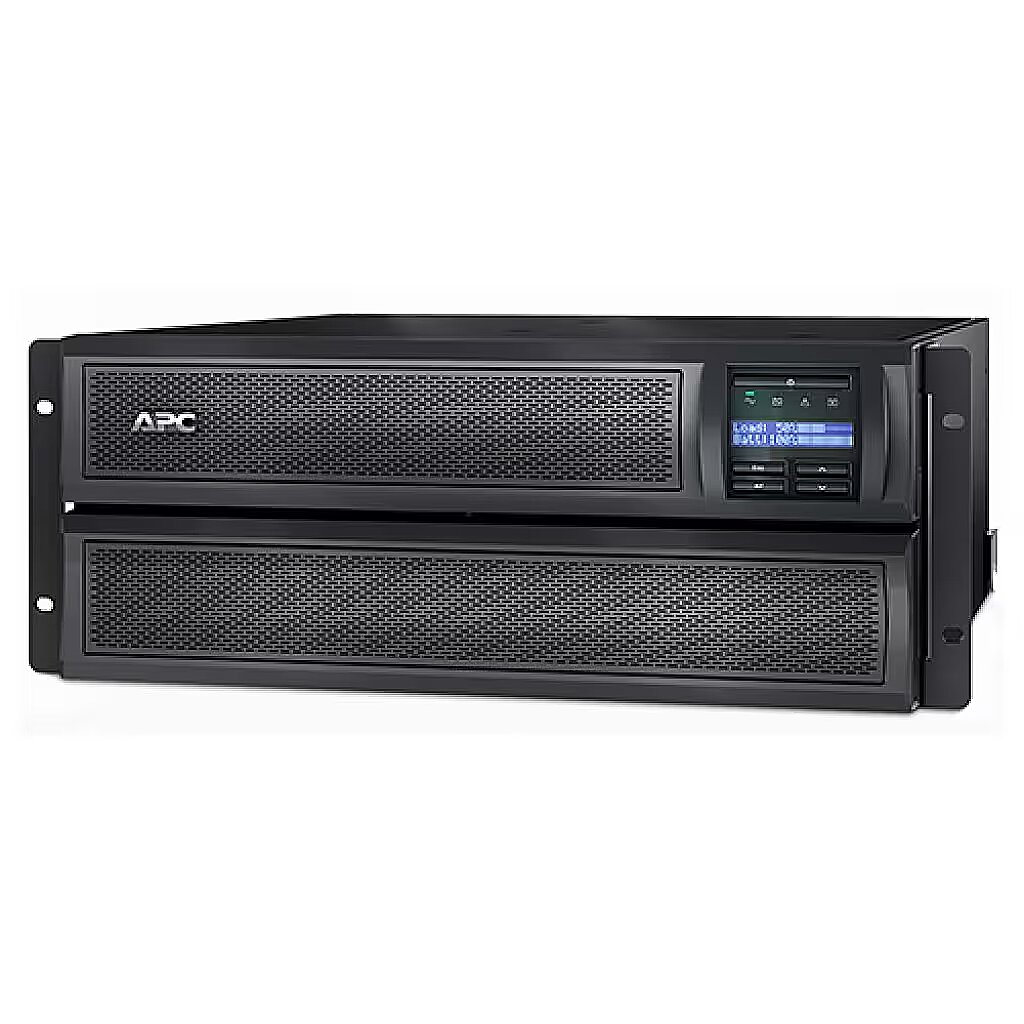

APC Smart-UPS X SMX2200HV 2200VA, 1980W, IEC, 4U
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
- Battery capacity (VA): 2200 VA
- Output power (W): 1980 W
Display characteristics
Display
: Ir
Basic information
Battery capacity (VA)
2200 VA
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: 3h
Output power (W)
: 1980 W
Ports and equipment
Number of nests (total)
: 10
Number of sockets (Battery Backup)
: 10
RJ-45
: 1
Socket type
: IEC320
USB
: 0
More detailed specification
Accessories included - - CD z oprogramowaniem
- Klamry do montażu w szafach przemysłowych
- Kabel do sygnalizacji RS-232 do Smart-UPS
- Kabel USB
- Podręcznik użytkownika
Active power - 1980 W
Alarm - Alarm when on battery : distinctive low battery alarm : configurable delays
Apparent power - 2200 VA
ARTIKEL1 - SMART-UPS X 2200VA LCD
ARTIKEL2 - RM/TOWER IN
Backup time (100% load) - 9.8 min
Battery - Automatic battery test - Yes
Battery - Battery capacity - 702 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery - Typical backup time at full load - 9.8 min
Battery - Typical backup time at half load - 25.3 min
Battery capacity - 600 VAh
Battery recharge time, h - 3
BatteryType -Maintenance-free sealed Lead-Acid battery with suspended electrolyte leakproof
Brand - APC
BrandPartCode - SMX2200HV
Breite - 0.59
Cable length, m - 1.83
Category - Uninterruptible Power Supplies (UPSs)
Certification - C-tick, CE, CSA, EN 50091-1, EN 50091-2, FCC Part 15 Class A, GOST, IEC 60950, IRAM, UL 1778, VDE
Charging time - 3 h
Chassis type - Rack
Chassis type - Tower
Color - Black
Connections - SmartSlot
Connections - USB
Connectors - 1 x USB (Typ B)
Connectors - SmartSlot
ControlPanel - LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
Depth - 483 mm
Depth, mm - 483
Description - APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V
APC Smart-UPS,1980 Watts /2200 VA, na wejściu 208V, 230V /na wyjściu 230V, Interface Port SmartSlot, USB, Extended runtime model, Wysokość w szafie przemysłowej 4 U
Description - APC SMART-UPS X 2200VA SHORT DEPTH TOWER/RACK CONVERTIBLE LCD 200-240V
Design - Cable length - 2 m
Design - Certification - CE, CSA, EAC, EN 50091-1, EN 50091-2, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 CL A, IEC 60950, IRAM, RCM, UL 1778, VDE, WEEE, REACH
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - LED indicators - Status, Battery replacement
Design - Product colour - Black, Stainless steel
Design - Rack capacity - 4U
dimension depth - 610 mm
dimension height - 330 mm
Dimensions - - Wysokość: 432 mm
- Szerokość: 178 mm
- Głębokość: 483 mm
- Wysokość w szafie przemysłowej: 4U
dimension weight - 47800 g
dimension width - 620 mm
ean - 731304292609
EANCode - 0731304292609
Environment requirements - - Środowisko operacyjne: 0-40 stopni C
- Wilgotność względna podczas pracy: 0-95%
- Wysokość n.p.m. podczas pracy: 0-3000 m
- Temperatura (przechowywanie): od -15 do 45 stopni C
- Wilgotność względna (przechowywanie): 0-95%
- Wysokość n.p.m. (przechowywanie): 0-15000 m
- Poziom hałasu: 55 dBA
- Odprowadzanie ciepła: 150.00 BTU/godz.
Features - Audible alarm(s) - Yes
Features - Auto-restart - Yes
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Efficiency - 98.1%
Features - Emergency Power Off (EPO) - Yes
Features - Hold time (max) - 10 ms
Features - Hold time (min) - 2 ms
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 280 V
Features - Input operation voltage (min) - 140 V
Features - Noise level - 55 dB
Features - Output frequency regulation - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 208 V
Features - Output power - 1980 W
Features - Output power capacity - 2.2 kVA
Features - Surge energy rating - 645 J
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
FormFactor -Rack Tower
Form factor - Rack / Tower
Frequency range, Hz - 50/60 +/- 3
Gewicht - 48
GrossWeight - 30.000 kg
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304292609
GTIN - 0731304292609
guarantee - 36
guarantee_type - external
Height - 432 mm
Height - 600.000000
Height, mm - 432
HERSTELLER - APC
Hoehe - 0.33
HSTNUMMER - SMX2200HV
Input connection - IEC-320 C20, CEE 7 / EU1-16P
InputConnections -IEC-320 C20 Schuko CEE 7 / EU1-16P British BS1363A
InputFrequency - 50/60 Hz +/- 3 Hz (auto sensing)
Input frequency, Hz - 50/60 +/- 3
Input power ports - IEC-C20
Input power ports - Type F Schuko
Input power ports - Type G British
InputVoltage - 208V, 230V
Input voltage, V - 140 - 280
InterfacePorts - -
Laenge - 0.64
Length - 320.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 6 pc(s)
LongDesc - APC Smart-UPS,1980 Watts /2200 VA,Input 208V, 230V /Output 230V, Interface Port SmartSlot, USB, Extended runtime model, Rack Height 4 U
LongDesc - Smart-UPS,1980 Watts /2200 VA,Input 230V, 230V /Output 230V, Interface Port SmartSlot, USB, Extended runtime model, Rack Height 4 UIncludes: CD with software, Rack Mounting brackets, Smart UPS signalling RS-232 cable, USB cable, User Manual
LongProductName - Smart-UPS X 2200VA - 1980 W, 230V, 50/60Hz, USB, 645 J, 4U, 38.64 kg
LongSummaryDescription - APC Smart-UPS. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 702 VAh, Typical backup time at full load: 9.8 min. Form factor: Rackmount/Tower, Product colour: Black, Stainless steel, Rack capacity: 4U. Width: 178 mm, Depth: 483 mm, Height: 432 mm
Manufacturer - APC
ManufacturerPartNumber - SMX2200HV
MANUFDATASHEET - http://www.apc.com/products/resource/include/techspec_index.cfm?base_sku=SMX2200HV
Maximum power, W - 1980
name - SMX2200HV SMART X 2200VA R2T 4U LCD 230V
Noise level, dB - 55
Nominal input voltage, V - 208, 230 (208, 220, 240)
Nominal output voltage, V - 230 (208, 220, 240)
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - - Napięcia wyjściowe: 208/220/230/240V 50/60Hz
- Typ przebiegu: sinusoida
- 2x IEC Jumpers
- Napięcie wejściowe: 208/230V 50/60Hz
- Długość przewodu zasilania: 1.83 m
- Zakres napięcia wejściowego w trybie podstawowym: 140-280V
- Czas przełączenia: 2-4 ms
- Awaryjny wyłącznik zasilania
- Znamionowa energia przepięcia: 645 Dżuli
Other features - Packaging content - Web/SNMP Management Card

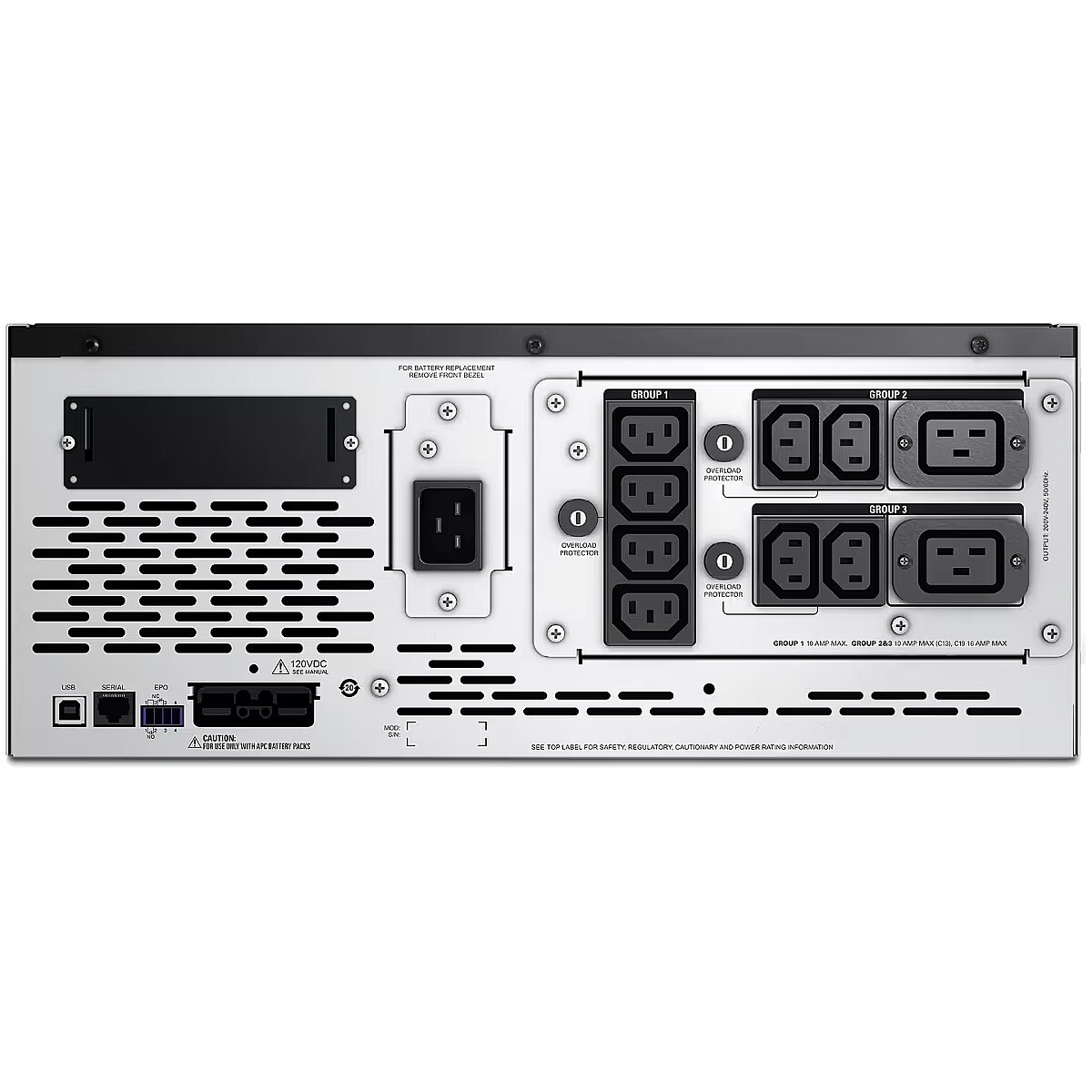

OutputConnections -(8) IEC 320 C13 IEC 320 C13 (2) IEC 320 C19 IEC 320 C19 (2) IEC Jumpers
OutputFrequency - 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Output interface - 8 x IEC 320 C13, 2 x IEC 320 C19, 2 x IEC Jumpers
Output power, W - 1980
Output power capacity (VA) - 2200
Output power ports - 2 x IEC-C19
Output power ports - 8 x IEC-C13
OutputVoltage - 230 V
PackageContents -CD with software Rack Mounting brackets Smart UPS signalling RS-232 cable USB cable User Manual
Packaging data - Cables included - RS-232, USB cable
Packaging data - Manual - Yes
Packaging data - Quick installation guide - Yes
Packaging data - Rack mount kit - Yes
Packaging data - Software CD - Yes
Packaging data - Temperature sensor - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 10 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Number of output IEC jumpers - 2
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
PowerVAW - 2200 VA
PowerW - 1980 W
ProdDesc - APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V
producer - APC
ProductName - Smart-UPS
ProductPicture - http://www.tdbaltic.ee/images/ds4/SMX2200HV-01.jpg
ProductPicture2 - http://www.tdbaltic.ee/images/ds4/SMX2200HV-02.jpg
ProductPicture3 - http://www.tdbaltic.ee/images/ds4/SMX2200HV-03.jpg
ProductPicture4 - http://www.tdbaltic.ee/images/ds4/SMX2200HV-04.jpg
Rack height (units) - 4
RechargeTime - 3 h
RJ45 - -
Runtime - 10 min (full load) / 25 min (half load)
Runtime - 25.3/9.8
ShortSummaryDescription - APC Smart-UPS, Line-Interactive, 2.2 kVA, 1980 W, Sine, 140 V, 280 V
SmartSlot - Yes
Software -
Special functions - - Automatyczna regulacja napięcia (AVR)
- Funkcja korekcji niskich i wysokich napięć
- Inteligentne zarządzanie akumulatorami
- Filtrowanie napięcia
- Ładowanie akumulatorów dostosowane do temperatury
- Automatyczne włączenie UPS-a po powrocie zasilania
- Automatyczny test
- Powiadomienie o rozłączeniu akumulatora
- Zarządzalne sieciowo
- Alarmy dźwiękowe
- Wskaźnik statusu LED
- Port szeregowy
- Złącze USB
- Powiadomienie o rozłączeniu akumulatora
- Akumulatory wymienialne przez użytkownika
- Akumulatory wymienialne "na gorąco"
- Powiadamianie o przewidywanych awariach
- Bezpiecznik automatyczny
- Powiadomienie o awarii akumulatora
- Regulowane punkty przełączania napięcia
- Regulowana czułość na napięcie
Stck_Kart - 1
Stck_Pal - 6
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 645
Technical details - Compliance certificates - RoHS
Title - APC Smart-UPS uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1980 W 10 AC outlet(s)
Topology - Line interactive
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/products/resource/include/techspec_index.cfm?base_sku=SMX2200HV
USB - Yes
vendpn - SMX2200HV
Voltage - 120 V
Warranty - 2 years
WarrantyInfo - 3 years
WaveformType - Sine wave
Weight - 38.64 kg
Weight - 38.640 Kg
Weight - 52.300000
Weight & dimensions - Depth - 483 mm
Weight & dimensions - Height - 432 mm
Weight & dimensions - Package depth - 633 mm
Weight & dimensions - Package height - 330 mm
Weight & dimensions - Package weight - 47.7 kg
Weight & dimensions - Package width - 586 mm
Weight & dimensions - Weight - 38.6 kg
Weight & dimensions - Width - 178 mm
Weight, kg - 38.64
Width - 178 mm
Width - 640.000000
Width, mm - 178
- Klamry do montażu w szafach przemysłowych
- Kabel do sygnalizacji RS-232 do Smart-UPS
- Kabel USB
- Podręcznik użytkownika
Active power - 1980 W
Alarm - Alarm when on battery : distinctive low battery alarm : configurable delays
Apparent power - 2200 VA
ARTIKEL1 - SMART-UPS X 2200VA LCD
ARTIKEL2 - RM/TOWER IN
Backup time (100% load) - 9.8 min
Battery - Automatic battery test - Yes
Battery - Battery capacity - 702 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery - Typical backup time at full load - 9.8 min
Battery - Typical backup time at half load - 25.3 min
Battery capacity - 600 VAh
Battery recharge time, h - 3
BatteryType -
Brand - APC
BrandPartCode - SMX2200HV
Breite - 0.59
Cable length, m - 1.83
Category - Uninterruptible Power Supplies (UPSs)
Certification - C-tick, CE, CSA, EN 50091-1, EN 50091-2, FCC Part 15 Class A, GOST, IEC 60950, IRAM, UL 1778, VDE
Charging time - 3 h
Chassis type - Rack
Chassis type - Tower
Color - Black
Connections - SmartSlot
Connections - USB
Connectors - 1 x USB (Typ B)
Connectors - SmartSlot
ControlPanel - LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
Depth - 483 mm
Depth, mm - 483
Description - APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V
APC Smart-UPS,1980 Watts /2200 VA, na wejściu 208V, 230V /na wyjściu 230V, Interface Port SmartSlot, USB, Extended runtime model, Wysokość w szafie przemysłowej 4 U
Description - APC SMART-UPS X 2200VA SHORT DEPTH TOWER/RACK CONVERTIBLE LCD 200-240V
Design - Cable length - 2 m
Design - Certification - CE, CSA, EAC, EN 50091-1, EN 50091-2, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 CL A, IEC 60950, IRAM, RCM, UL 1778, VDE, WEEE, REACH
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - LED indicators - Status, Battery replacement
Design - Product colour - Black, Stainless steel
Design - Rack capacity - 4U
dimension depth - 610 mm
dimension height - 330 mm
Dimensions - - Wysokość: 432 mm
- Szerokość: 178 mm
- Głębokość: 483 mm
- Wysokość w szafie przemysłowej: 4U
dimension weight - 47800 g
dimension width - 620 mm
ean - 731304292609
EANCode - 0731304292609
Environment requirements - - Środowisko operacyjne: 0-40 stopni C
- Wilgotność względna podczas pracy: 0-95%
- Wysokość n.p.m. podczas pracy: 0-3000 m
- Temperatura (przechowywanie): od -15 do 45 stopni C
- Wilgotność względna (przechowywanie): 0-95%
- Wysokość n.p.m. (przechowywanie): 0-15000 m
- Poziom hałasu: 55 dBA
- Odprowadzanie ciepła: 150.00 BTU/godz.
Features - Audible alarm(s) - Yes
Features - Auto-restart - Yes
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Efficiency - 98.1%
Features - Emergency Power Off (EPO) - Yes
Features - Hold time (max) - 10 ms
Features - Hold time (min) - 2 ms
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 280 V
Features - Input operation voltage (min) - 140 V
Features - Noise level - 55 dB
Features - Output frequency regulation - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 208 V
Features - Output power - 1980 W
Features - Output power capacity - 2.2 kVA
Features - Surge energy rating - 645 J
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
FormFactor -
Form factor - Rack / Tower
Frequency range, Hz - 50/60 +/- 3
Gewicht - 48
GrossWeight - 30.000 kg
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304292609
GTIN - 0731304292609
guarantee - 36
guarantee_type - external
Height - 432 mm
Height - 600.000000
Height, mm - 432
HERSTELLER - APC
Hoehe - 0.33
HSTNUMMER - SMX2200HV
Input connection - IEC-320 C20, CEE 7 / EU1-16P
InputConnections -
InputFrequency - 50/60 Hz +/- 3 Hz (auto sensing)
Input frequency, Hz - 50/60 +/- 3
Input power ports - IEC-C20
Input power ports - Type F Schuko
Input power ports - Type G British
InputVoltage - 208V, 230V
Input voltage, V - 140 - 280
InterfacePorts - -
Laenge - 0.64
Length - 320.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 6 pc(s)
LongDesc - APC Smart-UPS,1980 Watts /2200 VA,Input 208V, 230V /Output 230V, Interface Port SmartSlot, USB, Extended runtime model, Rack Height 4 U
LongDesc - Smart-UPS,1980 Watts /2200 VA,Input 230V, 230V /Output 230V, Interface Port SmartSlot, USB, Extended runtime model, Rack Height 4 UIncludes: CD with software, Rack Mounting brackets, Smart UPS signalling RS-232 cable, USB cable, User Manual
LongProductName - Smart-UPS X 2200VA - 1980 W, 230V, 50/60Hz, USB, 645 J, 4U, 38.64 kg
LongSummaryDescription - APC Smart-UPS. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 702 VAh, Typical backup time at full load: 9.8 min. Form factor: Rackmount/Tower, Product colour: Black, Stainless steel, Rack capacity: 4U. Width: 178 mm, Depth: 483 mm, Height: 432 mm
Manufacturer - APC
ManufacturerPartNumber - SMX2200HV
MANUFDATASHEET - http://www.apc.com/products/resource/include/techspec_index.cfm?base_sku=SMX2200HV
Maximum power, W - 1980
name - SMX2200HV SMART X 2200VA R2T 4U LCD 230V
Noise level, dB - 55
Nominal input voltage, V - 208, 230 (208, 220, 240)
Nominal output voltage, V - 230 (208, 220, 240)
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - - Napięcia wyjściowe: 208/220/230/240V 50/60Hz
- Typ przebiegu: sinusoida
- 2x IEC Jumpers
- Napięcie wejściowe: 208/230V 50/60Hz
- Długość przewodu zasilania: 1.83 m
- Zakres napięcia wejściowego w trybie podstawowym: 140-280V
- Czas przełączenia: 2-4 ms
- Awaryjny wyłącznik zasilania
- Znamionowa energia przepięcia: 645 Dżuli
Other features - Packaging content - Web/SNMP Management Card
OutputConnections -
OutputFrequency - 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Output interface - 8 x IEC 320 C13, 2 x IEC 320 C19, 2 x IEC Jumpers
Output power, W - 1980
Output power capacity (VA) - 2200
Output power ports - 2 x IEC-C19
Output power ports - 8 x IEC-C13
OutputVoltage - 230 V
PackageContents -
Packaging data - Cables included - RS-232, USB cable
Packaging data - Manual - Yes
Packaging data - Quick installation guide - Yes
Packaging data - Rack mount kit - Yes
Packaging data - Software CD - Yes
Packaging data - Temperature sensor - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 10 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Number of output IEC jumpers - 2
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
PowerVAW - 2200 VA
PowerW - 1980 W
ProdDesc - APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V
producer - APC
ProductName - Smart-UPS
ProductPicture - http://www.tdbaltic.ee/images/ds4/SMX2200HV-01.jpg
ProductPicture2 - http://www.tdbaltic.ee/images/ds4/SMX2200HV-02.jpg
ProductPicture3 - http://www.tdbaltic.ee/images/ds4/SMX2200HV-03.jpg
ProductPicture4 - http://www.tdbaltic.ee/images/ds4/SMX2200HV-04.jpg
Rack height (units) - 4
RechargeTime - 3 h
RJ45 - -
Runtime - 10 min (full load) / 25 min (half load)
Runtime - 25.3/9.8
ShortSummaryDescription - APC Smart-UPS, Line-Interactive, 2.2 kVA, 1980 W, Sine, 140 V, 280 V
SmartSlot - Yes
Software -
Special functions - - Automatyczna regulacja napięcia (AVR)
- Funkcja korekcji niskich i wysokich napięć
- Inteligentne zarządzanie akumulatorami
- Filtrowanie napięcia
- Ładowanie akumulatorów dostosowane do temperatury
- Automatyczne włączenie UPS-a po powrocie zasilania
- Automatyczny test
- Powiadomienie o rozłączeniu akumulatora
- Zarządzalne sieciowo
- Alarmy dźwiękowe
- Wskaźnik statusu LED
- Port szeregowy
- Złącze USB
- Powiadomienie o rozłączeniu akumulatora
- Akumulatory wymienialne przez użytkownika
- Akumulatory wymienialne "na gorąco"
- Powiadamianie o przewidywanych awariach
- Bezpiecznik automatyczny
- Powiadomienie o awarii akumulatora
- Regulowane punkty przełączania napięcia
- Regulowana czułość na napięcie
Stck_Kart - 1
Stck_Pal - 6
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 645
Technical details - Compliance certificates - RoHS
Title - APC Smart-UPS uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1980 W 10 AC outlet(s)
Topology - Line interactive
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/products/resource/include/techspec_index.cfm?base_sku=SMX2200HV
USB - Yes
vendpn - SMX2200HV
Voltage - 120 V
Warranty - 2 years
WarrantyInfo - 3 years
WaveformType - Sine wave
Weight - 38.64 kg
Weight - 38.640 Kg
Weight - 52.300000
Weight & dimensions - Depth - 483 mm
Weight & dimensions - Height - 432 mm
Weight & dimensions - Package depth - 633 mm
Weight & dimensions - Package height - 330 mm
Weight & dimensions - Package weight - 47.7 kg
Weight & dimensions - Package width - 586 mm
Weight & dimensions - Weight - 38.6 kg
Weight & dimensions - Width - 178 mm
Weight, kg - 38.64
Width - 178 mm
Width - 640.000000
Width, mm - 178
