ID: 119668
Product code: SMT1500RMI1U
In stock 2 units
Warranty: 3 years

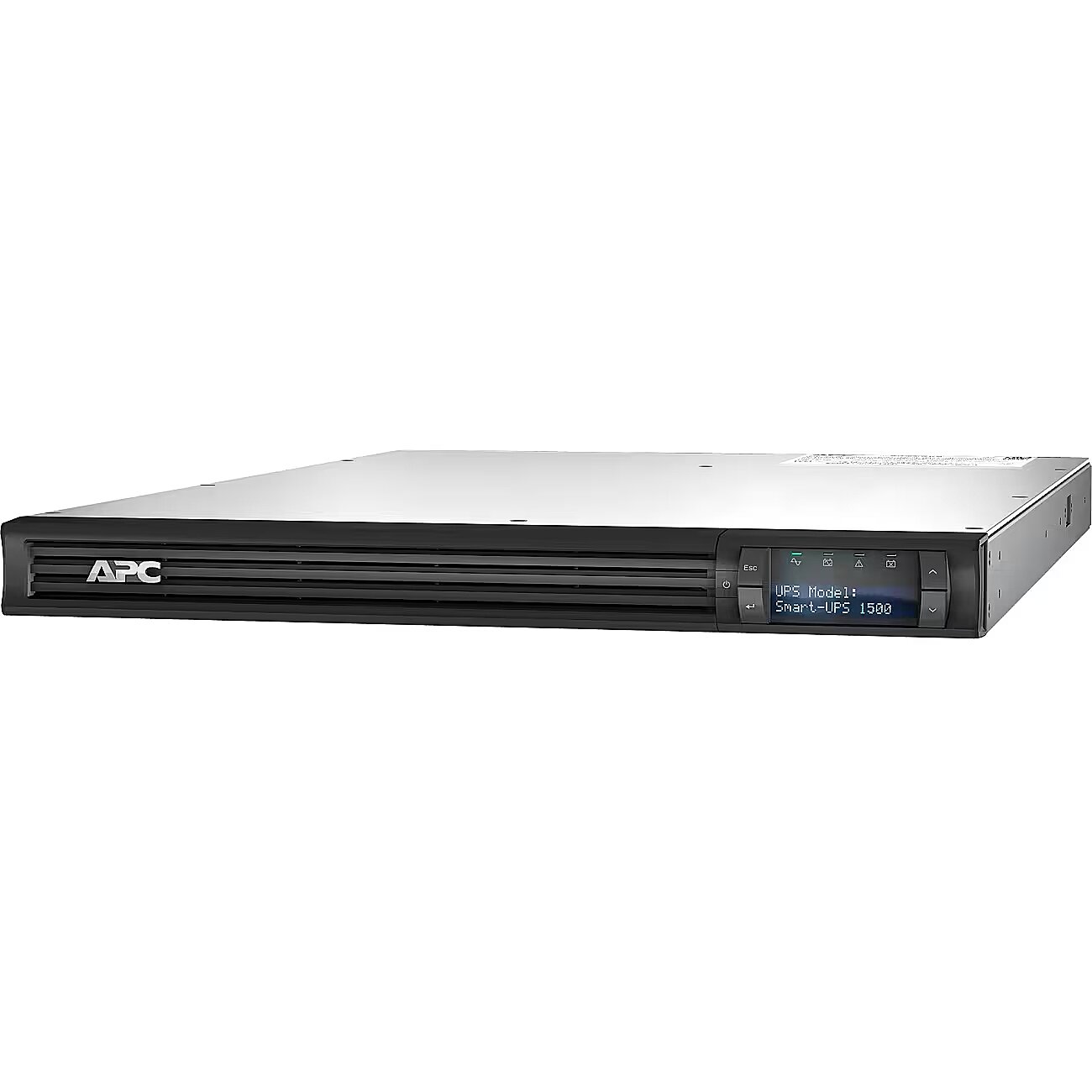

APC Smart-UPS SMT1500RMI1U 1500VA, 1000W, IEC, 1U
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: on Thursday, 28.11.2024
Main product parameters All parameters
- Battery capacity (VA): 1500 VA
- Output power (W): 1000 W
Display characteristics
Display
: Ir
Basic information
Battery capacity (VA)
1500 VA
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: 4h
Output power (W)
: 1000 W
Ports and equipment
Number of nests (total)
: 4
Number of sockets (Battery Backup)
: 4
RJ-45
: 1
Socket type
: IEC320
USB
: 0
More detailed specification
Accessories included - - CD z oprogramowaniem
- Dokumentacja na CD
- Instrukcja użytkownika
- Wsporniki montażowe do szaf przemysłowych
- Kabel do sygnalizacji RS-232 do Smart UPS
- Kabel USB
- Karta gwarancyjna
Active power - 1000 W
Apparent power - 1500 VA
ARTIKEL1 - APC SMART-UPS 1500VA
ARTIKEL2 - LCD RM 1U 230V IN
Backup time (100% load) - 4.8 min
Battery - Automatic battery test - Yes
Battery - Battery capacity - 293 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 4 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery - Typical backup time at full load - 4.8 min
Battery - Typical backup time at half load - 16.6 min
Battery recharge time, h - 3
Brand - APC
BrandPartCode - SMT1500RMI1U
Cable length, m - 2.44
Category - Uninterruptible Power Supplies (UPSs)
Charging time - 4 h
Chassis type - Rack
Color - Black
Connections - RJ-45 Serial
Connections - SmartSlot
Connections - USB
Connectors - 1 x USB (Typ B)
Connectors - RJ-45
Connectors - SmartSlot
Depth, mm - 665
Description - APC SMART-UPS 1500VA LCD RM 1U 230V
Description - APC Smart-UPS 1500VA LCD RM 1U 230V
APC Smart-UPS,1000 Watts /1500 VA,na wejściu 230V /na wyjściu 230V, Interface Port RJ-45 Serial, SmartSlot, USB, Wysokość w szafie przemysłowej 1 U
Design - Cable length - 2.44 m
Design - Certification - CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Design - Form factor - Rackmount
Design - LED indicators - Status
Design - Product colour - Black
Design - Rack capacity - 1U
dimension depth - 200 mm
dimension height - 570 mm
Dimensions - - Wysokość: 44 mm
- Szerokość: 432 mm
- Głębokość: 665 mm
- Wysokość: 1U
dimension weight - 29000 g
dimension width - 800 mm
ean - 731304299400
EANCode - 0731304299400
Environment requirements - - Środowisko operacyjne: 0-40 stopni C
- Wilgotność względna podczas pracy: 0-95%
- Wysokość n.p.m. podczas pracy 0-3000 m
- Temperatura (przechowywanie): od -15 do 45 stopni C
- Wilgotność względna (przechowywanie): 0-95%
- Wilgotność względna (przechowywanie): 0-15000 m
- Poziom hałasu: 46 dBA
- Odprowadzanie ciepła: 116.00 BTU/godz.
Features - Audible alarm(s) - Yes
Features - Auto-restart - Yes
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Efficiency - 98.7%
Features - Input frequency - 50/60 Hz
Features - Noise level - 46 dB
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 1000 W
Features - Output power capacity - 1.5 kVA
Features - Surge energy rating - 540 J
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Form factor - Rack
Frequency range, Hz - 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304299400
GTIN - 0731304299400
guarantee - 36
guarantee_type - external
Height - 200.000000
Height, mm - 44
HERSTELLER - APC
HSTNUMMER - SMT1500RMI1U
Input connection - IEC-320 C14
Input current, A - 12
Input frequency, Hz - 50/60 +/- 3
Input power ports - IEC-C14
Length - 780.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 10 pc(s)
LongDesc - Intuitive LCD interfaceProvides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.High frequency designReduces or eliminates bulky transformers resulting in lighter units for ease of handling.Predictive replace battery dateDynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.Green modePatent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.Energy meterProvides actual kilowatt hours of usage for energy conscious users.Pure sine wave output on batterySimulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.Multiple switched outlet groupsMultiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.High online efficiencyReduces utlility costs, generates less heat.SmartSlotCustomize UPS capabilities with management cards.Cold-start capableProvides temporary battery power when the utility power is out.Temperature-compensated battery chargingProlongs battery life by regulating the charge voltage according to battery temperature.
LongProductName - 1U, 1000Watts / 1500VA, RJ-45 Serial, SmartSlot, USB, 230V, 50/60 Hz, 24.09kg
LongSummaryDescription - APC Smart-UPS. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 1000 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 293 VAh, Typical backup time at full load: 4.8 min. Form factor: Rackmount, Product colour: Black, Rack capacity: 1U. Width: 432 mm, Depth: 665 mm, Height: 44 mm
Manufacturer - APC
ManufacturerPartNumber - SMT1500RMI1U
Maximum power, W - 1000
name - SMT1500RMI1U SMART UPS 1500VA 1U LCD 230V
No. of batteries - 1
Noise level, dB - 46
Nominal input voltage, V - 230 (220, 240)
Nominal output voltage, V - 230 (220, 240)
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - - Napięcie wyjściowe: 230V
- Napięcie wejściowe: 230V 50/60Hz
- Długość przewodu zasilania: 2.44 m
- Maksymalny prąd wejściowy: 12A
- Znamionowa energia przepięcia: 540 Dżuli
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V

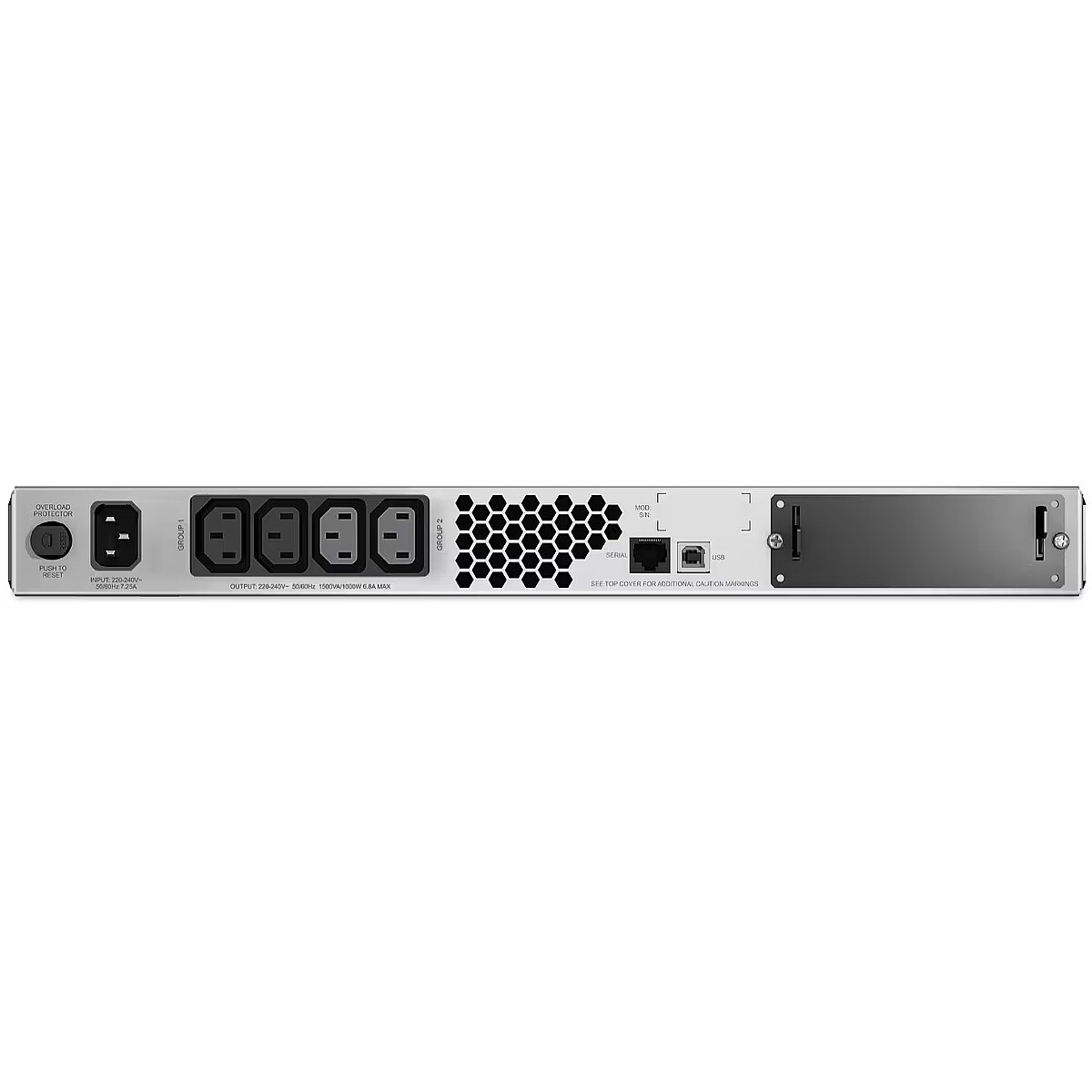

Output interface - 4 x IEC 320 C13, 2 x IEC Jumpers
Output power, W - 1000
Output power capacity (VA) - 1500
Output power ports - 4 x IEC-C13
Packaging data - Cables included - RS-232, USB cable
Packaging data - Quick installation guide - Yes
Packaging data - Rack mount kit - Yes
Packaging data - Software CD - Yes
Packaging data - Warranty card - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Number of output IEC jumpers - 2
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RJ-45
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
producer - APC
ProductName - Smart-UPS
Rack height (units) - 1
Runtime - 5 min (full load) / 17 min (half load)
ShortSummaryDescription - APC Smart-UPS, Line-Interactive, 1.5 kVA, 1000 W, Sine, 50/60 Hz, 220 V
Software -
Special functions - - Wysoka sprawność online
- Tryb ekologiczny
- Konstrukcja wysokoczęstotliwościowa
- Prognoza daty wymiany akumulatora
- Intuicyjny interfejs z wyświetlaczem LCD
- Wiele zarządzanych grup gniazd wyjściowych
- Czysty wyjściowy przebieg sinusoidalny (akumulator)
- Możliwość zimnego startu
- Gniazdo typu SmartSlot
- Ładowanie akumulatorów dostosowane do temperatury
- Automatyczna regulacja napięcia (AVR)
- Funkcja korekcji niskich i wysokich napięć
- Inteligentne zarządzanie akumulatorami
- Filtrowanie napięcia
- Ładowanie akumulatorów dostosowane do temperatury
- Automatyczne włączenie UPS-a po powrocie zasilania
- Automatyczny test
- Powiadomienie o rozłączeniu akumulatora
- Zarządzalne sieciowo
- Alarmy dźwiękowe
- Wskaźnik statusu LED
- Port szeregowy
- Złącze USB
- Powiadomienie o rozłączeniu akumulatora
- Akumulatory wymienialne przez użytkownika
- Akumulatory wymienialne na gorąco
- Powiadamianie o przewidywanych awariach
- Bezpiecznik automatyczny
- Powiadomienie o awarii akumulatora
- Regulowane punkty przełączania napięcia
- Regulowana czułość na napięcie
Stck_Kart - 1
Stck_Pal - 5
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 540
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - Green Premium
Title - APC Smart-UPS uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 1000 W 4 AC outlet(s)
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/products/resource/include/techspec_index.cfm?base_sku=SMT1500RMI1U&tab=features
vendpn - SMT1500RMI1U
WarrantyInfo - 3 years repair or replace (excluding battery) and 2 years for battery
Weight - 24.09 kg
Weight - 29.020000
Weight & dimensions - Depth - 665 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Package depth - 794 mm
Weight & dimensions - Package height - 200 mm
Weight & dimensions - Package weight - 29.1 kg
Weight & dimensions - Package width - 575 mm
Weight & dimensions - Weight - 24.1 kg
Weight & dimensions - Width - 432 mm
Weight, kg - 24.09
Width - 580.000000
Width, mm - 432
