ID: 1081164
Product code: VFI 1500 CG PF1
Can be ordered 1 units Availability: 14 days after order approval
Warranty: 2 years

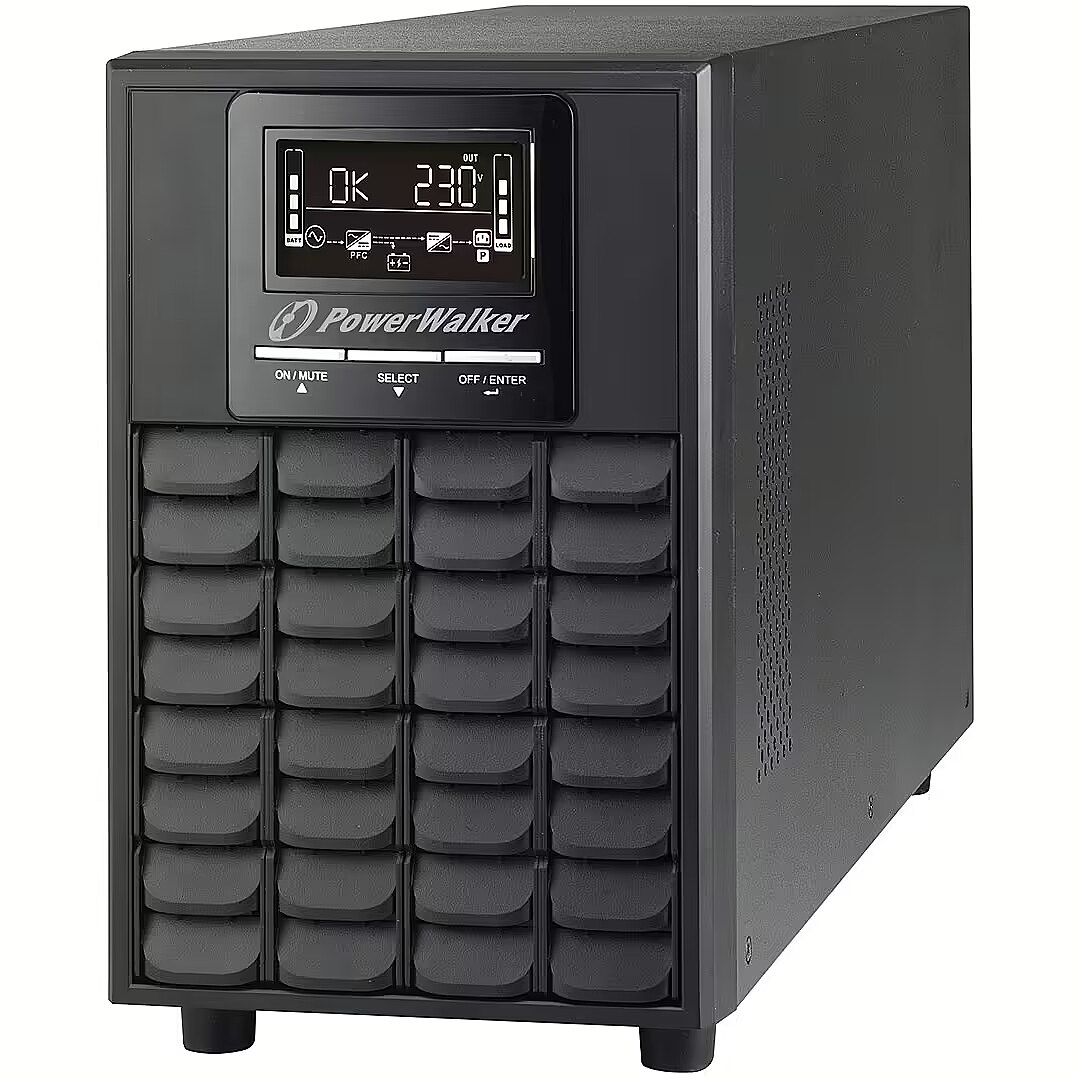

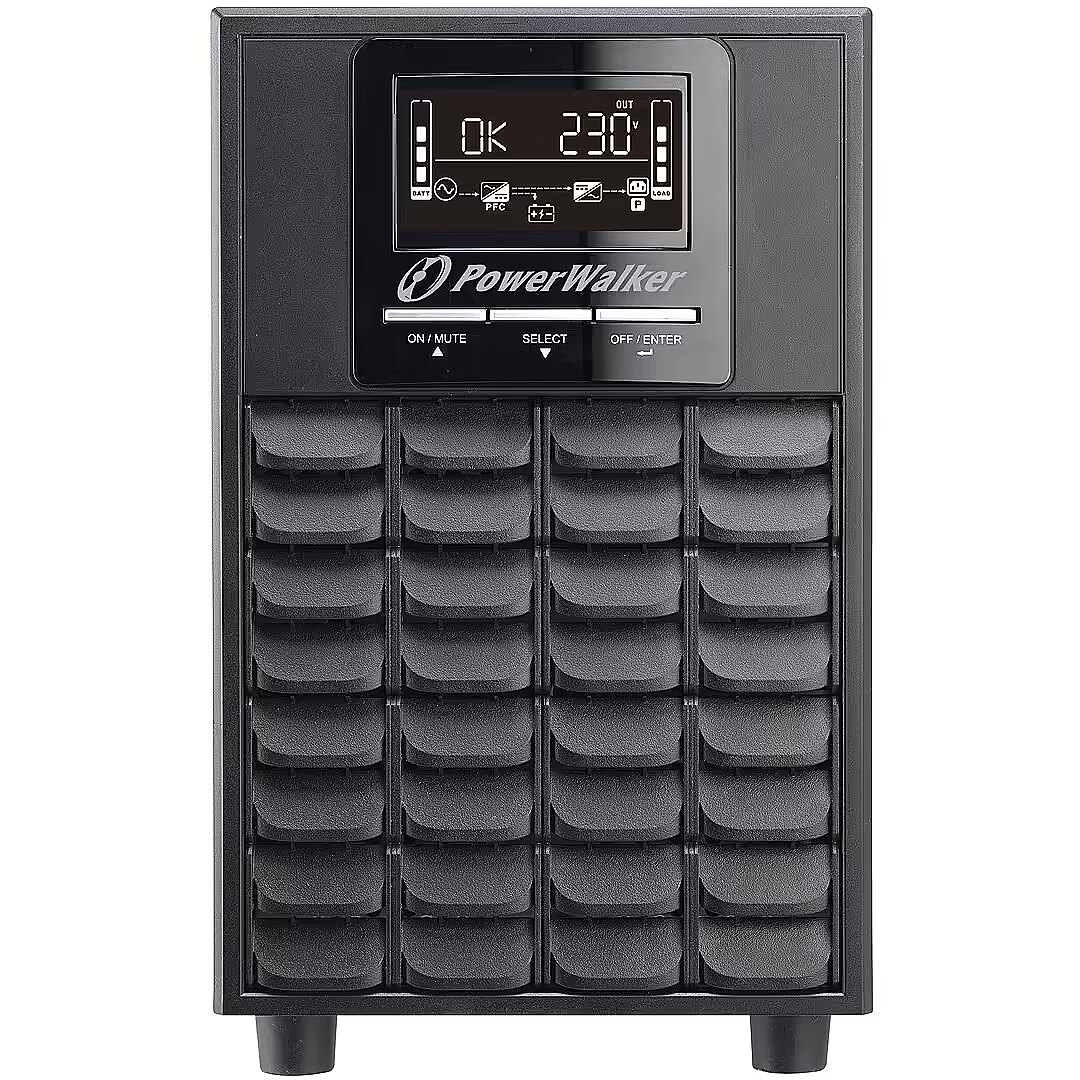

Power Walker VFI 1500 CG PF1, 1500VA 1500W, IEC
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 6.99 €: 16.05.2025
- Courier delivery 11.99 €: 16.05.2025
Main product parameters All parameters
- Battery capacity (VA): 1500 VA
- Output power (W): 1500
Display characteristics
Display
: Ir
Basic information
Battery capacity (VA)
1500 VA
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Nav norādīts
Charging time (hours)
: 3h
Output power (W)
: 1500
Ports and equipment
Number of nests (total)
: 4
Number of sockets (Battery Backup)
: 4
RJ-45
: 2
Socket type
: IEC320
USB
: 0
More detailed specification
Battery - Battery capacity - 9 Ah
Battery - Battery recharge time - 3 h
Battery - Battery voltage - 12 V
Battery - Number of batteries supported - 3
Battery - Typical backup time at full load - 3 min
Battery - Typical backup time at half load - 10.3 min
Design - Cooling type - Active
Design - Display type - LCD
Design - Form factor - Tower
Design - Product colour - Black
dimensionalWeight - 7367
Features - Crest factor - 3:1
Features - Efficiency - 89%
Features - Emergency Power Off (EPO) - Yes
Features - Input current Total Harmonic Distortion (THD) - 1.6%
Features - Input frequency - 40/70 Hz
Features - Input operation voltage (max) - 300 V
Features - Input operation voltage (min) - 110 V
Features - Noise level - 50 dB
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 200 V
Features - Output power - 1500 W
Features - Output power capacity - 1.5 kVA
Features - Output voltage regulation - 1%
Features - Output voltage Total Harmonic Distortion (THD) - 2%
Features - Power factor - 0.99
Features - Surge protection - Yes
Features - Surge protection features - Fax
Features - Surge protection features - Modem
Features - Surge protection features - Network
Features - UPS topology - Double-conversion (Online)
Operational conditions - Operating relative humidity (H-H) - 20 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Packaging data - Bundled software - ViewPower
Packaging data - Cables included - Input power cable, Output power cable, USB cable
Packaging data - Manual - Yes
Packaging data - Resource CD - Yes
Packaging data - Warranty card - Yes

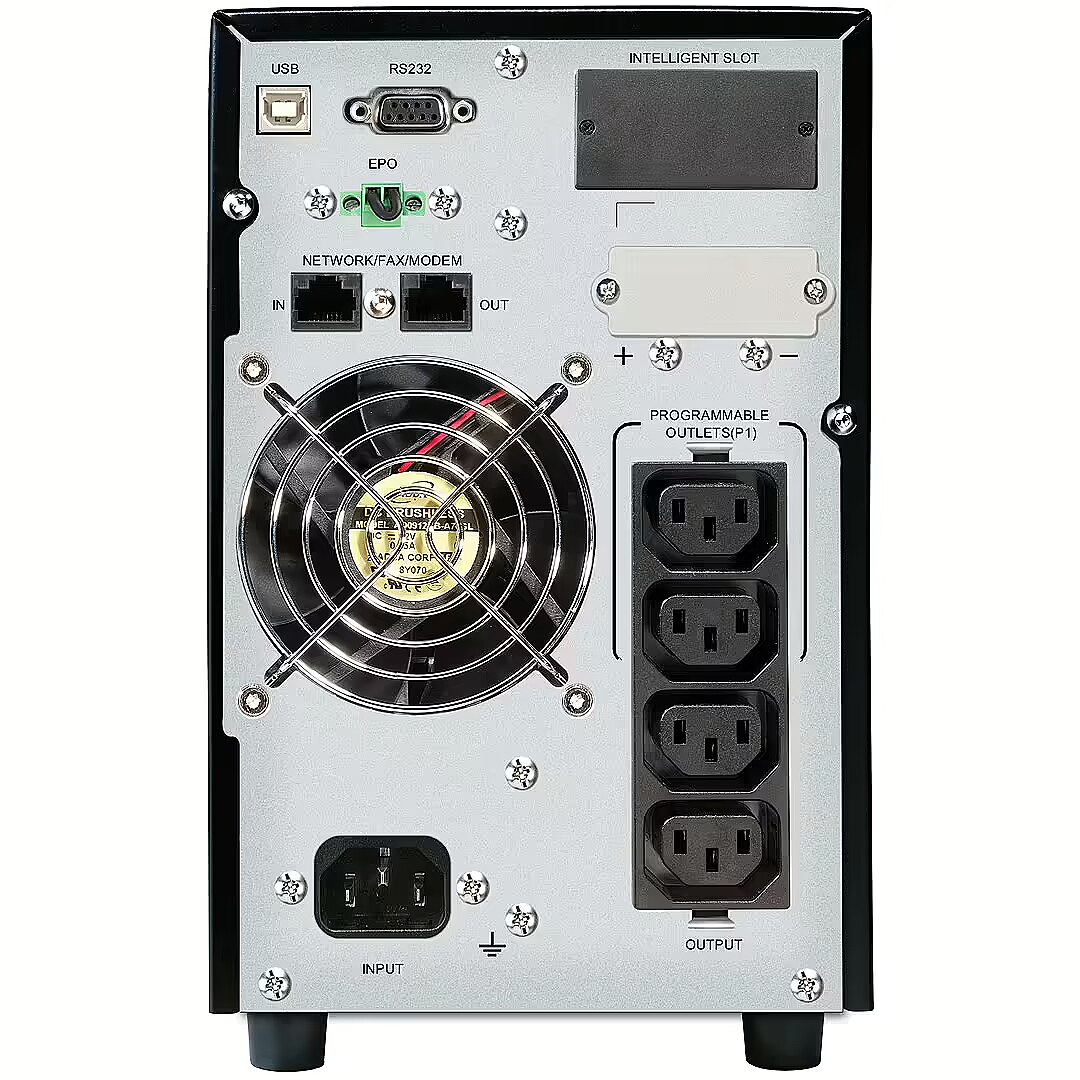

Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Emergency Power Off (EPO) connector - Yes
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - USB port - Yes
producerCode - VFI 1500 CG PF1
productName - PowerWalker VFI 1500 CG PF1 Double-conversion (Online) 1.5 kVA 1500 W 4 AC outlet(s)
productSize - Normal
sizeX - 475
sizeY - 330
sizeZ - 235
warrantyLength - 24
warrantyType - G
weight - 15900
Weight & dimensions - Depth - 397 mm
Weight & dimensions - Height - 221 mm
Weight & dimensions - Package height - 325 mm
Weight & dimensions - Package type - Box
Weight & dimensions - Package width - 230 mm
Weight & dimensions - Weight - 14.6 kg
Weight & dimensions - Width - 145 mm
