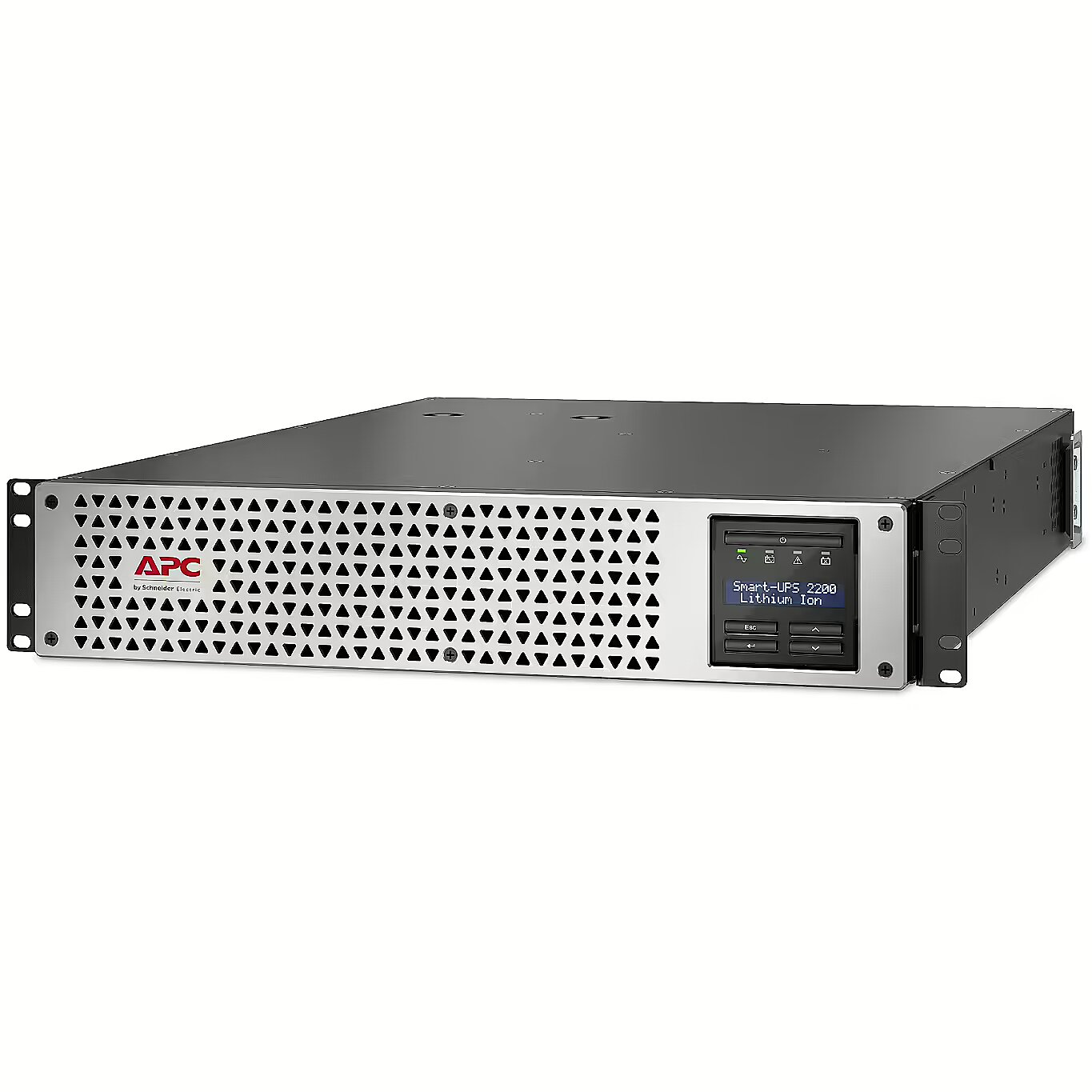

APC Smart-UPS SMTL2200RMI2UCNC 2200VA, 1980W, IEC, 2U

ARTIKEL1 - APC SMART-UPS LI-ION 2200VA
ARTIKEL2 - 230V +SMARTCONNECT PORT AND NMC
Battery - Automatic battery test - Yes
Battery - Battery recharge time - 2 h
Battery - Battery technology - Lithium-Ion (Li-Ion)
Battery - Hot-swap battery - Yes
Brand - APC
BrandPartCode - SMTL2200RMI2UCNC
Breite - 0
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Compliance certificates - RoHS
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - International Protection (IP) code - IP20
Design - LED indicators - Yes
Design - Product colour - Black, Grey
Design - Rack capacity - 2U
EANCode - 0731304643203
Features - Audible alarm(s) - Yes
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Crest factor - 3:1
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 286 V
Features - Input operation voltage (min) - 160 V
Features - Noise level - 55 dB
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 1980 W
Features - Output power capacity - 2.2 kVA
Features - Response time - 6 ms
Features - Surge energy rating - 739 J
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Gewicht - 60
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 0731304643203
GTIN - 731304643203
HERSTELLER - APC
Hoehe - 0
HSTNUMMER - SMTL2200RMI2UCNC
Laenge - 1
LongDesc - Stay always online and prevent data lossAs soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the APC PowerChute Network Shutdown software, you can even have critical IT hardware shut down automatically and in a controlled manner when the battery of the UPS is almost empty. This prevents data loss, downtime and physical damage to hardware.Lithium-IonThe APC SMTL2200RMI2UC uses a Li-Ion battery, which provides unique advantages:- Longer lifespan. A Li-Ion battery can last up to 10 years and therefore makes the UPS truly maintenance-free.- Can handle more than 10x as many charging cycles as a lead-acid battery (VRLA).- Smaller and lighter. Li-Ion batteries are smaller and weigh approximately 65% ​​less than VRLA batteries, which saves space and simplifies installation.- Better battery performance than VRLA at ambient temperatures above 25° C. With VRLA, this is at the expense of battery life (>5% decrease per degree increase).- 5-year factory warranty. Standard long warranty on the UPS including the battery.- Eliminate the costs of interim battery replacement; labor, material, shipping and recycling.- Lower TCO: The above advantages reduce the total costs over the entire life of the UPS by up to 47% (compared to a UPS with VRLA battery.)- Faster charging means full protection sooner.- Perfect for tight spaces, due to the limited depth of the UPS it fits easily in wall racks and small cabinets.SafetyIn addition, a Smart-UPS protects connected devices against peak voltage, caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.Battery lifeYou can easily read the expected battery life in the runtime graph, which you can find between the product images. This way you can easily see how long the UPS will provide emergency power at a certain load.Manage your Smart-UPSThanks to the pre-installed network card (ap9641), you can easily connect the APC UPS to the network. This allows you to monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software.PowerChute Network ShutdownPowerChute Network Shutdown is UPS management software that works together with the UPS Network Management Card to protect Windows, Linux and Host ESXi, as well as hyperconverged and virtual infrastructure*. In the event of a power failure, PowerChute can gracefully shut down your virtual machines and power them back up using a pre-configured boot sequence.*HCI and virtual machine support require an additional license:1 year: SWPCNS1Y-DIGI3 years: SWPCNS3Y-DIGI5 years: SWPCNS5Y-DIGIRemote management and monitoring of your networkThe network card can be managed remotely via the user-friendly web browser interface, remote management software EcoStruxure™ IT (SFTWES1-DIGI) or another SNMP-compatible system. Tip EcoStruxure™ IT also includes the functionality of the support contract below.Support ContractThe optional network card support contract license* ensures that you are always up-to-date and secure and includes additional benefits such as frequent updates with:• New and improved features• Security updates• Advanced support(The functionality of the support contract is included free of charge in the first year of the UPS)*The above license and available in the variants:1 year: SWNMC3SU-1Y-DIGIUp to (Replace the bold number in the article number with the desired variant)6 years: SWNMC3SU-6Y-DIGISmartConnectOut-of-box remote UPS monitoring, free during a 6-month trial period. Using the SmartConnect Ethernet port, you can easily connect the Smart-UPS to your network and easily monitor it remotely via the secure APC SmartConnect cloud-based web portal*. In addition, the UPS can always be monitored via this port via EcoStruxure IT Expert (SFTWES1-DIGI).* Extend access to SmartConnect via the following licenses:1 year Standard Plan: ERWPMON1-1Y-DIGI3 years Standard Plan: ERWPMON1-3Y-DIGI1 year Advanced Plan: ERWPLUS1-1Y-DIGI3 years Advanced Plan: ERWPLUS1-3Y-DIGIEase of useThe basic functionalities can be set and read using physical buttons and an LCD screen.Extend the lifespanThe internal battery cartridge (APCRBC174-LI) can be replaced easily, safely and independently by the user. This without having to switch off the APC UPS or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always stays online.Warranty ExtensionThe factory warranty vthe SMTL2200RMI2UCNC is 5 years and can be extended with the APC service pack (WEXTWAR1YR-SPL-14) in steps of 1 year, up to a total maximum of 7 years.MountingThe UPS is equipped with mounting brackets with which you can easily mount it to the 4 uprights in a 19 inch rack, wall or patch cabinet.Switched Outlet Groups: Remote reboot and phased start-upThanks to the Switched Outlet Groups it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which can limit oversizing of the UPS.It is also possible to reset a group of multiple UPS outlets and the equipment connected to them. If SmartConnect Advanced (ERWPLUS1-1Y-DIGI), a UPS with SmartConnect port + Ecostruxure IT Expert (SFTWES1-DIGI) or a network card (ap9640) in combination with Ecostruxure IT Expert (SFTWES1-DIGI) are used, this can even be done remotely.This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 8x IEC 320 C13 and 1x IEC 320 C19 outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
LongProductName - APC Smart-UPS Li-ion SMTL2200RMI2UCNC - 8xC13 & 1xC19, Rackmount 2U, SmartConnect, NMC, 2200VA
LongSummaryDescription - APC Smart-UPS Li-ion SMTL2200RMI2UCNC - 8xC13 & 1xC19, Rackmount 2U, SmartConnect, NMC, 2200VA. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery technology: Lithium-Ion (Li-Ion), Battery recharge time: 2 h. Form factor: Rackmount/Tower, Product colour: Black, Grey, Rack capacity: 2U. Compliance certificates: RoHS
Operational conditions - Non-operating altitude - 0 - 7620 m
Operational conditions - Operating altitude - 0 - 3048 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V
Packaging content - Cables included - RJ-45, USB cable
Packaging content - Rack mount kit - Yes
Packaging data - Package depth - 980 mm
Packaging data - Package height - 458 mm
Packaging data - Package weight - 41.5 kg
Packaging data - Package width - 600 mm
Ports & interfaces - AC outlets quantity - 9 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Emergency Power Off (EPO) connector - Yes
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - Serial interface - Yes
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
ProductName - APC Smart-UPS Li-ion SMTL2200RMI2UCNC - 8xC13 & 1xC19, Rackmount 2U, SmartConnect, NMC, 2200VA
ShortSummaryDescription - APC Smart-UPS Li-ion SMTL2200RMI2UCNC - 8xC13 & 1xC19, Rackmount 2U, SmartConnect, NMC, 2200VA, Line-Interactive, 2.2 kVA, 1980 W, Sine, 160 V, 286 V
Stck_Kart - 1
Stck_Pal - 1
Storno - Y
Sustainability - Sustainability compliance - Yes
Title - APC Smart-UPS Li-ion SMTL2200RMI2UCNC - 8xC13 & 1xC19, Rackmount 2U, SmartConnect, NMC, 2200VA
URL - https://www.apc.com/
WarrantyInfo - 5 year repair or replace
Weight & dimensions - Depth - 683 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 33.3 kg
Weight & dimensions - Width - 432 mm
