ID: 1006422
Product code: PPF3602301
In stock 5 units
Warranty: 2 years

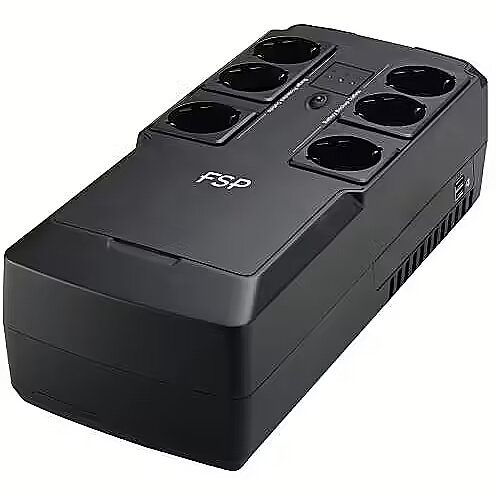

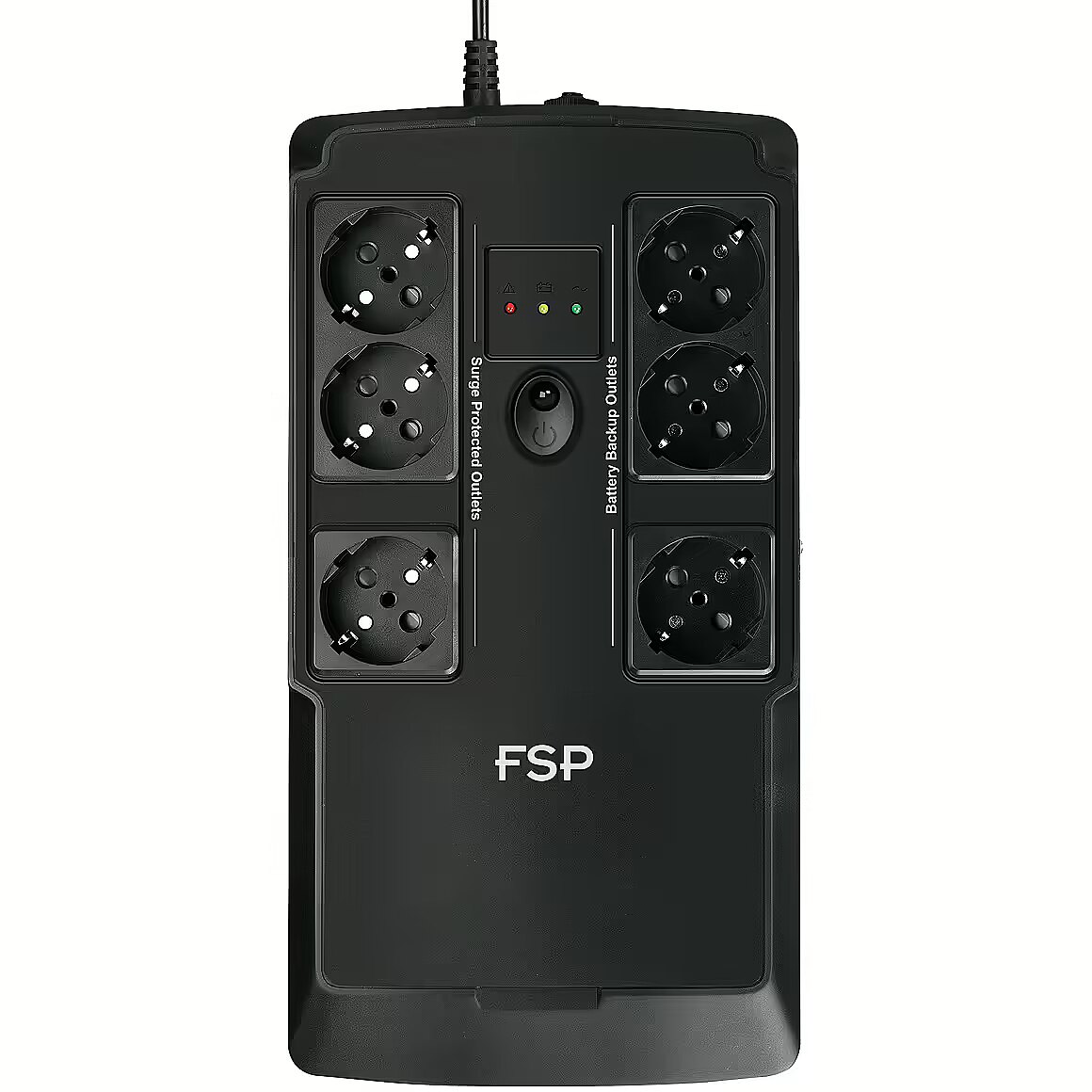

FSP NanoFit 600, 600VA 360W
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 6.99 €: 24.04.2025
- Courier delivery 11.99 €: 24.04.2025
Main product parameters All parameters
- Battery capacity (VA): 600 VA
- Output power (W): 360 W
Display characteristics
Display
: Nav
Basic information
Battery capacity (VA)
600 VA
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Nav norādīts
Charging time (hours)
: 8h
Output power (W)
: 360 W
Ports and equipment
Number of nests (total)
: 6
Number of sockets (Battery Backup)
: 3
RJ-45
: 0
Socket type
: Schuko
USB
: 2
More detailed specification
Battery - Battery capacity - 4.5 Ah
Battery - Battery recharge time - 8 h
Battery - Battery voltage - 12 V
Battery - Cold start - Yes
Battery - Number of batteries supported - 1
Battery - Typical backup time at full load - 13 min
Brand - FSP
BrandPartCode - PPF3602301
Category - Uninterruptible Power Supplies (UPSs)
Description - FSP NANOFIT 600 600VA/360W,WITH USB POWER, LED, INPUT/VOLTAGE RANGE: 180-270VAC, INPUT FREQUENZ 60/50 HZ, 1*12V/4.5AH, 6*SCHUKO
Design - Display type - LCD
Design - Form factor - Compact
Design - Product colour - Black
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 240 V
Features - Input operation voltage (min) - 220 V
Features - Noise level - 40 dB
Features - Output frequency - 50/60 Hz
Features - Output frequency regulation - ±1 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 360 W
Features - Output power capacity - 0.6 kVA
Features - Output voltage regulation - ±10%%
Features - Power protection features - Overcharge, Overdischarge, Overload
Features - Response time - 6 ms
Features - UPS topology - Standby (Offline)
Features - Waveform - Sine
GTIN - 4713224521119
Height - 235.000000
Length - 380.000000
Logistics data - Harmonized System (HS) code - 85078000
LongDesc - A compact size with stand and mounting flexibility Off line UPS to provide the expected backup power for home, gaming or personal appliances.Compact size can be desktop or wall-mountedRJ45 Surge Protection safeguards your equipment against damaging surges and spikes that travel along utility and internet lines.Nanofit 600/800 can be monitored by computer software(This function only available for UPS with Type-B com. Port)FSP UPS provides back up battery power so you can work through short and medium length power outages.Protect your productivity from the constant threat of bad power and lost data.
LongProductName - 600VA, 360W, 220-240V, 50/60Hz, Sinewave, 40dB
LongSummaryDescription - FSP NanoFit 600. UPS topology: Standby (Offline), Output power capacity: 0.6 kVA, Output power: 360 W. AC outlets quantity: 6 AC outlet(s), USB port type: USB Type-A. Battery capacity: 4.5 Ah, Battery voltage: 12 V, Typical backup time at full load: 13 min. Form factor: Compact, Product colour: Black, Display type: LCD. Safety: CE
Manufacturer - FSP
ManufacturerPartNumber - PPF3602301
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Output power, W - 360
PeriodofWarranty - 2 Y
Ports & interfaces - AC outlets quantity - 6 AC outlet(s)
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB port - Yes
Ports & interfaces - USB port type - USB Type-A
ProductName - NanoFit 600
Safety regulation & standards - Safety - CE
ShortSummaryDescription - FSP NanoFit 600, Standby (Offline), 0.6 kVA, 360 W, Sine, 220 V, 240 V
Title - FSP NanoFit 600 uninterruptible power supply (UPS) Standby (Offline) 0.6 kVA 360 W 6 AC outlet(s)
UPS devices and accessories - Yes
URL - https://www.fsplifestyle.com/en/product/NanoFit600.html
WarrantyInfo -
Weight - 3.040000
Weight & dimensions - Depth - 305 mm
Weight & dimensions - Height - 95 mm
Weight & dimensions - Weight - 2.6 kg
Weight & dimensions - Width - 158.5 mm
Weight, kg - 2.6
Width - 145.000000
