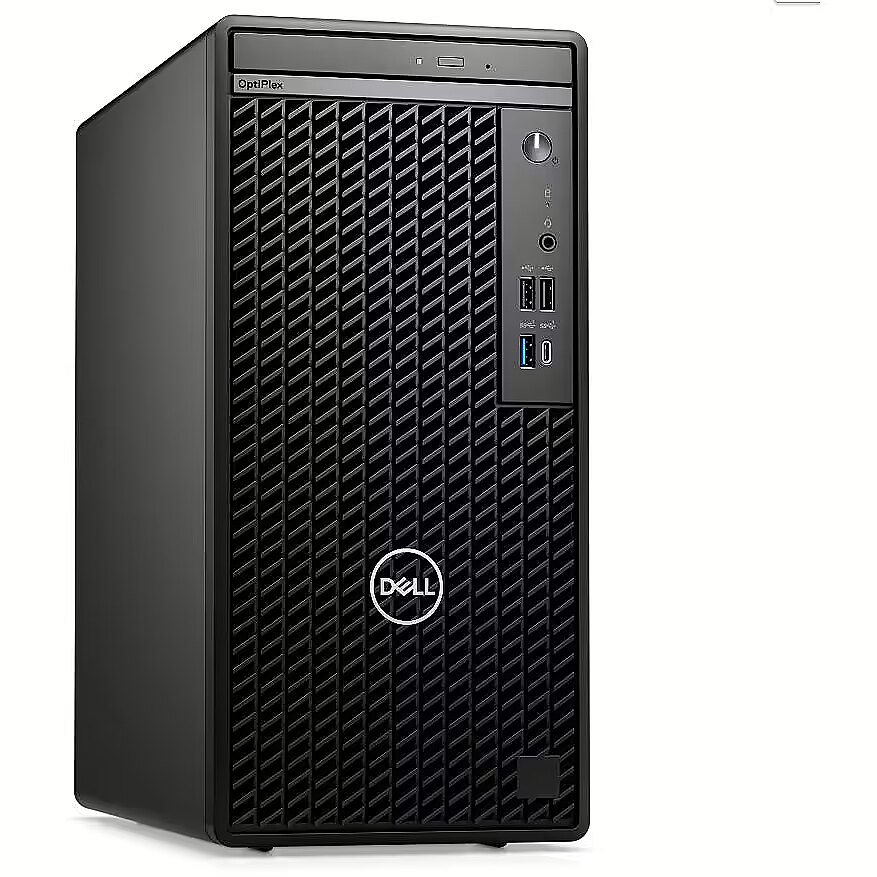

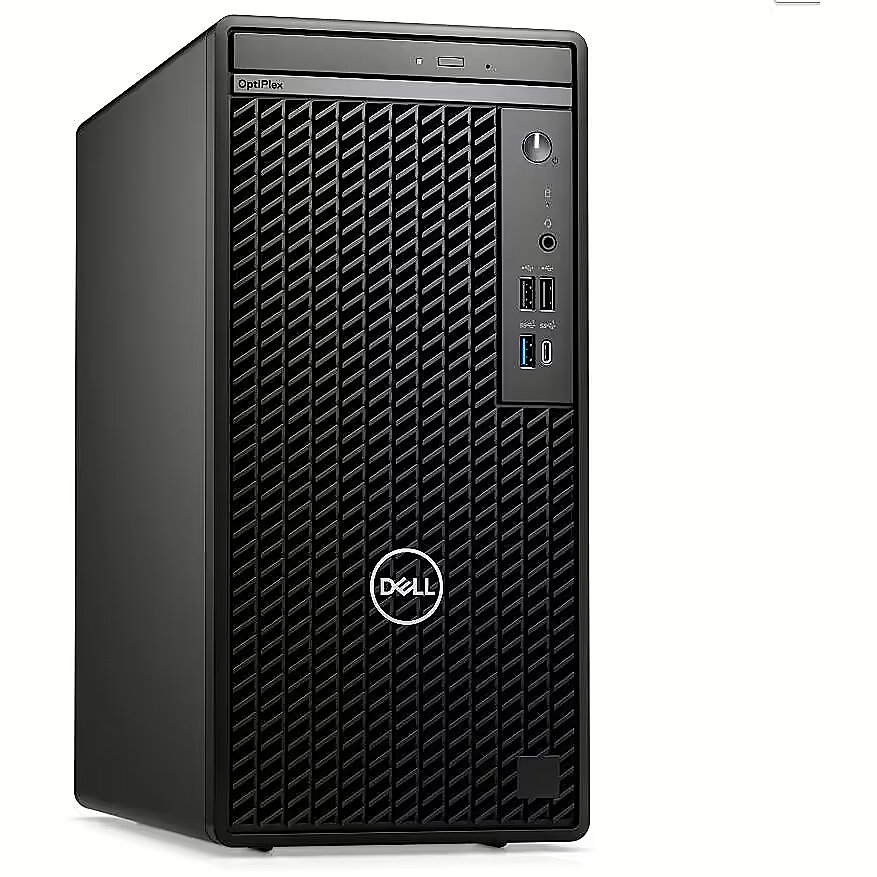

Dell OptiPlex 7020 Tower, Core i5-14500, 8GB, 512GB, Windows 11 Pro

Audio - -
Audio-Out Input/Output connectors - 1
AudioFeatures - -
Bluetooth - No
CACHE - 24 MB
CardReader - No
Case Type - Tower
Category Code - DT
Chipset - Intel Q670
Clock speed - 2600 MHz
CPU Family name - Core i5
CPU features - vPro
CPU Model Number - i5-14500
Depth - 292.2 mm
Depth Unit Dimensions - 292.2 mm
Description - OptiPlex Tower 7020.
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Chassis type - Mini Tower
Design - Placement supported - Horizontal/Vertical
Design - Product colour - Black
Desktop Computer Family name - OptiPlex
dimensionalWeight - 12323
DisplayPort Input/Output connectors - 1
ExpansionBays - 2x 2.5" or 2x 3.5"
ExpansionPorts -

DisplayPort

2x USB 3.2

2x USB 2.0

RJ-45

ExpansionPortsFront -

2x USB 3.2

2x USB 2.0

Audio jack

ExpansionSlots -

Full-height Gen3 PCIe x1 slots

M.2 2230/2280 slot for solid-state drive

Full-height Gen3 PCIe x16 slot

SATA 2.0 slot for slim optical drive

M.2 2230 slot for WiFi and Bluetooth combo card

FingerprintReader - No
FormFactor - Tower
Full Description Line - Family OptiPlex|Model Tower 7020|PC features Business|Case Type Tower|Core i5|CPU i5-14500|2600 MHz|RAM 8GB|DDR5|SSD 512GB|VGA card Intel Graphics|Integrated|DVD-RW|LAN Gigabit|Keyboard ENG|1xDisplayPort|1xAudio-Out|4xUSB 2.0|2xUSB 3.2|1xUSB-C|1xRJ45|Windows 11 Pro|PSU Output 180 Watts|Included Accessories Dell Optical Mouse-MS116 - Black,Dell Multimedia Wired Keyboard - KB216 Black - US International|Warranty type Pro-support|Width 154 mm|Height 324.3 mm|Depth 292.2 mm|Weight 5.18 kg
GraphicCard - Integrated
Graphics - Discrete graphics card - No
Graphics - Discrete graphics card model - Not available
Graphics - On-board GPU manufacturer - Intel
Graphics - On-board graphics card - Yes
Graphics - On-board graphics card family - Intel® UHD Graphics
Graphics - On-board graphics card model - Intel UHD Graphics 770
GraphicsController - Intel UHD
GraphicsControllerMemorySize - -
GraphicsControllerMemoryType - System Shared
Graphics memory - Integrated
GrossWeight - -
HardDrive - 512 GB
Height - 324.3 mm
Height Unit Dimensions - 324.3 mm
Included Accessories - Dell Optical Mouse-MS116 - Black,
Dell Multimedia Wired Keyboard - KB216 Black - US International
Integrated LAN - Gigabit
KB language - ENG
Keyboard - Yes
KeyboardType - Dell Multimedia Keyboard KB216 Black
Localization - EN
LongDesc -
ManagementFeatures - -
MANUFDATASHEET - https://www.dell.com
Memory (RAM) - 8GB
Memory - Internal memory - 8 GB
Memory - Internal memory type - DDR5-SDRAM
Memory - Maximum internal memory - 64 GB
Memory - Memory data transfer rate - 4800 MT/s
Memory - Memory layout (slots x size) - 1 x 8 GB
Memory - Memory slots - 2x DIMM
Memory type - DDR5
MemoryType - DDR5-4800
Mouse - Yes
MouseType - Dell Optical Mouse MS116 Black
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100 Mbit/s
Network - Ethernet LAN data rates - 1000
Network - LAN controller - Intel® I219-LM
Network - Wi-Fi - No
NetworkCard - Yes
ODD type - DVD-RW
Operating System - Windows 11 Pro
OperatingSystem - Windows 11 Pro
Operational conditions - Non-operating altitude - -15.2 - 10668 m
Operational conditions - Non-operating shock - 105 G
Operational conditions - Non-operating vibration - 1.37 G
Operational conditions - Operating altitude - -15.2 - 3048 m
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating shock - 40 G
Operational conditions - Operating temperature (T-T) - 10 - 35 °C
Operational conditions - Operating vibration - 0.26 G
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 65 °C
OpticalStorage - Yes
PackageSize - -
Packaging content - Cables included - AC
Packaging content - Display included - No
PC features - Business
Performance - Audio chip - Realtek ALC3204-CG
Performance - Built-in speaker(s) - Yes
Performance - Market positioning - Business
Performance - Motherboard chipset - Intel Q670
Performance - Number of speakers - 1
Performance - Password protection - Yes
Performance - Product type - PC
Performance - Trusted Platform Module (TPM) - Yes
Performance - Trusted Platform Module (TPM) version - 2.0
Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.4b
Ports & interfaces - USB 2.0 ports quantity - 4
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Power - 180 W
Power - 80 PLUS certification - 80 PLUS Bronze
Power - Power supply - 180 W
Power - Power supply input frequency - 47/63 Hz
Power - Power supply input voltage - 90 - 264 V
ProccesorSpeed - 2.60 GHz
PROCESSOR - Intel i5-14500
Processor - Efficient-core base frequency - 1.9 GHz
Processor - Efficient-core Max Turbo Frequency - 3.7 GHz
Processor - Efficient cores - 8
Processor - Maximum turbo power - 154 W
Processor - Number of processors installed - 1
Processor - Performance-core base frequency - 2.6 GHz
Processor - Performance-core Max Turbo Frequency - 5 GHz
Processor - Performance cores - 6
Processor - Processor base power - 65 W
Processor - Processor boost frequency - 5 GHz
Processor - Processor cache - 24 MB
Processor - Processor cache type - Smart Cache
Processor - Processor cores - 14
Processor - Processor family - Intel® Core™ i5
Processor - Processor generation - Intel® Core™ i5 (14th gen)
Processor - Processor manufacturer - Intel
Processor - Processor model - i5-14500
Processor - Processor threads - 20
ProcessorMaxSpeed - 5.00 GHz
ProcessorMultiCoreType - 14 cores / 20 threads
ProcessorSeries - Intel Core i5
ProdDesc - Dell Optiplex 7020 MT/Core i5-14500/8GB/512GB SSD/Integrated/DVD RW/No Wifi/US Kb/Mouse/W11Pro/3yrs Prosupport
producerCode - N008O7020MTEMEA_VP
Product model code - Tower 7020
productName - DELL OptiPlex 7020 Intel® Core™ i5 i5-14500 8 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini Tower PC Black
ProductPicture - http://www.tdbaltic.ee/images/ds4/N008O7020MTEMEA-01.jpg
ProductPicture2 - http://www.tdbaltic.ee/images/ds4/N008O7020MTEMEA-02.jpg
ProductPicture3 -
ProductPicture4 -
productSize - Normal
PSU Output Power - 180 Watts
QuantityofStorageDevices - 1
RaidLevels - -
RAM - 8 GB
RAMinstalled_max - 64 GB
RAMSlotsFree - 1
RAMSlotstotal_available - 2
RJ45 Input/Output connectors - 1
Security -

TPM 2.0

Lock slot

Shipping Box Depth Shipping/Package Box Dimensions - 49 cm
Shipping Box Height Shipping/Package Box Dimensions - 32 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 6.65 kg
Shipping Box Width Shipping/Package Box Dimensions - 40 cm
sizeX - 385
sizeY - 330
sizeZ - 485
SmartCardReader - No
Software - Operating system architecture - 64-bit
Software - Operating system installed - Windows 11 Pro
Software - Trial software - Microsoft Office Trial,McAfee Business Protection 1-year
SoftwareIncluded - -
SSD Capacity - 512GB
Storage - Number of SSDs installed - 1
Storage - Number of storage drives installed - 1
Storage - NVMe - Yes
Storage - Optical drive type - DVD±RW
Storage - SSD capacity - 512 GB
Storage - SSD form factor - M.2
Storage - SSD interface - PCI Express
Storage - Storage media - SSD
Storage - Total SSDs capacity - 512 GB
Storage - Total storage capacity - 512 GB
StorageDeviceSpeed - -
StorageDeviceType - SSD
Sustainability - Sustainability certificates - ENERGY STAR
Sustainability - Sustainability certificates - EPEAT Climate +
Sustainability - Sustainability certificates - TCO
Sustainability - Sustainability compliance - Yes
TDP - 65 W
Unit Box Height - 0.32
Unit Box Length - 0.49
Unit Box Width - 0.4
Unit Brutto Volume - 0.06272 cubm
Unit Gross Weight - 6.65 kg
Unit Net Weight - 5.18 kg
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 3.2 Input/Output connectors - 2
Vendor Homepage - www.dell.com/en-us/shop/desktops/tower/spd/optiplex-7020t-desktop
VGA card - Intel Graphics
Warranty - 3 years
Warranty - 36 months
warrantyLength - 36
warrantyType - F
Warranty type - Pro-support
WEIGHT - 5.18 kg
weight - 6690
Weight & dimensions - Depth - 292.2 mm
Weight & dimensions - Height - 324.3 mm
Weight & dimensions - Width - 154 mm
Width - 154 mm
Width Unit Dimensions - 154 mm
WirelessCardType - -
WirelessNetwork - No
