Incase CS1792 2-Port USB HDMI/Audio KVMP™ Switch

Accessories included - Przewód KVM (HDMI, USB, Audio; 1.8m/6ft) x2 Przewód do uaktualniania oprogramowania sprzętowego Zasilacz Instrukcja obsługi
Brand - ATEN
BrandPartCode - CS1792-AT-G
Category - KVM Switches
Code - CS1792-AT-G
Console Ports - 1x HDMI Female
Console Ports - 2x USB Type A Żeński
Console Ports - 4x Audio 3,5mm minijack Female
Description - ATEN CS1792
2-portowy przełącznik KVMP USB HDMI/Audio Przełącznik KVMP USB 2.0 HDMI CubiQ CS1792 to eleganckie wzorniczo i funkcjonalne urządzenie do małego lub domowego biura.
CS1792 stanowi połączenie 2-portowego przełącznika z 2-portowym koncentratorem USB 2.0. Umożliwia płynne przełączanie sygnału HDMI między dwoma komputerami lub innymi urządzeniami z interfejsem HDMI, np. konsolami. Ponadto umożliwia wspólne korzystanie z urządzeń USB z jednej konsoli. CS1792 zapewnia sprawniejsze, niezależne przełączanie za pomocą przycisków na panelu przednim oraz skrótów klawiszowych. Obsługuje również technologię Video DynaSync, optymalizującej rozdzielczość obrazu HDMI. Zintegrowany w urządzeniu CS1792 cyfrowy interfejs audio umożliwia przesyłanie dźwięku o jakości high-definition, takiego jak Dolby True HD czy DTS HD Master Audio. Estetyczny i niewielki przełącznik KVM CubiQ CS1792 doskonale sprawdza się w zastosowaniach multimedialnych w domu i biurze.
Design - Hot keys - Yes
Design - Housing material - Metal, Plastic
Design - LED indicators - Yes
Design - Product colour - Black, Grey
Design > Material - Metal, Plastic
Designation - CE+WEEE
dimension depth - 100 mm
dimension height - 270 mm
Dimensions - 20.63 x 7.24 x 4.40 cm
dimension weight - 1250 g
dimension width - 230 mm
Display - Built-in display - No
EAN - 4710423775701
ean - 4710423775701
GTIN - 4710423775701
guarantee - 24
guarantee_type - external
Hot Swap - No
Link - https://www.aten.com/global/en/products/kvm/desktop-kvm-switches/cs1792/
Logistics data - Harmonized System (HS) code - 85176200
Logistics data - Master (outer) case gross weight - 7.3 kg
Logistics data - Master (outer) case height - 283 mm
Logistics data - Master (outer) case length - 500 mm
Logistics data - Master (outer) case net weight - 5.2 kg
Logistics data - Master (outer) case width - 232 mm
Logistics data - Products per master (outer) case - 5 pc(s)
LongDesc - With its unique design and innovative features, the CubiQ™ CS1792 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 2-port switch with a 2-port USB 2.0 hub, the CS1792 provides seamless HDMI signal switching between 2 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console.1x CS1792 USB 2.0 HDMI KVMP™ Switch2x 2L-7D02UH HDMI KVM Cable Sets (1.8m)1x LIN5-04A2-J13G Firmware Upgrade Cable1x 0AD8-1605-24M1 Power Adapter1x User Instructions
LongProductName - 2-Port USB HDMI KVM Switch with Audio & USB 2.0 Hub (KVM cables included)
LongSummaryDescription - ATEN 2-Port USB HDMI KVM Switch with Audio & USB 2.0 Hub (KVM cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Grey, Housing material: Metal, Plastic. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 5.35 W. Width: 206.3 mm, Depth: 72.4 mm, Height: 44 mm
name - 2-Port USB HDMI Audio KVMP Switch CS1792-AT-G
Name - Aten CS1792 2-Port USB HDMI/Audio KVMP™ Switch | Aten | 2-Port USB HDMI/Audio KVMP Switch | CS1792
No. of devices (max) - 4
Operational conditions - Operating relative humidity (H-H) - 0 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 80%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Operational conditions > Temperature range (T-T) - 0-50˚C °C
Other features - Odstęp czasu skanowania: 1-99 sek. (domyślnie: 5 s)

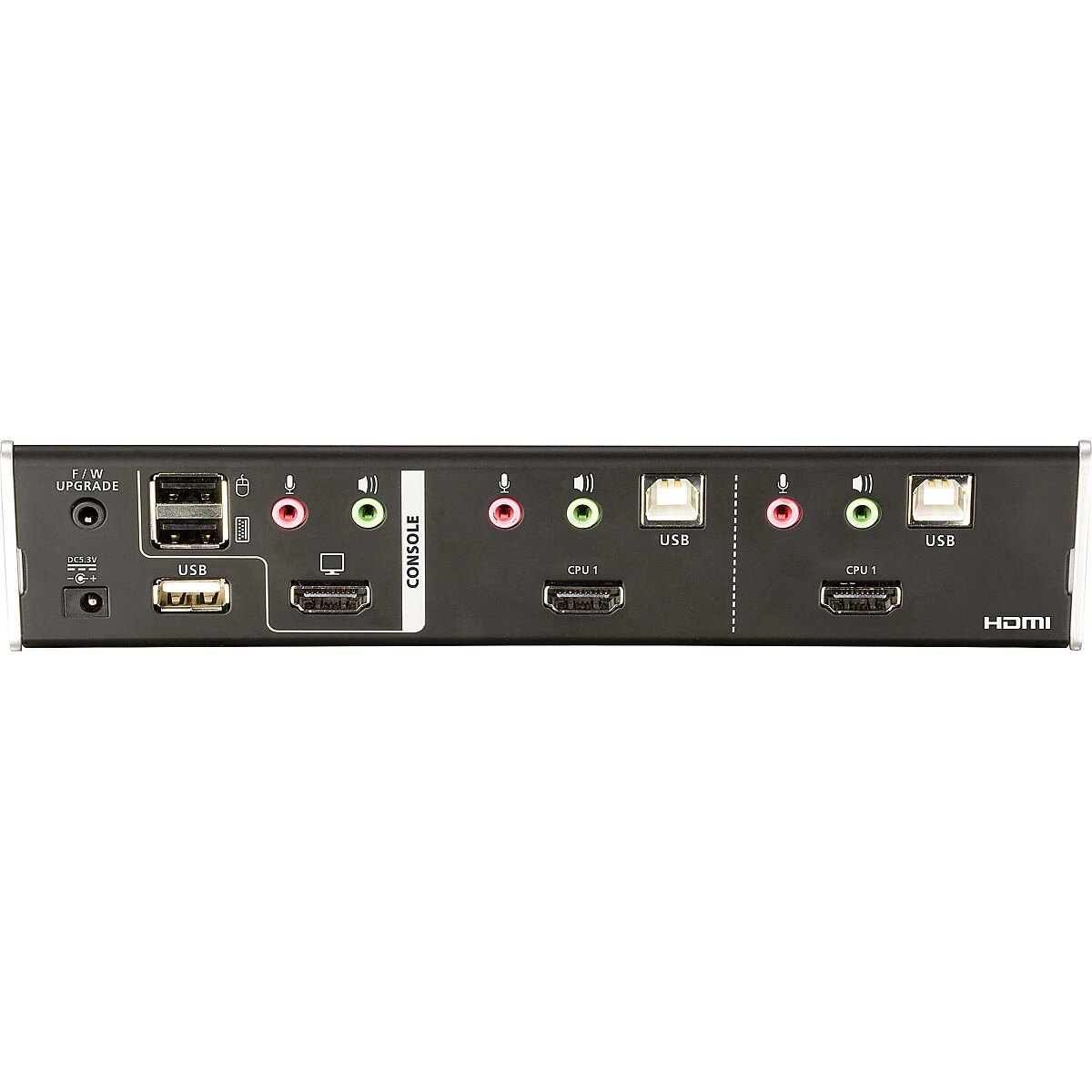

Other features > I/O ports - Console Ports: 2 x USB Type A Female (rear panel), 1 x HDMI Female (Black), 2 x 3.5 mm Audio Jack Female (Green; 1 x front, 1 x rear), 2 x 3.5 mm Audio Jack Female (Pink; 1 x front, 1 x rear) KVM Ports: 2 x USB Type B Female, 2 x HDMI Female (Black), 2 x 3.5 mm Audio Jack Female (Green), 2 x 3.5 mm Audio Jack Female (Pink)
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 95 mm
Package features > Gross depth master carton - 565 mm
Package features > Gross height (mm) - 223 mm
Package features > Gross height master carton - 260 mm
Package features > Gross width (mm) - 265 mm
Package features > Gross width master carton - 387 mm
Package features > Net weight master carton - 8.022 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 308 pc(s)
Package features > Paper/Pasteboard - 900.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.91 kg
Package features > Tare weight master carton - 0.966 kg
Package features > Volume (m3) - 0.005614025 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Manual - Yes
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 265 mm
Packaging data - Package height - 220 mm
Packaging data - Package weight - 1.37 kg
Packaging data - Package width - 95 mm
PC connectors - 2 x HDMI Female
PC connectors - 2x USB Type B Female
PC connectors - 4x Audio 3,5mm minijack Female
Performance - HD type - WUXGA
Performance - Maximum resolution - 1920 x 1200 pixels
Performance - Scan interval - 1,5,99 s
Performance - Video bandwidth - 60 Hz
Ports & interfaces - Audio connections - Yes
Ports & interfaces - Console ports - 3.5mm headphone, 3.5mm mic, HDMI, USB A
Ports & interfaces - Console USB ports quantity - 2
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - Headphone outputs - 4
Ports & interfaces - Keyboard port type - USB
Ports & interfaces - Mouse port type - USB
Ports & interfaces - Number of computers controlled - 2
Ports & interfaces - Number of microphone inputs - 4
Ports & interfaces - USB 2.0 Type-A hub ports quantity - 2
Ports & interfaces - USB connector type - USB Type-A, USB Type-B
Ports & interfaces - USB hub - Yes
Ports & interfaces - Video port type - HDMI
Power - Input voltage - 5.3 V
Power - Power consumption (typical) - 5.35 W
Power - Power source - DC
producer - ATEN
Producer product family - 2-Port USB HDMI/Audio KVMP Switch
Producer product name - CS1792
ProductName - 2-Port USB HDMI KVM Switch with Audio & USB 2.0 Hub (KVM cables included)
Resolution - 1920 x 1200 (WUXGA)
ShortSummaryDescription - ATEN 2-Port USB HDMI KVM Switch with Audio & USB 2.0 Hub (KVM cables included), 1920 x 1200 pixels, WUXGA, 5.35 W, Black, Grey
Supported operating systems - Linux
Supported operating systems - Mac OS
Supported operating systems - Windows
System requirements - Linux operating systems supported - Yes
System requirements - Mac operating systems supported - Yes
System requirements - Windows operating systems supported - Yes
Technical details > Gross weight - 1.342 kg
Technical details > Net weight - 0.432 kg
Technical details > Other features - Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI); PC selection via pushbutton and hotkeys; Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution; Multiplatform support - Windows, Linux,and Mac
Technical details > Producer - Aten
Title - ATEN 2-Port USB HDMI KVM Switch with Audio & USB 2.0 Hub (KVM cables included)
URL - https://www.aten.com/eu/en/products/kvm/desktop-kvm-switches/cs1792/
vendpn - CS1792-AT-G
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
Weight - 0.42 kg
Weight & dimensions - Depth - 72.4 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 1.04 kg
Weight & dimensions - Width - 206.3 mm
