BIOS - BIOS memory size - 512 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Brand - ASUS
BrandPartCode - 90MB1C20-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards
Category_1 - Motherboards
Category_2 - Motherboards - other
code - 90MB1C20-M0EAY0
ean - 4711387123515
EAN_code - 4711387123515
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x16 (Gen 5.x) slots - 7
Features - Audio chip - Realtek S1220A
Features - Audio output channels - 7.1 channels
Features - Component for - Workstation
Features - Cooling type - Passive
Features - Motherboard chipset - Intel W790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - EEB
Features - Power source type - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10, Windows 11
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387123515
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Integrated SAS ports - 2
Internal I/O - Number of chassis fan connectors - 5
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 8
Internal I/O - Power fan connector - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LongDesc - Performance, Productivity, ProvenThe Pro WS W790 series workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W790 series melds no-compromise engineering with incredible aesthetics.ASUS W790 motherboards go above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices.FUNCTION-FIRSTAESTHETICSLow-profile professionalismWith metallic black aluminum extrusions, stainless steel black mesh with highlighted details, and a transparent smoky gray I/O cover, Pro WS W790 series presents a professional, low-profile look for content creators.Multi-GPU supportPro WS W790E-SAGE SE features seven PCIe® 5.0 x16 slots for high-powered graphics cards, enabling enhanced performance for professional design, modeling and simulation, and rendering applications.8-pin and 6-pin power connectorsAdditional PCIe 8-pin and 6-pin power connectors can add power output stability when creators and developers use many graphic cards onboard.Reliability with supreme memory overclockingThe Pro WS W790E-SAGE SE supports 8-channel 1DPC DDR5 RDIMM ECC memory, allowing automatically to detect and correct data corruption, reducing the chance of system crashes. Being infused with deliberate memory trace layout, this motherboard enables DDR5 memory overclocking with maxed-out speeds to provide better memory performance for a diverse range of workloads.ULTRAFAST CONNECTIVITY TO POWER CREATIVITYThree onboard M.2 22110 slots on the Pro WS W790E-SAGE SE, two wired for PCIe 5.0 and one for PCIe 4.0, make it easy to install an initial set of drives. Creators working with massive video files can RAID together multiple NVMe devices for massive I/O bandwidth and seamless playback in their editing bays. All these three M.2 rest under dedicated heatsinks to prevent SSD throttling under heavy loads and comes with ASUS Q-Latch.More storageTo connect even more high-speed storage, onboard SlimSAS slots let you connect industrial SSDs — not to mention server and networking equipment — through the fast PCIe 4.0 interface.Front-panel connectorThe front panel USB 3.2 Gen 2 connector is ready for next-gen PC cases and devices.SERVER-GRADE REMOTE MANAGEMENTBMC remote managementAn integrated BMC (Baseboard Management Controller) is a key feature for workstations. It uses a 1G Realtek controller, with one 1G port dedicated to the BMC to provide the intelligence for its IPMI architecture. The BMC manages the interface between system-management software and platform hardware. Administrators can remotely communicate with the BMC to take some corrective actions — such as resetting or power cycling a system.ASUS Control Center ExpressThe Pro WS W790E-SAGE SE comes with ASUS Control Center Express - a real-time IT monitoring and management software designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks.THOROUGH THERMAL DESIGNChipset heatsinkA dedicated and beefy chipset heatsink draws heat away to maintain optimum operating temperatures.M.2 heatsinksThree M.2 slots are covered by heatsinks to combat temperature-induced throttling that can affect performance during heavy, sustained storage loads. M.2 backplate blocks on select slots go even further to ensure that you get peak performance from your next-gen drives.DIY FRIENDLYPre-mounted I/O shieldThe patented I/O shield is finished in sleek matte black and comes pre-mounted for easy installation on the motherboard and is designed to allow air flow to keep the heat away from the board.BIOS Flashback™Users can place a BIOS file onto a FAT32-formatted USB drive and simply plug it into the USB BIOS FlashBack™ port and press a button to update the (UEFI) BIOS. Updates can be made even if memory or CPU aren't present.WORK WITH FUNImmersive Audio experienceThe Realtek S1220A 7.1 audio codec features high quality 120 dB SNR stereo playback output and 113 dB SNR recording input to offer pristine audio quality and is supported by EMI shielding and separate PCB layers for the left and right channels to maintain signal integrity.Power pre-regulatorReduces power-input noise to ensure consistent performance.Audio shieldingSeparates analog/digital signal domains, significantly reducing multi-lateral interference.Integrated amplifierCapable of driving high-impedance headphones, without rolling-off high or low frequencies.Separate layer for left and right tracksEnsures minimal crosstalk between audio paths.De-pop circuitReduces start-up popping noise to all audio outputs.Premium audio capacitorsPremium parts provide an immersive sound signature, with exceptional fidelity.TRUSTED STABILITY FOR RELIABILITYSolid compatibility validationThe ASUS Pro WS W790 series has been extensively tested and validated under various environments and applications and support for the latest technologies with solid QVL lists for compatibility and reliability.Protect your graphics cardsSafeSlot is a PCIe® slot reengineered by ASUS to provide optimized attachment and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot fortifies the slot with metal for enhanced strength and durability.24/7 reliabilityOptimized for around-the-clock operations, The ASUS Pro WS W790 series is tested under temperatures of up to 45° C and humidity of up to 80% in order to ensure it can thrive in different environments.
LongProductName - Pro WS W790E-SAGE SE Workstation Mainboard Socket Intel LGA 4677 (EEB Mainboard, PCIe 5.0, DDR5, USB 3.2 Gen 2)
LongSummaryDescription - ASUS PRO WS W790E-SAGE SE. Processor manufacturer: Intel, Processor socket: LGA 4677 (Socket E), Compatible processor series: Intel Xeon W. Supported memory types: DDR5-SDRAM, Maximum internal memory: 2.05 TB, Memory slots type: DIMM. Supported storage drive interfaces: SlimSAS, M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet. Component for: Workstation, Motherboard form factor: EEB, Motherboard chipset family: Intel
Manufacturer - Asus
Manufacturer_code - 90MB1C20-M0EAY0
Memory - ECC сompatibility - ECC
Memory - Maximum internal memory - 2.05 TB
Memory - Memory channels - Octa-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 8
Memory - Supported memory clock speed (max) - 6800 MHz
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz
Memory - Supported memory types - DDR5-SDRAM
name - ASUS Pro WS W790E-SAGE SE, Intel W790 Mainboard, Sockel LGA 4677, DDR5
Name - ASUS PRO WS W790E-SAGE SE - Socket 4677 - motherboard
Network - Ethernet interface type - 10 Gigabit Ethernet, Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Other features - Back-to-BIOS button - Yes
Other features - Number of M.2 (E) slots - 1
Packaging content - Cables included - SATA
Packaging content - User guide - Yes
Packaging data - Package depth - 362 mm
Packaging data - Package height - 81 mm
Packaging data - Package weight - 2.99 kg
Packaging data - Package width - 379 mm
Processor - Compatible processor series - Intel Xeon W
Processor - Intel Xeon series - W-2400, W-3400
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 4677 (Socket E)
Processor - Supported processor sockets - LGA 4677 (Socket E)
ProductName - PRO WS W790E-SAGE SE

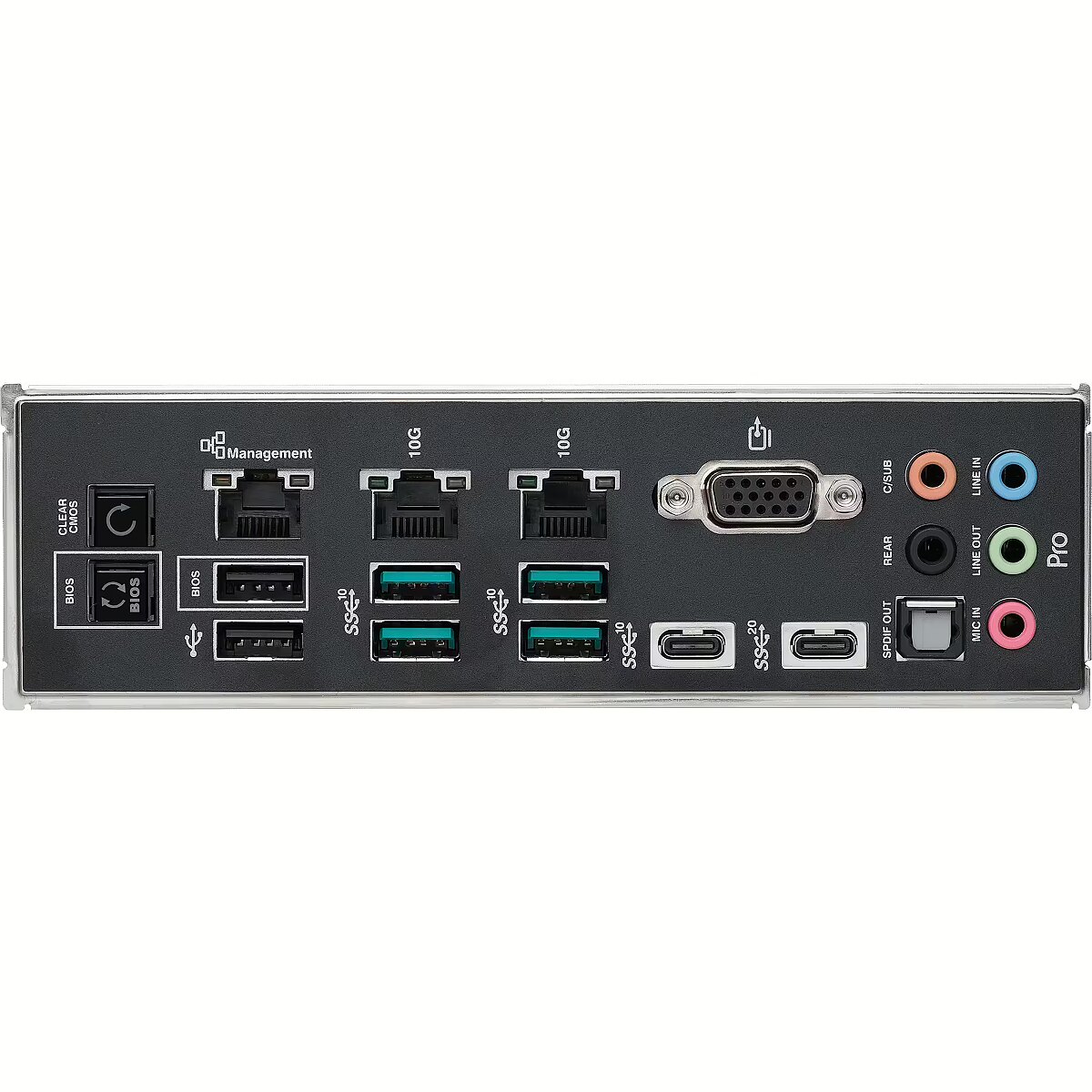

Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 3
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
ShortSummaryDescription - ASUS PRO WS W790E-SAGE SE, Intel, LGA 4677 (Socket E), Intel Xeon W, W-2400, W-3400, LGA 4677 (Socket E), DDR5-SDRAM
Storage controllers - Number of HDDs supported - 10
Storage controllers - Number of storage drives supported - 13
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - SlimSAS, M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Title - ASUS PRO WS W790E-SAGE SE Intel W790 LGA 4677 (Socket E) EEB
URL - https://www.asus.com/motherboards-components/motherboards/workstation/pro-ws-w790e-sage-se/
WarrantyInfo -
Weight - 4,00
Weight & dimensions - Depth - 330 mm
Weight & dimensions - Width - 305 mm
