Accessories included - RUTXR1 18W power supply 2 x LTE antenna (magnetic mounting, SMA plug, 3 m cable) 2 x WiFi antenna (magnetic mounting, RP-SMA plug, 1.5 m cable) Rack mounting kit 4 x pad 8 x screw SIM adapter kit Ethernet cable (1.5 m) QSG (Quick Start Guide) RMS leaflet
Aero2 support - No
Antenna - Detachable external
Antenna > Antennas quantity - 2xSMA for LTE, 2xRP-SMA for WiFi
Card reader - None
Category - Root/Electronics/Networks and communication/Routers
Certificates -
Code - RUTXR1000000
Color - Aluminium
Data transmission - LTE
Data transmission - UMTS

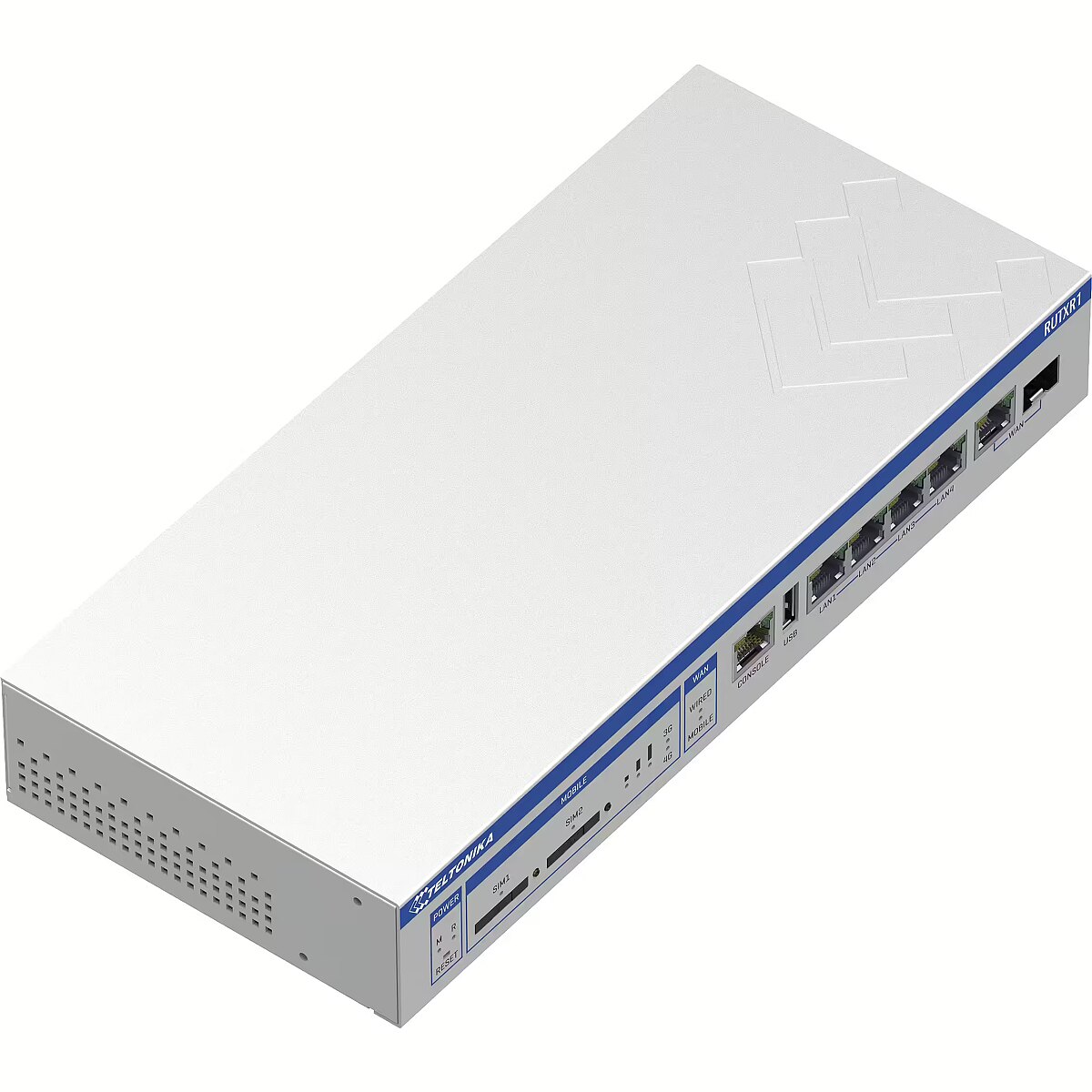

Description - RUTXR1 RUTXR1 is our first-ever rack-mount LTE Cat6 router with redundant power supplies and WAN interfaces that can be conveniently placed in a server rack. It is equipped with dual SIM, USB and Wave-2 802.11ac Dual Band WIFI. However, what distinguishes this product from other Teltonika Networks products are SFP WAN ports and dedicated console ports. A unique set of features allows it to be used as a basic product in a small or home office with LTE backup, efficient WiFi and no need to use an additional SFP to Ethernet converter. This feature-rich device is powered by RutOS and is an excellent choice where a fast and ultra-reliable connection is required.
Designation - CE+WEEE
dimension depth - 175 mm
dimension height - 355 mm
Dimensions - 272 x 42.6 x 122.6 mm
dimension weight - 1836 g
dimension width - 100 mm
EAN - 4779027312613
ean - 4779027312613
Eans - 4779027312613
Environment requirements - Operating temperature: -40°C to +75°C Humidity during operation: 10% to 90% non-condensing
Features > Mobile Broadband - 4G
Features > MU-MiMO - Yes
guarantee - 24
guarantee_type - normal
I/O ports - 1 x Console port (RJ-45)
I/O ports - 1 x SFP
I/O ports - 1 x USB 2.0 Type A
I/O ports - 2 x SIM card slot
I/O ports - 5 x 10/100/1000 Mbit/s
Link - https://teltonika-networks.com/product/rutxr1/
Link - https://wiki.teltonika-networks.com/view/RUTXR1
LTE network - 700 MHz
LTE network - 800 MHz
LTE network - 850 MHz
LTE network - 900 MHz
LTE network - 1500 MHz
LTE network - 1800 MHz
LTE network - 2100 MHz
LTE network - 2300 MHz
LTE network - 2500 MHz
LTE network - 2600 MHz
Management, monitoring, configuration - Network features: NAT, Static/Dynamic routing, Firewall, OpenVPN, IPSec, H.232 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets Unique network features: VLAN, Mobile quota control, WEB Filter, Load Balancing, Network Backup, Auto Failover Connection monitoring: Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection; WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS Authentication: Busybox shell, Lua, C, C++
Model - RUTXR1
name - Router LTE RUTXR1 (Cat6), 5xGbE WiFi, SFP
Name - Teltonika RUTXR1
Name - Teltonika RUTXR LTE Router Teltonika Enterprise Rack-Mountable SFP/LTE Router RUTXR1 802.11ac 867 Mbit/s 10/100/1000 Mbit/s Ethernet LAN (RJ-45) ports 4xLAN ports, 1xSFP port, 1xWAN port MU-MiMO Yes 4G 1
Number of antennas - Four connectors
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Other features - Network: 4G (LTE) Cat 6 DL up to 300 Mbps, UL up to 50Mbps; DC-HSDPA; HSUPA; WCDMA Processor: Quad Core ARM Cortex A7 717 MHz CPU Memory: 256 MB SPI Flash, 256 MB of DDR3 RAM
Other features > Ethernet LAN (RJ-45) ports - 4xLAN ports, 1xSFP port, 1xWAN port
Other features > USB ports quantity - 1
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 350 mm
Package features > Gross height (mm) - 97 mm
Package features > Gross width (mm) - 175 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 291 pc(s)
Package features > Paper/Pasteboard - 190 g
Package features > Tare weight (kg) - 0.19 kg
Package features > Volume (m3) - 0.00594125 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Performance > Wi-Fi data rate (max) - 867 Mbit/s
Power supply - Dual 9-50 VDC, 4-pin DC connectors
producer - TELTONIKA
Producer - Teltonika
ProducerCode - RUTXR1
Producer product family - Enterprise Rack-Mountable SFP/LTE Router
Producer product name - RUTXR1
Security - Authentication: Pre-shared key, digital certificates, X.509 certificates Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN: Port and tag based VLAN separation Mobile quota control: Custom data limits for both SIM cards WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter WiFi security: WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
ShortDescription - Teltonika RUTXR1 Router Enterprise 4G LTE Cat6, WiFi Dual Band 802.11ac AC867, 1x WAN + 4x LAN Gigabit, 1x SFP, 2x SIM, VPN, Rack 19"
SIM card - Mini
Software - RutOS (OpenWrt based Linux OS)
Special functions -
Standards - 802.3
Standards - 802.3az
Standards - 802.3u
Standards - 802.11ac
Standards - 802.11b
Standards - 802.11e
Standards - 802.11g
Standards - 802.11n
Standards - 802.11r
System Requirements -
Technical details > Gross weight - 1.823 kg
Technical details > Net weight - 1.633 kg
Technical details > Producer - Teltonika
Technical details > Software type - RutOS
Type - GSM 3G/4G
UMTS network - 850 MHz
UMTS network - 900 MHz
UMTS network - 1800 MHz
UMTS network - 2100 MHz
vendpn - RUTXR1 000000
Warranty - 24
Warranty - 24 month(s)
Weight - 1050 g
Wireless LAN features > Wi-Fi band - 802.11ac
Wireless LAN features > Wi-Fi standards - 802.11b/g/n/ac
