Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - B650 AORUS ELITE AX ICE
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset - AMD B650
code - B650 A ELITE AX ICE
Code - B650 A ELITE AX ICE
Description - GIGABYTE B650 AORUS ELITE AX ICE AMD Socket AM5 Supports AMD Ryzen 7000 Series Processors Unparalleled Performance Twin 12+2+2 Phases Digital VRM Solution Dual Channel DDR5 4*DIMMs with AMD EXPO & Intel XMP Memory Module Support Superfast Storage 1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors Advanced Thermal Design & M.2 Thermal Guard To Ensure VRM Power Stability & 25110 M.2 SSD Performance EZ-Latch PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design Fast Networks 2.5GbE LAN & Wi-Fi 6E Extended Connectivity HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C 10Gb/s Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS Without Installing the CPU, Memory and Graphics Card
DisplayPort Input/Output connectors - 1
EAN - 4719330000000
EAN - 4719331859374
ean - 4719331859374
Eans - 4719331859374
EAN_code - 4719331859374
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x16 slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan, Temperature, Voltage
Features - Power source type - ATX
Features - Product colour - White
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Form Factor - ATX
Frequency speed - 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000 MHz
Full Description Line - AMD B650|SAM5|ATX|DDR5|8000/7800/7600/7200/7000/6800/6666/6600/6400/6200/6000/5600/5200/4800/4400 MHz|Memory slots 4|2xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|3xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|1xMicrophone|4xUSB 2.0|7xUSB 3.2|1xUSB-C|1xRJ45|SATA|SATA 3.0|Video Depending on CPU|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Gross Weight Kg - 2,33
GTIN - 0889523040362
GTIN - 889523040362
GTIN - 4719331859374
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 2
Internal I/O - Total number of SATA connectors - 4
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.gigabyte.com/Motherboard/B650-AORUS-ELITE-AX-ICE#kf
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - AMD B650, Socket AM5, 4 x DDR5, 1 x HDMI, 1 x DisplayPort, Wi-Fi, ATX
LongSummaryDescription - GIGABYTE B650 AORUS ELITE AX ICE Motherboard - Supports AMD Ryzen 8000 CPUs, 12+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
M.2 Expansion slots - 3
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - B650 AORUS ELITE AX ICE
Manufacturer Name - Gigabyte
Manufacturer_code - B650 AORUS ELITE AX ICE
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8000 MHz
Memory - Supported memory clock speeds - 4400,4800,5200,5600,6000,6200,6600,6666,7000,7200,7600,7800,8000 MHz
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5 DIMM
Memory slots - 4
Memory type - DDR5
Microphone Input/Output connectors - 1
Model - B650 AORUS ELITE AX ICE
MPN - B650 AORUS ELITE AX ICE
Name - AM5 Gigabyte B650 AORUS ELITE AX ICE
Name - Gigabyte B650 AORUS ELITE AX ICE
name - GIGABYTE B650 Aorus Elite AX ICE, AMD B650 Mainboard - Sockel AM5, DDR5
Name - GIGABYTE B650 AORUS ELITE AX ICE - Socket AM5 - motherboard (white)
Name - Gigabyte | B650 A ELITE AX ICE | Processor family AMD | Processor socket AM5 | DDR5 DIMM | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Network - WLAN controller model - Realtek RTL8852CE
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 335.00 mm
Package features > Gross height (mm) - 275.00 mm
Package features > Gross width (mm) - 80.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 117 pc(s)
Package features > Paper/Pasteboard - 625.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.68 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 2.33 kg
Packaging data - Package width - 335 mm
PCI-Express 3.0 16x Expansion slots - 2
PCI-Express 4.0 16x Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Maximum internal memory supported by processor - 192 GB
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
Producer - Gigabyte
ProducerCode - B650 AORUS ELITE AX ICE
Producer product name - B650 A ELITE AX ICE
ProductName - B650 AORUS ELITE AX ICE Motherboard - Supports AMD Ryzen 8000 CPUs, 12+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
RAID - SATA 0, 1, 10; NVMe 0, 1, 10

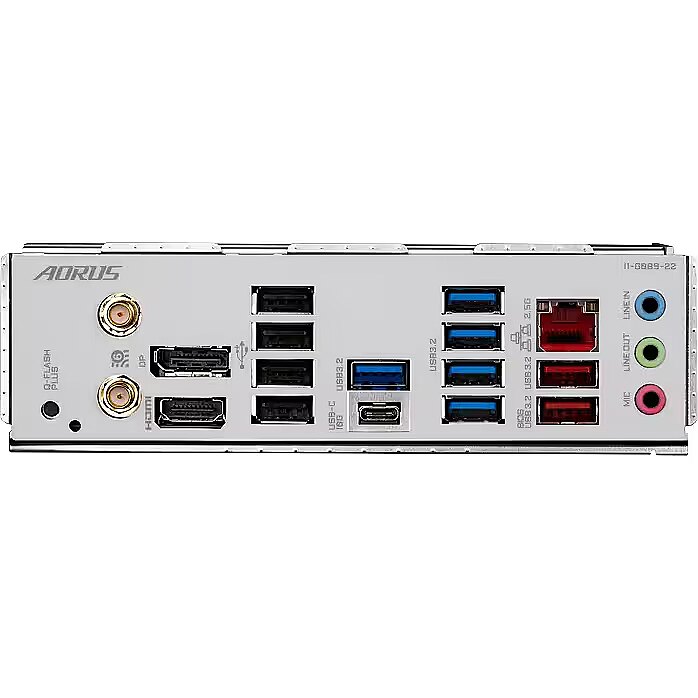

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 5
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 34 cm
Shipping Box Height Shipping/Package Box Dimensions - 8 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2 kg
Shipping Box Width Shipping/Package Box Dimensions - 27 cm
Short description - GIGA B650 AORUS ELITE AX ICE AM5/DDR5/ATX
ShortDescription - Socket AM5 | Chipset AMD B650 | DDR5
ShortSummaryDescription - GIGABYTE B650 AORUS ELITE AX ICE Motherboard - Supports AMD Ryzen 8000 CPUs, 12+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2, AMD, Socket AM5, AMD Ryzen™ 7, Socket AM5, 192 GB, DDR5-SDRAM
Socket - SAM5
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 1.64 kg
Technical details > Net weight - 0.97 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE B650 AORUS ELITE AX ICE Motherboard - Supports AMD Ryzen 8000 CPUs, 12+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
TPM - Header
Unit Box Height - 0.08
Unit Box Length - 0.34
Unit Box Width - 0.27
Unit Brutto Volume - 0.007344 cubm
Unit Gross Weight - 2 kg
Unit Net Weight - 2 kg
URL - https://www.gigabyte.com/es/Motherboard/B650-AORUS-ELITE-AX-ICE#kf
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 3.2 Input/Output connectors - 7
Vendor Homepage - www.gigabyte.com/Motherboard/B650-AORUS-ELITE-AX-ICE#kf
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
Weight - 2,01
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
