Audio port Input/Output connectors - 3
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Bluetooth Interface - Yes
Brand - GIGABYTE
BrandPartCode - B550M AORUS ELITE AX
Category - Motherboards
Category Code - MBA
Chipset - AMD B550
CnCode CnCode - 84733020
Code - B550M AORUS ELITE AX
Description - GIGABYTE B550M AORUS ELITE AX 1.3 + Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 and Ryzen 3000 G-Series Processors + Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs + 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs + Ultra Durable PCIe 4.0 Ready x16 Slot + Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors + Onboard Wi-Fi 6E 802.11ax & BT 5.3 + High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality + Realtek GbE LAN with Bandwidth Management + Rear HDMI & DVI Support + RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips + Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP + Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card + Anti-Sulfur Resistors Design
DVI-D Input/Output connectors - 1
EAN - 4719331855055
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B550
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan, Temperature, Voltage
Features - Product colour - Brown
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Form Factor - Micro-ATX
Frequency speed - 3866/3733/3466/4133/3400/3200/2400/2133/4733/4400/4000/4600/3600/4266/2933/2667 MHz
Full Description Line - AMD B550|SAM4|Micro-ATX|DDR4|4733/4600/4400/4266/4133/4000/3866/3733/3600/3466/3400/3200/2933/2667/2400/2133 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 4x|1xPCI-Express 4.0 16x|2xM.2|1xDVI-D|1xHDMI|4xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Serial|Video Depending on CPU|Audio|LAN Gigabit|RAID SATA 0, 1, 10|TPM Header
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
GTIN - 0889523037294
GTIN - 889523037294
GTIN - 4719331855055
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Serial port headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Link - https://www.gigabyte.com/Motherboard/B550M-AORUS-ELITE-AX-rev-13#kf
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - AMD B550, AMD AM4, 4x DDR4, DVI-D, HDMI, 1G LAN, M.2, SATA III, USB 3.2, PS.2, Mircro ATX, 244x244 mm
LongSummaryDescription - GIGABYTE B550M AORUS ELITE AX Motherboard - Supports AMD Ryzen 5000 CPUs, 5+3 Phases Pure Digital VRM, up to 4733MHz DDR5 (OC), 1xPCIe 4.0 M.2, Wi-Fi 6E, GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C
M.2 Expansion slots - 2
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 4733 MHz
Memory - Supported memory clock speeds - 2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4733 MHz
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR4
Memory slots - 4
Memory type - DDR4
Model - B550M AORUS ELITE AX 1.3
Name - Gigabyte B550M AORUS ELITE AXG13 | Processor family AMD | Processor socket AM4 | DDR4 | Number of SATA connectors 4
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - WLAN controller model - Realtek RTL8852CE
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 335.00 mm
Package features > Gross height (mm) - 80.00 mm
Package features > Gross width (mm) - 270.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 119 pc(s)
Package features > Paper/Pasteboard - 190.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security (OEM)
Realtek 8118 Gaming LAN Bandwidth Control Utility
Packaging content - Cables included - SATA
Packaging data - Package depth - 265 mm
Packaging data - Package height - 65 mm
Packaging data - Package weight - 1.27 kg
Packaging data - Package width - 265 mm
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 3.0 4x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen 3000 Series
Processor - Maximum internal memory supported by processor - 128 GB
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor - Supported processor sockets - Socket AM4
Processor > Processor family - AMD
Processor > Processor socket - AM4
ProductName - B550M AORUS ELITE AX Motherboard - Supports AMD Ryzen 5000 CPUs, 5+3 Phases Pure Digital VRM, up to 4733MHz DDR5 (OC), 1xPCIe 4.0 M.2, Wi-Fi 6E, GbE LAN, USB 3.2 Gen 2
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 10
Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Serial Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 56 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 13 kg
Shipping Box Width Shipping/Package Box Dimensions - 37.5 cm
ShortSummaryDescription - GIGABYTE B550M AORUS ELITE AX Motherboard - Supports AMD Ryzen 5000 CPUs, 5+3 Phases Pure Digital VRM, up to 4733MHz DDR5 (OC), 1xPCIe 4.0 M.2, Wi-Fi 6E, GbE LAN, USB 3.2 Gen 2, AMD, Socket AM4, AMD Ryzen 3000 Series, Socket AM4, 128 GB, DDR4-SDRAM
Socket - SAM4
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - Supported storage drive interfaces - SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 1.15 kg
Technical details > Net weight - 0.95 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - B550M AORUS ELITE AXG13

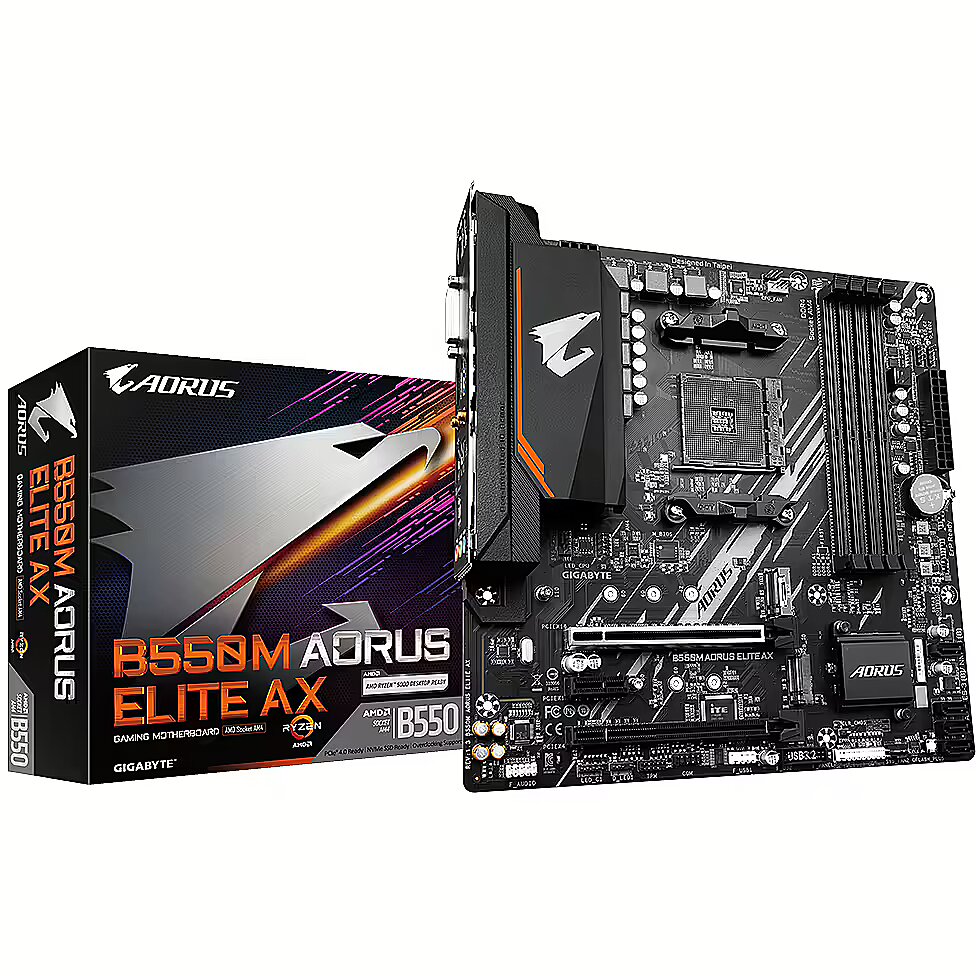

Title - GIGABYTE B550M AORUS ELITE AX Motherboard - Supports AMD Ryzen 5000 CPUs, 5+3 Phases Pure Digital VRM, up to 4733MHz DDR5 (OC), 1xPCIe 4.0 M.2, Wi-Fi 6E, GbE LAN, USB 3.2 Gen 2
TPM - Header
Unit Box Height - 0.07
Unit Box Length - 0.278
Unit Box Width - 0.27
Unit Brutto Volume - 0.0063 cubm
Unit Gross Weight - 1.3 kg
Unit Net Weight - 0.9 kg
URL - https://www.gigabyte.com/Motherboard/B550M-AORUS-ELITE-AX-rev-13#kf
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 4
USB 3.2 Interface - Yes
Vendor Homepage - gigabyte.com/Motherboard/B550M-AORUS-ELITE-AX-rev-13#kf
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 244 mm
WiFi Interface - Yes
