Accessories included -
Brand - ATEN
BrandPartCode - CS1924
Category - KVM Switches
Console Ports - 1x DisplayPort Female
Console Ports - 2x USB Type A Żeński
Console Ports - 4x Audio 3,5mm minijack Female

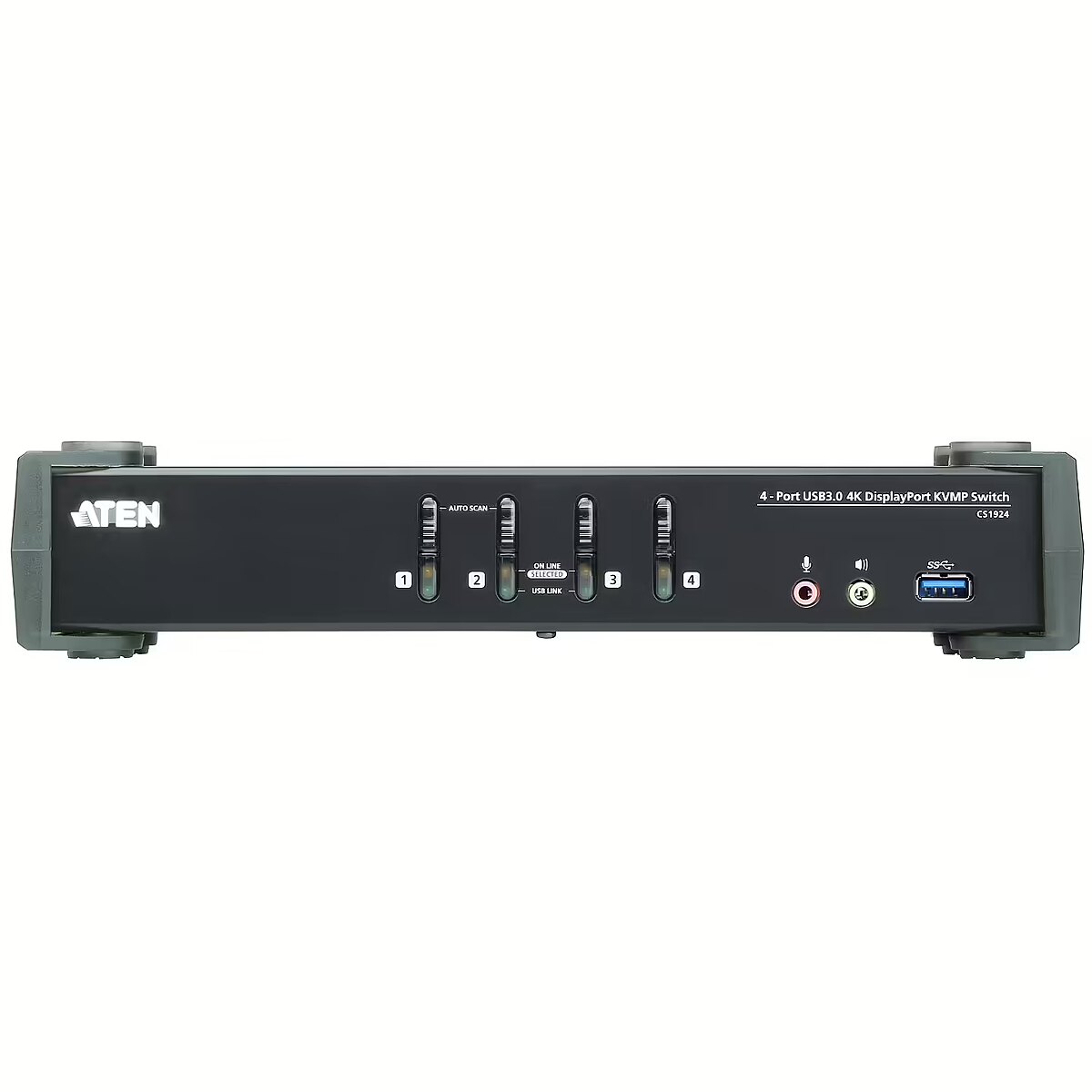

Description - CS1924 4-portowy USB 3.0 4K DisplayPort KVMP Przełącznik zawiera najnowsze innowacje w technologii KVM Desktop przełączania na rosnące zapotrzebowanie na wyższą jakość obrazu i szybkość transferu na nowoczesnych komputerach. ATEN CS1924 oferuje niespotykaną wydajność dostarczania rozdzielczości 4K, koncentrator USB 3.1 Gen 1 nowej generacji z szybkością przesyłania danych SuperSpeed 5 Gb/s oraz ulepszone operacje przyjazne dla użytkownika. Jako przełącznik KVM CS1924 umożliwia użytkownikom dostęp do czterech komputerów DisplayPort z jednej klawiatury USB, myszy USB i konsoli monitora. Czyniąc to z łatwością, CS1924 zapewnia trzy wygodne metody przełączania - użycie przycisków na panelu przednim, myszy lub skrótów klawiszowych w celu elastycznego dostępu do dowolnego komputera podłączonego do instalacji. Unikalna funkcja niezależnego przełączania umożliwia sterowanie KVM na jednym komputerze, podczas gdy urządzenie peryferyjne USB znajduje się na innym komputerze. Eliminuje to potrzebę zakupu oddzielnego koncentratora USB lub autonomicznego urządzenia peryferyjnego - takiego jak serwer druku, rozdzielacz modemu itp. Dzięki bogatemu zestawowi funkcji CS1924 został zaprojektowany tak, aby przekraczać wszystkie wymagania w zakresie projektowania graficznego, animacji i edycji wideo. Takich jak CAD / CAM (projektowanie / produkcja wspomagana komputerowo). CS1924 umożliwia udostępnianie dźwięku z każdego podłączonego komputera. Dźwięk HD przesyłany przez DisplayPort zapewni inne wrażenia.
Design - Housing material - Metal, Plastic
Design - LED indicators - Activity, Link
Design - Product colour - Black
Design - Push button - Yes
dimension depth - 210 mm
dimension height - 330 mm
Dimensions - 27.00 x 8.80 x 5.55 cm
dimension weight - 2500 g
dimension width - 100 mm
Display - Built-in display - No
ean - 4719264644771
GTIN - 0672792403729
GTIN - 672792403729
GTIN - 4719264644771
guarantee - 24
guarantee_type - external
LongDesc - The ATEN CS1924 4-Port USB 3.0 4K DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology for the increasing demand of higher video quality and transfer speeds on modern computers. The ATEN CS1924 offers an unprecedented performance of delivering 4K resolution, the next generation USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates and enhanced user-friendly operations.As a KVM switch, the CS1924 allows users to access four DisplayPort computers from a single USB keyboard, USB mouse and monitor console. Doing so with ease, the CS1924 provides three convenient switching methods – using front panel pushbuttons, mouse, or hotkeys for flexible access to any computer connected to the installation. The unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a print server, modem splitter, etc. With its rich feature set, the CS1924 is designed to surpass all requirements in graphic design, animation, and video-editing applications. Such as CAD/CAM (computer aided design/manufacturing). The CS1924 allows you to share the audio from each of the connected computers. HD audio transmitted by DisplayPort would offer you a different experience.

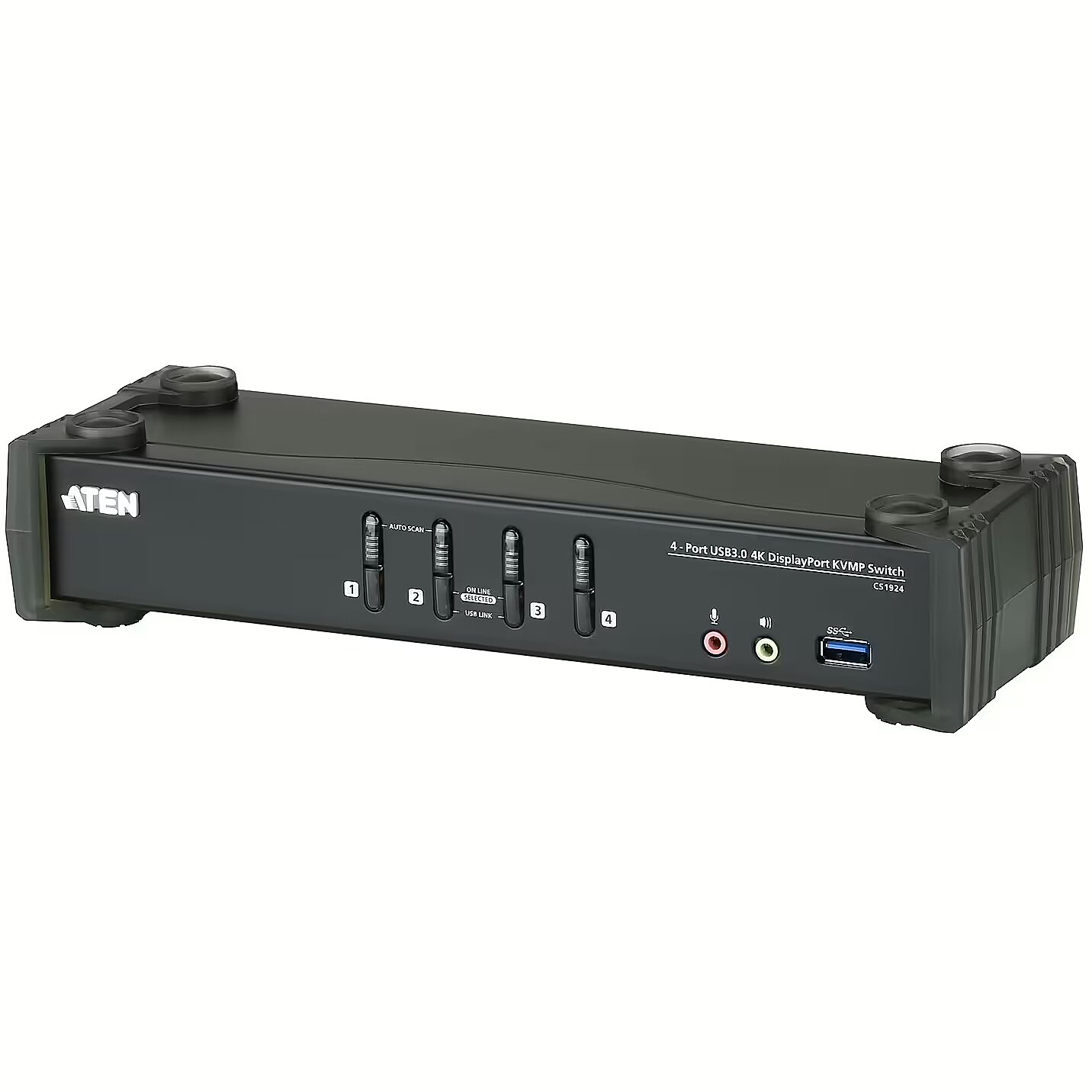

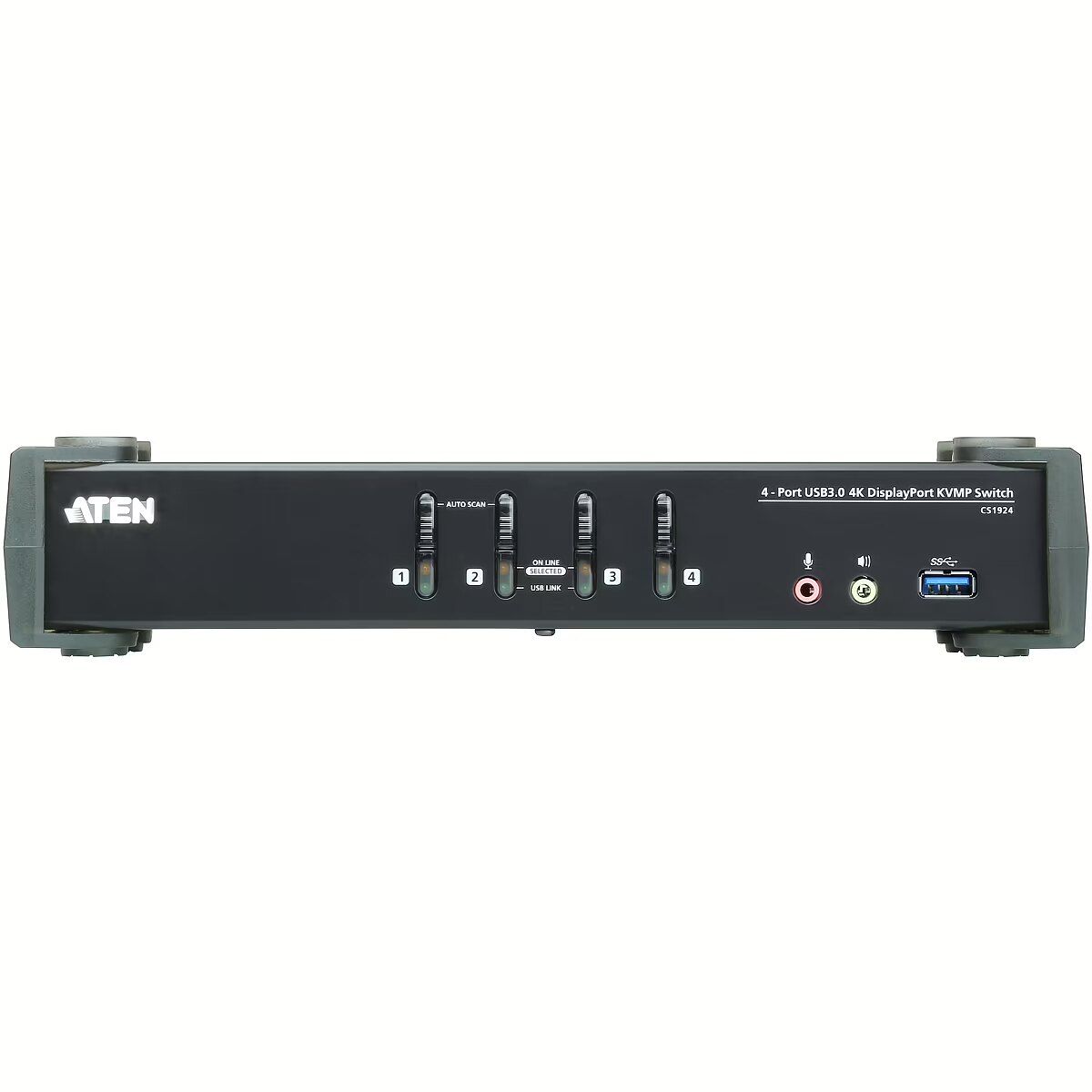

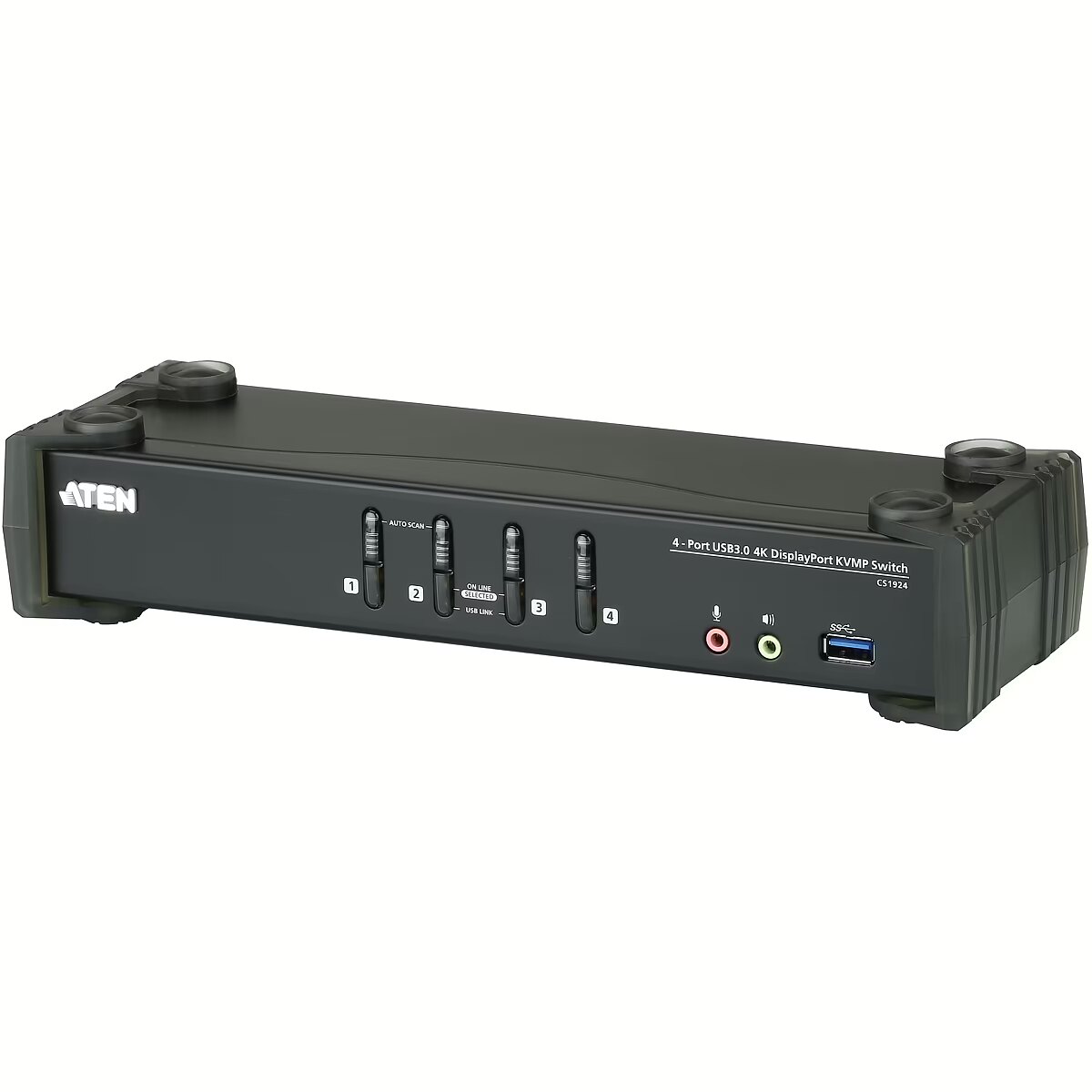

LongProductName - 4-Port USB 3.0 4K DisplayPort KVMP™ Switch (Cables included)
LongSummaryDescription - ATEN 4-Port USB 3.1 Gen 1 4K DisplayPort 1.2 KVMP™ Switch with Audio (KVM cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. Maximum resolution: 4096 x 2160 pixels, Maximum digital resolution: 4096 x 2160 pixels, Scan interval: 1,5,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99 s. Product colour: Black, Housing material: Metal, Plastic, LED indicators: Activity, Link. Windows operating systems supported: Windows 10 Home, Windows 2000, Windows 7 Home Premium, Windows 8, Windows 8.1, Windows Vista Home..., Linux operating systems supported: RedHat EL Linux 6.0, RedHat EL Linux 7.0, SuSE Linux 10, SuSE Linux 10.2, SuSE Linux 10.3, SuSE..., Mac operating systems supported: Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10.... Sustainability certificates: RoHS, Compliance certificates: RoHS
name - 4-Port USB 3.0 4K DP KVMP Switch CS1924-AT-G
Network - Ethernet LAN - No
No. of devices (max) - 4
Operational conditions - Operating relative humidity (H-H) - 0 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features -
Other features - Power requirements - 5V DC

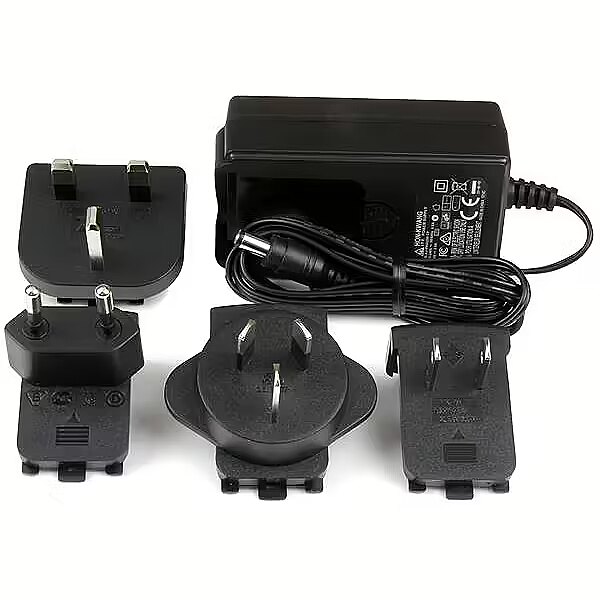

Packaging content - AC adapter included - Yes

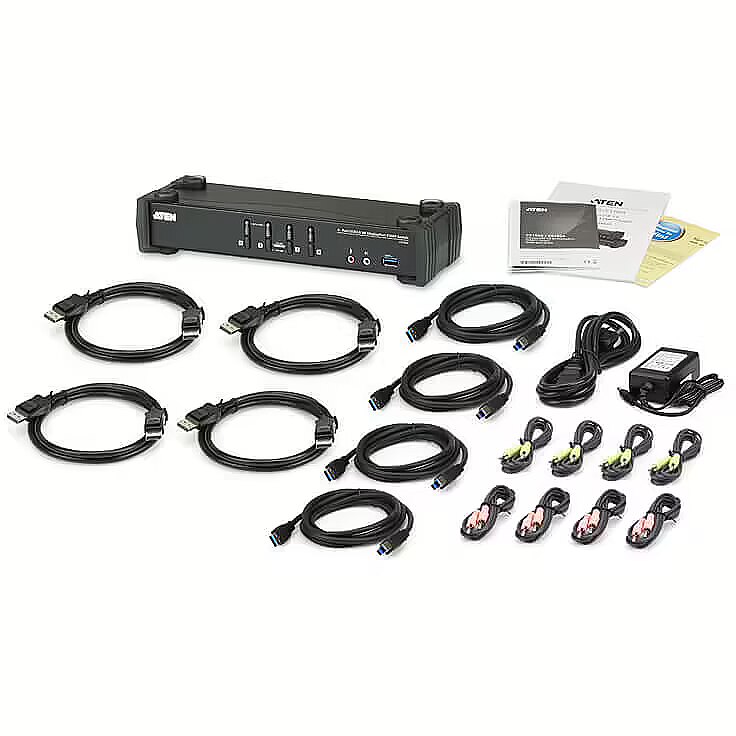

Packaging content - Cables included - Audio (3.5mm), DisplayPort, USB
Packaging content - Manual - Yes

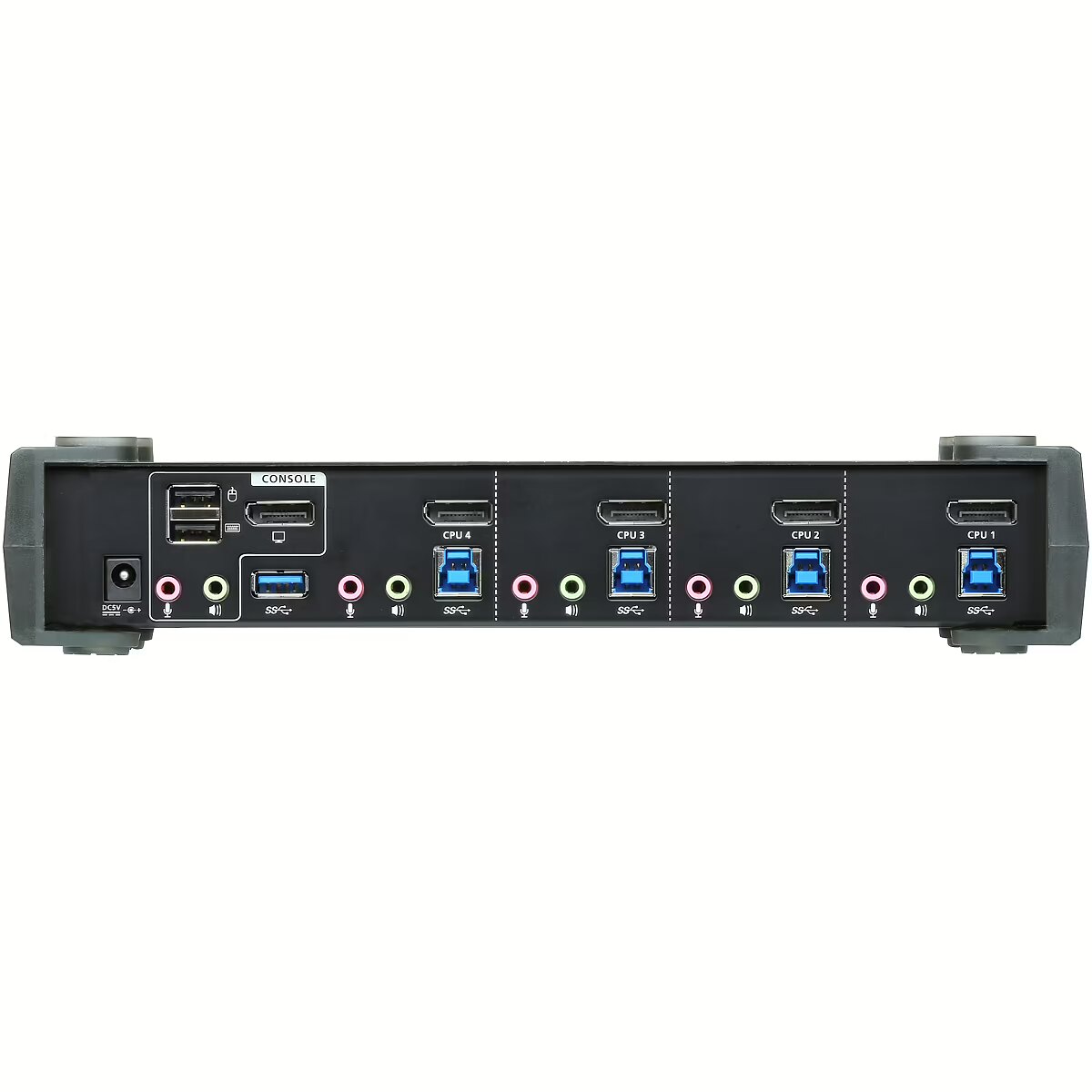

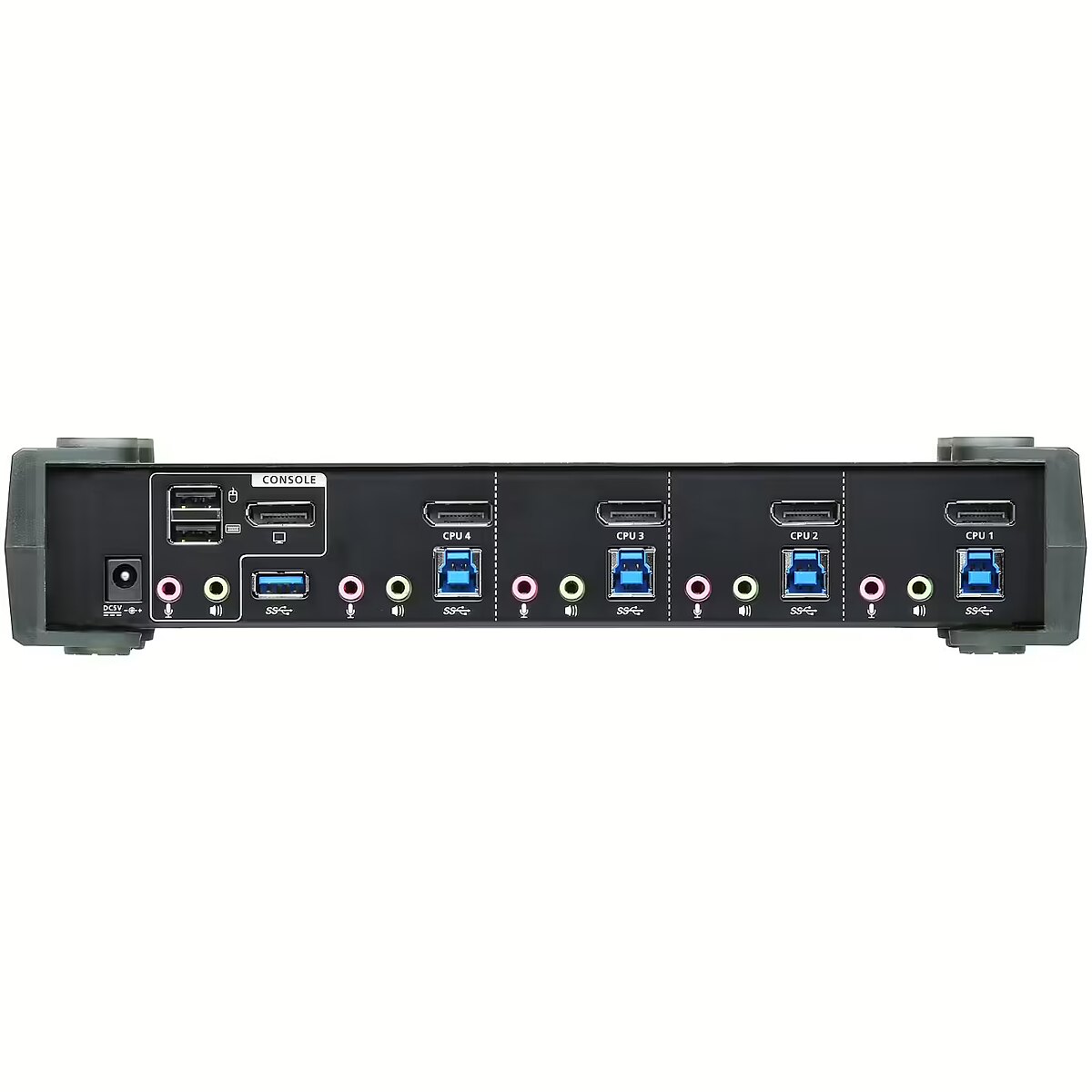

PC connectors - 1x Video D-Sub 15pin Male
PC connectors - 4x DisplayPort Female
PC connectors - 4x USB Type B Female
PC connectors - 8x Audio 3,5mm minijack Female
Performance - Audio channels - 2.1
Performance - HDCP - Yes
Performance - Hot-Plug support - Yes
Performance - Maximum digital resolution - 4096 x 2160 pixels
Performance - Maximum resolution - 4096 x 2160 pixels
Performance - Scan interval - 1,5,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99 s
Ports & interfaces - Audio connections - Yes
Ports & interfaces - Console ports - USB A
Ports & interfaces - Console USB ports quantity - 2
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Display connection - Yes
Ports & interfaces - Headphone outputs - 6
Ports & interfaces - Keyboard port type - USB
Ports & interfaces - Mouse port type - USB
Ports & interfaces - Number of computers controlled - 4
Ports & interfaces - Number of microphone inputs - 6
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity - 6
Ports & interfaces - USB connector type - USB Type-A, USB Type-B
Ports & interfaces - USB hub - Yes
Ports & interfaces - USB version - 3.2 Gen 1 (3.1 Gen 1)
Ports & interfaces - Video port type - DisplayPort
producer - ATEN
ProductName - 4-Port USB 3.1 Gen 1 4K DisplayPort 1.2 KVMP™ Switch with Audio (KVM cables included)
Resolution - 4096 x 2160
ShortSummaryDescription - ATEN 4-Port USB 3.1 Gen 1 4K DisplayPort 1.2 KVMP™ Switch with Audio (KVM cables included), 4096 x 2160 pixels, Black
Supported operating systems - Linux
Supported operating systems - Mac OS
Supported operating systems - Windows
Sustainability - Compliance certificates - RoHS
Sustainability - Sustainability certificates - RoHS
System requirements - Linux operating systems supported - RedHat EL Linux 6.0, RedHat EL Linux 7.0, SuSE Linux 10, SuSE Linux 10.2, SuSE Linux 10.3, SuSE Linux 11, SuSE Linux 11.1, SuSE Linux 11.2, SuSE Linux 12.0, SuSE Linux 9.3
System requirements - Mac operating systems supported - Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
System requirements - Windows operating systems supported - Windows 10 Home, Windows 2000, Windows 7 Home Premium, Windows 8, Windows 8.1, Windows Vista Home Premium, Windows XP Home
Title - ATEN 4-Port USB 3.1 Gen 1 4K DisplayPort 1.2 KVMP™ Switch with Audio (KVM cables included)
URL - https://www.aten.com/global/en/products/kvm/desktop-kvm-switches/cs1924/
vendpn - CS1924-AT-G
WarrantyInfo -
Weight - 0.91 kg
Weight & dimensions - Depth - 270 mm
Weight & dimensions - Height - 55.5 mm
Weight & dimensions - Weight - 910 g
Weight & dimensions - Width - 88 mm
