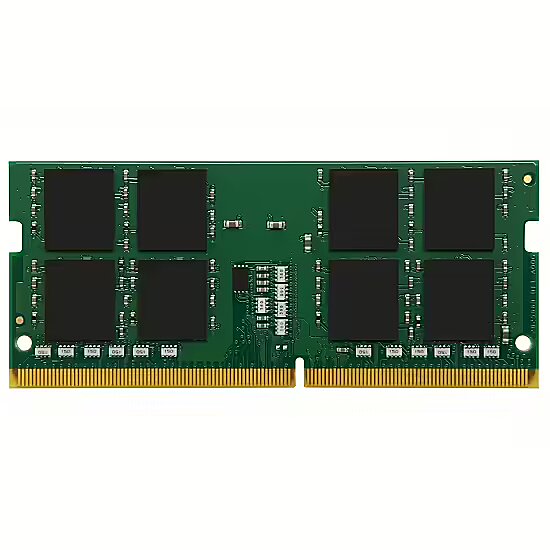

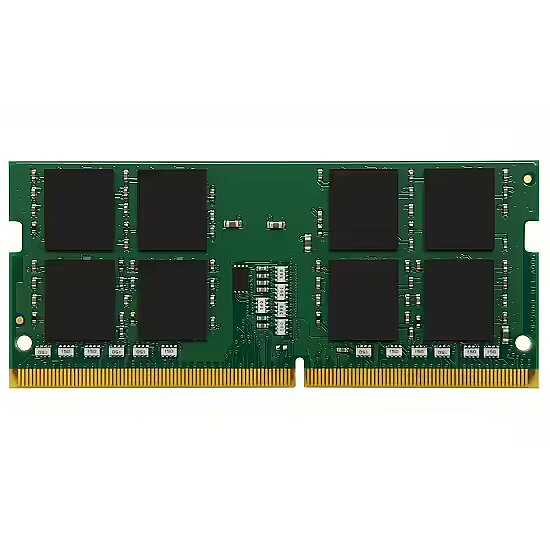

Kingston SODIMM, 8GB, DDR4, 2666MHz, CL19, Single Stick

ARTIKEL1 - 8GB DDR4-2666MHZ NON-ECC CL19
ARTIKEL2 - SODIMM 1RX16
Box Weight Brutto (kg) - 0.44 kg
Brand - Kingston Technology
BrandCode - KINGSTON
BrandPartCode - KVR26S19S6/8
Breite - 0.05
CAS Latency - CL19
Category - Memory Modules
Category - Root/Electronics/PC parts/RAM
Category 1 - Arbeitsspeicher
Category Code - MEB
Category_1 - Computer Memory
Category_2 - DDR4-2666
Chip Organization - 64Mx16
CL - 19
Code - KVR26S19S6/8
Compliant Devices - Notebook Other
Description - 8GB 1Rx16 1G x 64-Bit PC4-2666 CL19 260-Pin SODIMM
Description - Pamięć ValueRAM KVR26S19S6/8 w formacie 1G x 64-bit (8GB) DDR4-2666 CL19 SDRAM, 1Rx16, moduł pamięci, oparta na czterech komponentach 1G x 16-bit FBGA.
Desktop - motherboard type -
dimensionalWeight - 8
dimension depth - 10 mm
dimension height - 80 mm
dimension weight - 2 g
dimension width - 40 mm
EAN - 740617311341
ean - 740617311341
EAN - 0740617311341
EAN Code - 740617311341
EANCode - 0740617311341
Eans - 0740617311341
EAN_code - 0740617311341
ECC support - No
Features - Buffered memory type - Unregistered (unbuffered)
Features - CAS latency - 19
Features - Component for - Laptop
Features - Component for - PC/Server
Features - ECC - No
Features - Internal memory - 8 GB
Features - Internal memory type - DDR4
Features - JEDEC standard - Yes
Features - Memory clock speed - 2666 MHz
Features - Memory form factor - 260-pin SO-DIMM
Features - Memory layout (modules x size) - 1 x 8 GB
Features - Memory ranking - 1
Features - Memory voltage - 1.2 V
Features - Module configuration - 512M x 64
Features - Programming power voltage (VPP) - 2.5 V
Features - Refresh row cycle time - 350 ns
Features - RoHS compliance - Y
Features - Row active time - 32 ns
Features - Row cycle time - 45.75 ns
Features - SPD profile - Yes
Full Description Line - DDR4|8GB|Number of modules 1|260-pin SO DIMM|CL 19|Nominal voltage 1.2 V|Chip Organization 64Mx16
Gewicht - 0.02
GrossWeight - 0.0160
Group - IT > IT TARVIKUD > ARVUTIKOMPONENDID > MÄLUD
GRUPPE1 - Memory & Processors
GRUPPE2 - Generic Memory
GTIN - 740617311341
GTIN - 0740617311341
guarantee - 0
guarantee_type - perpetual
Height - 0.0050
Height (mm) - 30 mm
HERSTELLER - KINGSTON
Hoehe - 0.01
HSTNUMMER - KVR26S19S6/8
Image - https://content.it4profit.com/pimg/s/resize/750x750x750x750/201026150015124929.jpg
Laenge - 0.1
Length - 0.0450
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - This document describes ValueRAM's KVR26S19S6/8 as a 1G x 64-bit (8GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. This 260-pin SODIMM uses gold contact fingers.
LongProductName - 8 GB, DDR4, 2666MHz, Non-ECC, CL19, 1.2V, Unbuffered, SODIMM, 1R, 16Gbit
LongSummaryDescription - Kingston Technology KVR26S19S6/8. Component for: PC/Server, Internal memory: 8 GB, Memory layout (modules x size): 1 x 8 GB, Internal memory type: DDR4, Memory clock speed: 2666 MHz, Memory form factor: 260-pin SO-DIMM, CAS latency: 19
Manufacturer - Kingston
Manufacturer_code - KVR26S19S6/8
Maximum Non-Operating Ambient Temperature - 100 °C
Maximum Operating Ambient Temperature - 85 °C
Memory > CAS latency - CL19
Memory > Component for - Notebook
Memory > ECC - No
Memory > Internal memory type - DDR4
Memory > Memory clock speed - 2666 MHz
Memory > Memory form factor - 260 Pin SODIMM
Memory > Memory layout (modules x size) - 1x8 GB
Memory > Memory voltage - 1.2 V
Memory > Registered - No
Memory bus frequency - 2666 MHz
Memory Features - Unbuffered Single Rank ODT SPD EEPROM
Memory Form Factor - SODIMM 260-pin
Memory module capacity - 8GB
Memory Modules Quantity - 1
Memory Speed - 2666MHz(PC4-21300)
Memory Technology - DDR4 SDRAM
Memory type - DDR4
Memory type - DDR4
Minimum Non-Operating Ambient Temperature - -55 °C
Minimum Operating Ambient Temperature - 0 °C
Module form factor - 260-pin SO DIMM
MPN - KVR26S19S6/8
name - DDR4 SODIMM 8GB/2666 CL19 1Rx16
Name - Kingston 8GB [1x8GB 2666MHz DDR4 Non-ECC CL19 SODIMM 1Rx16]
Name - Kingston DDR4 - 8 GB -2666 - CL - 19 - Single RAM (KVR26S19S6 / 8, ValueRAM)
Name - Kingston | 8 GB | DDR4 | 2666 MHz | Notebook | Registered No | ECC No
Name - RAM Kingston 8GB DDR4-2666 Notebook
Name - SO 2666 8GB Kingston KVR26S19S6/8
NameInWeb - Kingston ValueRAM 8GB DDR4-2666 Notebook - RAM memory
NetWeight - 0.0150
Nominal Supply Voltage - 1.2 V
Nominal voltage - 1.2 V
Number of memory cards in set - 1
Number of modules - 1
Operational conditions - Operating temperature (T-T) - 0 - 85 °C
Operational conditions - Storage temperature (T-T) - -55 - 100 °C
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 45 mm
Package features > Gross height (mm) - 80 mm
Package features > Gross weight - 0.015 kg
Package features > Gross width (mm) - 8 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 60000 pc(s)
Package features > Paper/Pasteboard - 2.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.01 kg
Package features > Volume (m3) - 0.0000288 m³
Package features > WEEE tax - No
Package Type - Retail
Packs in Box - 25
Pack Weight Brutto (kg) - 0.01 kg
Pack Weight Netto (kg) - 0.05 kg
Performance > Capacity - 8 GB
Pieces in pack - 1
producer - Kingston
Producer - Kingston
producerCode - KVR26S19S6/8
ProducerCode - KVR26S19S6/8
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=200923075029089235&THEME=asbis&LANG=lv
ProductCategory - Atmiņa
ProductCode - KVR26S19S6/8
ProductDescription - Kingston 8GB 2666MT/s DDR4 Non-ECC CL19 SODIMM 1Rx16, EAN: 740617311341
ProductionCountry - CN
productName - Kingston Technology ValueRAM KVR26S19S6/8 memory module 8 GB 1 x 8 GB DDR4 2666 MHz
ProductName - KVR26S19S6/8
productSize - Normal
ProductType - Memory Mobile
Protsessor - protsessor -
Provides Error Checking Method - Non-ECC
Põhimälu - kiirus - 2666 MHz
Põhimälu - mälu - 8 GB
Põhimälu - mälu tüüp - DDR4
Radiator - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 9.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 0.8 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.015 kg
Shipping Box Width Shipping/Package Box Dimensions - 4.5 cm
ShortDescription - 8GB | 1x8GB | 2666MHz | DDR4 | CL19 | SODIMM | 1.2V
ShortDescription - Kingston ValueRAM 8GB is a memory module consisting of 1G x 64-bit PC4-2666 CL19 260-pin SODIMM. It's an excellent choice for those looking to upgrade or enhance their laptop, as it offers a relatively low-cost solution with a large memory capacity. This can help improve computer performance for various tasks, such as multitasking with multiple applications, handling large files, or playing games.
ShortSummaryDescription - Kingston Technology KVR26S19S6/8, 8 GB, 1 x 8 GB, DDR4, 2666 MHz, 260-pin SO-DIMM
sizeX - 95
sizeY - 10
sizeZ - 45
Stck_Kart - 0
Stck_Pal - 0
Storage Capacity - 8 GB
Storno - Y
Sustainability - Doesn't contain - Halogen
Sustainability - Sustainability certificates - RoHS
TariffNo - 85423269
Technical details > Net weight - 0.005 kg
Technical details > Producer - Kingston
Title - Kingston Technology KVR26S19S6/8 memory module 8 GB 1 x 8 GB DDR4 2666 MHz
Total capacity - 8GB
Total memory capacity - 8 GB
Total Storage Capacity - 8 GB
TRAS - 32
TRCD - 19
TRP - 19
Unit Box Height - 0.008
Unit Box Length - 0.095
Unit Box Width - 0.045
Unit Brutto Volume - 3.42e-005 cubm
Unit Gross Weight - 0.015 kg
Unit Net Weight - 0.008 kg
UnitOfMeasureCode - tk
UnitsPerPackage - 1
URL - https://www.kingston.com/unitedkingdom/en/memory/search?partId=KVR26S19S6%2F8
Vendor - KINGSTON
Vendor Homepage - www.kingston.com/dataSheets/KVR26S19S6_8.pdf
vendpn - KVR26S19S6/8
Volume - 0.00002138
Warranty - 60
Warranty - 60 month(s)
Warranty - X months
WarrantyInfo - Lifetime
Warranty Products Returnable - Yes
Warranty Term (month) - 99999 mēneši
warrantyType - W
Warranty validation Criteria - Serial Number
Weight - 0,01
Weight - 0.02
weight - 16
Weight & dimensions - Depth - 2.45 mm
Weight & dimensions - Height - 30 mm
Weight & dimensions - Width - 69.6 mm
Width - 0.0950
Üldised parameetrid - tootja - Kingston
