ARTIKEL1 - 19IN TOUCH PCAP FRAMELESS GLASS
ARTIKEL2 - DESIGNS 10 POINTS 1280X1024 IPS
Brand - iiyama
BrandPartCode - TF1934MC-B7X
Category - Computer Monitors
Design - Glass thickness - 6 mm
Design - Product colour - Black
Display - Aspect ratio - 5:4
Display - Backlight type - LED
Display - Contrast ratio (dynamic) - 1000:1
Display - Display brightness - 350 cd/m²
Display - Display diagonal - 48.3 cm (19")
Display - Display diagonal (metric) - 48 cm
Display - Display number of colours - 16.78 million colours
Display - Display resolution - 1280 x 1024 pixels
Display - Display technology - LED
Display - HD type - SXGA
Display - Horizontal scan range - 31.4 - 80 kHz
Display - LED backlight - Yes
Display - Native aspect ratio - 5:4
Display - Panel type - IPS
Display - Pixel pitch - 0.294 x 0.294 mm
Display - Response time - 14 ms
Display - Screen shape - Flat
Display - Supported graphics resolutions - 1280 x 1024 (SXGA)
Display - Touchscreen - Yes
Display - Touchscreen technology - Projected capacitive system
Display - Touch technology - Multi-touch
Display - Viewable size, horizontal - 30.1 cm
Display - Viewable size, vertical - 37.6 cm
Display - Viewable size diagonal - 48 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EANCode - 4948570118403
Ergonomics - Number of OSD languages - 7
Ergonomics - On Screen Display (OSD) - Yes
Ergonomics - On Screen Display (OSD) languages - German, English, Spanish, French, Italian, Japanese
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - VESA mounting - Yes
Ergonomics - Wall mountable - Yes
Gewicht - 6.4
GRUPPE1 - Displays
GRUPPE2 - Lcd Touchscreen
GTIN - 4948570118403
HERSTELLER - IIYAMA CONSIGNMENT
HSTNUMMER - TF1934MC-B7X
Logistics data - Harmonized System (HS) code - 85285210

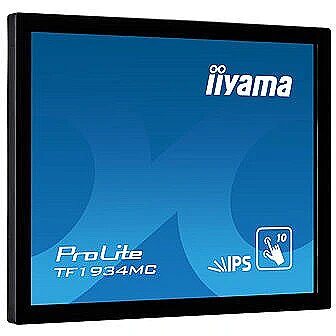

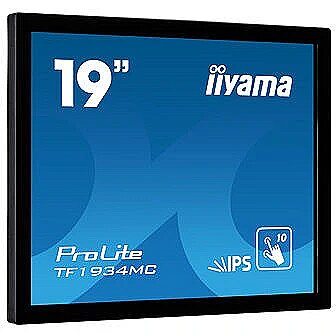

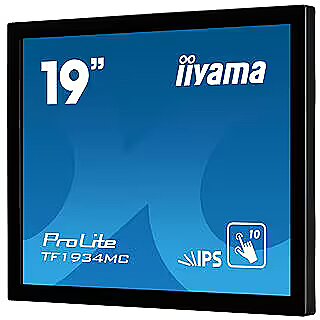

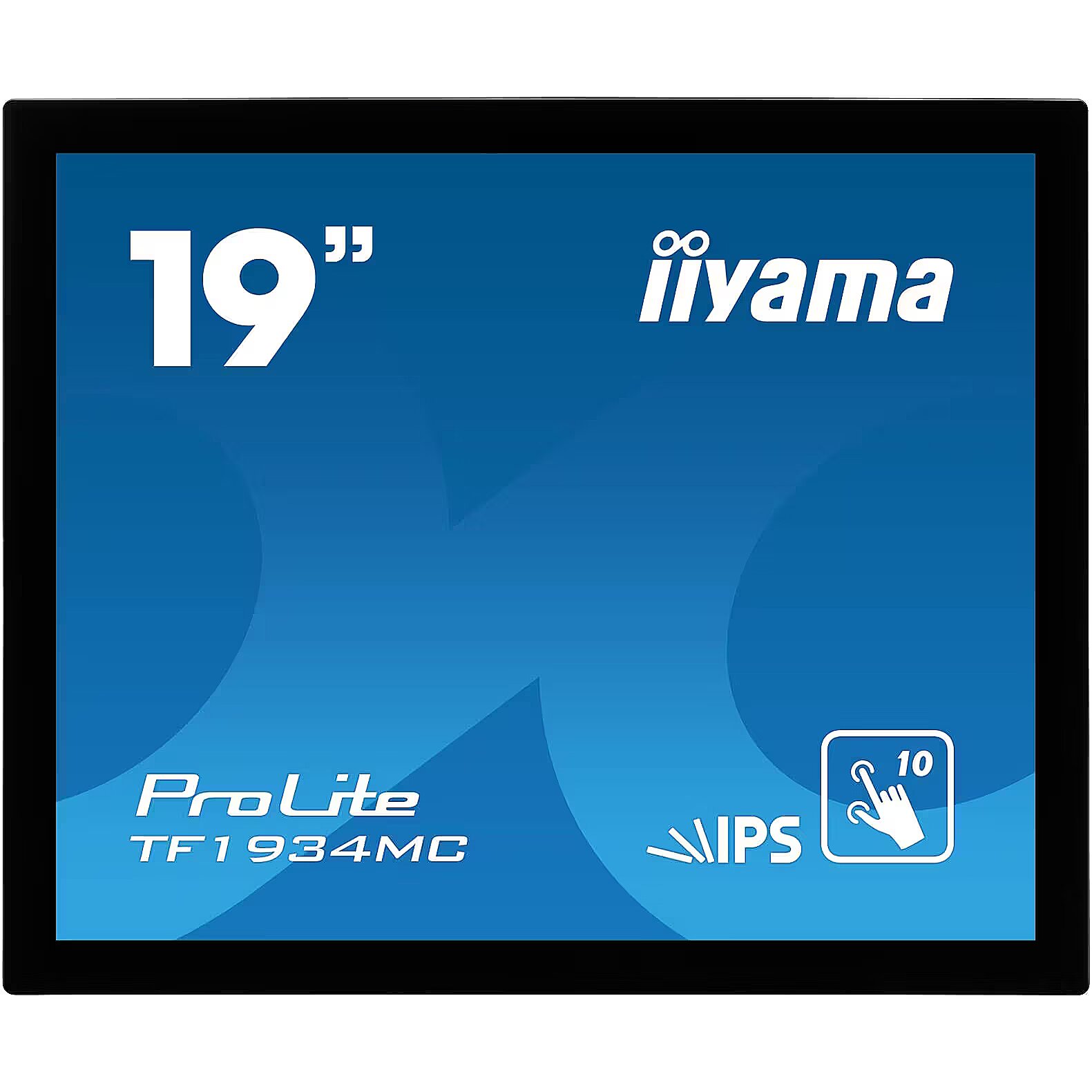

LongDesc - 10pt touch Open Frame monitor with IPS panel and touch through glass functionProLite TF1934MC-B7X uses Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it a perfect interactive display for Interactive Digital Signage. In addition to the superb image quality, the screen comes with an IP65 Rating, making it dust and water resistant. Equipped with a rugged bezel making it suitable for demanding environments. The ProLite TF1934MC-B7X is the ideal screen for the kiosk integrators and a solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations. For ease of integration, the TF1934MC-B7X can be equipped with optional external mounting brackets (OMK1-1) making it an ideal solution for kiosk integrators and Instore Retail.TOUCH TECHNOLOGY - CAPACITIVEThis technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.TOUCH THROUGH-GLASSThis through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.ANTI-FINGERPRINT COATINGThis special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.IPS TECHNOLOGYIPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.SCRATCH RESISTANCEScratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
LongProductName - Open Frame, 19", 1280 x 1024, IPS, 350 cd/m², 14ms, VGA, HDMI, DisplayPort, IP65, 416 x 344 x 46.5 mm, 4.4kg
LongSummaryDescription - iiyama ProLite TF1934MC-B7X. Display diagonal: 48.3 cm (19"), Display resolution: 1280 x 1024 pixels, HD type: SXGA, Display technology: LED, Response time: 14 ms, Native aspect ratio: 5:4, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black
Multimedia - Built-in camera - No
Multimedia - Built-in microphone - No
Other features - Certification - CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, REACH SVHC above 0.1%: Lead
Other features - Connection to PC - Yes
Other features - Display viewable area (HxV) - 376.5 x 301.1 mm
Other features - International Protection (IP) code - IP65
Performance - AMD FreeSync - No
Performance - NVIDIA G-SYNC - No
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - Energy consumption (SDR) per 1000 hours - 18 kWh
Power - Energy efficiency class (SDR) - F
Power - Energy efficiency scale - A to G
Power - European Product Registry for Energy Labelling (EPREL) code - 392527
Power - Power consumption (off) - 1.5 W
Power - Power consumption (standby) - 1.5 W
Power - Power consumption (typical) - 21 W
Power - Power supply type - DC
ProductName - TF1934MC-B7X
ShortSummaryDescription - iiyama ProLite TF1934MC-B7X, 48.3 cm (19"), 1280 x 1024 pixels, SXGA, LED, 14 ms, Black
Stck_Kart - 1
Stck_Pal - 5
Storno - Y
Title - iiyama ProLite TF1934MC-B7X computer monitor 48.3 cm (19") 1280 x 1024 pixels SXGA LED Touchscreen Black
URL - https://iiyama.com/gl_en/products/prolite-tf1934mc-b7x/
WarrantyInfo -
Weight & dimensions - Depth (without stand) - 46.5 mm
Weight & dimensions - Height (without stand) - 344 mm
Weight & dimensions - Weight (without stand) - 4.4 kg
Weight & dimensions - Width (without stand) - 416 mm
