AOC 24P1, 23.8"

15pin D-sub Input/Output connectors - 1
100 mm x 100 mm VESA mounting interface - Yes
Accessories included - HDMI cable
ARTIKEL1 - 24P1 23.8IN IPS
ARTIKEL2 - 1920X1080 4MS BLACK
Aspect ratio - 16:9
Auto Pivot - Yes
Brand - AOC
BrandPartCode - 24P1
Breite - 0.41
Brightness - 250
Brightness - 250 cd/m²
Category - Computer Monitors
Category - Root/Electronics/PC peripherals/Monitors
Category 1 - Displays
Category 2 - Monitore
Category Code - LC3
Category_1 - Monitors and TV
Category_2 - LED Monitors up to 24 inches
Certificates - TCO
Color - Black
Contrast - 1000:1
Data Sheet (Link) - https://eprel.ec.europa.eu/api/product/413378/fiches?language=EN
Depth - 49.4 mm
Depth Unit Dimensions - 202.5 mm
Depth with stand - 202.5 mm
Description - 3-sides borderless 23.8” IPS display with Full HD Sleek and elegant thanks to 3-sides borderless design, achieved thanks to the newest IPS panel in FHD (1920x1080px) resolution. Includes full range of display inputs (VGA, DVI, HDMI, DisplayPort), built-in speakers and improved ergonomic stand with 150 mm height adjustment.
Description - Frameless on 3 sides monitor 23.8 IPS with Full HD
Slim and elegant thanks to the frameless construction from 3 sides and the latest IPS matrix in FHD resolution (1920x1080 pixels). Includes a full set of connectors (VGA, DVI, HDMI, DisplayPort), built-in speaker and improved ergonomic base with height adjustment in the range of 150 mm.
Base with adjustable height
We care about your well-being. That's why this monitor offers options that allow you to adjust the height, which will allow you to get the perfect attitude while working, playing or watching movies. Adjusting the AOC monitor to your needs not only helps reduce fatigue and stay healthy. In the final analysis, it also allows the user and team to achieve better results, regardless of the nature of the work.
IPS Panel
Regardless of whether you are watching pictures, videos, pages layout of the magazine in InDesign or playing your favorite game - we want the image to look perfectly from any angle. That's why this screen is equipped with an advanced IPS sensor that provides clear colors and a wide viewing angle. Thanks to this, the picture is always perfect and accurate, regardless of the angle from which the user - or his friends and colleagues sitting or standing next to him - looks at the screen.
Display Port
As the latest standard for VESA display connectors, DisplayPort also allows you to send audio, connect USB and other storage media. DisplayPort version 1.2-1.2a supports up to 165 Hz with 1440p, 75 Hz with 2160p, version 1.3 supports up to 240 Hz with 1440p, 120 Hz with 2160p, and version 1.4 meets HDR10 requirements.
Integrated U2777PQU loudspeakers
Thanks to the built-in speakers, you can keep in touch with your relatives, friends and colleagues. You do not need to connect external speakers to enjoy watching movies, listening to music, playing games, etc.
IPS matrix
Regardless of whether you are watching pictures, videos, pages layout of the magazine in InDesign or playing your favorite game - we want the image to look perfectly from any angle. That's why this screen is equipped with an advanced IPS sensor that provides clear colors and a wide viewing angle. Thanks to this, the picture is always perfect and accurate, regardless of the angle from which the user - or his friends and colleagues sitting or standing next to him - looks at the screen.
Base with adjustable height
We care about your well-being. That's why this monitor offers options that allow you to adjust the height, which will allow you to get the perfect attitude while working, playing or watching movies. Adjusting the AOC monitor to your needs not only helps reduce fatigue and stay healthy. In the final analysis, it also allows the user and team to achieve better results, regardless of the nature of the work.
Design - Detachable stand - Yes
Design - Feet colour - Black
Design - Front bezel colour - Black
Design - Market positioning - Business
Design - Product colour - Black
dimension depth - 410 mm
dimension height - 750 mm
dimension weight - 6500 g
dimension width - 160 mm
Display - Adobe RGB coverage - 78%
Display - Aspect ratio - 16:9
Display - Backlight type - W-LED
Display - Colour depth - 6 bit
Display - Contrast ratio (dynamic) - 50000000:1
Display - Contrast ratio (typical) - 1000:1
Display - Digital horizontal frequency - 30 - 83 kHz
Display - Display brightness (typical) - 250 cd/m²
Display - Display diagonal - 60.5 cm (23.8")
Display - Display diagonal (metric) - 60.452 cm
Display - Display number of colours - 16.7 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display surface - Matt
Display - Display technology - LED
Display - HD type - Full HD
Display - Horizontal scan range - 30 - 83 kHz
Display - Maximum refresh rate - 60 Hz
Display - Native aspect ratio - 16:9
Display - Panel type - IPS
Display - Pixel pitch - 0.2745 x 0.2745 mm
Display - Response time - 5 ms
Display - Screen shape - Flat
Display - sRGB coverage (typical) - 106%
Display - Supported graphics resolutions - 1920 x 1080 (HD 1080)
Display - Supported video modes - 1080p
Display - Surface hardness - 3H
Display - Touchscreen - No
Display - Vertical scan range - 50 - 76 Hz
Display - Viewable size, horizontal - 52.7 cm
Display - Viewable size, vertical - 29.6 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Displayable colours - 16.7 million
DisplayPort Input/Output connectors - 1
Dot pitch - 0.2745 mm
DVI-D Input/Output connectors - 1
Dynamic contrast - 50 000 000:1
EAN - 4038986146227
ean - 4038986146630
EANCode - 4038986146227
Eans - 4038986146630
EAN_code - 4038986146630
Energy class - E
Energy consumption, standard - 18 kWh/1000h
Energy efficiency class - E
Energy label - Pobierz
EPREL Registration Number - 413378
EPREL Version Number - 8
Ergonomics - Cable lock slot - Yes
Ergonomics - Cable lock slot type - Kensington
Ergonomics - Height adjustment - 15 cm
Ergonomics - Height adjustment - Yes
Ergonomics - Number of OSD languages - 16
Ergonomics - On Screen Display (OSD) - Yes
Ergonomics - On Screen Display (OSD) languages - Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - Pivot - Yes
Ergonomics - Plug and Play - Yes
Ergonomics - Swivel angle range - -175 - 175°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -5 - 35°
Ergonomics - VESA mounting - Yes
Full Description Line - Model 24P1|23.8"|Panel IPS|Resolution 1920x1080|Form factor 16:9|Refresh rate 60Hz|Brightness 250|Contrast 1000:1|Response time 5 ms|Horizontal 178 degrees|Vertical 178 degrees|Displayable colours 16.7 million|1x15pin D-sub|1xDVI-D|1xHDMI|1xDisplayPort|4xUSB 3.0|1xHeadphones jack|Speakers|Swivel|Height adjustable|Tilt|PSU Inbuilt|100 mm x 100 mm
Gewicht - 6.45
GRUPPE1 - Displays
GRUPPE2 - Lcd Monitor
GTIN - 4038986146227
GTIN - 4038986146630
guarantee - 36
guarantee_type - external
HDMI Input/Output connectors - 1
Headphones jack Input/Output connectors - 1
Height - 325.6 mm
Height adjustable Stand - Yes
Height Unit Dimensions - 539.1 mm
Height with stand - 518.9 mm
HERSTELLER - AOC
Hoehe - 0.17
HSTNUMMER - 24P1
I/O connectors - 1 x 3,5 mm minijack
I/O connectors - 1 x 15-pin D-Sub
I/O connectors - 1 x DisplayPort
I/O connectors - 1 x DVI
I/O connectors - 1 x HDMI

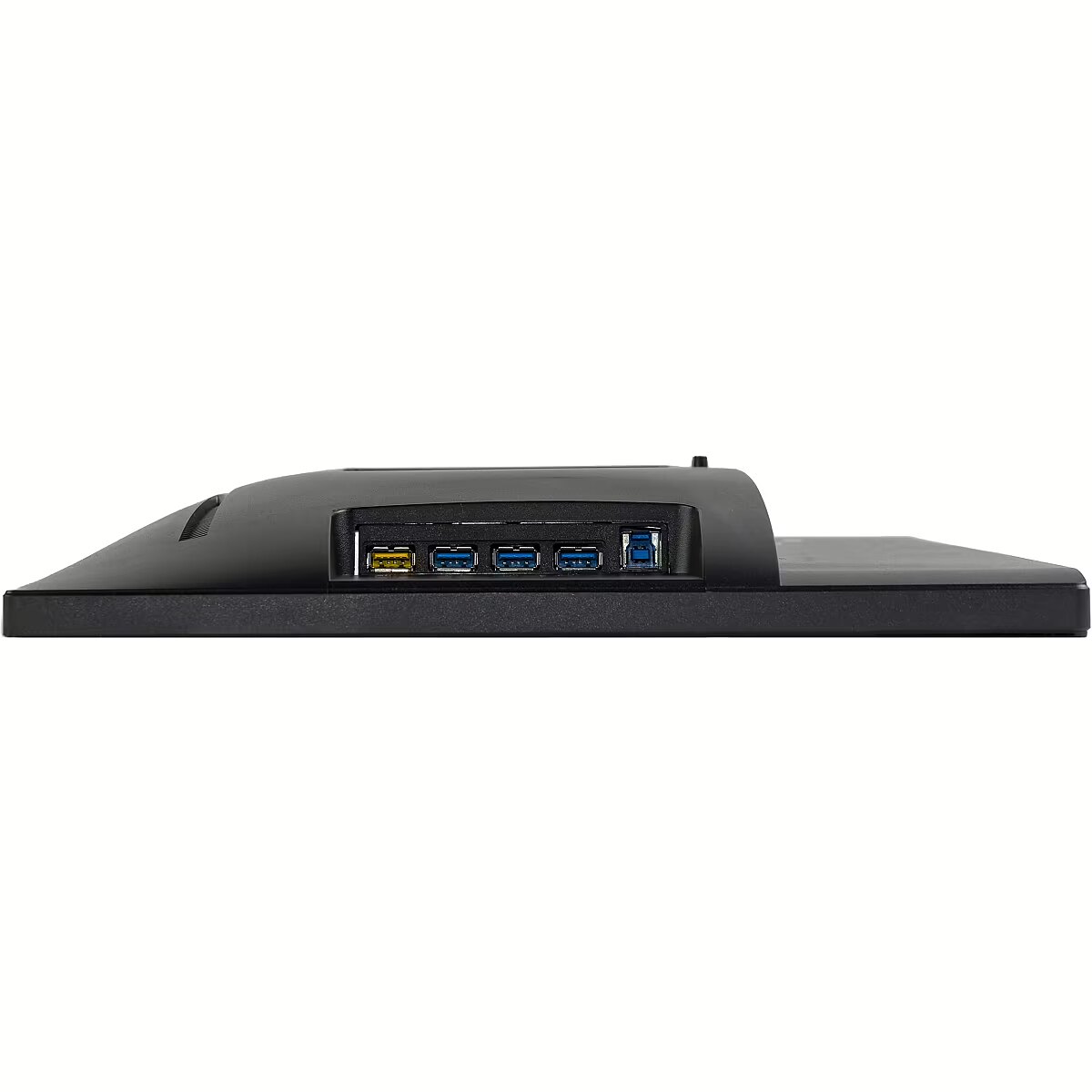

I/O connectors - 4 x USB 3.0
Laenge - 0.75
Logistics data - Harmonized System (HS) code - 85285210
LongDesc - 3-sides borderless 23.8” IPS display with Full HDSleek and elegant thanks to 3-sides borderless design, achieved thanks to the newest IPS panel in FHD (1920x1080px) resolution. Includes full range of display inputs (VGA, DVI, HDMI, DisplayPort), built-in speakers and improved ergonomic stand with 150 mm height adjustment.
LongProductName - Screen size (inch) 23.8, Panel resolution 1920x1080, Refresh rate 60 Hz, Panel type IPS, HDMI HDMI 1.4 x 1, Display Port DisplayPort 1.2 x 1, D-SUB (VGA) 1x, DVI 1x DVI-D
LongSummaryDescription - AOC P1 24P1. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Display surface: Matt, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
Manufacturer - AOC
Manufacturer_code - 24P1
Matrix type - TFT IPS
Model - 24P1
Model name - 24P1
MPN - 24P1
Multimedia - Built-in camera - No
Multimedia - Built-in microphone - No
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of speakers - 2
Multimedia - RMS rated power - 2 W
Name - 60,5cm/24'' (1920x1080) AOC 24P1 IPS 16:9 USB 5ms VGA HDMI DisplayPort Speaker FULL HD Black
Name - AOC 24P1 - 23,8'' | IPS | Full HD
Name - AOC 24P1 - 23.8 - LED - black - IPS - FullHD. HDMI - DisplayPort
name - Monitor 23.8 24P1 IPS DVI DP HDMI Pivot Speakers
Native resolution - 1920x1080
Number of colors - 16,7 mln
Operational conditions - Non-operating altitude - 5000 - 12192 m
Operational conditions - Operating altitude - 0 - 5000 m
Operational conditions - Operating relative humidity (H-H) - 10 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 93%
Operational conditions - Storage temperature (T-T) - -25 - 55 °C
Optional accessory -
Other features - Rotation: -175 ° / + 175 ° Tilting: -5 ° / + 35 ° Height adjustment range: 150mm
Other features - Bezel thickness type - Frameless
Other features - Certification - True
Other features - Compatibility - VESA-P1
Other features - Exterior finish type - Textured
Other features - Heavy metals free - Hg (mercury)
Other features - Light effects - No
Other features - Mean time between failures (MTBF) - 50000 h
Other features - Recyclable packaging material - 100%
Packaging content - Audio cable length - 1.5 m
Packaging content - Cables included - AC, Audio (3.5mm), DVI, DisplayPort, HDMI, VGA
Packaging content - DisplayPort cable length - 1.8 m
Packaging content - HDMI cable length - 1.8 m
Packaging content - Power cable length - 1.8 m
Packaging data - Package depth - 159 mm
Packaging data - Package height - 408 mm
Packaging data - Package type - Box
Packaging data - Package weight - 6.55 kg
Packaging data - Package width - 752 mm
Packaging data - USB cable length - 1.8 m
Panel type - IPS
Performance - Fast charging - Yes
Performance - Flicker-free technology - Yes
Performance - Low Blue Light technology - Yes
Performance - NVIDIA G-SYNC - No
Pixel size - 0.2745 mm
Ports & interfaces - Audio input - Yes
Ports & interfaces - Built-in USB hub - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.2
Ports & interfaces - DVI port - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Headphone out - Yes
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Microphone in - Yes
Ports & interfaces - USB hub version - 3.2 Gen 1 (3.1 Gen 1)
Ports & interfaces - USB Type-A downstream ports quantity - 4
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (SDR) per 1000 hours - 18 kWh
Power - Energy efficiency class (SDR) - E
Power - Energy efficiency scale - A to G
Power - European Product Registry for Energy Labelling (EPREL) code - 413378
Power - Power consumption (off) - 0.23 W
Power - Power consumption (standby) - 0.32 W
Power - Power consumption (typical) - 16.73 W
Power consumption - 16.73 W
Power supply - Inbuilt
producer - AOC
Producer - AOC
ProducerCode - 24P1
ProductName - 24P1
Recycling data - Post-consumer recycled plastic - 85%
Refresh rate - 60Hz
Resolution - 1920 x 1080 (FHD 1080)
Response time - 5 ms
Response time - 5 ms
Screen form factor - 16:9
Screen LED backlight - Yes
Screen size - 23.8"
Screen size (diag.) - 23.8''
Shipping Box Depth Shipping/Package Box Dimensions - 75 cm
Shipping Box Height Shipping/Package Box Dimensions - 41 cm
Shipping Box Weight Shipping/Package Box Dimensions - 6.61 kg
Shipping Box Width Shipping/Package Box Dimensions - 16 cm
ShortDescription - 23,8'' | IPS | Full HD
ShortSummaryDescription - AOC P1 24P1, 60.5 cm (23.8"), 1920 x 1080 pixels, Full HD, LED, 5 ms, Black
Speakers - Yes
Speakers built-in - Yes
Standby consumption - 0.5 Watts
Static contrast - 1 000:1
Stck_Kart - 1
Stck_Pal - 5
Storno - Y
Sustainability - Doesn't contain - PVC/BFR
Sustainability - Sustainability certificates - EPEAT Silver
Swivel Stand - Yes
Technical_details - Screen size: 23.8"/?60.5cm Resolution: 1920x1080, 16:9, 93dpi Brightness: 250cd/?m2 Contrast: 1.000:1 (static), 50.000.000:1 (dynamic) Response time: 5ms Viewing angle: 178°/?178° Panel: IPS Shape: straight Coating: matte (non-glare) Backlight: white-LED, flicker-free, blue light filter Colour depth: 8bit (6bit with FRC) Colour gamut: not specified (sRGB), not specified (Adobe RGB), not specified (DCI-P3), not specified (REC 709) Refresh rate: 60Hz Variable Synchronization: not available Blur reduction: not available Signal frequency: not specified (horizontal), not specified (vertical) Connectors: 1x VGA, 1x DVI, 1x HDMI 1.4, 1x DisplayPort 1.2 Other connectors: not available USB-Hub Out: 4x USB-A 3.0 USB-Hub In: 1x USB-B 3.0 Audio: loudspeaker (2x 2W), 1x Line-Out Ergonomics: 150mm (height), 90° (Pivot), ±175° (rotation), +35°/?-5° (tilting) Colour: black (frame), black (bar), black (pedestal) VESA: 100x100 (occupied) Power consumption: not specified (maximum), 16.73W (typical), 0.5W (standby) Annual consumption: 24.43kWh Energy efficiency class: A+ Power supply: DC In Dimensions (WxHxD): 535x533x203mm (with pedestal), not specified (without pedestal) Weight: 4.60kg (with pedestal), not specified (without pedestal) Special features: slim bezel, mechanical keys, security lock (Kensington) Warranty: three years
Tilt Stand - Yes
Title - AOC P1 24P1 computer monitor 60.5 cm (23.8") 1920 x 1080 pixels Full HD LED Black
Touch screen - No
Transreflective technology - LED
TV tuner built-in - No
Unit Box Height - 0.41
Unit Box Length - 0.75
Unit Box Width - 0.16
Unit Brutto Volume - 0.0492 cubm
Unit Gross Weight - 6.61 kg
Unit Net Weight - 4.6 kg
URL - https://eu.aoc.com/
USB 3.0 Input/Output connectors - 4
Vendor Homepage - eu.aoc.com/en/products/24p1
vendpn - 24P1
VESA - 100 x 100
Viewing angle, horizontal - 178 °
Viewing angle, vertical - 178 °
Viewing angle horizontal - 178 degrees
Viewing angle vertical - 178 degrees
Visible area, horizontal - 527.04 mm
Visible area, vertical - 296.46 mm
Warranty -
Warranty - 36 months
WarrantyInfo - 3 years
Web camera - None
Weight - 4.6 kg
Weight - 6,50
Weight - 6.92
Weight & dimensions - Depth (without stand) - 49.4 mm
Weight & dimensions - Depth (with stand) - 219.5 mm
Weight & dimensions - Height (without stand) - 325.6 mm
Weight & dimensions - Height (with stand) - 518.9 mm
Weight & dimensions - Weight (without stand) - 2.8 kg
Weight & dimensions - Weight (with stand) - 4.6 kg
Weight & dimensions - Width (without stand) - 539.1 mm
Weight & dimensions - Width (with stand) - 539.1 mm
Width - 539.1 mm
Width Unit Dimensions - 518.9 mm
