ARTIKEL1 - OTF1616MC-B1 16IN PCAP
ARTIKEL2 - 156IN PCAP BEZEL FREE 10P TOUCH
Brand - iiyama
BrandPartCode - OTF1616MC-B1
Breite - 0
Category - Signage Displays
Certificates - Certification - CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Design - Orientation - Horizontal/Vertical
Design - Panel mounting interface - 100 x 100 mm
Design - Placement supported - Indoor
Design - Product colour - Black
Design - Product design - Digital signage flat panel
Design - Screen shape - Flat
Design - VESA mounting - Yes
Display - Active display area (W x H) - 345.2 x 194.6 mm
Display - Contrast ratio (typical) - 800:1
Display - Display brightness - 1100 cd/m²
Display - Display diagonal - 39.6 cm (15.6")
Display - Display diagonal (metric) - 39.5 cm
Display - Display number of colours - 16.2 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LCD
Display - Glass thickness - 3.5 mm
Display - HD type - Full HD
Display - Horizontal scan range - 31.5 - 67.5 kHz
Display - Native aspect ratio - 16:9
Display - Native refresh rate - 60 Hz
Display - Number of simultaneous touchpoints - 10
Display - Panel type - VA
Display - Pixel pitch - 0.179 x 0.179 mm
Display - Response time - 25 ms
Display - Surface hardness - 7H
Display - Touchscreen - Yes
Display - Touchscreen technology - Projected capacitive system
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EANCode - 4948570123742
GRUPPE1 - Displays
GRUPPE2 - Lcd Touchscreen
GTIN - 4948570123742
HERSTELLER - IIYAMA CONSIGNMENT
Hoehe - 0
HSTNUMMER - OTF1616MC-B1
Laenge - 0
LongDesc - 15.6" high-brightness touchscreen with 10 touch points PCAP touch technology for semi-outdoor applicationsBuilt into a rugged, edge-to-edge glass bezel the ProLite OTF1616MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It offers a brightness of up to 935 cd/m², the content displayed will be visible even in very bright environments. The anti-glare display is UV resistant and IP65 protected, ensuring durability against sunlight, dust and water resistance from the front, additionally it can operate in temperatures ranging from -20˚C up to +60˚C. The anti-fingerprint coating ensures a smoother touch. A reliable solution for pick-up points and kiosks. A proximity sensor turns off the screen when no one is present, an ambient light sensor adjusts screen brightness, and a temperature sensor controls fan speed for cooling, resulting in energy savings and extended product durability. For ease of integration, the ProLite OTF1616MC-B1 can be equipped with optional external mounting brackets (OMK5-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multi-media.HIGH-BRIGHTNESSThe display offers a brightness of up to 935 cd/m², so that the content displayed on the screen is clearly visible even in very bright environments.
LongProductName - 15.6", 39.5cm, VA, 1920 x 1080, 60 Hz, 25 ms, Black, 345.2 x 194.6mm, projective capacitive, IP65
LongSummaryDescription - iiyama OTF1616MC-B1. Product design: Digital signage flat panel. Display diagonal: 39.6 cm (15.6"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 1100 cd/m², HD type: Full HD, Touchscreen. Product colour: Black
Operational conditions - Operating temperature (T-T) - -20 - 60 °C
Packaging content - Cables included - AC, DisplayPort, HDMI, USB

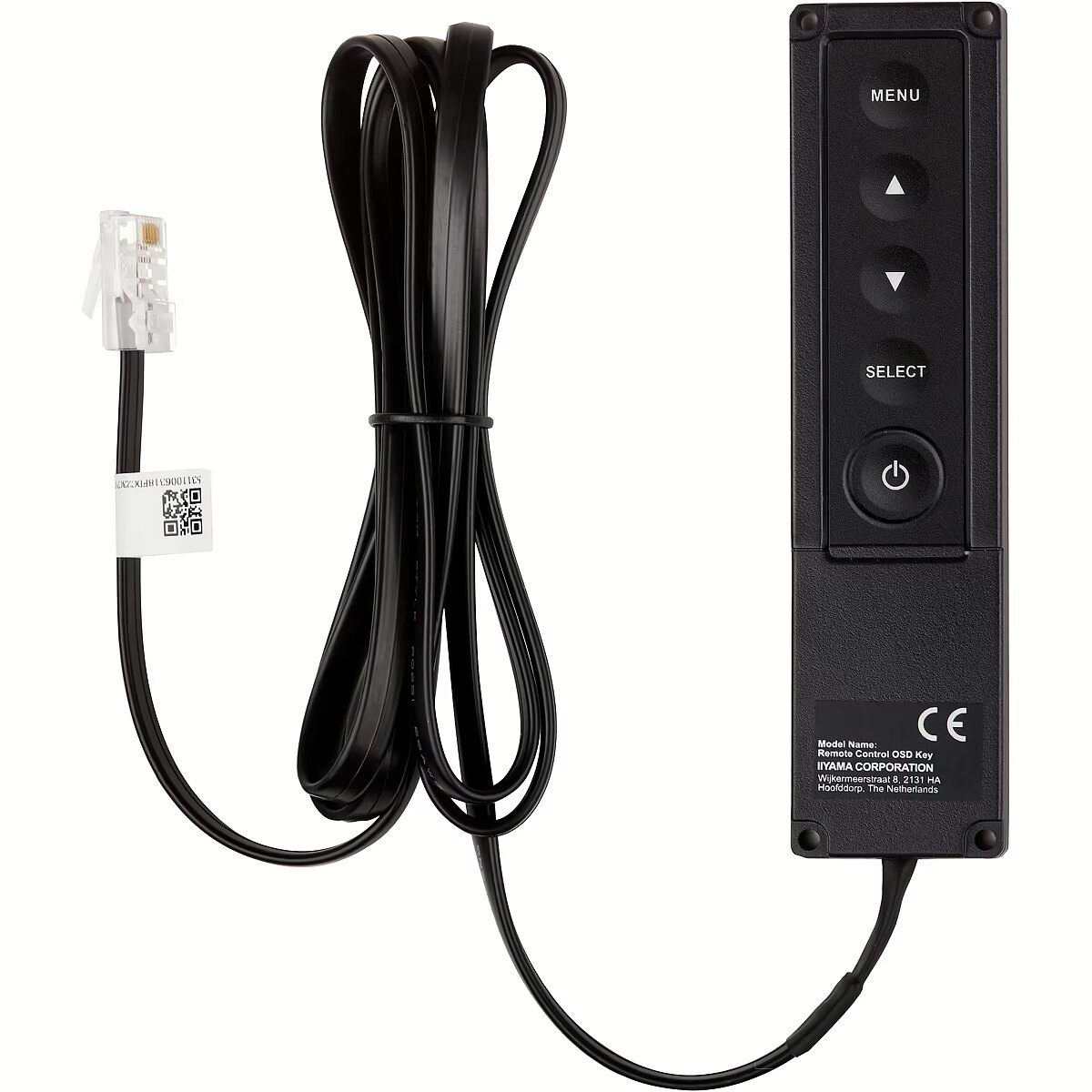

Packaging content - Remote control included - Yes
Packaging data - Package depth - 150 mm
Packaging data - Package height - 370 mm
Packaging data - Package weight - 4.62 kg
Packaging data - Package width - 485 mm
Performance - HDCP - Yes
Performance - International Protection (IP) code - IP65
Performance - Mean time between failures (MTBF) - 60000 h
Performance - Number of OSD languages - 7
Performance - On Screen Display (OSD) - Yes
Performance - On Screen Display (OSD) languages - Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Performance - Purpose - Universal
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DVI port - No
Ports & interfaces - Ethernet LAN - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - HDMI input ports quantity - 1
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces - VGA (D-Sub) input ports - 1
Power - Energy consumption (SDR) per 1000 hours - 11 kWh
Power - Energy efficiency class (SDR) - E
Power - Energy efficiency scale - A to G
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 1.5 W
Power - Power consumption (typical) - 24 W
ProductName - OTF1616MC-B1
ShortSummaryDescription - iiyama OTF1616MC-B1, Digital signage flat panel, 39.6 cm (15.6"), LCD, 1920 x 1080 pixels
Stck_Kart - 1
Stck_Pal - 0
Storno - Y
Title - iiyama OTF1616MC-B1 Signage Display Digital signage flat panel 39.6 cm (15.6") LCD 1100 cd/m² Full HD Black Touchscreen
URL - https://iiyama.com/gl_en/products/prolite-otf1616mc-b1/
WarrantyInfo -
Weight & dimensions - Display depth - 42 mm
Weight & dimensions - Display height - 246 mm
Weight & dimensions - Display weight - 3 kg
Weight & dimensions - Display width - 398.5 mm
