Accessories included - User manual Base assembly instructions Remote control with AAA batteries Power cord 15-pin D-Sub cable Audio cable Screws Package
Aspect ratio - 1:1
Aspect ratio - 4:3
Aspect ratio - 16:9
Auto Pivot - No
Brand - AG Neovo
BrandPartCode - SC-32E
Brightness - 500 cd/m²
Category - Surveillance Monitors
Certificates - CE
Certificates - FCC Class A
Certificates - RoHS
Certificates - WEEE
Color - Black
Depth - 189 mm
Description - Large format monitor SC-32E BLACK
The SC-32 display with 500 nits brightness, 3000: 1 contrast ratio and Full HD 1920 x1080 resolution ensures clear images and high-quality colors. 4ms response time and fast signal switching ensure effective supervision control. The flexibility of VGA, HDMI, BNC and S-Video connections ensures seamless system integration. The comfortable wide viewing angle makes the SC-32 display ideal for security control applications.
Design - Certification - CE, LVD, WEEE, RoHS, REACH, FCC
Design - Mounting type - Freestanding
Design - Product colour - Black
dimensionalWeight - 17919
dimension depth - 210 mm
dimension height - 520 mm
dimension weight - 9500 g
dimension width - 800 mm
Display - Brightness - 350 cd/m²
Display - Display diagonal - 80 cm (31.5")
Display - Display resolution - 1920 x 1080 pixels
Display - Display surface - Matt
Display - Display type - IPS
Display - Display type - LED
Display - Response time - 5 ms
Dot pitch - 0.364 mm
ean - 4710739595796
Energy class - E
Energy label - Pobierz
Frequency, horizontal max. - 80 kHz
Frequency, horizontal min. - 31.5 kHz
Frequency, vertical max. - 75 Hz
Frequency, vertical min. - 50 Hz
GTIN - 4710739595796
guarantee - 36
guarantee_type - normal
Height - 503.8 mm

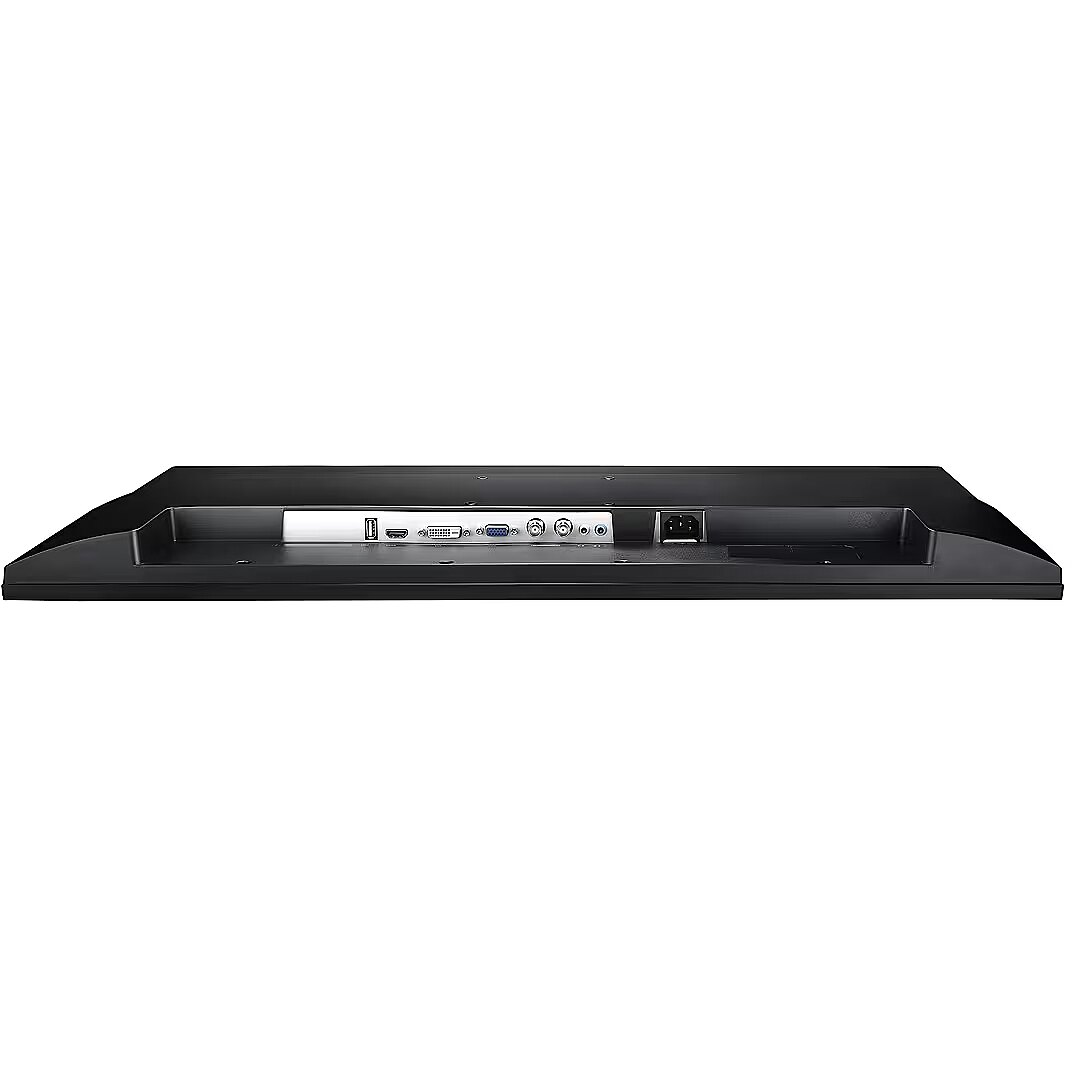

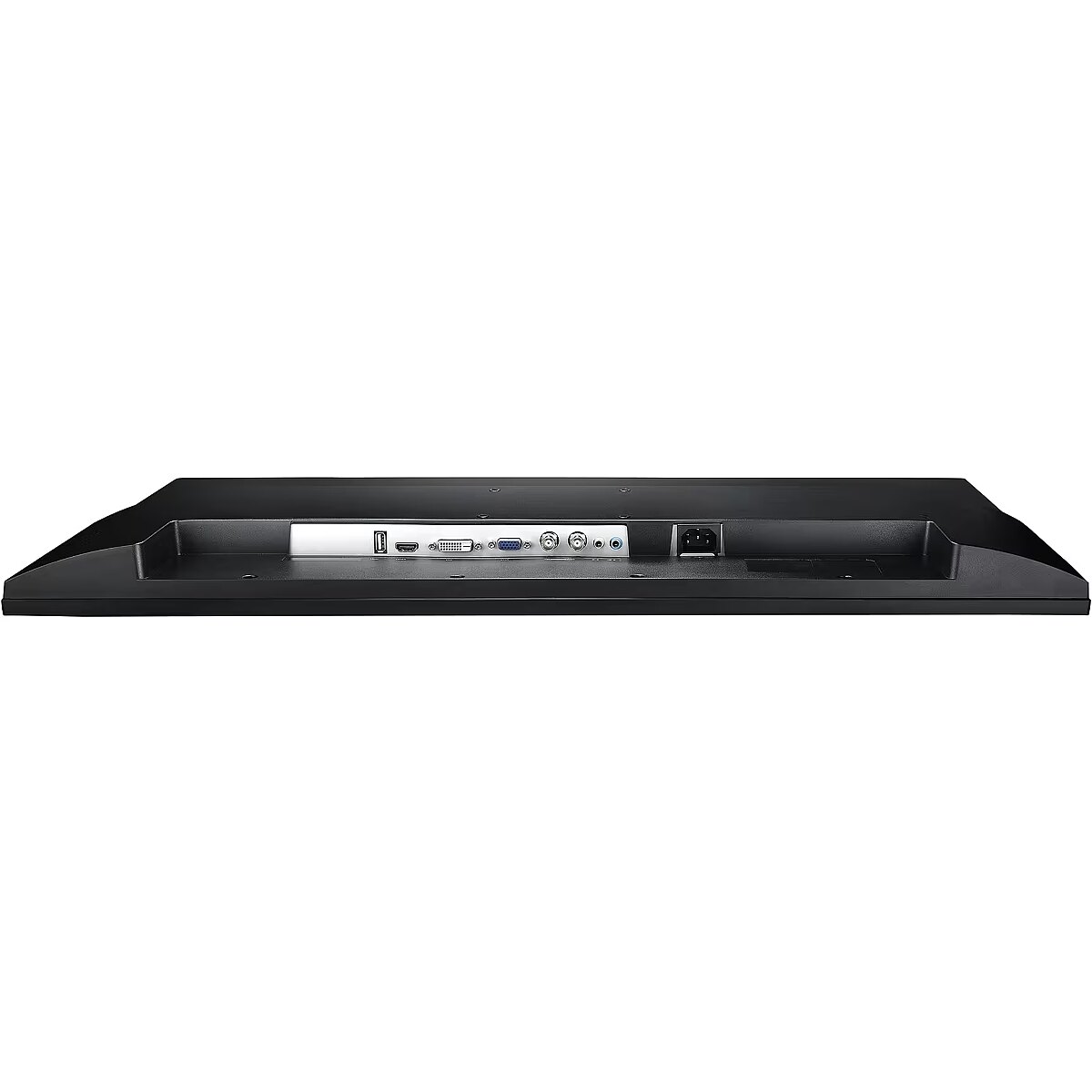

I/O connectors - 1 x 15-pin D-Sub
I/O connectors - 1 x BNC (Video)
I/O connectors - 1 x HDMI
I/O connectors - 1 x Mini-DIN-4 (S-Video)
LongDesc - The SC-Series surveillance displays designed for 24/7 operation feature Anti-Burn-in™ technology which prevents image retention while performing nonstop in security and surveillance environments. The series also includes enhanced image quality and settings control such as gamma curve selection, black-level adjustment, contrast enhancer and CCTV mode that help create richer images even under unfavourable lighting conditions coming from low light surveillance footage.Industry-leading ReliabilityThe SC-Series is specially designed to transcend the challenge of enduring 24/7 operations. AG Neovo’s Anti-Burn-in™ technology also prevents image ghosting while performing continuous mission-critical operations.Enhanced Image ClarityDisplays with exceptionally clear images with cutting-edge gamma curve selection, black-level adjustability, and high dynamic contrast ratio 20,000,000:1; the SC-Series can capture darker details and deliver premium images, thereby enhancing image detail quality. A pre-configured CCTV mode has been geared specifically for surveillance control rooms to adjust the display’s video settings such as sharpness, colour temperature, and brightness to maximise image clarity especially in low light surveillance footage at night.Adaptable to Your Environment NeedsWith adaptability in mind, the SC-Series provides an array of configurations designed to help you tailor the display to your surveillance needs. This includes on/off toggles for the blue screen or the power LED and selectable aspect ratios including 16:9, 4:3, 1:1 or even a custom zoom mode which helps accommodate the display to the conditions of your control room regardless of the input signal.
LongProductName - SC-32E 32'' LED-Backlit TFT LCD (VA Technology) 1920 x 1080, 300 cd/m², 5 ms, HDMI, DVI, VGA, Composite, USB, 3W x 2
LongSummaryDescription - AG Neovo SC-32E. Mounting type: Freestanding, Product colour: Black, Certification: CE, LVD, WEEE, RoHS, REACH, FCC. Display diagonal: 80 cm (31.5"), Display resolution: 1920 x 1080 pixels, Display type: LED. Power source type: AC, Energy efficiency class (SDR): E, Energy efficiency scale: A to G. Weight: 5.6 kg, Height: 540.3 mm, Depth: 236.8 mm
Matrix type - TFT-TN
Matrix type - TFT LCD
Model - SC-32E
name - Monitor SC-32E IPS HDMI DVI-D VGA 350cd/m2 5M/S 24/7 BNC SPEAKERS
Operational conditions - Operating temperature (T-T) - 5 - 35 °C
Optional accessory -
Other features -
Packaging content - DFU / User manual - Y
Packaging content - Power supply cable - Yes
Packaging content - Quantity - 1
Packaging content - Remote control included - Yes
Performance - Built-in speaker(s) - Yes
Performance - Number of speakers - 2
Ports & interfaces - Audio input - 3.5mm
Ports & interfaces - Audio output - 3.5 mm
Ports & interfaces - AV input - Yes
Ports & interfaces - BNC input ports - 1
Ports & interfaces - BNC output ports - 1
Ports & interfaces - Cable lock slot - Yes
Ports & interfaces - DVI port - Yes
Ports & interfaces - HDMI - Yes
Ports & interfaces - USB 2.0 connectors - 1
Ports & interfaces - VESA mounting - Yes
Ports & interfaces - VGA (D-Sub) input ports - 1
Power - Energy consumption (SDR) per 1000 hours - 26 kWh
Power - Energy efficiency class (SDR) - E
Power - Energy efficiency scale - A to G
Power - Power source type - AC
Power consumption - 26 W
producer - AG NEOVO
producerCode - SC-32E
productName - AG Neovo SC-32E surveillance monitor 80 cm (31.5") 1920 x 1080 pixels
ProductName - SC-32E
productSize - Normal
Resolution - 1920 x 1080 (FHD 1080)
Response time - 4 ms
Screen size (diag.) - 32"
ShortSummaryDescription - AG Neovo SC-32E, Freestanding, Black, CE, LVD, WEEE, RoHS, REACH, FCC, 80 cm (31.5"), 1920 x 1080 pixels, LED
sizeX - 805
sizeY - 530
sizeZ - 210
Speakers built-in - Yes
Static contrast - 3 000:1
Title - AG Neovo SC-32E surveillance monitor 80 cm (31.5") 1920 x 1080 pixels
Touch screen - No
Transreflective technology - LED
TV tuner built-in - No
URL - https://displays.agneovo.com/gl/products/sc-series
vendpn - SC-32E
VESA - 200 x 100
Viewing angle, horizontal - 178 °
Viewing angle, vertical - 178 °
Warranty -
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Web camera - None
Weight - 9.3 kg
weight - 10760
Weight & dimensions - Depth - 236.8 mm
Weight & dimensions - Height - 540.3 mm
Weight & dimensions - Weight - 5.6 kg
Weight & dimensions - Width - 728.8 mm
Width - 503.8 mm
